VG3456C

Package Contents

Monitor Power Cord Video Cable USB Cable Quick Start Guide

Front View / Rear View / Side View

Front View	Rear and Side View

Letter	Item
A	Display Screen
B	Control Panel Keys
C	USB Downstream

I/O Ports

Number	Item
1	AC IN
2	HDMI
3	DisplayPort
4	USB Type C
5	USB Upstream
6	LAN
7	USB Downstream
8	Audio Out

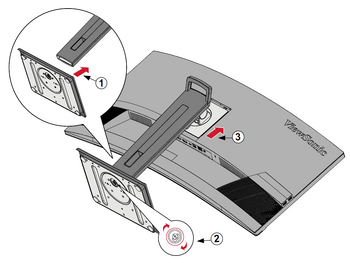

Installing the Stand

1. Place the box on a flat, stable surface, open the front flap of the box, and remove the top tray.
2. Remove the monitor stand’s base and neck. Align and connect the three (3) points on the monitor stand’s base with the monitor stand’s neck.
3. Use the captured screw in the monitor stand’s base and secure it to the monitor stand’s neck.

4. Align and slide the upper hooks of the monitor stand into the stand mounting slots.

Note: Ensure the stand is secure and the quick release tab positively clicks into place.
5. Using the stand’s handle, lift the monitor out of the box and into its upright position on a flat, stable surface.

Note: Always place the monitor on a flat, stable surface. Failure to do so may cause the monitor to fall and damage the monitor and/or result in personal injury.

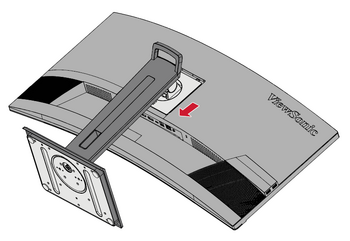

Removing the Stand and Mounting the Monitor

Refer to the table below for the standard dimensions for mounting kits.

Note: For use only with a UL certified mounting kit/bracket. To obtain a wall mounting kit or height adjustment base, contact ViewSonic® or your local dealer.

Maximum Loading	Hole Pattern (W x H)	Interface Pad (W x H x D)	Pad Hole	Screw Specification	Screw Quantity
14 kg	100 x 100 mm	115 x 115 x 2.6 mm	Ø 5 mm	M4 x 10 mm	4 screws

Note: Mounting kits are sold separately.

1. Turn off the monitor and disconnect all cables.
2. Place the monitor on a flat, stable surface with the screen facing down.
3. Push and hold the quick release tab and carefully lift the stand.

4. Pull down slightly to disengage the hooks and remove the stand.

5. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).

6. Follow the instructions that come with the mounting kit to mount the monitor.

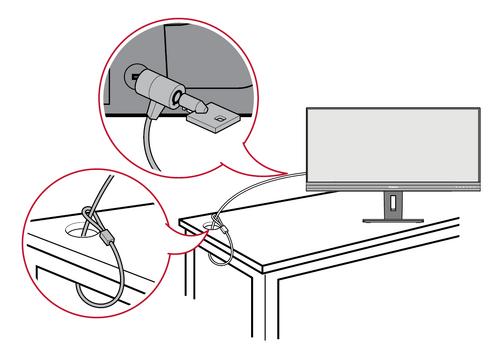

Using the Security Slot

To help prevent the monitor from being stolen, use a security slot locking device to secure the monitor to a fixed object.

Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Below is an example of setting up a security slot locking device on a table.

Connecting to Power

1. Connect the power cord to the AC IN jack at the rear of the device.
2. Plug the power cord plug into a power outlet.

Connecting to Video

HDMI

1. Connect one end of an HDMI cable to an HDMI port of the monitor.
2. Plug the other end of the cable into the HDMI port of your computer.

DisplayPort

1. Connect one end of a DisplayPort cable to the DisplayPort port of the monitor.
2. Plug the other end of the cable into the DisplayPort or Mini DisplayPort port of your computer.
Note: To connect the monitor to the Thunderbolt port (v. 1 & 2) on your Mac, connect the Mini DisplayPort end of a “Mini DisplayPort to DisplayPort cable” to the Thunderbolt output port of your Mac. Then connect the other end of the cable to the DisplayPort port of the monitor.

Type C

1. Connect one end of a USB Type C cable to the rear upstream USB Type C port of the monitor.
2. Plug the other end of the cable into the full-featured USB port of your computer.
NOTE:
• For video output use, make sure your USB Type C output device (e.g., laptop) and cable are full-featured and support video signal transmission.
• When you use Type C as the video signal input source, it is recommended to unplug the DisplayPort and HDMI signals to avoid audio output confusion.

USB Connection

The monitor supports two (2) types of USB ports, upstream and downstream. When making connection(s), observe the following guidelines.

USB Type		Connection Type	Description
	Upstream	Type C	Full-featured port: transfers data, audio, video, and power.
			Supports: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/4.9A (LPS) charging.
		Type B	Transfers data between the computer and the USB devices connected to the monitor.
	Downstream	Type A	For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.).

Using the USB Ports

1. To use the USB downstream ports, connect one end of a USB cable to a rear USB upstream port (Type C or Type B) of the monitor. Plug the other end of the cable into a USB port of your computer.

2. Connect your peripheral device to a downstream USB port of the monitor.

Note: If you are required to connect through either HDMI or DisplayPort, please also use a USB cable to connect to one of the monitor's USB upstream ports (Type C or Type B) to enable data transfer.

Ethernet Connection

1. Connect one end of your LAN (RJ45) cable to the LAN (RJ45) port of the monitor.
2. Plug the other end into your network modem or port.
3. Ensure your computer is also connected to the monitor by a rear USB upstream port (Type C or Type B) of the monitor.

Ethernet Connection When Using USB Type C for Video Input

No further steps are required.

Ethernet Connection When Using DisplayPort or HDMI for Video Input

In addition to the DisplayPort or HDMI connection, please also connect your computer to a rear USB upstream port (Type C or Type B) of the monitor to enable data transfer.

Audio Connection

Plug the audio jack of the audio device into the Audio Out port of the monitor.

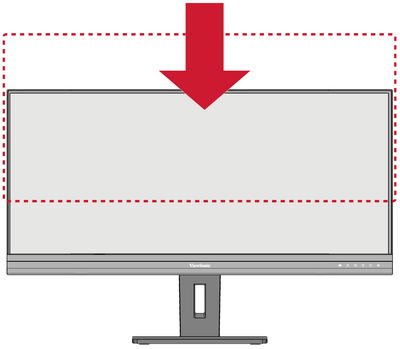

Height Adjustment

Lower or raise the monitor to the desired height (0 to 110 mm).

Note: When adjusting, press down firmly along the adjustment track.

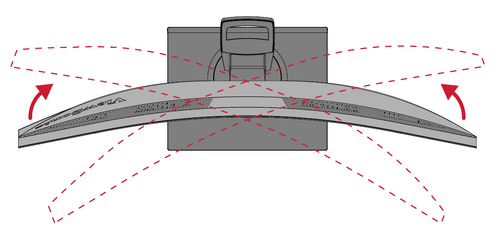

Swivel Angle Adjustment

Swivel the monitor to the left or right for the desired viewing angle (±60˚).

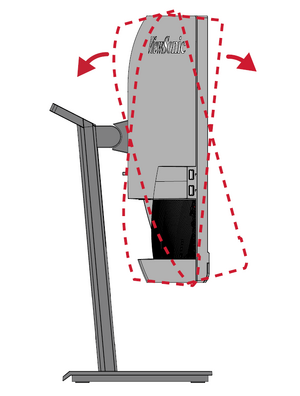

Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (-5° to 40°).

Note: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

Turning the Monitor On/Off

1. Plug the power cord into a power outlet.
2. Press the Power button to turn on the monitor.
3. To turn the monitor off, press the Power button again.
Note: he monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

Using the Control Panel Keys

Use the Control Panel Keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change settings.

Quick Menu

Press the 2/3/4 key to activate the Quick menu.

Note: Follow the key guide that appears on the screen to select the option or make adjustments.

ViewMode

Select one of the preset standard color settings.

Contrast/Brightness

Adjust the contrast or brightness level.

Input Select

Select the input source.

Main Menu

Enter the On-Screen Display (OSD) Menu.

Exit

Exit the Quick Menu

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the Control Panel keys.

Key	Description
2 + 3	Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding the keys for 10 seconds to lock/unlock the OSD Menu. If the OSD Menu is locked, the below message will appear on the screen:
2 + 4	Press and hold the keys to lock/unlock the Power button. When the menu appears on the screen, continue holding the keys for 10 seconds to lock/unlock the Power button. If the Power button is locked, the below message will appear on the screen:
3 + 5	Press and hold the key to display/hide the boot up screen when the device is turned on.

General Operation

1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the On-Screen Display (OSD) Menu.

2. Press the 1 (ViewMode) or 2 key to select the main menu. Then press the 3 key to enter the selected menu.

3. Press the 1 (ViewMode) or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.

4. Press the 1 (ViewMode) or 2 key to adjust/select the setting. Then press the 3 key to confirm.

Note: Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the screen to select the option or make adjustments.

5. Press the 4 key to return to the previous menu.
Note: To exit the OSD Menu, press the 5 key.

On-Screen Display (OSD) Menu Tree

Input SelectAudio AdjustViewModeColor AdjustManual Image AdjustSetup Menu

Sub-menu
HDMI
Displayport
Type C

Sub-menu	Menu Option
Volume	(-/+, 0~100)
Mute	On
	Off

Sub-menu	Menu Option
Off
Office	Web
	Text
	Custom 1/2/3	Low Input Lag	On/Off
		Black Stabilization	(-/+, 0/10/20/30/40/50/60/70/80/90/100)
		Advanced DCR	(-/+, 0/25/50/75/100)
		Response Time	Standard
			Advanced
			Ultra Fast
		Hue	Red	(-/+, 0~100)
			Green	(-/+, 0~100)
			Blue	(-/+, 0~100)
			Cyan	(-/+, 0~100)
			Magenta	(-/+, 0~100)
			Yellow	(-/+, 0~100)
		Saturation	Red	(-/+, 0~100)
			Green	(-/+, 0~100)
			Blue	(-/+, 0~100)
			Cyan	(-/+, 0~100)
			Magenta	(-/+, 0~100)
			Yellow	(-/+, 0~100)
		Rename
		Recall
Movie
MAC
Mono
Game	FPS 1
	FPS 2
	RTS
	MOBA

Sub-menu	Menu Option
Contrast/Brightness	Contrast	(-/+, 0~100)
	Brightness	(-/+, 0~100)
Color Temperature	Bluish
	Cool
	Native
	Warm
	User Color	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
Color Space	Auto
	RGB
	YUV
Color Range	Auto
	Full Range
	Limited Range
Gamma	1.8
	2.0
	2.2
	2.4
	2.6
	2.8

Sub-menu	Menu Option
Sharpness	(-/+, 0/25/50/75/100)
Blue Light Filter	(-/+, 0~100)
Aspect Ratio	4:3
	Full Screen
Overscan	On
	Off

Sub-menu	Menu Option
Language Select	English
	Français
	Deutsch
	Español
	Italiano
	Suomi
	Русский
	Türkçe
	日本語
	한국어
	繁體中文
	简体中文
	Česká
	Svenska
Resolution Notice	On
	Off
Information
OSD Timeout	(-/+, 5/15/30/60)
OSD Background	On
	Off
OSD Pivot	0°
	+90°
	-90°
Power Indicator	On
	Off
Auto Power Off	On
	Off
Sleep	30 minutes
	45 minutes
	60 minutes
	120 minutes
	Off
ECO Mode	Standard
	Optimize
	Conserve
	Energy Saving	On
		Off
	USB Charging	On
		Off
DisplayPort 1.2	On
	Off
DDC/CI	On
	Off
Auto Detect
All Recall

Input Select

1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
2. Press the 1 (ViewMode) or 2 key to select Input Select. Then press the 3 key to enter the Input Select menu.
3. Press the 1 (ViewMode) or 2 key to select the desired input source. Then press the 3 key to confirm the selection.

Audio Adjust

Menu Option	Description
Volume	Adjust the monitor's sound level.
Mute	Turn off the monitor's sound.

1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
2. Press the 1 (ViewMode) or 2 key to select Audio Adjust. Then press the 3 key to enter the Audio Adjust menu.
3. Press the 1 (ViewMode) or 2 key to select the desired option. Then press the 3 key to enter its sub-menu.
4. Press the 1 (ViewMode) or 2 key to adjust/select the setting, and press the 3 key to confirm the selection (if applicable).

ViewMode

Menu Option	Description
Off	Disable the ViewMode function.
Office	Ideal screen settings for office applications.
Movie	Ideal screen settings for watching movies.
MAC	Ideal screen settings when connecting to Mac computers.
Mono	Set the screen to a monochrome, grayscale.
Game	Ideal screen settings for playing games.

1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
2. Press the 1 (ViewMode) or 2 key to select ViewMode. Then press the 3 key to enter the ViewMode menu.
3. Press the 1 (ViewMode) or 2 key to select the setting. Then press the 3 key to confirm the selection.

Color Adjust

Note: Some sub-menus may not be adjustable depending on the user’s custom settings.

Menu Option	Description
Contrast/Brightness	Contrast Adjusts the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image.
	Brightness Adjusts the background black levels of the screen image.
Color Temperature	Menu Option Description Bluish Set the color temperature to 9300K. Cool Set the color temperature to 7500K. Native Default color temperature. Recommended for daily use. Warm Set the color temperature to 5000K. User Set a custom color temperature.
Color Space	Menu Option Description Auto Automatically recognize the input signal's color space. RGB Set the input signal color format as RGB. YUV Set the input signal color format as YUV.
Color Range	Menu Option Description Auto Automatically recognize the input signal's color range. Full Range Black and white levels are full (0~255). Limited Range Black and white levels are limited (16~235).
Gamma	Manually adjust the brightness level of the monitor’s grayscale levels.

1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
2. Press the 1 (ViewMode) or 2 key to select Color Adjust. Then press the 3 key to enter the Color Adjust menu.
3. Press the 1 (ViewMode) or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
4. Press the 1 (ViewMode) or 2 key to select the setting. Then press the 3 key to confirm the selection.
Note: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press the 3 key. Follow the key guide that appears on the screen to select the option or make adjustments.

Manual Image Adjust

Menu Option	Description
Sharpness	Adjust the on-screen image's clarity.
Blue Light Filter	Block high-energy blue light for a more comfortable viewing experience.
Aspect Ratio	Select the on-screen image's width and height.
Overscan	Automatically enlarge the input signal's image horizontally and vertically to an equal aspect ratio that fills the screen.

1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
2. Press the 1 (ViewMode) or 2 key to select Manual Image Adjust. Then press the 3 key to enter the Manual Image Adjust menu.
3. Press the 1 (ViewMode) or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
4. Press the 1 (ViewMode) or 2 key to adjust/select the setting. Then press the 3 key to confirm (if applicable).

Setup Menu

Menu Option	Description
Language Select	Set the language for the OSD Menu.
Resolution Notice	When enabled, a notification message will appear on-screen when the current screen resolution is not the correct native resolution.
Information	View information about the monitor.
OSD Timeout	Set the length of time the OSD Menu remains on screen.
OSD Background	Show/hide the OSD Menu's background when the OSD Menu is on screen.
OSD Pivot	Set the OSD Menu orientation. Menu Option Description 0° Sets the OSD Menu without a pivot. +90° Sets the OSD Menu with a +90° pivot. -90° Sets the OSD Menu with a -90° pivot.
Power Indicator	Turn the power indicator light on or off. When turned on, the power indicator light will be blue when the monitor is turned on.
Auto Power Off	Set the monitor to automatically turn off after a certain amount of time.
Sleep	Set the monitor to enter sleep mode after a certain amount of time.
ECO Mode	Select a power saving mode.
DisplayPort 1.2	Enable/disable DisplayPort 1.2 support.
DDC/CI	Allow monitor control via the connected computer.
Auto Detect	Automatically detect the input signal.
All Recall	Resets all settings to their default values.

1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
2. Press the 1 (ViewMode) or 2 key to select Setup Menu. Then press the 3 key to enter the Setup Menu menu.
3. Press the 1 (ViewMode) or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
4. Press the 1 (ViewMode) or 2 key to adjust/select the setting. Then press the 3 key to confirm (if applicable).
Note: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press the 3 key. Follow the key guide that appears on the screen to select the option or make adjustments.

Technical Specifications

Item	Category	Specifications
Model	P/N.	VG3456C
	No.	VS19216
LCD	Type	a-Si TFT Active Matrix, 3440 x 1440 LCD; 0.23 (H)mm x 0.23 (V)mm pixel pitch
	Display Size	86.4 cm (34" viewable)
	Color Filter	RGB vertical stripe
	Glass Surface	Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal	Video Sync	TMDS digital (100 Ω) DisplayPort: fh:30~155 kHz, fv:50~100 Hz HDMI: fh:30~155 kHz, fv:50~100 Hz Type C: fh:30~155 kHz, fv:50~100 Hz
Compatibility	PC	up to 3440 x 1440
	Macintosh	up to 3440 x 1440
Resolution	Recommended	3440 x 1440 @ 60Hz
	Supported	3440 x 1440 @ 60, 75, 100Hz 2560 x 1440 @ 60, 75, 100Hz 2048 x 1152 @ 60Hz 1920 x 1440 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1080 @ 60, 75Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60, 75Hz 1440 x 576 @ 50Hz 1400 x 1050 @ 60, 75Hz 1366 x 768 @ 60Hz 1360 x 768 @ 60Hz 1280 x 1024 @ 50, 60, 75Hz 1280 x 960 @ 50, 60, 75Hz 1280 x 800 @ 60, 75Hz 1280 x 768 @ 50, 60, 75Hz 1280 x 720 @ 50, 60Hz 1152 x 900 @ 66Hz 1152 x 870 @ 75Hz 1152 x 864 @ 60, 75Hz 1024 x 768 @ 50, 60, 70, 72, 75Hz 1024 x 600 @ 60Hz 848 x 480 @ 60Hz 832 x 624 @ 75Hz 800 x 600 @ 56, 60, 72, 75Hz 720 x 576 @ 50Hz 720 x 480 @ 60Hz 720 x 400 @ 70Hz 640 x 480 @ 50, 60, 66, 72, 75Hz 640 x 400 @ 60, 70Hz 640 x 350 @ 70Hz
Power	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	797.22 x 333.72 mm (31.39” x 13.14”)
Operating Conditons	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	20% to 90% (non-condensing)
	Altitude	10,000 feet (3.048 km)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	5% to 90% (non-condensing)
	Altitude	40,000 feet (12.1 km)
Dimensions	Physical (W x H x D)	935 x 481 x 283 mm (36.8” x 18.9” x 11.1”)
Wall Mount	Dimensions	100 x 100 mm
Weight	Physical	9.2 kg (20.3 lbs)
Power Saving Modes	On	180W (Typical)
	Off	≤ 0.3W (Max)

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-003(B) / NMB-003(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

• Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
• Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada:
https://www.viewsonic.com/us/go-green-with-viewsonic

Europe:
https://www.viewsonic.com/eu/environmental-social-governance/recycle

Taiwan:
https://recycle.moenv.gov.tw/

For EU users, please contact us for any safety/accident issue experienced with this product:

	ViewSonic Europe Limited Haaksbergweg 75 1101 BR Amsterdam Netherlands
	+31 (0) 650608655
	EPREL@viewsoniceurope.com
	https://www.viewsonic.com/eu/

Copyright Information

Copyright© ViewSonic® Corporation, 2023. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

VG3456C_UG_ENG_1a_20230504

---
