Introduction

Package Contents

Monitor
Power cord
Video cable
USB 2-in-1 cable
Quick start guide

Note: The cables included in your package may vary depending on your country or region. Please contact your local reseller for more information.

Product Overview

Front View

Microphone
IR Sensor
RGB Sensor
Webcam
Power LED

Rear View

Joy Key
Power Button
I/O Ports
Rating Label
Security Slot
Cable Management Hole

I/O Ports

The I/O ports of the monitor.
#	Description
1	AC IN
2	HDMI
3	DisplayPort
4	USB Upstream
5	LAN
6	USB Downstream
7	Audio Out

Initial Setup

Installing the Stand

1

2

3

Caution: Place the monitor on a flat, stable surface to ensure safety and optimal performance.

Removing the Stand

1

2

Caution: Before removing the stand, turn off the monitor, disconnect all cables, and place the monitor on a flat, stable surface with the screen facing down.

Mounting the Monitor

After removing the stand, the monitor can be mounted using an optional mounting kit.

Rear of the monitor with the stand removed, showing the 100 × 100 mm VESA mounting hole pattern.

The standard dimensions and loading of mounting kits.
Maximum Loading	Hole Pattern (W × H)	Screw Specification	Screw Quantity
14 kg	100 × 100 mm	M4 × 10 mm	4

Attach the mounting bracket to the VESA mounting holes at the rear of the monitor, securing it with four screws.
Follow the mounting kit instructions to mount the monitor.

Using the Security Slot

A security cable looped around a desk leg and locked into the security slot on the rear of the monitor.

To prevent theft and minimize damage, use a security slot locking device to secure the monitor to a fixed object.

Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Making Connections

Connecting to Power

Connecting to Video

Note:

For video output use, make sure your USB Type C output device (e.g., laptop) and cable support video signal transmission.
When you use Type C as the video signal input source, unplug the DisplayPort and HDMI signals to avoid audio output confusion.

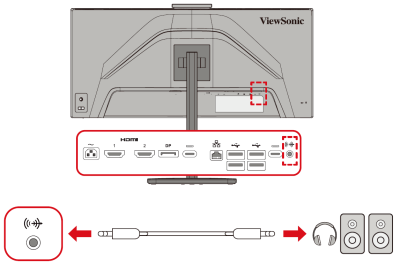

Audio Connection

Note: The monitor is also equipped with dual speakers.

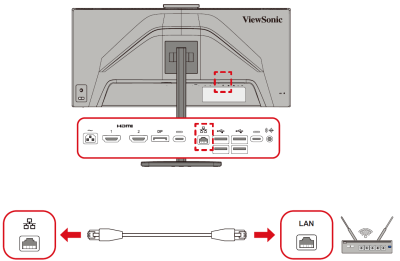

Ethernet Connection

Ethernet Connection.
Mode	Left LED (ACT/LINK)	Right LED (SPEED)
1 Gbit	Off	Flashing Amber
100 Mbit	Flashing Green	Off
10 Mbit	Off	Off

Note:

To enable data transmission via HDMI or DisplayPort, connect your computer to the monitor’s upstream USB Type C port. For more information, refer to USB Connection.
By default, the Ethernet connection is disconnected when the monitor enters Power Saving mode and automatically reconnects after the monitor wakes up. To keep your network active during Power Saving mode, open the OSD Menu, go to Setup Menu > ECO Mode > USB Charging, then select On.

USB Connection

The monitor supports two types of USB ports, upstream and downstream. When making connections, observe the following guidelines.

Rear of the monitor with the USB ports numbered: 1 USB Type C upstream, 2 and 3 USB Type A downstream, and 4 USB Type C downstream.

The USB ports of the monitor.
#	USB Type	Connection Type	Description
1	Upstream	Type C	Transfers audio, video, data, and power. Supports 5V/3A (15W), 9V/3A (27W), 15V/3A (45W), 20V/4.9A (98W) power delivery.
2	Downstream	Type A	For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.). Supports 5V/900mA charging.
3	Downstream	Type A	For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.). Supports 5V/2A charging and BC 1.2.
4	Downstream	Type C	For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.). Supports 5V/3A charging.

Note: To use peripheral devices with the downstream ports, connect your computer to the monitor's USB upstream port.

Using the USB Ports

To use the downstream USB ports, connect one end of a USB Type C cable to the upstream USB Type C port of the monitor. Plug the other end of the cable, into a full-featured USB port of your computer.
Connect your peripheral device(s) to a downstream port of the monitor.

Note: To enable data transmission via HDMI or DisplayPort, connect your computer to the monitor’s upstream USB Type C port.

Using the Monitor

Adjusting the Viewing Angle

Height Adjustment

Lower or raise the monitor to the desired height (0 to 120 mm).

Front of the monitor held on both sides, with arrows showing it moving up and down.

Note: Hold the monitor firmly on both sides and press down along the adjustment track to adjust the monitor.

Swivel Angle Adjustment

Swivel the monitor to the left or right for the desired viewing angle (± 30°).

Top view of the curved monitor held on both sides, with arrows and dashed outlines showing it swiveling left and right.

Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (−6° to 18°).

Side view of the monitor tilting backward up to 18 degrees and forward up to 6 degrees.

Note: To adjust the monitor, support the stand with one hand and gently tilt the screen with the other.

Turning the Monitor On/Off

Note: Even when turned off, the monitor will still consume power when plugged in. Unplug the power cord when not in use for extended periods.

Make sure the monitor is connected to power.
Press the Power button to turn on the monitor.
To turn the monitor off, press the Power button again.

Note: If the On-Screen Display Menu is still on screen, press and hold the Power button for three seconds to turn off the monitor.

Using the Webcam

Using the Privacy Cover

Adjusting the Webcam Viewing Angle

Adjust the viewing angle by tilting the webcam forwards or backwards (−5° to 5°).

A finger tilting the webcam forward or backward, with arrows showing the direction.

Using the Monitor’s Webcam for Windows Hello

You can use Windows Hello facial recognition to sign-in with the monitor’s webcam. For Windows Hello settings, see: Learn about Windows Hello and set it up.

Note: Video quality may vary depending on the webcam settings of your connected device and internet speed.

Using the Joy Key

Use the Joy Key to open the Shortcut Menu, use Hot Keys, navigate the On-Screen Display Menu, and change settings.

Menu Operation

Shortcut Menu

Press the Joy Key up, down, left, or right to open the Shortcut Menu.

Note: Follow the key guide that appears on the screen to select the option or make adjustments.

The Shortcut Menu options.
Menu	Description
Main Menu	Opens the On-Screen Display Menu.
Color Adjust	Sets a preset color option.
ViewMode	Sets a preset display option.
Speaker Mute	Mutes/unmutes the speakers.
Microphone Mute	Mutes/unmutes the microphone.

On-Screen Display Menu

Menu Navigation

Press the Joy Key up, down, left, or right to open the Shortcut Menu. Then navigate to Main Menu and press the Joy Key to open the On-Screen Display Menu.

Press the Joy Key up or down to select a main menu. Then press the Joy Key to open the selected menu.

Press the Joy Key up or down to select a menu option. Then press the Joy Key to open the sub-menu.

Press the Joy Key up or down to adjust values or select an option. Then press the Joy Key to confirm.

Note: Press the Joy Key left to return to previous menus.

Menu Options

Input

Conference Mode

Note: To use the built-in webcam and microphone, connect your device to the monitor’s USB Type C port.

Conference Mode.
Menu Option	Description
Speaker Volume	Adjusts the volume level.
Speaker Mute	Mutes/unmutes the speakers.
Microphone Mute	Mutes/unmutes the microphone.

ViewMode

ViewMode.
Menu Option	Description
Off	Disable the function.
Office	Select this option for office applications.
Movie	Select this option for watching movies.
Mac	Select this option when connecting the monitor to Mac computers.
Mono	Select this option for monochrome.
Game	Select this option for playing games.

Color Adjust

Color Adjust.
Menu Option	Description
Contrast/Brightness	Contrast: Adjusts the difference between the brightest and darkest parts of the image. Brightness: Adjusts how bright or how dark the image will be.
Color Temperature	Selects a color temperature: Bluish, Cool, Native, Warm, or User Color.
Color Space	Selects a color space: Auto, RGB, or YUV.
Color Range	Automatically detects the input signal color range. If colors are not displayed correctly, you can manually adjust the color range options.
Gamma	Adjusts the brightness level of the monitor's grayscale levels.

Manual Image Adjust

Manual Image Adjust.
Menu Option	Description
Sharpness	Adjusts the image’s details.
Aspect Ratio	Selects the aspect ratio of the monitor.
Overscan	Enlarges the original picture horizontally and vertically to an equal aspect ratio that fills the screen.

Setup Menu

Setup Menu.
Menu Option	Description
Language Select	Sets the language for the On-Screen Display (OSD) Menu.
Resolution Notice	Turns on or off the reminder when the current resolution differs from the native.
Information	Shows the monitor’s current status.
OSD Timeout	Sets the length of time the OSD Menu will remain active after the last interaction.
OSD Background	Sets the OSD Menu’s background transparency level.
Power Indicator	Turns on or off the power indicator light.
Auto Power Off	Turns off the monitor automatically after a set period of time once no input signal is detected.
Sleep	Puts the monitor in sleep mode after a set period of time.
ECO Mode	Reduces power consumption and lowers the brightness level.
DisplayPort Version	If the connected device does not support DisplayPort 1.4, the DisplayPort version can be changed to 1.1 or 1.2.
USB 3.2	Selects if the USB Type C port will support USB 2.0 or USB 3.2. On: Supports 3440 × 1440 @ 60 Hz or higher when DisplayPort Version is set to 1.2. Supports up to 3440 × 1440 @ 100 Hz when DisplayPort Version is set to 1.4. Off: Supports up to 3440 × 1440 @ 100 Hz when DisplayPort Version is set to 1.2 or 1.4. Note: Actual resolution and timing depend on your device’s graphics card.
DDC/CI	Allows the monitor to communicate with the connected computer and adjust settings (e.g., brightness) directly from the computer.
Auto Detect	Searches automatically for an available input signal.
All Recall	Returns all settings to their default values.

Note: All Recall is the default display configuration and settings, and it’s the setting required for ENERGY STAR® qualification. Modifying these default settings can increase energy consumption beyond the ENERGY STAR® limits. ENERGY STAR® is a program jointly administered by the U.S. Environmental Protection Agency (EPA) and the U.S. Department of Energy, which promotes energy-efficient products and practices to help save money and protect the environment.

Appendix

Specifications

The monitor's technical specifications.
Category	Specification	Value
Display	Type	VA type, a-si TFT Active Matrix 3440 × 1440 LCD; 0.23175 (H) mm × 0.23175 (V) mm pixel pitch
	Display Size	86.36 cm / 34 in. (viewable)
	Color Filter	RGB Vertical Stripe
	Glass Surface	Anti-Glare (Haze 48%), Hard Coating (3H)
Input Signal	Frequency	DisplayPort	f_h: 30–150 kHz; f_v: 48–100 Hz
		HDMI	f_h: 30–150 kHz; f_v: 48–100 Hz
		Type C	f_h: 30–150 kHz; f_v: 48–100 Hz
	Version
Compatibility	PC	up to 3440 × 1440
	Macintosh	up to 3440 × 1440
Resolution and Timings^[1]	Preset	3440 × 1440 @ 100 Hz
	Supported	3440 × 1440 @ 60, 75, 100 Hz 2560 × 1440 @ 60, 75, 100 Hz 2048 × 1152 @ 60 Hz 1920 × 1440 @ 60 Hz 1920 × 1200 @ 60 Hz 1920 × 1080 @ 50, 60, 75 Hz 1680 × 1050 @ 60 Hz 1600 × 1200 @ 60 Hz 1600 × 900 @ 60 Hz 1440 × 900 @ 60, 75 Hz 1440 × 576 @ 50 Hz 1400 × 1050 @ 60, 75 Hz 1366 × 768 @ 60 Hz 1360 × 768 @ 60 Hz 1280 × 1024 @ 50, 60, 75 Hz 1280 × 960 @ 50, 60, 75 Hz 1280 × 800 @ 60, 75 Hz 1280 × 768 @ 50, 60, 75 Hz 1280 × 720 @ 50, 60 Hz 1152 × 900 @ 66 Hz 1152 × 870 @ 75 Hz 1152 × 864 @ 60, 75 Hz 1024 × 768 @ 50, 60, 70, 72, 75 Hz 1024 × 600 @ 60 Hz 848 × 480 @ 60 Hz 832 × 624 @ 75 Hz 800 × 600 @ 56, 60, 72, 75 Hz 720 × 576 @ 50 Hz 720 × 480 @ 60 Hz 720 × 400 @ 70 Hz 640 × 480 @ 60, 66, 72, 75 Hz 640 × 400 @ 60, 70 Hz 640 × 350 @ 70 Hz
Power^[2]	Input Voltage	AC 100–240V, 50/60 Hz (auto switch)
Audio	Internal Speaker	2W × 2
Display Area	Active Size (H × V)	797.22 × 333.72 mm 31.39 × 13.14 in.
Operating Conditions	Altitude	3.048 km (10,000 ft)
	Relative Humidity	20% to 90% (non-condensing)
	Temperature	0° C to 40° C 32° F to 104° F
Storage Conditions	Altitude	12 km (39,370.1 ft)
	Relative Humidity	5% to 90% (non-condensing)
	Temperature	-20° C to 60° C -4° F to 140° F
Dimensions (with stand)	Physical (W × H × D)	809.7 × 588.5 × 270.2 mm 31.88 × 23.17 × 10.64 in.
Weight (with stand)	Physical	9.5 kg (20.94 lb)
Dimensions (without stand)	Physical (W × H × D)	809.7 × 366.4 × 119.6 mm 31.88 × 14.43 × 4.71 in.
Weight (without stand)	Physical	6.8 kg (14.99 lb)
Wall Mount	Dimensions	100 × 100 mm
Power Consumption	On^[3]	211W (Typical)
	Standby	≤ W (Maximum)
	Off	≤ 0.3 W (Maximum)

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ Please use the power adapter/power cord from ViewSonic® or an authorized source only.
↑ The test condition follows EEI standards.
