    Introduction

    Package Contents

    1. Monitor
    2. Power Cord
    3. Video Cable
    4. Quick Start Guide
    Note: The cables included in your package may vary depending on your country. Please contact your local reseller for more information.

    Product Overview

    • Front View
      Front View

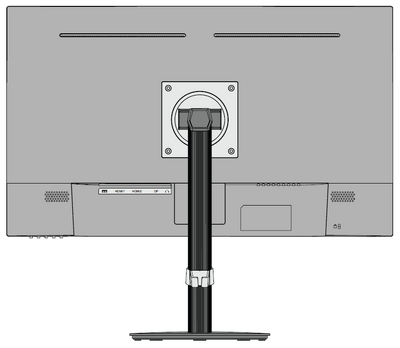

    • Rear View
      Rear View

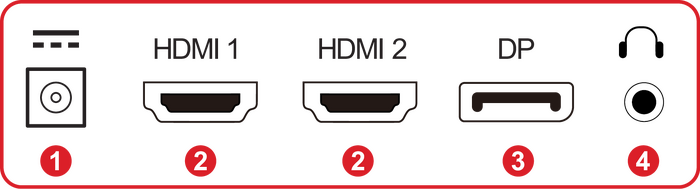

    I/O Ports

    I/O ports
    Number Description
    1 DC IN
    2 HDMI
    3 DP (DisplayPort)
    4 Audio Out
    Note: For more information about the 1 ★ / 2 / 3 / 4 / 5  power switch icon  key and its functions, refer to Hot Keys.

    Initial Setup

    Installing the Stand

    The installation of the monitor's stand
    Note: For safety and to ensure optimal performance, please position the monitor on a flat, stable surface. Failure to do so may lead to the monitor falling, causing damage to the monitor itself and/or posing a risk of personal injury.

    Removing the Stand and Mounting the Monitor

    Refer to the table below for the standard dimensions for mounting kits.
    Note: For use only with a UL certified mounting kit/bracket. To obtain a wall mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
    Maximum Loading Pad Patten
    (W x H)     		Pad Hole Screw Specification Screw Quantity
    14 kg 100 x 100 mm Ø 5 mm M4 x 10 mm 4 screws
    Note: Mounting kits are sold separately.
    the preparation of the monitor for the wall mounting
    Important: Before removing the stand, please turn off the monitor, disconnect all cables, and place the monitor on a flat, stable surface with the screen facing down.
    1. Remove the stand.
    2. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four screws (M4 x 10 mm).
    3. Follow the instructions that come with the purchased mounting kit to mount the monitor.

    Using the Security Slot

    the mounting slots
    To help prevent the monitor from being stolen, use a security slot locking device to secure the monitor to a fixed object.

    Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

    Making Connections

    Connecting to Power

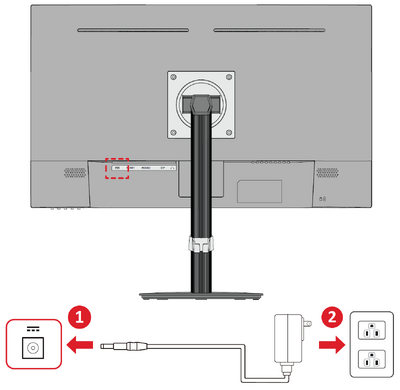

    the location of the AC IN jack
    1. Connect the power adapter to the DC IN jack at the rear of the monitor.
    2. Plug the power cord plug into a power outlet.

    Connecting to External Devices

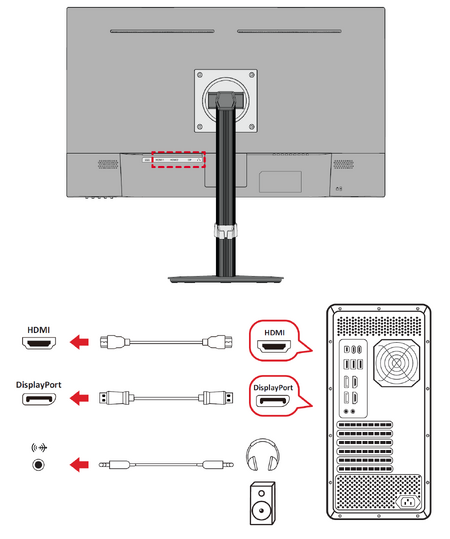

    the connections through HDMI, DP, and Audio Out

    Using the Monitor

    Adjusting the Viewing Angle

    Height Adjustment

    slide upward or downward


    Lower or raise the monitor to the desired height (0 to 130 mm).
    Note: When adjusting, press down firmly along the adjustment track.

    Screen Orientation Adjustment (Monitor Pivot)

    Monitor Pivot
    Monitor Pivot
    Monitor Pivot
    1. Adjust the monitor height to the highest position. Then tilt the monitor backwards to the full tilt position.
    2. Rotate the monitor 90° clockwise or counterclockwise from landscape to portrait orientation.
    Note:
    • When adjusting, make sure to hold both sides of your monitor firmly with both hands.
    • To rotate the screen image, manually change the system’s display orientation settings.

    Swivel Adjustment

    swivel to the left or right


    Swivel the monitor to the left or right for the desired viewing angle (± 360˚).

    Tilt Adjustment

    tile forward or backward


    Tilt the monitor forwards or backwards to the desired viewing angle (-3.5˚ to 28˚).
    Note: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

    Turning the Monitor On/Off

    the location of the Power button
    1. Plug the connected power adapter into a power outlet.
    2. Press the Power    button to turn on the monitor.
    3. To turn the monitor off, press the Power    button again.
    Note: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

    Using the Control Panel Keys

    Use the Control Panel Keys ( 1 ★ / 2 / 3 / 4 / 5   ) to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.
    the location of the Control Panel keys

    Quick Menu

    Press the 1 ★ key to activate the Quick Menu.

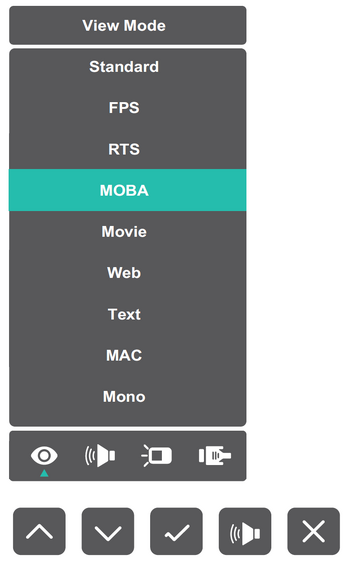

    the ViewMode quick Menu
    Note: Follow the key guide that appears on the screen to select the option or make adjustments.
    Menu Description
    ViewMode ViewMode Select one of the preset color settings.
    Volume Volume Adjust the level, or mute the volume.
    Contrast/Brightness Contrast/Brightness Adjust the contrast or brightness level.
    Input Select Input Select Select the input source.
    Exit Exit Exit the Quick Menu.

    Hot Keys

    When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the Control Panel Keys.
    Key Description
    1 ★ + 2

    Press and hold the keys to lock/unlock the OSD Menu.

    When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu

    OSD Lock/Unlock popup

    If the OSD Menu is locked, the below message will appear on the screen:

    OSD Locked popup message
    2 + 3

    Press and hold the keys to lock/unlock the Power    button.

    When the menu appears on the screen, continue holding the key for 10 seconds to lock/unlock the Power    button.

    Monitor Hot Key Power.png

    If the Power    button is locked, the below message will appear on the screen.

    Monitor Hot Key Power Locked.PNG
    3 + 4

    Press and hold the keys to display/hide the boot up screen when the device is turned on.

    Monitor Hot Key Boot Message.png

    Configuring the Settings

    General Operations

    1. Press the 2 / 3 / 4 key to display the On-Screen Display (OSD) Menu.

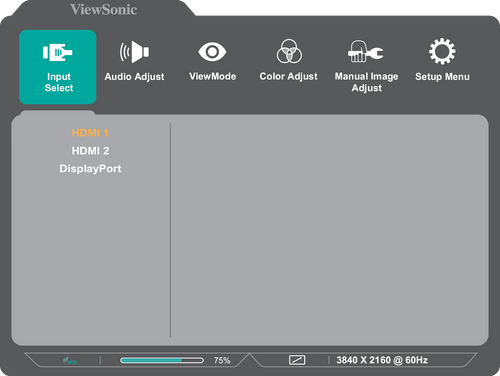

      2. Input Select menu
    2. Press the 1 ★ or 2 key to select the main menu. Then press the 3 key to enter the selected menu.
      3. Color Adjust menu
    3. Press the 1 ★ or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.
      4. the submenu of the Color Adjust menu
    4. Press the 1 ★ or 2 key to adjust/select the setting. Then press the 3 key to confirm.
      5. the Brightness menu option under the COlor Adjust menu
      Note: Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the screen to select the option or make adjustments.
    5. Press the 4 key to return to the previous menu.
      6. Note: To exit the OSD menu, Press the 5 power switch icon key.

    Appendix

    Product Specifications

    Item Category Specifications
    LCD Type IPS, Color a-Si TFT Active Matrix 3840 x 2160 LCD;

    0.1554 (H)mm x 0.1554 (V)mm pixel pitch

    Display Size 68.6 cm
    27” viewable
    Color Filter RGB Vertical Stripe
    Glass Surface Anti-Glare (Haze 25%), Hard Coating (3H)
    Input Signal Video Sync TMDS digital (100 Ω)
    HDMI (v. 2.0): fh: 15~140 kHz, fv: 24~60 Hz
    DisplayPort (v. 1.4): fh: 24~140 kHz, fv: 48~60 Hz
    Compatibility PC up to 3840 x 2160
    Macintosh up to 3840 x 2160
    Resolution and Timings[1] Recommended 3840 x 2160 @ 60 Hz
    Supported
    • 3840 x 2160 @ 50, 60 Hz
    • 2560 x 1440 @ 50, 60 Hz
    • 2560 x 1080 @ 60 Hz
    • 1920 x 1200 @ 50, 60 Hz
    • 1920 x 1080 @ 50, 60 Hz
    • 1680 x 1050 @ 50, 60 Hz
    • 1600 x 1200 @ 60 Hz
    • 1600 x 900 @ 60 Hz
    • 1440 x 900 @ 60 Hz
    • 1400 x 1050 @ 60 Hz
    • 1366 x 768 @ 60 Hz
    • 1360 x 768 @ 60 Hz
    • 1280 x 1024 @ 60 Hz
    • 1280 x 768 @ 60 Hz
    • 1280 x 720 @ 50, 60 Hz
    • 1152 x 720 @ 50, 60 Hz
    • 1024 x 768 @ 60 Hz
    • 960 x 600 @ 50, 60 Hz
    • 848 x 480 @ 60 Hz
    • 800 x 600 @ 60 Hz
    • 768 x 480 @ 60 Hz
    • 720 x 576 @ 50 Hz
    • 720 x 480 @ 60 Hz
    • 640 x 480 @ 60 Hz
    Power[2] Input Voltage AC 100-240V, 50/60 Hz (auto switch)
    Display Area Active Size
    (H x V)     		596.736 x 335.664 mm
    23.49” x 13.21”
    Operating Conditons Altitude 5 km
    16,404.2 ft
    Relative Humidity 20% to 90% (non-condensing)
    Temperature 0° C to 40° C
    32° F to 104° F
    Storage Conditions Altitude 12 km
    39,370.1 ft
    Relative Humidity 5% to 90% (non-condensing)
    Temperature -20° C to 60° C
    -4° F to 140° F
    Dimensions

    (with stand)

    		Physical
    (W x H x D)     		613.8 x 538 x 233 mm
    24.2” x 21.2” x 9.17”
    Weight

    (with stand)

    		Physical 6.7 kg
    14.8 lb
    Wall Mount Dimensions 100 x 100 mm
    Power Consumption On[3] 34W (Typical) without audio
    Standby/Sleep < 0.5W
    Off < 0.3W (Maximum)
    1. ↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
    2. ↑ Please use the power adapter from ViewSonic® or an authorized source only.
    3. ↑ The test condition follows EEI standards.

    On-Screen Display (OSD) Menu Tree

    Sub-menu
    HDMI 1
    HDMI 2
    DisplayPort

    Sub-menu Menu Option
    Volume (-/+, 0~100)/1
    Mute On
    Off

    Sub-menu
    Standard
    FPS
    RTS
    MOBA
    Movie
    Web
    Text
    MAC
    Mono

    Sub-menu Menu Option
    Contrast/Brightness Contrast (-/+, 0~100)/1
    Brightness (-/+, 0~100)/1
    Color Temperature sRGB
    Bluish
    Cool
    Native
    Warm
    User Color Red (-/+, 0~100)/1
    Green (-/+, 0~100)/1
    Blue (-/+, 0~100)/1
    Color Space Auto
    RGB
    YUV
    Color Range Auto
    Full Range
    Limited Range
    HDR Auto
    Off

    Sub-menu Menu Option
    Sharpness (-/+, 0~100)/25
    Blue Light Filter (-/+, 0~100)/1
    Aspect Ratio 4:3
    5:4
    16:9
    16:10
    Overscan On
    Off
    Black Stabilization (-/+, 0~100)/10
    Advanced DCR (-/+, 0~100)/25
    Response Time Standard
    Advanced
    Ultra Fast

    Sub-menu Menu Option
    Language English
    Français
    Deutsch
    Español
    Italiano
    Suomi
    Svenska
    Русский
    Türkçe
    Česká
    Tiếng Việt
    日本語
    한국어
    繁體中文
    简体中文
    Information
    OSD Size Native
    Large
    OSD Timeout (-/+, 5/15/30/60)
    OSD Background On
    Off
    OSD Pivot 90˚
    270˚
    Off
    Power Indicator On
    Off
    Auto Power Off On
    Off
    Sleep 30 minutes
    45 minutes
    60 minutes
    120 minutes
    Off
    ECO Mode Standard
    Optimize
    Conserve
    Auto Detect On
    Off
    DDC/CI On
    Off
    Memory Recall



    VG2708-4K_UG_ENG_1a_20240717
