Introduction

Package Contents

  • Monitor
  • Power cord
  • Video cable
  • USB cable
  • Quick start guide
Note: The cable(s) included in your package may vary depending on your country. Please contact your local reseller for more information.

Product Overview

Front View

Front of the monitor on its stand.

  1. Control Panel Keys
  2. Power Button

Rear View

Rear of the monitor on its stand, with the I/O ports along the bottom edge.

  1. I/O Ports
  2. Security Slot

I/O Ports

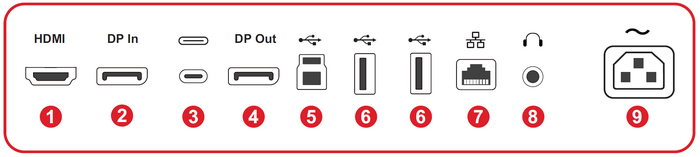

I/O ports panel, numbered 1 to 9: HDMI, DisplayPort In, USB Type C, DisplayPort Out, USB Upstream, USB Downstream, LAN, Audio Out, and AC IN.
The I/O ports of the monitor.
# Description
1 HDMI
2 DisplayPort In
3 USB Type C
4 DisplayPort Out
5 USB Upstream
6 USB Downstream
7 LAN
8 Audio Out
9 AC IN

Initial Setup

Installing the Stand

1

The monitor lying screen-down: the stand is attached to the rear of the monitor and the base is fastened with its thumbscrew.

2

Lifting the monitor upright on its assembled stand.

3

The monitor standing upright on its stand, seen from the front.

Caution: Place the monitor on a flat, stable surface to ensure safety and optimal performance.

Removing the Stand

  1. Turn off the monitor and disconnect all cables.
  2. Place the monitor on a flat, stable surface with the screen facing down.
  3. Remove the stand.
    The monitor lying screen-down: the base is loosened and the stand is lifted off the rear of the monitor.

Mounting the Monitor

After removing the stand, the monitor can be mounted using an optional mounting kit.

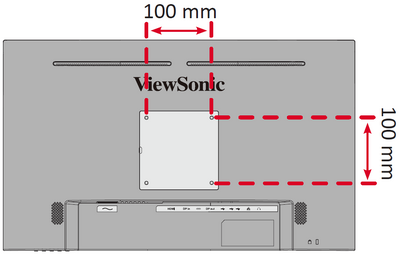

Rear of the monitor showing the four VESA mounting holes 100 mm apart horizontally and vertically.
The standard dimensions and loading of mounting kits.
Maximum Loading Hole Pattern (W × H) Screw Specification Screw Quantity
14 kg 100 × 100 mm M4 × 10 mm 4
  1. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor, securing it with screws.
  2. Follow the mounting kit instructions to mount the monitor.
Note:
  • For use only with a UL certified mounting kit/bracket. To obtain a wall mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
  • Mounting kits are sold separately.

Using the Security Slot

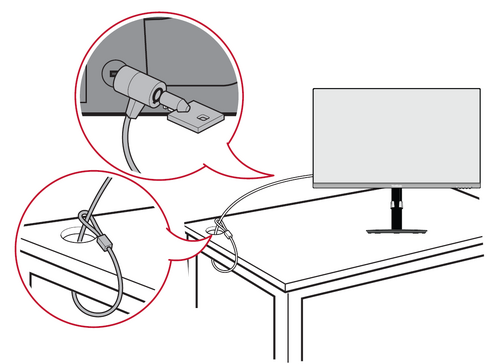

A security cable locked into the security slot on the rear of the monitor and looped around a table leg.

To prevent theft and minimize damage, use a security slot locking device to secure the monitor to a fixed object.

Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Making Connections

Connecting to Power

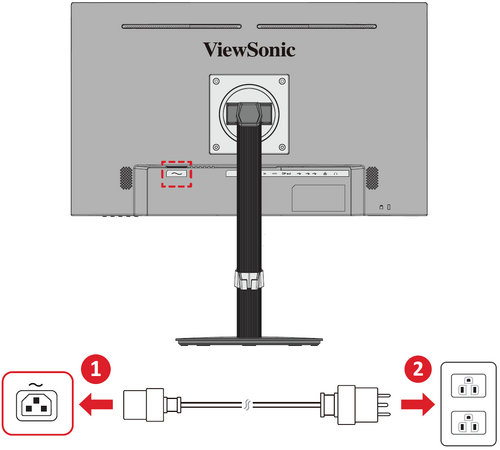

The power cord connected to the AC IN port on the rear of the monitor (1) and plugged into a power outlet (2).
  1. Connect the power cord to the AC IN jack at the rear of the monitor.
  2. Plug in the power cord to a power outlet.


Display Connection

HDMI

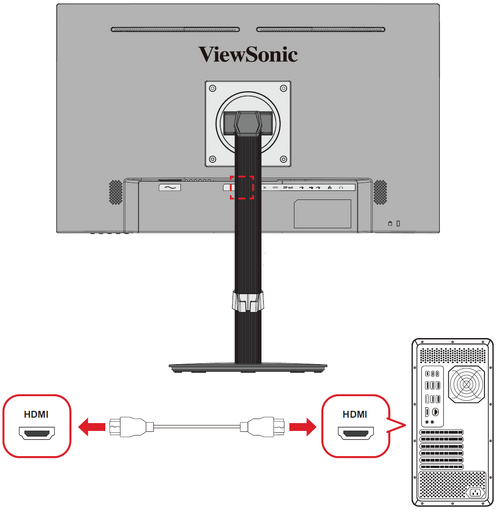

An HDMI cable connecting the HDMI port on the rear of the monitor to a computer.
  1. Connect one end of an HDMI cable to the HDMI port of the monitor.
  2. Plug the other end of the cable into the HDMI port of your computer.

DisplayPort

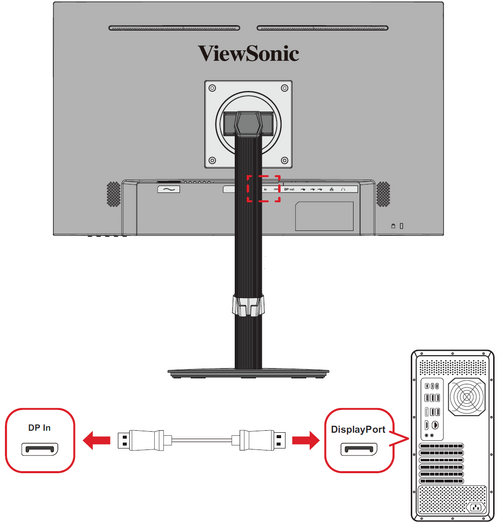

A DisplayPort cable connecting the DisplayPort In port on the rear of the monitor to a computer.
  1. Connect one end of a DisplayPort cable to the DisplayPort In port of the monitor.
  2. Plug the other end of the cable into the DisplayPort or Mini DisplayPort port of your computer.
Note: To connect the monitor to the Thunderbolt port (v. 1 & 2) on your Mac, connect the Mini DisplayPort end of a “Mini DisplayPort to DisplayPort cable” to the Thunderbolt output port of your Mac. Then connect the other end of the cable to the DisplayPort port of the monitor.

Type C

A USB Type C cable connecting the USB Type C port on the rear of the monitor to a laptop.
  1. Connect one end of a USB Type C cable to the USB Type C port of the monitor.
  2. Plug the other end of the cable into the USB Type C port of your computer.
Note: For video output use, make sure your USB Type C output device (e.g., laptop) and cable support video signal transmission.

DisplayPort MST Daisy Chain Connection

With DisplayPort Multi-Stream Transport (MST) support, you can daisy chain to one monitor to another.

  1. Connect one end of a DisplayPort/USB Type C cable to the DisplayPort Out/USB Type C port of your computer. Then connect the other end of the cable to the DisplayPort In/USB Type C port of the monitor.
  2. Use another DisplayPort cable to connect to the DisplayPort Out port of the first monitor. Then connect the other end of the cable to the DisplayPort In port of the second monitor.

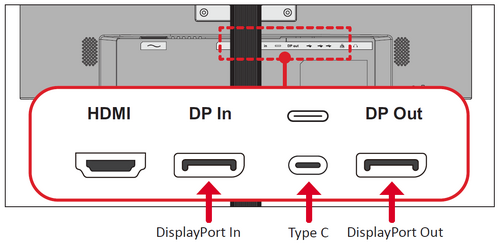

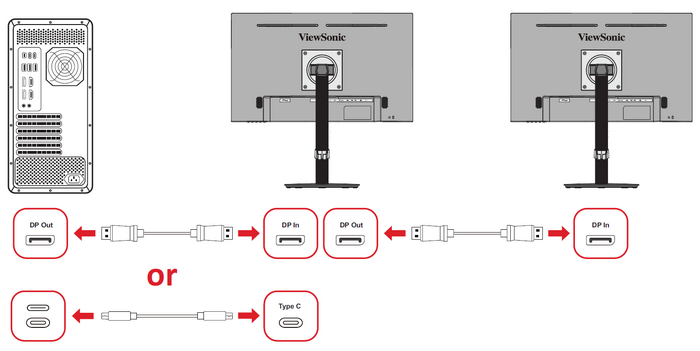

    Close-up of the monitor's ports, with callouts for DisplayPort In, Type C, and DisplayPort Out.
    A computer connected by DisplayPort or USB Type C to the first monitor, and the first monitor's DisplayPort Out connected to the second monitor's DisplayPort In.
Note: When connecting the first monitor to your computer, either DisplayPort or USB Type C is supported. When connecting the first monitor to second one, only use the DisplayPort In and Out ports. The monitor’s USB Type C port does not support daisy chaining.
Note:
  • DisplayPort MST must be turned on in the Setup Menu in the OSD Menu to enable daisy chaining.
  • If High Data Speed is selected, it will prioritize high speed data transfer and Ethernet. MST will only support 1920 × 1080 @ 75 Hz (maximum).
  • If High Resolution is selected, MST can support 1920 × 1080 @ 100 Hz, but data transfer and Ethernet speed will be limited to USB 2.0 standards due to bandwidth limitation.
  • If the input source changes to HDMI, DisplayPort MST will turn off automatically.

Audio Connection

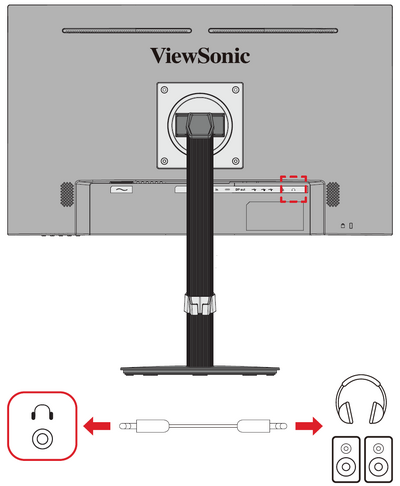

Headphones or speakers connected to the Audio Out port of the monitor with an audio cable.
Note: The monitor is also equipped with dual speakers.

USB Connection

The monitor supports two types of USB ports, upstream and downstream. When making connections, observe the following guidelines.

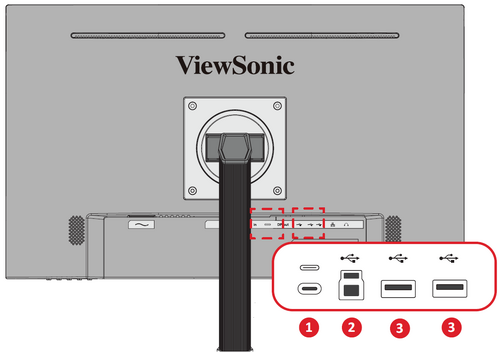

Rear of the monitor with the USB ports highlighted and numbered as in the table below.
The USB ports of the monitor.
# USB Type Connection Type Description
1 Upstream Type C Transfers audio, video, power, and data between the computer and USB devices connected to the monitor.
Supports 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (LPS) charging.
2 Upstream Type B Transfers data between the computer and the USB devices connected to the monitor.
3 Downstream Type A For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.).
Supports 5V/2A charging.
Note:
  • To use peripheral devices with the USB Type A ports, please also connect your computer to the monitor’s USB Type B or Type C port.
  • Due to the product’s USB Type C power delivery design, do not connect the laptops’ power adapter at the same time. This can cause power distribution conflicts with the laptop, resulting in flashing screens or the forced shutdown of the laptop.

Using the USB Ports

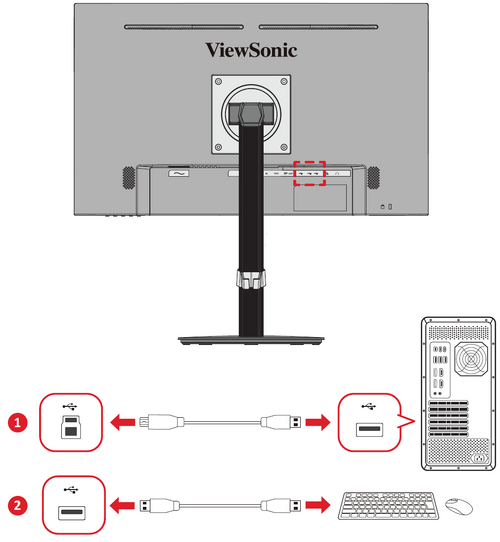

A USB cable from the monitor's upstream USB port to a computer (1), and a keyboard and mouse connected to the downstream USB Type A ports (2).
  1. To use the downstream USB Type A ports, connect one end of the USB Type B cable to the upstream USB Type B port of the monitor. Plug the other end of the cable, USB Type A, into a USB port of your computer.
  2. Connect your peripheral device(s) to a downstream USB Type A port of the monitor.
Note: You can also use the USB Type C port instead of the USB Type B port to use the downstream USB Type A ports.

Ethernet Connection

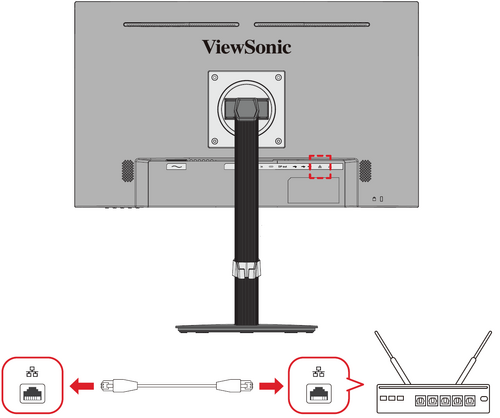

An RJ45 cable connecting the LAN port on the rear of the monitor to a network router.

To connect the monitor to your network:

  1. Connect one end of a RJ45 cable to the LAN port of the monitor.
  2. Plug the other end of the cable into your network adapter.

After connecting the monitor to your network, you will need to connect your computer to the monitor in one of the following three ways:

  • USB Type C port, or
  • HDMI and USB Type B port, or
  • DisplayPort In and USB Type B port

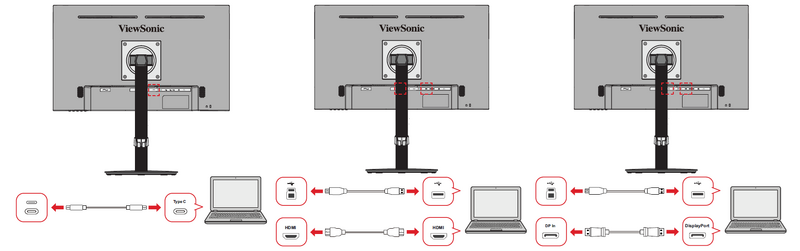

Three ways to connect a laptop to the monitor for networking: USB Type C; HDMI and USB Type B; or DisplayPort In and USB Type B.

Using the Monitor

Adjusting the Viewing Angle

Height Adjustment

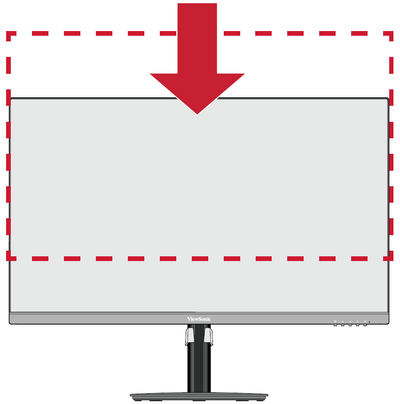

Lower or raise the monitor to the desired height (0 to 130 mm).

The monitor screen raised and lowered on its stand.
Note: When adjusting, press down firmly along the adjustment track holding the monitor with both hands on the side.

Screen Orientation Adjustment (Pivot)

1

The monitor raised to its highest position and tilted back.

2

The monitor rotated 90 degrees clockwise or counterclockwise from landscape to portrait orientation.

  1. Raise the monitor height to its maximum height and then tilt it back fully.
  2. Rotate the monitor 90 degrees clockwise or counterclockwise from landscape to portrait orientation.
Note:
  • When adjusting, hold the monitor firmly on both sides.
  • To rotate the screen, change the system’s display orientation settings.

Swivel Adjustment

Swivel the monitor to the left or right for the desired viewing angle (360°).

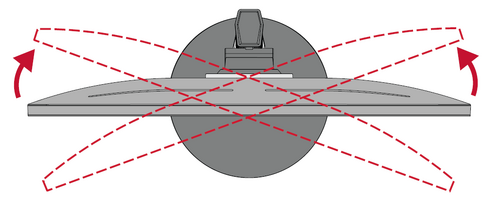

Top view of the monitor swiveling left and right on its stand base.


Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (−3.5° to 28°).

Side view of the monitor tilting forwards and backwards on its stand.
Note: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

Turning the Monitor On/Off

Note: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

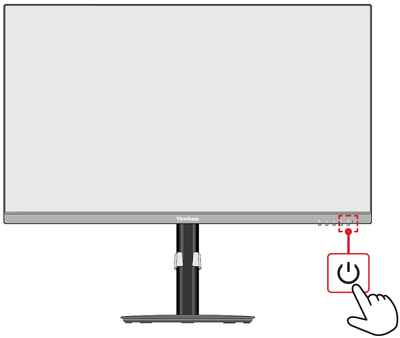

Front of the monitor with a hand pressing the Power button at the lower right of the bezel.
  1. Make sure the monitor is connected to power.
  2. Press the Power button to turn on the monitor.
  3. To turn the monitor off, press the Power button again.
Note: If the On-Screen Display Menu is still on screen, press and hold the Power button for three seconds to turn off the monitor.

Using the Control Panel Keys

Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

Close-up of the Control Panel Keys under the bottom bezel, labeled 1 (star), 2, 3, 4, and 5 (Power).

Quick Menu

Press the 1 key to activate the Quick Menu.

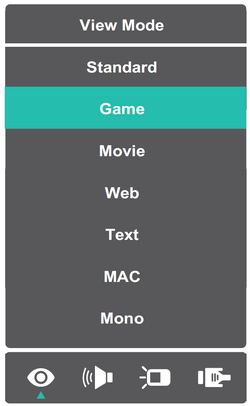

Quick Menu open on ViewMode, listing its preset modes.
Note: Follow the key guide that appears on the screen to select the option or make adjustments.
The Quick Menu options.
Menu Description
ViewMode Select one of the preset color settings.
Volume Adjust the level, or mute the volume.
Contrast/Brightness Adjust the contrast or brightness level.
Input Select Select the input source.
Exit Exit the Quick Menu.

Configuring the Settings

General Operations

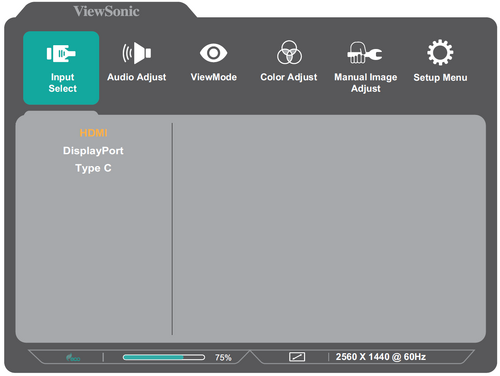

On-Screen Display Menu open, showing the main menu list.

Press the 2/3/4 key to display the On-Screen Display (OSD) Menu.

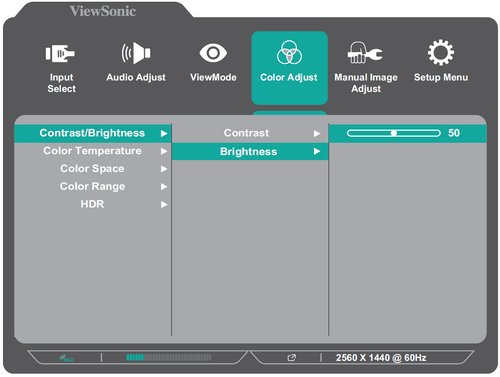

On-Screen Display Menu with a main menu selected and its options shown.

Press the 1 or 2 key to select the main menu. Then press the 3 key to enter the selected menu.

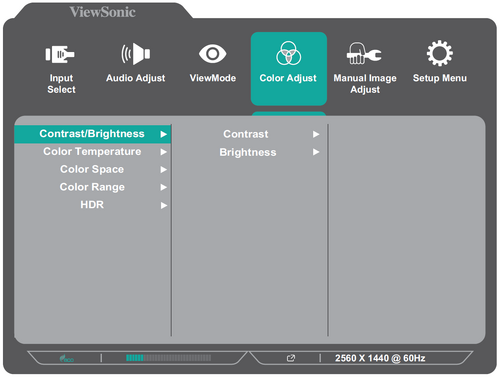

On-Screen Display Menu with a menu option selected and its sub-menu open.

Press the 1 or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.

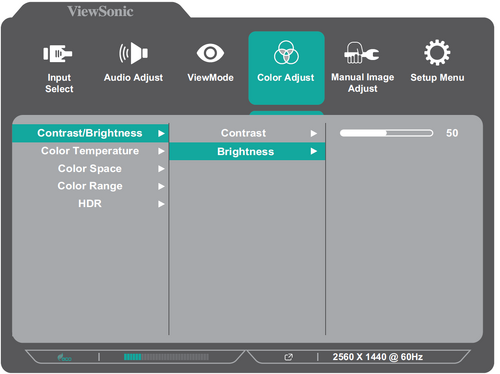

On-Screen Display Menu with a setting being adjusted in the sub-menu.

Press the 1 or 2 key to adjust/select the setting. Then press the 3 key to confirm.
Note:
  • Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the screen to select the option or make adjustments.
  • Press the 4 key to return to the previous menu. To exit the OSD Menu, press the 5 (Power) key.

On-Screen Display (OSD) Menu Tree

Input Select

Input Select menu options.
Menu Option
HDMI · DisplayPort · Type C

Audio Adjust

Audio Adjust menu options.
Sub-menu Menu Option
Volume On 0–100/1
Mute —

ViewMode

ViewMode menu options.
Menu Option
Standard · Game · Movie · Web · Text · MAC · Mono

Color Adjust

Color Adjust menu options.
Sub-menu Menu Option
Contrast/Brightness Contrast 0–100/1
Brightness 0–100/1
Color Temperature sRGB · Bluish · Cool · Native · Warm
User Color Red 0–100/1
Green 0–100/1
Blue 0–100/1
Color Space Auto · RGB · YUV
Color Range Auto · Full Range · Limited Range
HDR Auto · Off

Manual Image Adjust

Manual Image Adjust menu options.
Sub-menu Menu Option
Sharpness 0–100/25
Blue Light Filter 0–100/1
Aspect Ratio 4:3 · 5:4 · 16:9 · 16:10
Overscan On · Off
Black Stabilization 0–100/10
Advanced DCR 0–100/25
Response Time Standard · Advanced · Ultra Fast

Setup Menu

Setup Menu options.
Sub-menu Menu Option
Language English · Français · Deutsch · Español · Italiano · Suomi · Svenska · Русский · Türkçe · Česká · Tiếng Việt · 日本語 · 한국어 · 繁體中文 · 简体中文
Variable Refresh Rate On · Off
Information —
OSD Timeout 5 · 15 · 30 · 60
OSD Background On · Off
OSD Pivot 0° · 90° · −90°
Power Indicator On · Off
Auto Power Off On · Off
Sleep 30 minutes · 45 minutes · 60 minutes · 120 minutes · Off
ECO Mode Standard · Optimize · Conserve
USB Charging[1 1] On · Off
DisplayPort Version[1 2] 1.1
(no MST support) · 1.2
DisplayPort MST On · Off
Type C Prioritization High Data Speed · High Resolution
Auto Detect On · Off
DDC/CI On · Off
Memory Recall —
  1. ↑ This function is off by default. If the monitor is in power saving mode, USB downstream charging will not be active. To enable charging in power saving mode, it is recommended to turn on this feature. Please note that this setting will not affect the USB Type C charging on the rear side of the monitor.
  2. ↑ If no DisplayPort connection is detected, this option will be grayed out.
Note: Memory Recall is the default display configuration and settings, and it’s the setting required for ENERGY STAR® qualification. Modifying these default settings can increase energy consumption beyond the ENERGY STAR® limits. ENERGY STAR® is a program jointly administered by the U.S. Environmental Protection Agency (EPA) and the U.S. Department of Energy, which promotes energy-efficient products and practices to help save money and protect the environment.
ENERGY STAR logo.

Appendix

Specifications

The monitor's technical specifications.
Category Specification Value
Display Type Color a-Si TFT Active Matrix 1920 × 1080 LCD; 0.2745 (H) mm × 0.2745 (V) mm pixel pitch
Display Size 60.45 cm / 23.8 in. (viewable)
Color Filter RGB Vertical Stripe
Glass Surface Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal Frequency DisplayPort fh: 30–112 kHz;
fv: 48–100 Hz
HDMI fh: 30–112 kHz;
fv: 48–100 Hz
USB Type C fh: 30–112 kHz;
fv: 48–100 Hz
Compatibility PC up to 1920 × 1080
Macintosh up to 1920 × 1080
Resolution and Timings[1] Preset 1920 × 1080 @ 60 Hz
Supported
  • 1920 × 1080 @ 50, 60, 75, 100 Hz
  • 1680 × 1050 @ 60 Hz
  • 1600 × 1200 @ 60 Hz
  • 1600 × 900 @ 60 Hz
  • 1440 × 900 @ 60, 75 Hz
  • 1440 × 576 @ 50 Hz
  • 1400 × 1050 @ 60, 75 Hz
  • 1366 × 768 @ 60 Hz
  • 1360 × 768 @ 60 Hz
  • 1280 × 1024 @ 50, 60, 75 Hz
  • 1280 × 960 @ 50, 60, 75 Hz
  • 1280 × 800 @ 60, 75 Hz
  • 1280 × 768 @ 50, 60, 75 Hz
  • 1280 × 720 @ 50, 60 Hz
  • 1152 × 900 @ 66 Hz
  • 1152 × 870 @ 75 Hz
  • 1152 × 864 @ 60, 75 Hz
  • 1024 × 768 @ 50, 60, 70, 75 Hz
  • 1024 × 600 @ 60 Hz
  • 848 × 480 @ 60 Hz
  • 832 × 624 @ 75 Hz
  • 800 × 600 @ 60, 75 Hz
  • 720 × 576 @ 50 Hz
  • 720 × 480 @ 60 Hz
  • 720 × 400 @ 70 Hz
  • 640 × 480 @ 50, 60, 75 Hz
  • 640 × 400 @ 60, 70 Hz
  • 640 × 350 @ 70 Hz
Power[2] Input Voltage AC 100–240V, 50/60 Hz (auto switch)
Display Area Active Size (H × V) 527.04 × 296.4 mm
20.75 × 11.67 in.
Operating Conditions Altitude 5 km (16,404.2 ft)
Relative Humidity 20% to 90% (non-condensing)
Temperature 0° C to 40° C
32° F to 104° F
Storage Conditions Altitude 12 km (39,370.1 ft)
Relative Humidity 5% to 90% (non-condensing)
Temperature -20° C to 60° C
-4° F to 140° F
Dimensions (with stand) Physical (W × H × D) 539.7 × 519.9 × 233.3 mm
21.25 × 20.47 × 9.19 in.
Weight (with stand) Physical 5.6 kg (12.3 lb)
Wall Mount Dimensions 100 × 100 mm
Power Consumption On[3] 24W (Typical)[4]
Off ≤ 0.3 W (Maximum)
  1. ↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
  2. ↑ Please use the power adapter/power cord from ViewSonic® or an authorized source only.
  3. ↑ The test condition follows EEI standards.
  4. ↑ ECO Mode set to Standard. Power consumption is without audio and with all USB ports loading.

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the Control Panel Keys.

Shortcut keys and their function.
Key Description
2 + 1 Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu. If the OSD Menu is locked, a message appears on the screen.
2 + 3 Press and hold the keys to lock/unlock the Power button. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the Power button. If the Power button is locked, a message appears on the screen.
2 + 4 Press the keys to display/hide the Boot up Screen or Message OSD when the device is turned on.

Regulatory and Service Information

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES (B) / NMB (B)

CE Conformity for European Countries

CE logo

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

WEEE logo

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.

RoHS2 restricted substances and concentration limits.
Substance Proposed Maximum Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Butyl benzyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

  • Copper alloy containing up to 4% lead by weight.
  • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
  • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
  • Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

For EU users, please contact us for any safety/accident issue experienced with this product:

Address.
ViewSonic Europe Limited
Flevolaan 38, 1382JZ, Weesp,
the Netherlands
Phone.
+31 0800023299

Copyright Information

Copyright © 2024 ViewSonic® Corporation. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Noto Sans Font. Copyright 2018 The Noto Project Authors. This Font Software is licensed under the SIL Open Font License, Version 1.1.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

This Copyright Information may be translated into multiple languages. All translated versions are provided for reference only. In the event of any discrepancy or inconsistency among different language versions, the English version shall prevail.

Version
VG2409U-2_UG_ENG_1c_20250328


See Also

Customer Service

Limited Warranty

Safety Precautions

Troubleshooting

Maintenance
