VG1457

Introduction

Package Contents

• Portable display
• USB Type C cable × 2
• Power adapter
• Quick start guide
• Soft carrying bag

Note: The cables included in your package may vary depending on your country or region. Please contact your local reseller for more information.

Product Overview

Front and Left Side View

1. USB Type C
2. Upper Screen
3. Lower Screen

Rear and Right Side View

4. Control Panel Keys
5. Power Button
6. Stand

Initial Setup

Tilt Angle Adjustment

Tilt the monitor backwards to the desired viewing angle by using the attached stand (0° to 90°). For best results, use a tilt angle between 20° and 90°.

Note:

• When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand.
• Always place the monitor on a flat, stable surface. Failure to do so may cause the monitor to fall and damage the monitor and/or result in personal injury.

Adjusting the Monitor

Adjusting the monitor to the desired viewing angle (0° to 340°).

Note:

• Some resistance is normal and expected when adjusting the monitor. Don’t apply excessive force especially when adjusting into Share Mode.
• It is recommended to place the monitor with the I/O ports facing upwards when pivoting to the landscape orientation to avoid bending the cables.

Making Connections

Connecting to Power

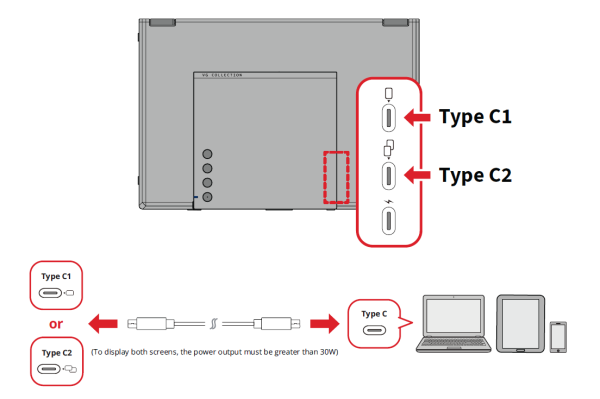

USB Type C

Connect the USB Type C cable from your external device to the USB Type C (Type C1 or Type C2) port on the monitor.

Note: Both the Type C1 and Type C2 ports support video and up to 65W of power. Connect the included power adapter to either port to charge your device connected to the other port.

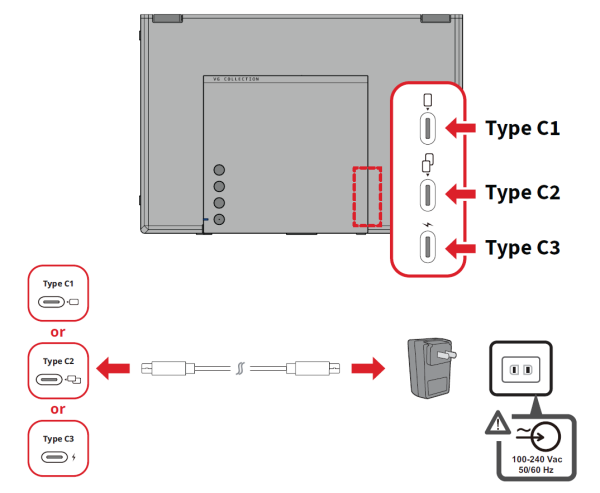

Power Adapter

Connect one end of the USB Type C cable to the power adapter, then the other end to any of the USB Type C ports on the monitor.

Note:

• The Type C3 port only supplies power to the monitor. The port does not support video or data transfer.
• Connect the included power adapter to the Type C3 port to ensure stable performance.

Connecting to Video

1. Connect one end of a USB Type C cable to the USB Type C (Type C1 or Type C2) port of the monitor.
2. Plug the other end of the cable into the full-featured USB port of your computer.

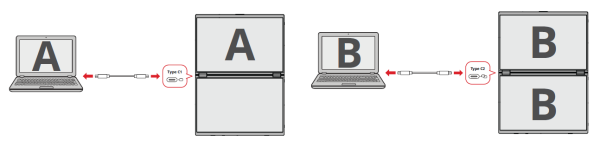

Note: The Type C1 port supports video output for the upper screen only. To adjust the volume or display settings for this screen, use the connected device’s system settings. To display the full functionality on both screens, use the Type C2 port.

Power Delivery

The monitor supports two-way power charging (sending or receiving power) via either the Type C1 or Type C2 port. By default, the power adapter will be the primary power source when multiple USB Type C ports are connected.

Power Guideline

• To ensure stable performance in all Display Modes, connect the included power adapter to the Type C3 port. The Type C3 port only supplies power to the monitor.
• If the power input is low, the monitor automatically adjusts the default brightness to 70 and volume to 50.
  Important: Performing adjustments during low power conditions may cause the system to black out, lose power, or restart unexpectedly.
• If the power input is lower than 15W (< 5V/3A), the monitor will enter standby mode. Connect the included power adapter to resume operation.

Power Guideline.

Connected Port	Screen Displayed	Minimum Wattage Required	Description
Type C1	Upper screen	15W	Transfers video and power.
Type C1	Upper screen	15W	Supports up to 65W of power to the connected device when the power adapter is connected to the Type C2 port.
Type C2	Both screens	30W	Transfers audio, video, and power.
Type C2	Both screens	30W	Supports up to 65W of power to the connected device when the power adapter is connected to the Type C1 port.

Note:

• Use the included USB Type C cable, or alternatively a full-featured USB Type C cable that supports DP Alt Mode (DP 1.2) and 65W (20V/3.25A) power delivery.
• To avoid flickering or black screen when using the Type C1 or Type C2 port, connect the included power adapter to the Type C3 port.
• To ensure the best user experience, note that the display stability, resolution, and response time are primarily determined by the graphics processing unit and operating system settings of your connected device. Display lag or connection instability may occur when: » Using hardware or mobile devices with limited graphics processing power. » Connecting multiple video outputs from a single device to the monitor simultaneously.

Using the Monitor

Turning the Monitor On/Off

1. Connect to a power source in one of the available configurations.
2. Press and hold the Power button for three seconds to turn on the monitor.
3. To turn the monitor off, press and hold the Power button again.

Using the Control Panel Keys

Use the Control Panel Keys to activate Hot Keys, navigate the On-Screen Display Menu, and change settings.

Using the Control Panel Keys.

Key	Description
Brightness	Press the 1 key to adjust the brightness level. Note: When the monitor is powered only by one of the USB Type C ports, the brightness level will be automatically set to 70 to maintain stable performance. Do not increase the brightness beyond this level without the power adapter as the monitor will restart due to insufficient power.
Volume	Press the 2 key to adjust the volume level. Note: This function is only available when the Type C2 port is connected.
Display Settings	Press the 3 key to select one of the preset display modes.
On-Screen Display Menu	Press the Power button to open the On-Screen Display Menu.

Menu Operation

Menu Navigation

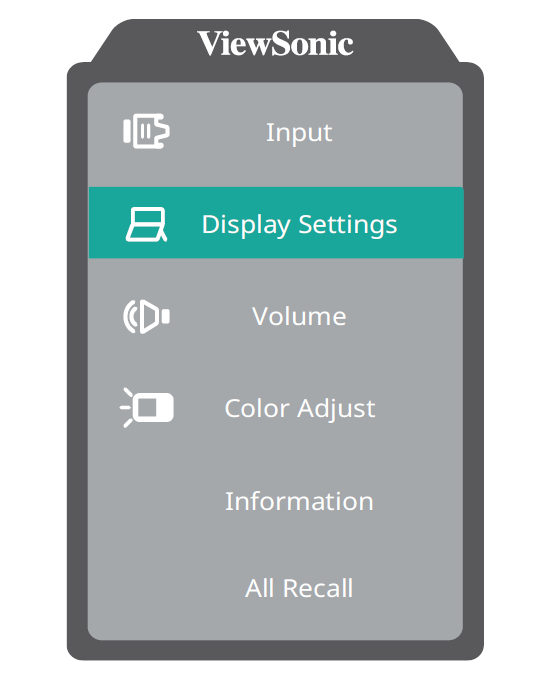

Press the Power button to open the On-Screen Display Menu.

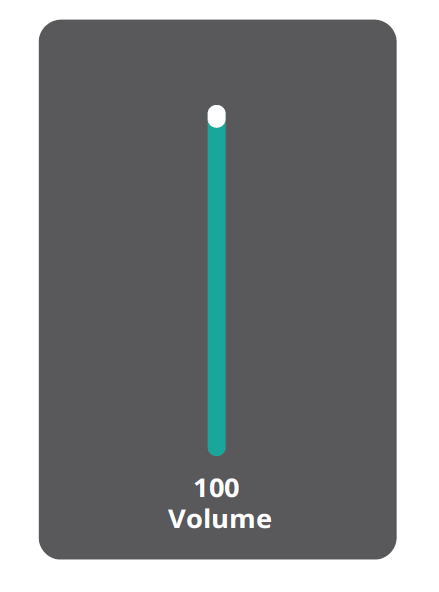

Press the 1 or 2 key to select the main menu. Then press the 3 key to enter the selected menu.

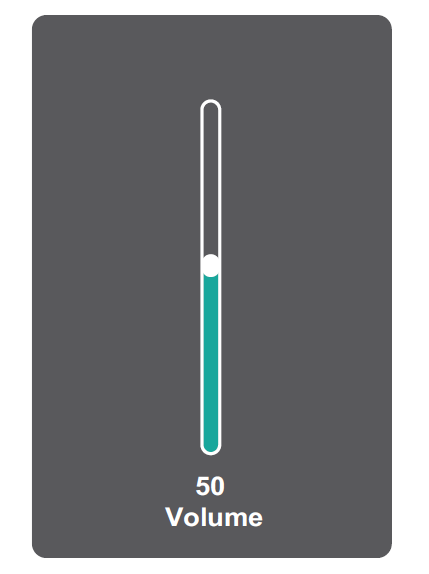

Press the 1 or 2 key to adjust/select the setting. Then press the 3 key to confirm.

Note: The On-Screen Display Menu will automatically close if there is no action after 10 seconds.

Menu Options

Menu Options.

Menu Option	Description
Input	Select the input source.
Display Settings	Select one of the preset display modes.
	Mirror
	Extend
	Full Screen Mode
	Dual Source Mode
Volume	Adjust the volume level when using the Type C2 port for audio.
Color Adjust	Adjust the contrast or brightness level.
Information	Show the monitor’s current status.
All Recall	Reset all settings to their default values.

Advanced Features and Settings

Note: All images shown here are for illustration purposes only.

Display Modes

When connecting your laptop or mobile device(s) to the monitor, you can display your device’s screen by adjusting the display settings in your operating system.

Note:

• When the Type C1 port is connected, only Share Mode will be available.
• Windows and ChromeOS are supported on all modes.
• DisplayPort Multi-Stream Transport is not supported on macOS for extended displays.
• HDR is not supported.

To select a display mode:

1. Make sure the USB Type C cable(s) is securely connected.
2. Select an option from the display setting in your operating system.
3. Press the Power button to open the On-Screen Display Menu.
   Note: Pressing the 3 key also allows you to quickly select a display mode.
4. Press the 1 or 2 key to select Display Settings. Then, press the 3 key to enter the Display Settings menu.
5. Follow the on-screen key guide to select the desired display mode. Then, press the 3 key to confirm.


Mirror

The Mirror duplicates the image on the upper and lower screens of the monitor.

Extend

The Extend spreads the image across screens.

Note: On macOS and mobile devices (such as iOS, Android, or iPadOS), the image will only appear on the lower screen due to operating system limitations.

Full Screen Mode

The Full Screen Mode combines the upper and lower screens of the monitor into one screen and displays the image on the screen.

Note: Full Screen Mode does not support Share Mode.

Dual Source Mode

The Dual Source Mode displays the images from two individual video inputs.

Note: To use Dual Source Mode, make sure both input sources are connected. This mode isn’t available when only one video input is connected.

Share Mode

The Share Mode displays the image(s) when the monitor is folded open to 340°.

Note:

• When the upper screen of the monitor is folded to 90°, parallel to the desk, the monitor will detect its orientation and enter Share Mode automatically.


• To make sure the image rotates correctly in portrait orientation, enable Screen Pivot in vDisplay Manager. You can download the vDisplay Manager application from our website. Refer to Auto Pivot for more information.

Your device’s screen(s) can be displayed in any of the following configurations.

• If only one USB Type C (Type C1 or Type C2) port is connected:

• If both USB Type C ports are connected:


Auto Pivot

The Auto Pivot function can detect the displayed image and adjust the image’s orientation on the screen automatically when pivoting the screen.

Note:

• For the monitor to automatically detect the rotation, vDisplay Manager needs to be installed and activated.
• For the best experience, use Extend, Mirror, or Full Screen Mode when using the Auto Pivot feature.
• When you duplicate the screen on your Windows device, any rotation is applied to both the monitor and your connected device. To avoid this, select Extend these displays in your Windows settings.

1. Download and install the vDisplay Manager application from our website.
2. Connect one end of a USB Type C cable to the Type C2 port of the monitor. Then connect the other end of the cable to the USB port of the computer.
3. Launch vDisplay Manager.
4. Make sure your monitor is selected.

5. Select Type C2 as the Input Source.
6. Turn on Screen Pivot.

Appendix

Specifications

The monitor's technical specifications.

Category	Specification	Value
Display	Type	IPS Active Matrix 1920 × 1200 LCD; 0.157 (H) mm × 0.157 (V) mm pixel pitch
	Display Size	48.3 cm / 19 (dual panel) in. (viewable)
	Color Filter	RGB Vertical Stripe
	Glass Surface	Anti-Glare (Haze 10%), Hard Coating (3H)
Input Signal	Frequency	USB Type C	fh: 15–82 kHz; fv: 50–170 Hz
	Version	USB Type C	3.2 (DP Alt mode)
Compatibility	PC	up to 1920 × 1200
	Macintosh	up to 1920 × 1200
Resolution and Timings	Preset	1920 × 1200 @ 60 Hz
	Supported	1920 × 1200 @ 60 Hz 1920 × 1080 @ 50, 60 Hz 1680 × 1050 @ 60 Hz 1600 × 1200 @ 60 Hz 1600 × 900 @ 60 Hz 1440 × 900 @ 60, 75 Hz 1440 × 576 @ 50 Hz 1400 × 1050 @ 60 Hz 1366 × 768 @ 60 Hz 1360 × 768 @ 60 Hz 1280 × 1024 @ 50, 60, 75 Hz 1280 × 960 @ 50, 60, 75 Hz 1280 × 800 @ 60, 75 Hz 1280 × 768 @ 50, 60, 75 Hz 1280 × 720 @ 50, 60 Hz 1152 × 870 @ 75 Hz 1152 × 864 @ 60, 75 Hz 1024 × 768 @ 50, 60, 70, 72, 75 Hz 832 × 624 @ 75 Hz 800 × 600 @ 56, 60, 72, 75 Hz 720 × 575 @ 50 Hz 720 × 480 @ 60 Hz 720 × 400 @ 70 Hz 640 × 480 @ 50, 60, 67, 72, 75 Hz 640 × 400 @ 60, 70 Hz 640 × 350 @ 70 Hz
Power	Input Voltage	DC 5V/9V/12V/15V/20V
Audio	Internal Speaker	2W × 2
Display Area	Active Size (H × V)	301.59 × 188.50 mm 11.87 × 7.42 in.
Operating Conditions	Altitude	3.048 km (10,000 ft)
	Relative Humidity	20% to 90% (non-condensing)
	Temperature	0° C to 40° C 32° F to 104° F
Storage Conditions	Altitude	12 km (39,370.1 ft)
	Relative Humidity	5% to 90% (non-condensing)
	Temperature	-20° C to 60° C -4° F to 140° F
Dimensions (with stand)	Physical (W × H × D)	312.80 × 427.90 × 15.00 mm 12.31 × 16.85 × 0.59 in.
Weight (with stand)	Physical	1.30 kg (2.87 lb)
Dimensions (without stand)	Physical (W × H × D)	N/A × N/A × N/A mm N/A × N/A × N/A in.
Weight (without stand)	Physical	N/A kg (N/A lb)
Wall Mount	Dimensions	N/A mm
Power Consumption	On	13.5 W (Typical) 16.5 W (Maximum)
	Standby	≤ 0.5 W (Maximum)
	Off	≤ 0.3 W (Maximum)

Note: Product specifications are subject to change without notice.

On-Screen Display Menu Tree

Input

Input menu options.

Menu Option
Type C1 · Type C2 · Type C1 + Type C2

Display Settings

Display Settings menu options.

Menu Option
Mirror · Extend · Full Screen Mode · Dual Source Mode

Volume

Volume menu options.

Menu Option
0–100/1

Color Adjust

Color Adjust menu options.

Sub-menu	Menu Option
Contrast	0–100/1
Brightness	0–100/1

Information

Information menu options.

Menu Option

All Recall

All Recall menu options.

Menu Option

Product Upgradeability and Repairability

Product Upgradeability and Repairability.

The following is a list of hardware features available for at least 5 years after the sale of the product.	Upgradable	Repairable	Replaceable
Main Processor(s) or SOC	No	No	Yes
Memory	N/A	N/A	N/A
HDD	N/A	N/A	N/A
Wireless Networking Capability	N/A	N/A	N/A
Graphics Card	N/A	N/A	N/A
Rechargeable Battery	N/A	N/A	N/A
Fan Assembly	N/A	N/A	N/A
Camera	N/A	N/A	N/A
Fingerprint Reader	N/A	N/A	N/A
Display Assembly	No	No	Yes
Keyboard	N/A	N/A	N/A
Internal Power Supply	No	No	Yes

Note: *N/A = Not applicable for the product.

Regulatory and Service Information

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES (B) / NMB (B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.

RoHS2 restricted substances and concentration limits.

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6+)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

• Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
• Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

• USA & Canada: Go Green with ViewSonic
• Europe: Environmental, Social & Governance — Recycle
• Taiwan: Taiwan Recycling Information

For EU users, please contact us for any safety/accident issue experienced with this product:

ViewSonic Europe Limited
Flevolaan 38, 1382JZ, Weesp,
the Netherlands

+31 0800023299

EPREL@viewsoniceurope.com

viewsonic.com/eu

Copyright Information

Copyright © 2026 ViewSonic® Corporation. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Noto Sans Font. Copyright 2018 The Noto Project Authors. This Font Software is licensed under the SIL Open Font License, Version 1.1.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

This Copyright Information may be translated into multiple languages. All translated versions are provided for reference only. In the event of any discrepancy or inconsistency among different language versions, the English version shall prevail.

Version
VG1457_UG_ENG_1c_20260706

---

See Also

Customer Service

Limited Warranty

Safety Precautions

Troubleshooting

Maintenance
