VA2732A-H
Introduction
Package Contents
- Monitor
- Power adapter
- Video cable
- Quick start guide
Product Overview
Front View
- Control Panel Keys
- Power Button
Rear View
- I/O Ports
- Security Lock Slot
- Internal Speakers[1]
- ↑ For VA2732A-MH only.

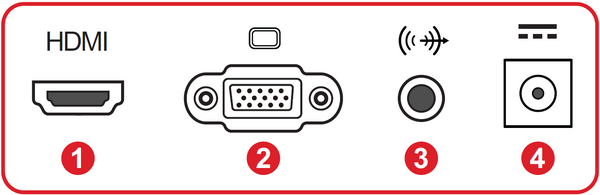

I/O Ports
| # | Description |
|---|---|
| 1 | HDMI |
| 2 | VGA |
| 3 | Audio Out |
| 4 | DC IN |
Initial Setup
Installing the Stand
1
2
3
Removing the Stand
1
2
Mounting the Monitor

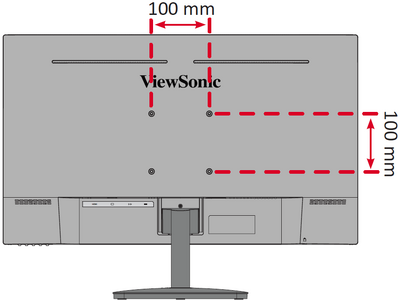

After removing the stand, the monitor can be mounted using an optional mounting kit.
| Maximum Loading | Hole Pattern (W × H) | Screw Specification | Screw Quantity |
|---|---|---|---|
| 14 kg | 100 × 100 mm | M4 × 10 mm | 4 |
- Attach the mounting bracket to the VESA mounting holes at the rear of the monitor, securing it with screws.
- Follow the mounting kit instructions to mount the monitor.

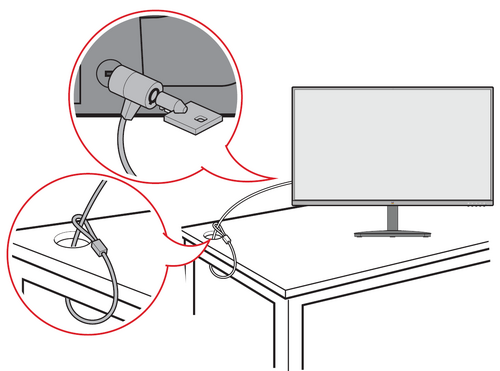

Using the Security Slot
To prevent theft and minimize damage, use a security slot locking device to secure the monitor to a fixed object.
Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.
Making Connections

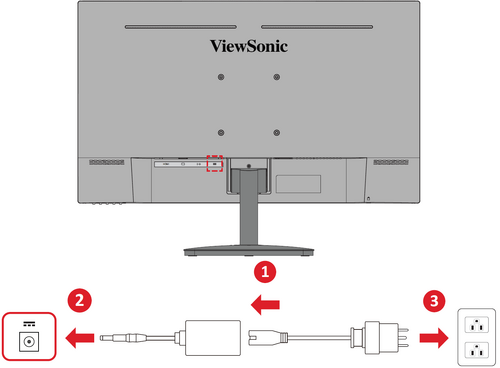

Connecting to Power

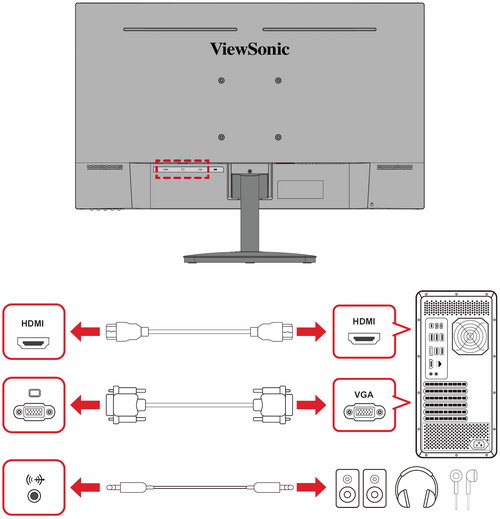

Connecting to External Devices
Using the Monitor
Adjusting the Viewing Angle

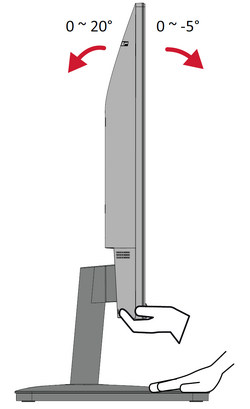

Tilt Angle Adjustment
Tilt the monitor forwards or backwards to the desired viewing angle (−5° to 20°).

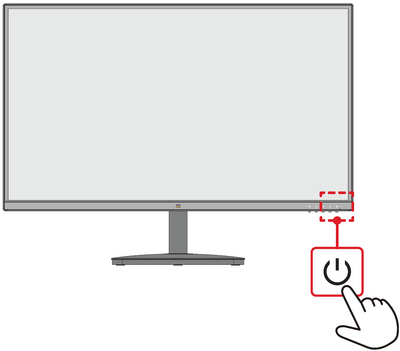

Turning the Monitor On/Off
- Make sure the monitor is connected to power.
- Press the Power button to turn on the monitor.
- To turn the monitor off, press the Power button again.
Using the Control Panel Keys
Use the Control Panel Keys to access the Quick Menu, navigate the On-Screen Display Menu, and change settings.
Menu Operation
Quick Menu
Press the 1 key to activate the Quick Menu.
| Menu | Description |
|---|---|
| ViewMode | Sets a preset display option. |
| Volume | Adjusts the volume level. |
| Contrast/Brightness | Adjusts the contrast or brightness level. |
| Input Select | Sets the input source. |
| Exit | Closes the Quick Menu. |
On-Screen Display Menu
Appendix
Specifications
| Category | Specification | Value | |
|---|---|---|---|
| Display | Type | IPS, Color a-Si TFT Active Matrix 1920 × 1080 LCD; 0.3114 (H) mm × 0.3114 (V) mm pixel pitch | |
| Display Size | 68.6 cm / 27 in. (viewable) | ||
| Color Filter | RGB Vertical Stripe | ||
| Glass Surface | Anti-Glare (Haze 25%), Hard Coating (3H) | ||
| Input Signal | Frequency | D-Sub | fh: 24–86 kHz; fv: 48–75 Hz |
| HDMI | fh: 30–135 kHz; fv: 48–120 Hz |
||
| Version | HDMI | 1.4 | |
| Compatibility | PC | up to 1920 × 1080 | |
| Macintosh | up to 1920 × 1080 | ||
| Resolution and Timings[1] | Preset | 1920 × 1080 @ 60 Hz | |
| Supported |
|
||
| Power[3] | Input Voltage | AC 100–240V, 50/60 Hz (auto switch) | |
| Audio | Internal Speaker | 2 × 2W[4] | |
| Display Area | Active Size (H × V) | 597.89 × 336.31 mm 23.54 × 13.24 in. |
|
| Operating Conditions | Altitude | 5 km (16,404.2 ft) | |
| Relative Humidity | 20% to 90% (non-condensing) | ||
| Temperature | 0° C to 40° C 32° F to 104° F |
||
| Storage Conditions | Altitude | 12 km (39,370.1 ft) | |
| Relative Humidity | 5% to 90% (non-condensing) | ||
| Temperature | -20° C to 60° C -4° F to 140° F |
||
| Dimensions (with stand) | Physical (W × H × D) | 615 × 458.8 × 225 mm 24.21 × 18.06 × 8.86 in. |
|
| Weight (with stand) | Physical | 4.1 kg (9.0 lb) | |
| Dimensions (without stand) | Physical (W × H × D) | 615 × 363.8 × 46 mm 24.21 × 14.32 × 1.81 in. |
|
| Weight (without stand) | Physical | 3.6 kg (7.9 lb) | |
| Wall Mount | Dimensions | 100 × 100 mm | |
| Power Consumption | On[5] | 26W (Typical) without audio 28W (Typical) with 50% audio[4] |
|
| Off | ≤ 0.3 W (Maximum) | ||
- ↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
- ↑ 2.0 2.1 For HDMI only.
- ↑ Please use the power adapter/power cord from ViewSonic® or an authorized source only.
- ↑ 4.0 4.1 For VA2732A-MH only.
- ↑ The test condition follows EEI standards.
