Introduction

Package Contents

Monitor
Power adapter
Video cable
Quick Start Guide

Note: The cables included in your package may vary depending on your country. Please contact your local reseller for more information.

Product Overview

Front View
Rear View

Number	Description
1	Control Panel Keys
2	Power Button
3	I/O Ports
4	Security Lock Slot
5	Internal Speakers^[1]

↑ For VA2432A-MH only.

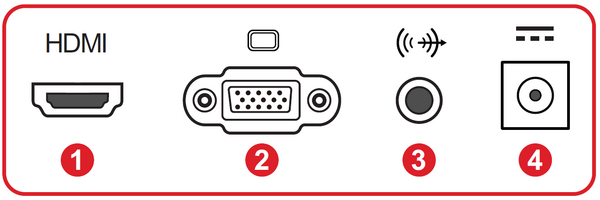

I/O Ports

Number	Description
1	HDMI
2	VGA
3	Audio Out
4	DC IN

Note: For more information about the Control Panel Keys, refer to Using the Control Panel Keys.

Initial Setup

Installing the Stand

Note: Place the monitor on a flat, stable surface to ensure safety and optimal performance.

Removing the Stand

Important: Before removing the stand, turn off the monitor, disconnect all cables, and place the monitor on a flat, stable surface with the screen facing down.

Mounting the Monitor

After removing the stand, the monitor can be mounted using an optional mounting kit or bracket.

Note: For use only with a UL certified mounting kit. To obtain a mounting kit or height adjustment base, contact ViewSonic® or your local dealer.

Refer to the table below for the standard dimensions for mounting kits.

Maximum Loading	Pad Hole	Screw Specification	Screw Quantity
14 kg	75 x 75 mm	M4 x 10 mm	4 screws

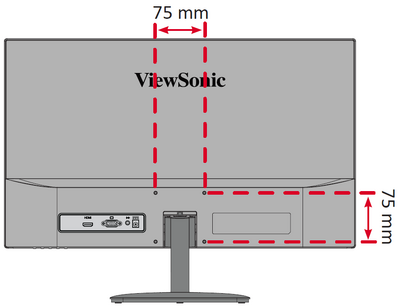

Attach the mounting bracket to the VESA mounting holes at the rear of the monitor, securing it with four M4 x 10 mm screws.
Follow the mounting kit instructions to mount the monitor.

Using the Security Slot

To help prevent the monitor from being stolen, use a security slot locking device to secure the monitor to a fixed object.

Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Making Connections

Connecting to Power

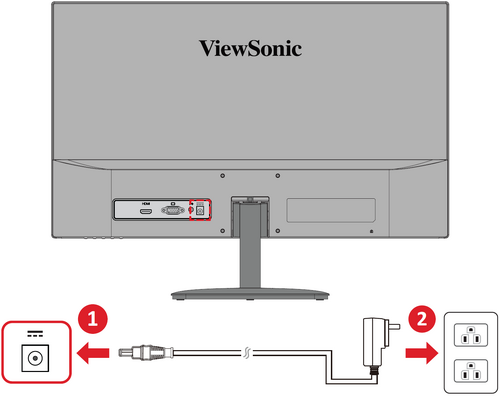

Connect the power adapter to the DC IN jack at the rear of the monitor.
Plug the power adapter into a power outlet.

Connecting to External Devices

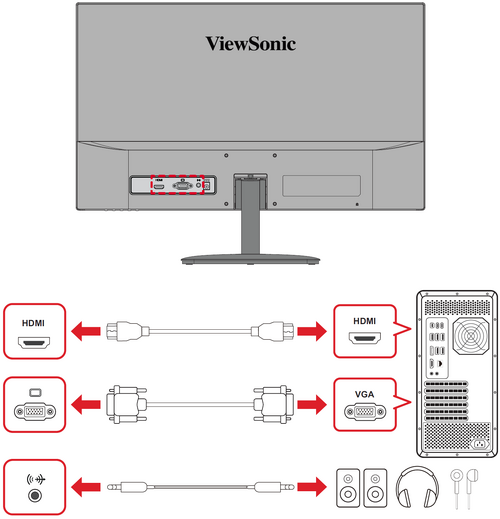

Connect the monitor to an external device

Using the Monitor

Adjusting the Viewing Angle

Tilt Angle Adjustment

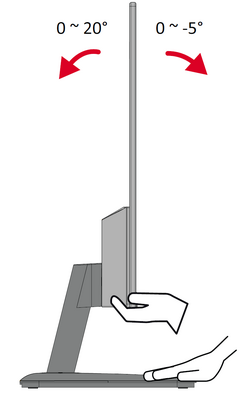

Tilt the monitor forwards or backwards (-5˚ to 20˚).

Note: Adjust the monitor by supporting the stand with one hand and gently tilting the screen with the other.

Turning the Monitor On/Off

Plug the connected power adapter into a power outlet.
Press the Power ( ) button to turn on the monitor.
To turn the monitor off, press the Power ( ) button again.

Note:

The monitor will still consume power as long as the power cord is plugged in. If the monitor is not being used for extended periods, please unplug the power cord from the power outlet.
If the OSD Menu is still on screen, press and hold the Power ( ) button for three seconds to turn the monitor off.

Using the Control Panel Keys

Use the Control Panel Keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change settings.

Quick Menu

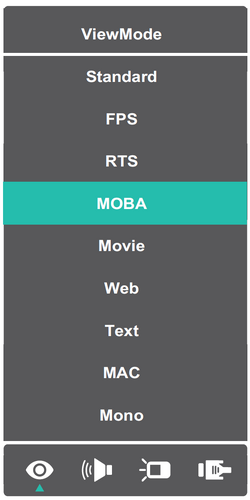

Press the 1 (★) key to activate the Quick Menu

Note: Follow the key guide that appears on the screen to select the option or make adjustments.

Icon	Menu	Description
	ViewMode	Select one of the preset color settings.
	Volume	Adjust the level, or mute the volume.
	Contrast/Brightness	Adjust the contrast or brightness level.
	Input Select	Select the input source.
	Exit	Exit the Quick Menu.

Configuring the Settings

General Operations

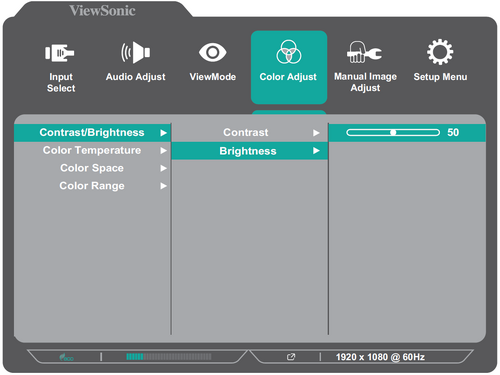

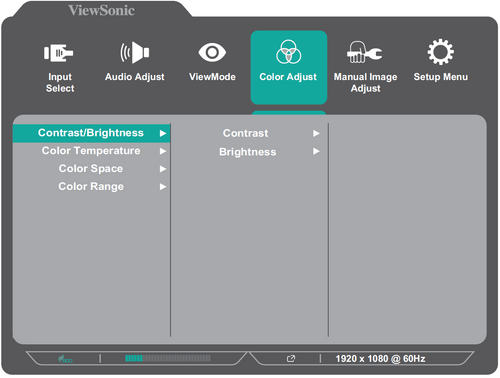

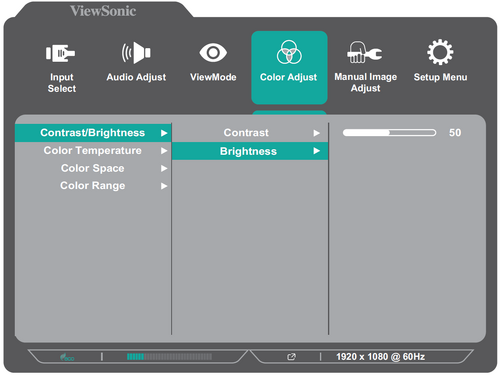

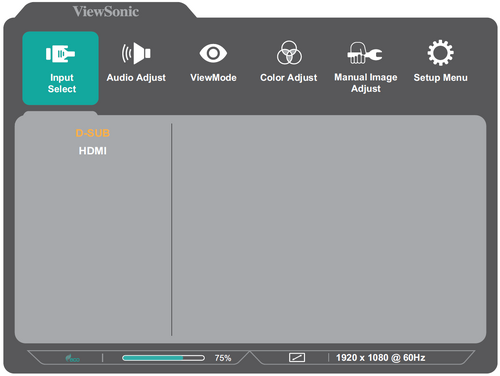

Press the 2/3/4 key to display the On-Screen Display (OSD) Menu.

Press the 1(★) or 2 key to select the main menu. Then press the 3 key to enter the selected menu.

Press the 1(★) or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.

Press the 1(★) or 2 key to adjust/select the setting. Then press the 3 key to confirm.

Note: Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the screen to select the option or make adjustments.

Press the 4 key to return to the previous menu.

Appendix

Specifications

Item	Category	Specifications
ID	Model No.	VS17789
ID	P/N	VA2432A-H-W \| VA2432A-MH \| VA2432A-MH-W
LCD	Type	IPS type, Color a-Si TFT Active Matrix 1920 x 1080 LCD; 0.2745 (H)mm x 0.2745 (V)mm pixel pitch
	Display Size	60.4 cm
	Display Size	23.8" viewable
	Color Filter	RGB Vertical Stripe
	Glass Surface	Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal	Video Sync	Analog D-Sub: f_h: 24~86 kHz, f_v: 48~75 Hz TMDS digital (100 Ω) HDMI (v. 1.4): f_h: 30~135 kHz, f_v: 48~120 Hz
Compatibility	PC	up to 1920 x 1080
Compatibility	Macintosh	up to 1920 x 1080
Resolution and Timings^[1]	Recommended	1920 x 1080 @ 60 Hz
Resolution and Timings^[1]	Supported	1920 x 1080 @ 50, 60, 75, 100^[2], 120^[2] Hz 1680 x 1050 @ 60 Hz 1600 x 1200 @ 60 Hz 1600 x 900 @ 60 Hz 1440 x 900 @ 60, 75 Hz 1440 x 576 @ 50 Hz 1400 x 1050 @ 60, 75 Hz 1366 x 768 @ 60 Hz 1360 x 768 @ 60 Hz 1280 x 1024 @ 50, 60, 75 Hz 1280 x 960 @ 50, 60, 75 Hz 1280 x 800 @ 60, 75 Hz 1280 x 768 @ 50, 60, 75 Hz 1280 x 720 @ 50, 60 Hz 1152 x 900 @ 66 Hz 1152 x 870 @ 75 Hz 1152 x 864 @ 60, 75 Hz 1024 x 768 @ 50, 60, 70, 72, 75 Hz 1024 x 600 @ 60 Hz 848 x 480 @ 60 Hz 832 x 624 @ 75 Hz 800 x 600 @ 56, 60, 72, 75 Hz 720 x 576 @ 50 Hz 720 x 480 @ 60 Hz 720 x 400 @ 70 Hz 640 x 480 @ 50, 60, 66, 72, 75 Hz 640 x 400 @ 60, 70 Hz 640 x 350 @ 70 Hz
Power^[3]	Input Voltage	AC 100-240V, 50/60 Hz (auto switch)
Display Area	Active Size (H x V)	527.04 x 296.46 mm
Display Area	Active Size (H x V)	20.75” x 11.67”
Audio	Speaker^[4]	2 x 2W
Operating Conditons	Altitude	5 km
	Altitude	16,404.2 ft
	Relative Humidity	20% to 90% (non-condensing)
	Temperature	0° C to 40° C
	Temperature	32° F to 104° F
Storage Conditions	Altitude	12 km
	Altitude	39,370.1 ft
	Relative Humidity	5% to 90% (non-condensing)
	Temperature	-20° C to 60° C
	Temperature	-4° F to 140° F
Dimensions (with stand)	Physical (W x H x D)	540.45 x 406.05 x 185 mm
Dimensions (with stand)	Physical (W x H x D)	21.3” x 16” x 7.3”
Weight (with stand)	Physical	2.7 kg
Weight (with stand)	Physical	6.0 lb
Dimensions (without stand)	Physical (W x H x D)	540.45 x 322.05 x 35.95 mm
Dimensions (without stand)	Physical (W x H x D)	21.3” x 12.7” x 1.4”
Weight (without stand)	Physical	2.4 kg
Weight (without stand)	Physical	5.3 lb
Wall Mount	Dimensions	75 x 75 mm
Power Consumption	On^[5]	22W (Typical) without audio 24W (Typical) with 50% audio^[4]
Power Consumption	Off	≤ 0.3W

↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
↑ ^2.0 ^2.1 For HDMI only.
↑ Please use the power adapter/power cord from ViewSonic® or an authorized source only.
↑ ^4.0 ^4.1 For VA2432A-MH only.
↑ The test condition follows EEI standards.

On-Screen Display (OSD) Menu Tree

Sub-menu
D-Sub
HDMI

Sub-menu	Menu Option
Volume	Volume	(-/+, 0~100)/1
	Mute	On
	Mute	Off

Sub-menu
Standard
FPS
RTS
MOBA
Movie
Web
Text
MAC
Mono

Sub-menu	Menu Option
Contrast/Brightness	Contrast	(-/+, 0~100)/1
Contrast/Brightness	Brightness	(-/+, 0~100)/1
Color Temperature	sRGB
	Bluish
	Cool
	Native
	Warm
	User Color	Red	(-/+, 0~100)/1
		Green	(-/+, 0~100)/1
		Blue	(-/+, 0~100)/1
Color Space (for HDMI only)	Auto
	RGB
	YUV
Color Range (for HDMI only)	Auto
	Full Range
	Limited Range

Sub-menu	Menu Option
Auto Image Adjust (for D-Sub only)
Horizontal Size (for D-Sub only)	(-/+, 0~100)/1
H./V. Position (for D-Sub only)	Horizontal Position	(-/+, 0~100)/1
H./V. Position (for D-Sub only)	Vertical Position	(-/+, 0~100)/1
Fine Tune (for D-Sub only)	(-/+, 0~100)/1
Sharpness	(-/+, 0~100)/25
Blue Light Filter	(-/+, 0~100)/1
Aspect Ratio	4:3
	5:4
	16:9
	16:10
Overscan (for HDMI only)	On
Overscan (for HDMI only)	Off
Advanced DCR	(-/+, 0~100)/25
Response Time	Standard
	Advanced
	Ultra Fast

Sub-menu	Menu Option
Language	English
	Français
	Deutsch
	Español
	Italiano
	Suomi
	Svenska
	Русский
	Türkçe
	Česká
	Tiếng Việt
	日本語
	한국어
	繁體中文
	简体中文
Variable Refresh Rate (for HDMI only)	On
Variable Refresh Rate (for HDMI only)	Off
1ms Mode	On
1ms Mode	Off
Information
OSD Size	Native
OSD Size	Large
OSD Timeout	(-/+, 5/15/30/60)
OSD Background	On
OSD Background	Off
Power Indicator	On
Power Indicator	Off
Auto Power Off	On
Auto Power Off	Off
Sleep (for HDMI only)	30 minutes
	45 minutes
	60 minutes
	120 minutes
	Off
ECO Mode	Standard
	Optimize
	Conserve
Auto Detect	On
Auto Detect	Off
DDC/CI	On
DDC/CI	Off
Memory Recall
