Introduction

Package Contents

  • Monitor
  • Power adapter
  • Video cable
  • Quick start guide
Note: The cables included in your package may vary depending on your country. Please contact your local reseller for more information.

Product Overview

Front View

Front of the monitor on its stand, with a callout for the Control Panel Keys at the lower right of the bezel.

  1. Display
  2. Control Panel Keys

Rear View

Rear of the monitor on its stand, with the I/O ports along the bottom edge.

  1. I/O Ports
  2. Security Slot

I/O Ports

I/O ports panel, numbered 1 to 3: HDMI, VGA, and DC IN.
The I/O ports of the monitor.
# Description
1 HDMI
2 VGA
3 DC IN

Initial Setup

Installing the Stand

1

The monitor lying screen-down, with the stand being attached to the rear of the monitor and the base slid onto the stand.

2

The stand and base assembled on the rear of the monitor.

3

The monitor standing upright on its stand, seen from the front.

Caution: Place the monitor on a flat, stable surface to ensure safety and optimal performance.

Removing the Stand

1

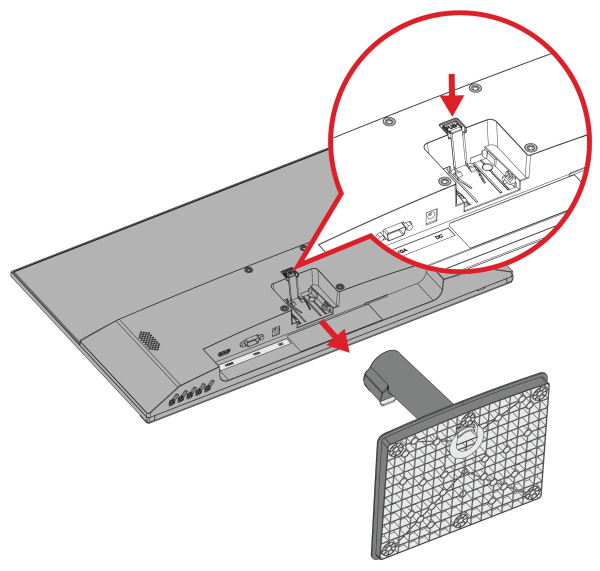

The monitor lying screen-down: the release button is pressed and the stand is pulled away from the rear of the monitor.

2

The base being removed from the stand.

Caution: Before removing the stand, turn off the monitor, disconnect all cables, and place the monitor on a flat, stable surface with the screen facing down.

Mounting the Monitor

After removing the stand, the monitor can be mounted using an optional mounting kit.

Rear of the monitor showing the four VESA mounting holes 75 mm apart horizontally and vertically.
The standard dimensions and loading of mounting kits.
Maximum Loading Hole Pattern (W × H) Screw Specification Screw Quantity
14 kg 75 × 75 mm M4 × 10 mm 4
  1. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor, securing it with screws.
  2. Follow the mounting kit instructions to mount the monitor.
Note: For use only with a UL certified mounting kit. To obtain a mounting kit or height adjustment base, contact ViewSonic® or your local dealer.

Using the Security Slot

A security cable locked into the security slot on the rear of the monitor and looped around a table leg.

To prevent theft and minimize damage, use a security slot locking device to secure the monitor to a fixed object.

Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.

Making Connections

Connecting to Power

The power adapter connected to the DC IN port on the rear of the monitor (1) and plugged into a power outlet (2).


Connecting to External Devices

HDMI and VGA cables connecting the monitor to a computer.


Using the Monitor

Adjusting the Viewing Angle

Tilt Angle Adjustment

Tilt the monitor forwards or backwards (−5° to 15°).

Side view of the monitor tilting forwards and backwards on its stand.
Note: Adjust the monitor by supporting the stand with one hand and gently tilting the screen with the other.

Turning the Monitor On/Off

Note: The monitor will still consume power as long as the power cord is plugged in. If the monitor is not being used for extended periods, please unplug the power cord from the power outlet.
Front of the monitor with a hand pressing the Power button at the lower right of the bezel.
  1. Make sure the monitor is connected to power.
  2. Press the Power button to turn on the monitor.
  3. To turn the monitor off, press the Power button again.
Note: If the On-Screen Display Menu is still on screen, press and hold the Power button for three seconds to turn off the monitor.

Using the Control Panel Keys

Activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change settings.

Close-up of the Control Panel Keys under the bottom bezel, labeled 1 (star), 2, 3, 4, and 5 (Power).

Quick Menu

Press the 1 key to activate the Quick Menu.

Quick Menu open on ViewMode, listing Standard, FPS, RTS, MOBA, Movie, Web, Text, MAC, and Mono.
Note: Follow the key guide that appears on the screen to select the option or make adjustments.
The Quick Menu options.
Menu Description
ViewMode Select one of the preset color settings.
Contrast/Brightness Adjust the contrast or brightness level.
Input Select Select the input source.
Exit Exit the Quick Menu.

Configuring the Settings

General Operations

On-Screen Display Menu open, showing the main menu list.

Press the 3 or 4 key to display the On-Screen Display (OSD) Menu.

On-Screen Display Menu with a main menu selected and its options shown.

Press the 1 or 2 key to select the main menu. Then press the 3 key to enter the selected menu.

On-Screen Display Menu with a menu option selected and its sub-menu open.

Press the 1 or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.

On-Screen Display Menu with a setting being adjusted in the sub-menu.

Press the 1 or 2 key to adjust/select the setting. Then press the 3 key to confirm.
Note:
  • Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the screen to select the option or make adjustments.
  • Press the 4 key to return to the previous menu. To exit the OSD Menu, press the 5 (Power) key.

On-Screen Display (OSD) Menu Tree

Input Select

Input Select menu options.
Menu Option
D-Sub · HDMI

ViewMode

ViewMode menu options.
Menu Option
Standard · FPS · RTS · MOBA · Movie · Web · Text · MAC · Mono

Color Adjust

Color Adjust menu options.
Sub-menu Menu Option
Contrast/Brightness Contrast 0–100/1
Brightness 0–100/1
Color Temperature sRGB · Bluish · Cool · Native · Warm
User Color Red 0–100/1
Green 0–100/1
Blue 0–100/1
Color Space
(for HDMI only)
Auto · RGB · YUV
Color Range
(for HDMI only)
Auto · Full Range · Limited Range

Manual Image Adjust

Manual Image Adjust menu options.
Sub-menu Menu Option
Auto Image Adjust (for D-Sub only) —
Horizontal Size
(for D-Sub only)
0–100/1
H./V. Position
(for D-Sub only)
Horizontal Position 0–100/1
Vertical Position 0–100/1
Fine Tune
(for D-Sub only)
0–100/1
Sharpness 0–100/25
Blue Light Filter 0–100/1
Aspect Ratio 4:3 · 5:4 · 16:9 · 16:10
Overscan
(for HDMI only)
On · Off
Black Stabilization 0–100/10
Advanced DCR 0–100/25
Response Time Standard · Advanced · Ultra Fast

Setup Menu

Setup Menu options.
Sub-menu Menu Option
Language Select English · Français · Deutsch · Español · Italiano · Suomi · Svenska · Русский · Türkçe · Česká · Tiếng Việt · 日本語 · 한국어 · 繁體中文 · 简体中文
Variable Refresh Rate
(for HDMI only)
On · Off
1ms Mode On · Off
Resolution Notice On · Off
Information —
OSD Timeout 5 · 15 · 30 · 60
OSD Background On · Off
Power Indicator On · Off
Auto Power Off On · Off
Sleep
(for HDMI only)
30 minutes · 45 minutes · 60 minutes · 120 minutes · Off
ECO Mode Standard · Optimize · Conserve
Auto Detect On · Off
DDC/CI On · Off
Memory Recall —

Appendix

Specifications

The monitor's technical specifications.
Category Specification Value
Display Type IPS, Color a-Si TFT Active Matrix 1920 × 1080 LCD; 0.2745 (H) mm × 0.2745 (V) mm pixel pitch
Display Size 61 cm / 23.8 in. (viewable)
Color Filter RGB Vertical Stripe
Glass Surface Anti-Glare (Haze 25%), Hard Coating (3H)
Input Signal Frequency D-Sub fh: 24–86 kHz;
fv: 48–75 Hz
HDMI fh: 30–135 kHz;
fv: 48–120 Hz
Version HDMI 1.4
Compatibility PC up to 1920 × 1080
Macintosh up to 1920 × 1080
Resolution and Timings[1] Preset 1920 × 1080 @ 60 Hz
Supported
  • 1920 × 1080 @ 50, 60, 75, 100[2], 120[2] Hz
  • 1680 × 1050 @ 60 Hz
  • 1600 × 1200 @ 60 Hz
  • 1600 × 900 @ 60 Hz
  • 1440 × 900 @ 60, 75 Hz
  • 1440 × 576 @ 50 Hz
  • 1400 × 1050 @ 60, 75 Hz
  • 1366 × 768 @ 60 Hz
  • 1360 × 768 @ 60 Hz
  • 1280 × 1024 @ 50, 60, 75 Hz
  • 1280 × 960 @ 50, 60, 75 Hz
  • 1280 × 800 @ 60, 75 Hz
  • 1280 × 768 @ 50, 60, 75 Hz
  • 1280 × 720 @ 50, 60 Hz
  • 1152 × 900 @ 66 Hz
  • 1152 × 870 @ 75 Hz
  • 1152 × 864 @ 60, 75 Hz
  • 1024 × 768 @ 50, 60, 70, 72, 75 Hz
  • 1024 × 600 @ 60 Hz
  • 848 × 480 @ 60 Hz
  • 832 × 624 @ 75 Hz
  • 800 × 600 @ 56, 60, 72, 75 Hz
  • 720 × 576 @ 50 Hz
  • 720 × 480 @ 60 Hz
  • 720 × 400 @ 70 Hz
  • 640 × 480 @ 50, 60, 67, 73, 75 Hz
  • 640 × 400 @ 60, 70 Hz
  • 640 × 350 @ 70 Hz
Power[3] Input Voltage AC 100–240V, 50/60 Hz (auto switch)
Display Area Active Size (H × V) 527.04 × 296.46 mm
20.75 × 11.67 in.
Operating Conditions Altitude 5 km (16,404.2 ft)
Relative Humidity 20% to 90% (non-condensing)
Temperature 0° C to 40° C
32° F to 104° F
Storage Conditions Altitude 12 km (39,370.1 ft)
Relative Humidity 5% to 90% (non-condensing)
Temperature -20° C to 60° C
-4° F to 140° F
Dimensions (with stand) Physical (W × H × D) 539.80 × 415.32 × 188.97 mm
21.25 × 16.35 × 7.44 in.
Weight (with stand) Physical 2.9 kg (6.4 lb)
Dimensions (without stand) Physical (W × H × D) 539.80 × 324.30 × 51.01 mm
21.25 × 12.77 × 2.01 in.
Weight (without stand) Physical 2.6 kg (5.7 lb)
Wall Mount Dimensions 75 × 75 mm
Power Consumption On[4] 22W (Typical)
Standby ≤ 0.3 W (Maximum)
Off ≤ 0.3 W (Maximum)
  1. ↑ Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
  2. ↑ 2.0 2.1 HDMI only.
  3. ↑ Please use the power adapter/power cord from ViewSonic® or an authorized source only.
  4. ↑ The test condition follows EEI standards.

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the Control Panel Keys.

Shortcut keys and their function.
Key Description
1 + 3 Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu. If the OSD Menu is locked, a message appears on the screen.
2 + 3 Press and hold the keys to lock/unlock the Power button. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the Power button. If the Power button is locked, a message appears on the screen.
1 + 4 Press the keys to display/hide the Boot up Screen or Message OSD when the device is turned on.

Regulatory and Service Information

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

CE Conformity for European Countries

CE logo

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

WEEE logo

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below.

RoHS2 restricted substances and concentration limits.
Substance Proposed Maximum Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Butyl benzyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

  • Copper alloy containing up to 4% lead by weight.
  • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
  • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
  • Lead in dielectric ceramic in capacitors for a rated voltage of 125 V AC or 250 V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

For EU users, please contact us for any safety/accident issue experienced with this product:

Address.
ViewSonic Europe Limited
Flevolaan 38, 1382JZ, Weesp,
the Netherlands
Phone.
+31 0800023299

Copyright Information

Copyright © 2024 ViewSonic® Corporation. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Noto Sans Font. Copyright 2018 The Noto Project Authors. This Font Software is licensed under the SIL Open Font License, Version 1.1.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

This Copyright Information may be translated into multiple languages. All translated versions are provided for reference only. In the event of any discrepancy or inconsistency among different language versions, the English version shall prevail.

Version
VA240A-H_UG_ENG_1b_20250102
