    Connecting to Power

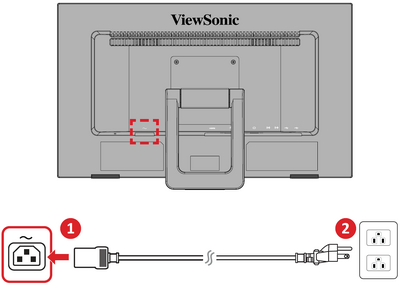

    1. Connect the power cord to the AC IN jack at the rear of the device.
    2. Plug the power cord plug into a power outlet.
      3. Connecting to Power

    Connecting External Devices

    HDMI

    Connect one end of an HDMI cable to the HDMI port of the monitor. Then connect the other end of the cable to the HDMI port of your computer.

    NOTE: The monitor is equipped with one HDMI 1.4 port.
    Connecting to HDMI

    DVI

    Connect one end of a DVI cable to the DVI port of the monitor. Then connect the other end of the cable to the DVI port of your computer.

    Connecting to DVI

    VGA

    Connect one end of a VGA cable to the VGA port of the monitor. Then connect the other end of the cable to the VGA port of your computer.

    Connecting to VGA

    Audio

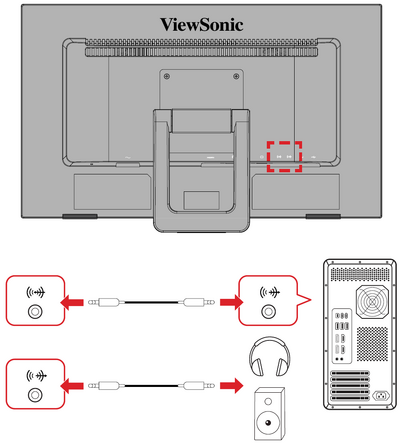

    Plug an audio cable into the Audio In/Audio Out port of the monitor. Plug the other end into your computer (Audio In) or ear-/headphones (Audio Out).

    NOTE: The monitor is also equipped with dual speakers.
    Connecting to Audio

    USB

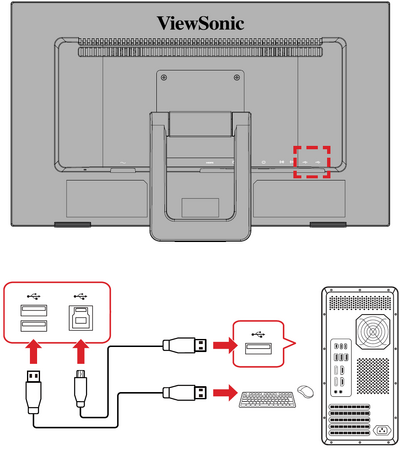

    Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer.

    Connecting to USB
    NOTE: The monitor supports two (2) types of USB ports. When making the connection(s), observe the following guidelines:
    USB Number Description
    Type A Two (2) Connection for your Type A peripheral device(s) (e.g., storage device, mouse, keyboard, etc.).
    NOTE: To activate the USB Type A port, ensure your computer is also connected to the monitor’s USB Type B port.
    Type B One (1) Connect the USB Type B male cable (square with 2 cut corners) to this port, and then connect the other end of the cable to the USB downstream port of your computer.

    Touch Function Control

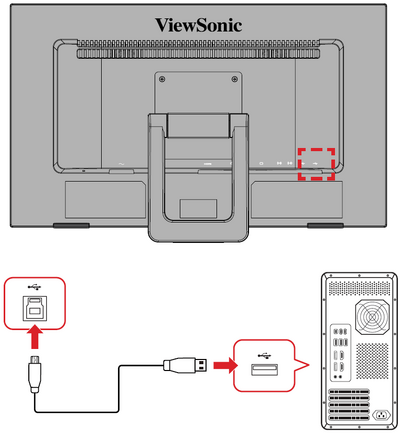

    Before using the touch function, ensure the USB Type B to Type A cable is connected to your computer and the Windows operating system is running.

    Touch Function Control

    When using the touch function, please note:

    • The touch function may need about five (5) seconds to resume if the USB cable is removed and plugged in again, or the computer resumes from Sleep Mode.
    • The touchscreen can only detect up to ten (10) fingers simultaneously.
    • If the Windows’ cursor does not accurately follow your finger when you touch the screen, do the following:
    1. Open: Control Panel > Hardware and Sound > Tablet PC Settings
    2. Select Calibration.
    3. Follow the instructions to recalibrate your screen.

    Touch Accuracy

    • Touch accuracy is ± 2 mm over 90% of the touch active area located in the middle area.
    • Touch size at 10% of the edge area is ≥ 8 mm (as illustrated below); the area at the edges without might not support any touch.
    Touch Accuracy
    • Please use a spherical tip stylus with a minimum diameter of 3 mm in 90% of the touch active area.
    • Please use a spherical tip stylus with a minimum diameter of 8 mm in 10% of the edge area.
