TD1656-2K

Package Contents

Portable Display USB Type C cable Smart Cover Passive Pen Quick Start Guide

Error creating thumbnail: File with dimensions greater than 12.5 MP

Note: The cables included in your package may vary depending on your country. Please contact your local reseller for more information.

Product Overview

Front and Left Side View

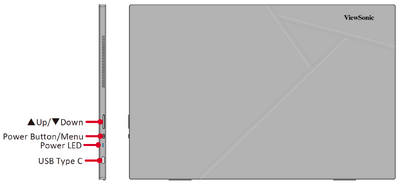

Rear and Right Side View

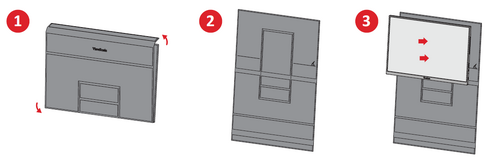

Installing the Smart Cover

Using the Smart Cover

Note: When positioning the monitor upright, ensure that the button area is at the top to align with the smart cover.

Connecting to External Devices

Type C Connection

Connect a USB Type C cable to your external device, then connect the other end of the cable to a USB Type C port on the monitor.

Note:

• The power output must be greater than 10W.
• When using Audio Mode and adjusting the Volume to 100 the power output of your laptop must be greater than 15W.

Touch Function Control

When using the touch function, please note:

• The touch function may need about five seconds to resume if the USB Type C cable is removed and plugged in again, or the computer resumes from Sleep Mode.
• The touchscreen can only detect up to 10 fingers simultaneously.
• If the Windows’ cursor does not accurately follow your finger when you touch the screen, do the following:

1. In Windows, go to: Control Panel > Hardware and Sound > Tablet PC Settings.
2. Select Calibration.
3. Follow the on-screen instructions to recalibrate your screen.

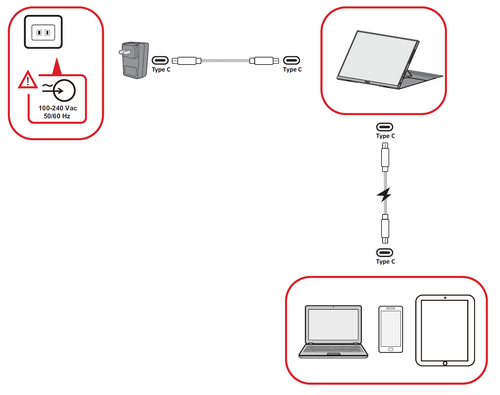

Power Delivery

Powering a Device

If the USB Type C power adapter is connected to the monitor, then the monitor can charge a connected laptop, mobile phone, or tablet.

Note:

• The power adapter is not included in the packaging.
• Power Delivery Output Compliance: PD 20V/3.25A, 15V/3A, 12V/2.16A, 9V/1.8A, 5V/0.9A.
• The power adapter should have a minimum output of 30W to enable the monitor to provide power to mobile devices. For powering laptops, the adapter needs to provide at least 65W.

Power Supply Detection

This product will detect if the power supply device is an adapter, laptop, or mobile phone.

• If the power source is an adapter or laptop, the default brightness value will be 100.
• If the power source is a mobile phone or tablet, the default brightness value will be 18 and volume will be 50.

Note: Due to the limited power output of the mobile phone or tablet, do not adjust the brightness or volume level higher as this may cause the display to flash or shut down.

Power Delivery - Further Information

Due to the TD1656-2K’s design please note:

• The first connected device will be the main input signal.
• When a USB Type C port recognizes an external device as a power adapter, it will only distribute the power. It will NOT display the input signal.
• Only when one of the USB Type C ports is recognized as a power adapter can the other one deliver two-way power.

If a laptop is connected first to the TD1656-2K, then a mobile phone is connected second, the mobile phone’s battery will not be charged as neither USB Type C port recognizes the connection as being connected to a power adapter.

Note: If you want to display the mobile phone’s screen, you must unplug the USB Type C cable connected to the laptop.

If a mobile phone is connected first to the TD1656-2K, then a laptop is connected second, the mobile phone’s battery will be charged as one of the USB Type C ports is recognized as being connected to a power adapter.

Note: If you want to display the laptop screen, you must unplug the USB Type C cable connected to the mobile phone.

Due to the TD1656-2K’s design, do not connect two laptops or one laptop and a desktop computer at the same time. This can cause power distribution conflicts, resulting in flashing screens or the forced shutdown of the laptop(s).

Turning the Monitor On/Off

1. Press the Power Button to turn on the monitor.
2. To turn the monitor off, press the Power Button again.

   Note: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

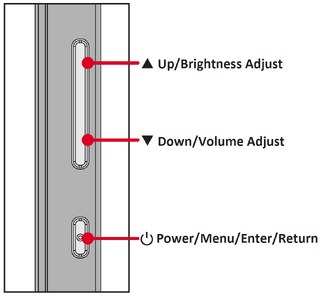

Using the Control Panel Keys

Use the Control Panel Keys to access the Quick Menu and navigate the On-Screen Display (OSD) Menu.

Quick Menu

Press Up [▲] to adjust the Brightness level, and Down [▼] to adjust the Volume level.

•
  Volume Adjustments
•
  Brightness Adjustments

Note: Follow the key guide that appears on the screen to select the option or make adjustments.

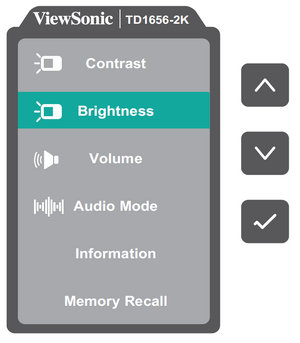

On-Screen Display (OSD) Menu

General Operation

1. Press the Power Button to open the On-Screen Display (OSD) Menu.

2. Press Up [▲] or Down [▼] to select a menu option. Then press the Power Button to enter the selected menu

3. Follow the on-screen key guide to return to the previous screen.
   Note: The OSD Menu will automatically close if there is no action after five seconds.

On-Screen Display (OSD) Menu Tree

Sub-menu	Menu Option
Contrast	(-/+, 0~100)/1
Brightness	(-/+, 0~100)/1
Volume	(-/+, 0~100)/1
Audio Mode	Standard
	Voice
	Movie
	Music
Information
Memory Recall

Menu Options

Sub-menu	Menu Option
Contrast	Adjust the degree of difference between the lightest and darkest parts of the picture and change the amount of black and white in the image.
Brightness	Adjust the background black levels of the screen image.
Volume	Adjust the volume level.
Audio Mode	Sub-menu Menu Option Standard Default audio setting. Voice Enhances vocal clarity. Movie Enhances dialogue and sound effects for movies. Music Fine-tunes sound for musical enjoyment.
Information	Display the monitor information.
Memory Recall	Reset all settings to their default values.

Auto Pivot

With the Auto Pivot feature, the monitor can detect the image displayed and adjust the image’s orientation on the screen automatically when pivoting the screen vertically or horizontally.

Note:

• For the monitor to automatically detect the rotation, vDisplay Managersoftware needs to be installed and activated. Please remember to enable Auto for the Screen Pivot function in vDisplay Manager.
• Please make sure that the monitor is connected to the laptop/PC via a USB Type C cable to enable the Screen Pivot function.

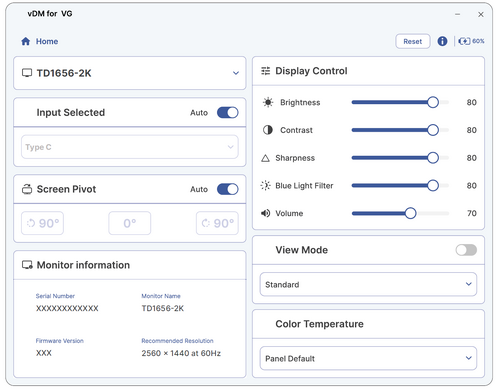

Download and Install vDisplay Manager

To download and install vDisplay Manager:

1. Visit the ViewSonic website.
2. In the top right corner search for the product model (e.g., TD1656-2K).
3. Go to the bottom of the product page to find the download link for vDisplay Manager.
4. Click the link to begin the download.

Technical Specifications

Item	Category	Specifications
Model	P/N.	TD1656-2K
	No.	VS19906
LCD	Type	TFT Active Matrix 2560 x 1600 LCD; 0.0449 (H)mm x 0.1346 (V)mm pixel pitch
	Display Size	40.6 cm
		16" (viewable)
	Color Filter	RGB Vertical Stripe
	Glass Surface	Anti-Glare type, Hard Coating (3H)
Input Signal	Video Sync	TMDS Digital (100 Ω) Type C: fh:15~100 kHz, fv:50-75 Hz
Compatibility	PC	up to 2560 x 1600
	Macintosh	up to 2560 x 1600
	Recommended	2560 x 1600 @ 60 Hz
Resolution	Supported	2560 x 1600 @ 60 Hz 2560 x 1080 @ 60 Hz 2048 x 1152 @ 60 Hz 1920 x 1200 @ 60 Hz 1920 x 1080 @ 50, 60 Hz 1680 x 1050 @ 60 Hz 1600 x 1200 @ 60 Hz 1600 x 900 @ 60 Hz 1440 x 900 @ 60, 75 Hz 1400 x 1050 @ 60 Hz 1366 x 768 @ 60 Hz 1360 x 768 @ 60 Hz 1280 x 1024 @ 50, 60, 75 Hz 1280 x 960 @ 50, 60, 75 Hz 1280 x 800 @ 60, 75 Hz 1280 x 768 @ 50, 60, 75 Hz 1280 x 720 @ 50, 60 Hz 1152 x 870 @ 75 Hz 1152 x 864 @ 60, 75 Hz 1024 x 768 @ 50, 60, 70, 72, 75 Hz 800 x 600 @ 56, 60, 72, 75 Hz 720 x 576 @ 50 Hz 720 x 480 @ 60 Hz 720 x 400 @ 70 Hz 640 x 480 @ 50, 60, 67, 72, 75 Hz 640 x 400 @ 60, 70 Hz 640 x 350 @ 70 Hz
Power	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
	USB-C PD Adapter	TD1656-2K PD output complies with: PD 20V/3.25A, 15V/3A, 12V/2.16A, 9V/1.8A, 5V/0.9A.
Display Area	Full Scan (H x V)	344.68 x 215.42 mm
		13.57” x 8.48”
Operating Conditons	Altitude	5 km
		16,400 ft
	Relative Humidity	20% to 90% (non-condensing)
	Temperature	0° C to 40° C
		32° F to 104° F
Storage Conditions	Altitude	12.1 km
		40, 000 ft
	Relative Humidity	5% to 90% (non-condensing)
	Temperature	-20° C to 60° C
		-4° F to 140° F
Dimensions	Physical (W x H x D)	356.7 x 234.9 x 9.9 mm
		14.04” x 9.25” x 0.39”
Wall Mount	Dimensions	100 x 100 mm
Weight	Physical	0.8 kg
		1.8 lb
Power Consumption	On	7.8W (Typical)
	Off	< 0.3W
