    Package Contents

    • Receiver
    • Transmitter
    • Soft Carry Case
    NOTE: If anything is missing or damaged, please contact your local reseller for more information.

    Product Overview

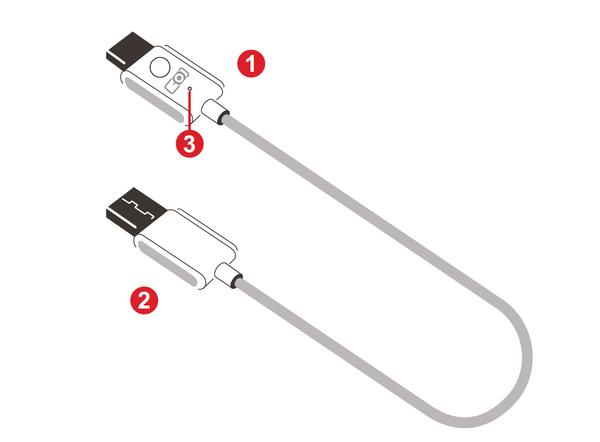

    Receiver

    Receiver
    Number Item Description
    1 HDMI[1] Output Version 1.4; connect to a projection device.
    2 USB A[2] Input For power input only (5V/0.5A).
    3 Reset For pairing and resetting to default settings.
    1. Compatible with HDMI 1.4.
    2. Compatible with USB Type A.

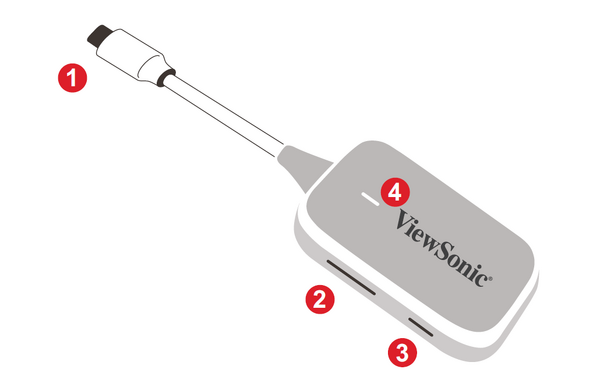

    Transmitter

    Transmitter
    Number Item Description
    1 USB C[1] Input Display input; connect to the casting device (e.g., laptop, mobile phone, tablet).
    2 Pair Button
    • Press to turn casting ON/OFF as the display signal is transmitting.
    • Press and hold for five (5) seconds to enter pairing mode (if needed).
    3 Reset Button Press and hold for five (5) seconds to reset the device to factory default settings.
    4 LED Indicator Indicates the power and connection status.
    1. Compatible with USB C. Ensure your device supports video output and power delivery via USB C port (DisplayPort Alternative Mode on USB C)

    Connecting the Receiver

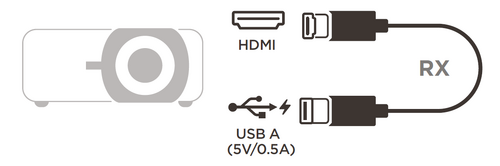

    Connecting the Receiver
    1. Connect the Receiver’s HDMI Output to an HDMI port of the projector.
    2. NOTE: Ensure the projector is also turned ON.
    3. Plug the Receiver’s USB A Input into the USB A port of the projector that can provide 5V/0.5A power.

    Connecting the Transmitter

    Connecting the Transmitter

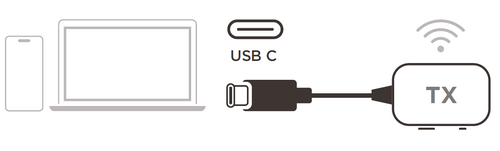

    1. Connect the Transmitter’s USB C Input to a USB C port of the casting device (e.g. laptop, mobile phone, tablet).
    2. Once connected, the Transmitter’s LED Indicator will flash for a few seconds then stop. At this time, the casting device’s screen will cast automatically.
    3. Pressing the Pair Button will toggle casting ON/OFF while the casting device is transmitting.
    4. NOTE: Ensure your device supports video output and power delivery via USB C port (DisplayPort Alternative Mode on USB C).

    Pairing the Transmitter to the Receiver

    While it is not necessary to pair the Transmitter and Receiver out of the box, they can be re-paired if there are any connection issues. Additionally, up to eight (8) Transmitters can be paired with one Receiver.

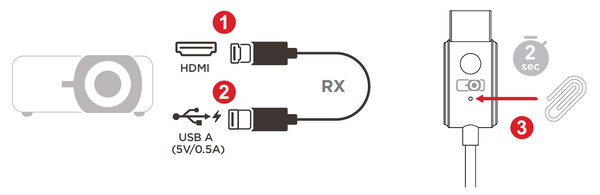

    Pairing the Transmitter to the Receiver
    1. Connect the Receiver’s HDMI Output to an HDMI port of the projector.
    2. NOTE: Ensure the projector is also turned ON.
    3. Plug the Receiver’s USB A Input into the USB A port of the projector that can provide 5V/0.5A power.
    4. On the Receiver’s HDMI Output, use a paper clip or SIM-eject tool to press and hold the Reset button for approximately two (2) seconds until the projected image displays, “Release the button to pair with transmitter”, then release the Reset button.
    5. NOTE: There are two reset modes for the Reset button on the Receiver’s HDMI Output.
      • Press and hold for two (2) seconds: Turn ON pairing mode for the Transmitter.
      • Press and hold for 10 seconds: Reset the Receiver to default settings.

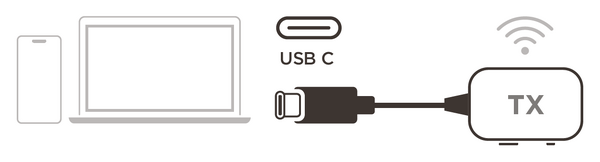

    6. Connect the Transmitter’s USB C Input to a USB C port of the casting device (e.g. laptop, mobile phone, tablet).
    7. Pairing the Transmitter to the Receiver

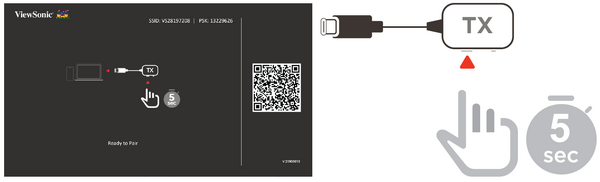

    8. While the projected image displays, “Ready to Pair”, press and hold the Pair Button on the Transmitter for five (5) seconds. Once paired, casting will start automatically.
    9. Pairing the Transmitter to the Receiver
      NOTE: A maximum of eight (8) Transmitters can be paired to one Receiver.

    Starting and Stopping Casting

    Once the Receiver and Transmitter are connected, casting will start automatically from the casting device (e.g., laptop). However, casting can be stopped and restarted by pressing the Pair Button on the Transmitter at any time.

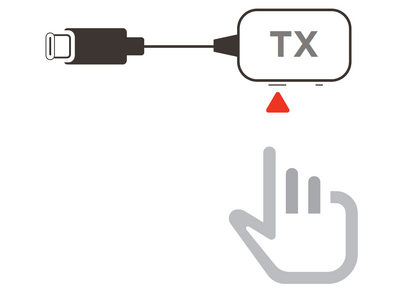

    Starting and Stopping Casting

    NOTE:

    • Casting is supported for all laptops, including those running Windows and macOS, as well as Android and Apple devices with DP Alt output.
    • Duplicate and Extend mode for Windows/macOS systems are supported.
    • To reset to default settings, press the Reset Button for five (5) seconds.
    • Genuine HDCP (High-bandwidth Digital Content Protection) for DRM (Digital Rights Management) streaming is supported.

    Device Updates

    Enable the Receiver's SSID and PSK

    Device Update

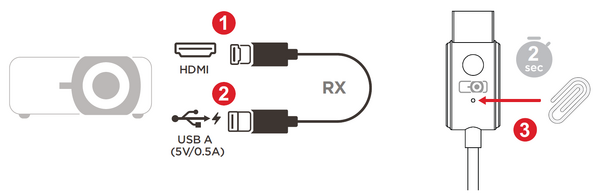

    1. Connect the Receiver’s HDMI Output to an HDMI port of the projector.
    2. NOTE: Ensure the projector is also turned ON.
    3. Plug the Receiver’s USB A Input into the USB A port of the projector that can provide 5V/0.5A power.
    4. On the Receiver’s HDMI Output, use a paper clip or SIM-eject tool to press and hold the Reset button for approximately two (2) seconds until the projected image displays the SSID and PSK of the Receiver, then release the Reset button.

    Connecting the Receiver to a Network

    1. Turn on the Wi-Fi settings page on your phone or computer.
    2. Connect to the SSID of the Receiver and enter the PSK displayed on the projected image to complete the connection.
    3. Open an internet browser on your phone or computer and enter 192.168.203.1. in the address bar.
    4. Enter the settings page, turn ON internet settings, and connect the Receiver to the network.

    Updating via Web Settings

    Device Update

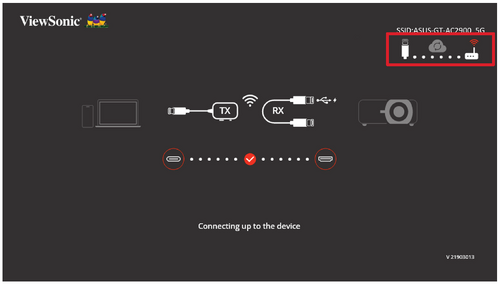

    1. Check the icons at the top right of the projected image and verify that the Receiver is connected to the Internet network.
    2. After connecting the Receiver to the network, return to the settings page and select “Upgrade”.
    3. The system will check the current firmware version of the Receiver. If there is a newer version, select “Agree” to update.
    4. During the firmware upgrade, please ensure that the power remains on and that the device stays connected to the internet.
    5. NOTE: If the Transmitter does not connect, the “Upgrade for transmitter” function cannot be selected.

    Technical Specifications

    Category Specifications
    Function Transmitter Receiver
    Wi-Fi 5 GHz 1T1R 5 GHz 1T1R
    HDCP Support HDCP 1.4 HDCP 1.4
    Video Support up to 1080p @ 60 Hz up to 1080p @ 60 Hz
    Audio Support 2 channels, PCM 2 channels, PCM
    Interface Specifications
    HDMI N/A 1
    USB C[1] 1 N/A
    USB A N/A 1 (only for power input)
    Physical Buttons Specifications
    Pair Button 1 1 (Pin hole)
    Reset Button 1 N/A
    Miscellaneous Specifications
    Power Input 5V/1A 5V/0.5A
    Power Consumption 3W 1.5W
    Physical Dimension
    (W x H x D)
    170 x 40 x 16 mm
    (6.69” x 1.57” x 0.63”)
    677 x 17 x 6 mm
    (26.65” x 0.67” x 0.24”)
    Weight 37.5 g
    (0.08 lbs)
    19 g
    (0.04 lbs)
    Operating Temperature 0° C to 35° C.
    (32° F to 95° F)
    Operating Humidity 10% to 90% (non-condensing)
    1. Ensure your device supports video output and power delivery via USB C port (DisplayPort Alternative Mode on USB C)

    LED Indicator

    Transmitter

    Light Description
    Solid White The Transmitter is connected to the Receiver successfully and is operating normally.
    Flashing (Slowly) The Transmitter is ready to pair with the Receiver when the receiver is powered up.
    Flashing (Quickly) The Transmitter is connecting with the Receiver.
    Off The Transmitter is not working properly; or there is no power input.

    Product Dimensions

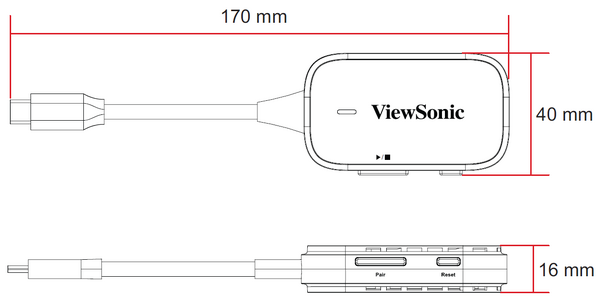

    Transmitter

    Dimensions

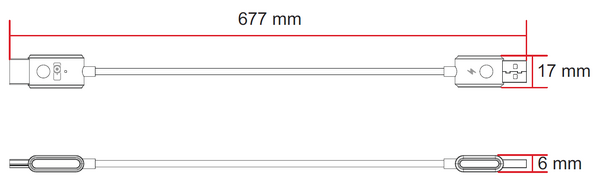

    Receiver

    Dimensions

    Compliance Information

    This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

    FCC Compliance Statement

    This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

    These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

    • Reorient or relocate the receiving antenna.
    • Increase the separation between the equipment and receiver.
    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
    • Consult the dealer or an experienced radio/TV technician for help.

    Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

    Industry Canada Statement

    This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme NMB-003 du Canada. CAN ICES-003(B) / NMB-003(B)

    FCC Radiation Exposure Statement

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

    This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

    The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

    VS19859 FCC ID: GSSVS19859

    VS19836 FCC ID: GSSVS19836

    IC Warning Statement

    This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

    Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : ( 1 ) l’appareil ne doit pas produire de brouillage, et ( 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en compromettre le fonctionnement.

    Country Code Statement

    For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

    Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.

    IC Radiation Exposure Statement

    This equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The device for the band 5150-5825 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.

    Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlê. Cet équipement doit être installé et utilize avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. les dispositifs fonctionnant dans la bande 5150-5825 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

    Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

    La bande 5150-5250 MHz est réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

    VS19859 IC ID: 4280A-VS19859

    VS19836 IC ID: 4280A-VS19836

    CE Conformity for European Countries

    The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

    The following information is only for EU-member states:

    The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.
    WEEE Logo.gif

    Declaration of RoHS2 Compliance

    This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

    Substance Proposed Maximum Concentration Actual Concentration
    Lead (Pb) 0.1% < 0.1%
    Mercury (Hg) 0.1% < 0.1%
    Cadmium (Cd) 0.01% < 0.01%
    Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
    Polybrominated biphenyls (PBB) 0.1% < 0.1%
    Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
    Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
    Butyl benzyl phthalate (BBP) 0.1% < 0.1%
    Dibutyl phthalate (DBP) 0.1% < 0.1%
    Diisobutyl phthalate (DIBP) 0.1% < 0.1%

    Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

    • Copper alloy containing up to 4% lead by weight.
    • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
    • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
    • Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher.

    Indian Restriction of Hazardous Substances

    Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

    Product Disposal at End of Product Life

    ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

    USA & Canada
    https://www.viewsonic.com/us/go-green-with-viewsonic

    Europe
    https://www.viewsonic.com/eu/environmental-social-governance/recycle

    Taiwan
    https://recycle.moenv.gov.tw

    For EU users, please contact us for any safety/accident issue experienced with this product:

    Icon Address.svg
    ViewSonic Europe Limited
    Haaksbergweg 75
    1101 BR Amsterdam
    Netherlands
    Icon Phone.svg
    +31 (0) 650608655
    Icon Email.svg
    EPREL@viewsoniceurope.com
    Icon URL.svg
    https://www.viewsonic.com/eu/

    Copyright Information

    Copyright© ViewSonic® Corporation, 2023. All rights reserved.

    Macintosh and Power Macintosh are registered trademarks of Apple Inc.

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

    ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

    VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

    Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

    In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

    No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

    PJ-WDP-700_UG_ENG_1a_20231013
