PF0730-I0WW

Package Contents

1. Digital Writing Pad
2. USB 2.0 Cable (Micro USB to Type A)
3. Ink Pen
4. Pen tip x 3
5. Nib removal tool
6. Notebook
7. Quick start guide

Note:

• The contents included in your package may vary depending on your country. Please contact your local reseller for more information.
• Genuine D1 refill cartridges for PF0730-I0WW can be purchased through your local ViewSonic Customer Service.

Product Overview

Notebook

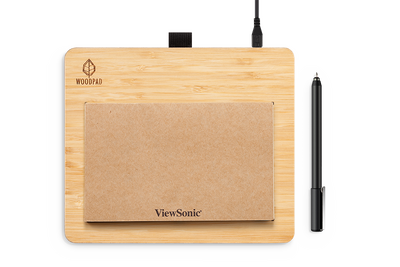

WoodPad and Pen

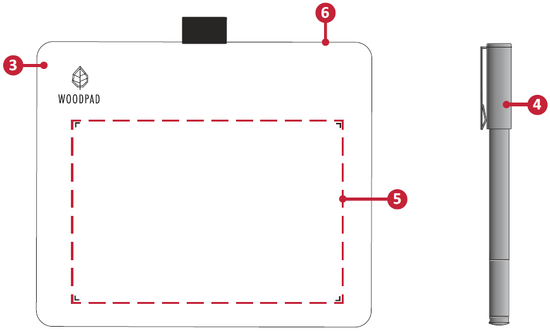

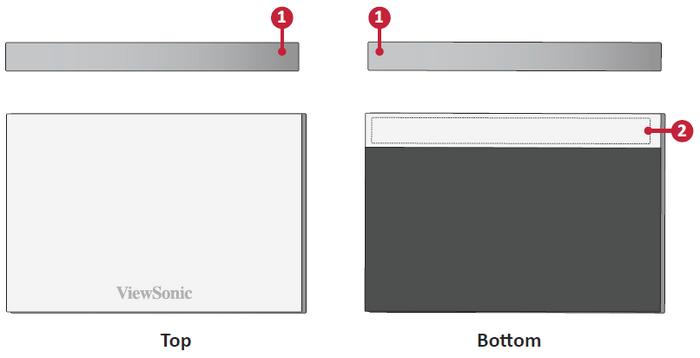

Number	Item
1	Double-sided Tape
2	Tape Placement Area
3	Digital Writing Pad
4	Ink Pen
5	Active Area
6	Micro USB Port

Attaching the Notebook

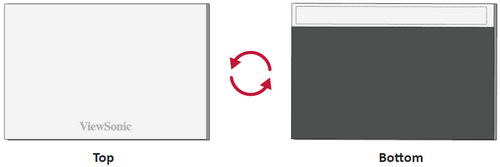

1. Turn the Notebook over so the bottom side is facing up.

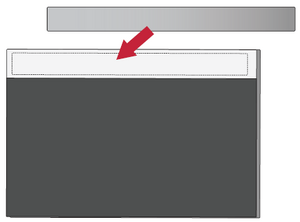

2. It is recommended to apply the double-sided tape to the bottom of the Notebook in the designated area.

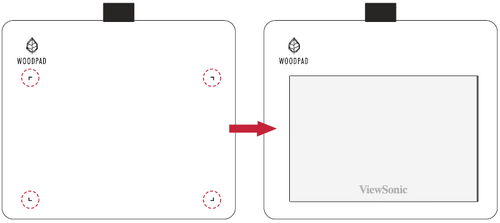

3. Turn over the Notebook and attach it within the four corner frame of the Digital Writing Pad.

Connecting the Digital Writing Pad

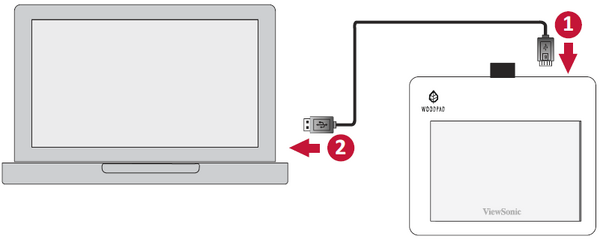

1. With the USB Cable, connect the Micro USB end to the Digital Writing Pad.
2. Connect the USB Type A end to the computer.

NOTE: Do not write on the Digital Writing Pad without the Notebook, this will leave ink marks and affect the surface.

Installing the Driver

It is not necessary to download any drivers or software to use the Digital Writing Pad. However, if you would like more features such as pen pressure, please download and install our ViewSonic Pen Manager. To download and install:

1. Uninstall and remove any drivers of other graphic tablets/monitors installed on your computer.
2. Disable any anti-virus software and firewall temporarily, and ensure you are installing the driver as an Administrator.
3. Download and install the driver from: https://pendisplay.viewsonic.com
4. After a successful installation, please restart the computer then plug in the Digital Writing Pad.
5. The System Tray will now show the “ViewSonic Pen Manager” icon.

Using the Driver

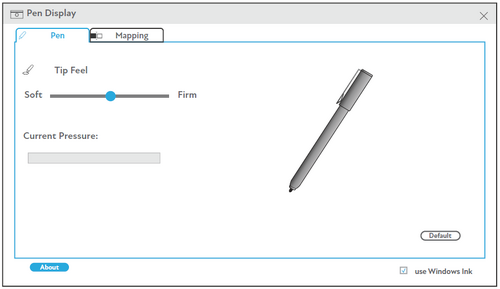

Pen

Adjust settings related to the pen and how it functions.

• Adjust the Tip Feel of the pen - Soft to Firm.

NOTE: Tip Feel alters how much actual pressure it takes to achieve maximum pressure.

• Soft - requires less actual pressure to see a difference in pen pressure levels.
• Firm - more force is needed to see changes in pen pressure.

• Test the Pressure Sensitivity.

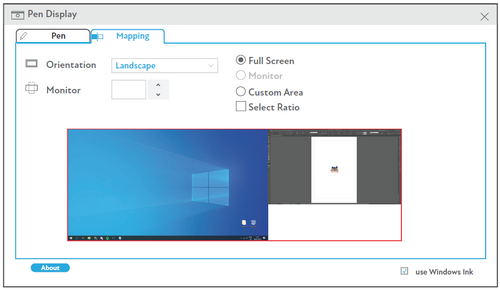

Mapping

Adjust the screen settings for the handwriting screen.

• Choose the preferred screen Orientation.
• Select the Pen Display screen.

Uninstalling the Driver

For Windows

There are two ways to uninstall the driver:

• Start > ViewSonic > ViewSonic Pen Manager > Right Mouse Click > Uninstall

or

• Open the Control Panel > Programs > Programs and Features > ViewSonic Pen Manager > select Uninstall/Change

For Mac

• Open Finder > Apps > Tablet Utility > Uninstall-Driver

Technical Specifications

Model No.	P/N
VS17880	ID0730 / PF0730-I0WW

Device

Item	Category	Specifications
Power	USB	USB 1.1/2.0: 5V/40mA Typ.
Active Area	Dimensions (W x H)	162.6 x 101.6 mm (6.4” x 4”)
Operating Conditions	Temperature	0° C to 40° C (32° F to 104° F)
	Humidity	30% to 80% (non-condensing)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	20% to 95% (non-condensing)
Dimensions	Physical (W x H x D)	200 x 175 x 7.5 mm (7.87” x 6.69” x 0.3”)
Weight	Physical	0.43 kg (0.94 lbs)
Power Consumption	On	0.2W (Typical)

Pen

Item	Specifications
Model	INK-031-B0WW
Type	Electromagnetic resonance
Power Supply	Battery-less
Resolution	5080 LPI (lines per inch)
Pressure Level	4096
Tracking Speed	Average 250 PPS (point per second)
Coordinate Accuracy	± 0.25 mm
Detectable Height	5-10 mm above the pad
OS Supported	Windows 7 or later; macOS 10.15 or later; ChromeBook; Android 7.0 and above.

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Statement

CAN ICES-003(B) / NMB-003(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

• Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
• Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada
https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program

Europe
https://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan
https://recycle.epa.gov.tw/
