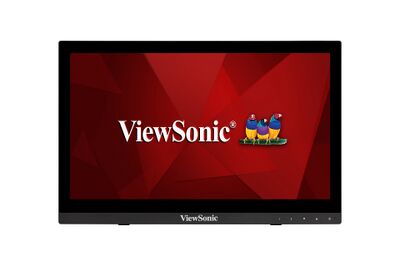

PD1631

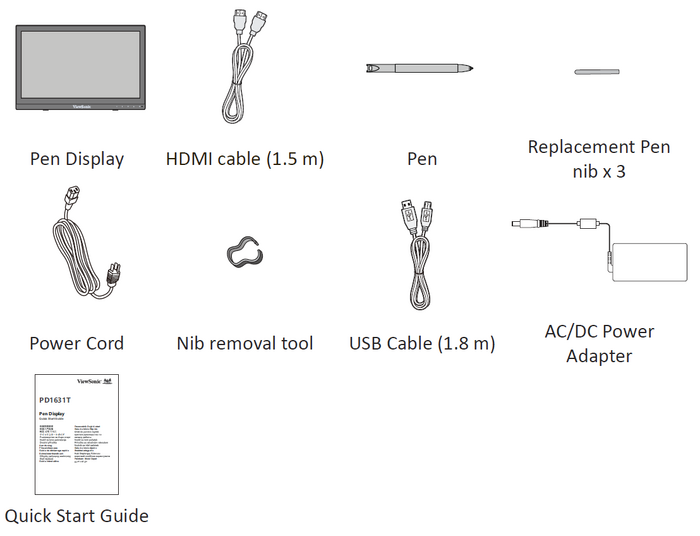

Package Contents

Front View / Rear View

•

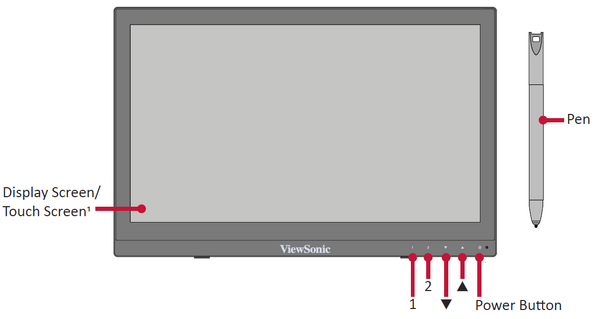

  Front View
•

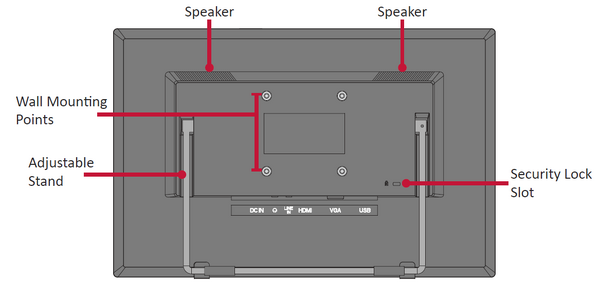

  Rear View

Wall Mounting

Refer to the table below for the standard dimensions for wall mount kits.

For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer.

Maximum Loading	Hole Pattern (W x H)	Interface Pad (W x H x D)	Pad Hole	Screw Specification & Quantity
14 kg	75 x 75 mm	115 x 115 x 2.6 mm	Ø 5 mm	M4 x 10 mm - 4 pieces

1. Turn off the device and disconnect all cables.
2. Turn off the device and disconnect all cables.
3. Place the device on a flat, stable surface with the screen facing down.
4. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it with four (4) screws (M4 x 10 mm).



5. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

Installing Drivers and Software

System Requirements:
Operating system: Windows 7, 10, 11, or later; Linux Ubuntu; Chrome OS by request.
PC I/O: USB 2.0/above

Before connecting and using the pen display, it is necessary to install the below software. The software can be downloaded at:
PD1631 – Driver and Software Download

DisplayLink Driver

Open the DisplayLink installation file and install the driver.

NOTE: DisplayLink Driver can be installed through Windows Update when connected to the Internet.

Pen Display Driver

ViewSonic Pen Manager can be used to map the active area and adjust the feel of the pen.

1. Open the ViewSign Console installation file and install the driver (ViewSonic Pen Manager).
2. Restart the computer after the installation completes.

NOTE: For further ViewSign Console information, please visit: Pen Display Software - ViewSonic Pen Display Software

Connecting to Power

Connecting to Power

1. Connect the power cord to the power adapter.
2. Connect the power adapter to the DC IN jack at the rear of the display.
3. Connect the power cord to a power outlet.

Connecting External Devices

•
  HDMI Connection
•
  VGA Connection
•
  Audio Connection
•
  USB Connection

HDMI

Connect one end of an HDMI cable to the HDMI port of the display. Then connect the other end of the cable to the HDMI port of your computer.

VGA

Connect one end of a VGA cable to the VGA port of the display. Then connect the other end of the cable to the VGA port of your computer.

Audio

Plug an audio cable into the Audio In/Audio Out port of the display. Plug the other end into your computer (Audio In) or ear-/headphones (Audio Out).

NOTE: The display is also equipped with dual speakers.

USB

Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer.

USB	Number	Description
Type B	One (1)	Connect the USB Type B male cable (square with 2 cut corners) to this port, and then connect the other end of the cable to the USB downstream port of your computer.

Touch Function Control (PD1631T only)

Before using the touch function, ensure the USB Type B to Type A cable is connected to your computer and the Windows operating system is running.

When using the touch function, please note:

• The touch function may need about five (5) seconds to resume if the USB cable is removed and plugged in again, or the computer resumes from Sleep Mode.
• The touchscreen can only detect up to ten (10) fingers simultaneously.
• If the Windows’ cursor does not accurately follow your finger when you touch the screen, do the following:

1. Open: Control Panel > Hardware and Sound > Tablet PC Settings.
2. Select Calibration.
3. Follow the instructions to recalibrate your screen.

Tilt Angle Adjustment

Angle Adjustment

Tilt the monitor backwards to the desired viewing angle via the attached stand (0˚/42˚ to 80˚).

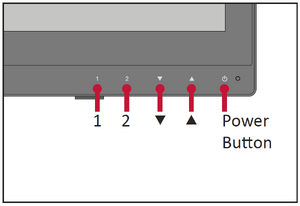

Using the Control Panel Keys

Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

Quick Menu

Press the 1 key to activate the Quick Menu.

Icon	Name	Description
	Auto Image Adjust	Automatically adjust the screen position.
	Contrast/Brightness	Adjust the contrast or brightness level.
	Input Select	Select the input source.
	Audio Adjust	Adjust the level, or mute the volume.
	Color Adjust	Select one of the preset color settings.
	Information	Displays the timing mode coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL.
	Manual Image Adjust	Manually set a variety of image quality adjustments.
	Setup Menu	Adjust On-Screen Display (OSD) settings.
	Memory Recall	Returns the adjustments back to factory settings.

Hot Keys

When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the control panel keys.

Key	Description
1+[▲]	Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu. If the OSD Menu is locked, the below message will appear on the screen:
1+[▼]	Press and hold the keys to lock/unlock the Power button. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the Power button. If the Power button is locked, the below message will appear on the screen:
2+[▲]	Press the keys to display/hide the boot up screen when the device is turned on.
2+[▼]	Press the keys to toggle between DDC/CI and DDC/2B. NOTE: DDC/CI is the default setting.
[▲]	Press the key to enter the Contrast menu.
[▼]	Press the key to enter the Color Adjust menu.
2	Press the key to toggle between input sources.

General Operation

1. Press the 1 key to display the On-Screen Display (OSD) Menu.

2. Press the [▲] or [▼] key to select the main menu. Then press the 2 key to enter the selected menu.

3. Press the [▲] or [▼] key to select the desired menu option. Then press the 2 key to enter the sub-menu.

4. Press the [▲] or [▼] to adjust/select the setting. Then press the 2 key to confirm.

NOTE: Certain menu option adjustments do not require the user to press the 2 key to confirm the selection. Follow the key guide to select the option or make adjustments.

Sub-menu	Menu Option
Auto Image Adjust
Contrast/Brightness	Contrast	(-/+, 0~100)
	Brightness	(-/+, 0~100)
Input Select	VGA
	DVI
	HDMI
Audio Adjust	Volume	(-/+, 0~100)
	Mute	On
		Off
	Audio Input	HDMI
		Audio In
Color Adjust	sRGB
	Bluish
	Cool
	Native
	Warm
	User Color	Red	(-/+, 0~100)
		Green	(-/+, 0~100)
		Blue	(-/+, 0~100)
Information
Manual Image Adjust	H/V Position	Horizontal Position	(-/+, 0~100)
		Vertical Position	(-/+, 0~100)
	Horizontal Size	(-/+, 0~100)
	Fine Tune	(-/+, 0~100)
	Sharpness	(-/+, 0~100)
	Dynamic Contrast	On
		Off
	Response Time	Standard
		Advanced
		Ultra Fast
	Aspect Ratio	4:3
		Full Screen
	Overscan	On
		Off
	ECO Mode	Standard
		Optimize
		Conserve
	Blue Light Filter	(-/+, 0~100)
Setup Menu	Language Select	English
		Français
		Deutsch
		Español
		Italiano
		Suomi
		Русский
		Türkçe
		日本語
		한국어
		繁體中文
		简体中文
		Česká
		Svenska
	Resolution Notice	On
		Off
	OSD Position	H. Position	(-/+, 0~100)
		V. Position	(-/+, 0~100)
	OSD Pivot	0°
		+90°
		-90°
	OSD Timeout	(-/+, 5/15/30/60)
	OSD Background	On
		Off
	Auto Power Off	On
		Off
	Sleep	30 minutes
		45 minutes
		60 minutes
		120 minutes
	Power Indicator	On
		Off
	Boot Up Screen	On
		Off
	Touch Screen	On
		Off
Memory Recall

Pen Input Area Mapping

To set the proper pen input area:

1. Open ViewSonic Pen Manager either from the Start menu, by going to: Start > ViewSonic Pen Manager, or by selecting the ViewSonic Pen Manager icon from the System Tray.

2. Select the Mapping tab.



3. Select the correct Orientation (Landscape), and Monitor.



4. Further adjustments can be made by selecting the Pen tab.

Technical Specifications

Model No.	P/N
VS18289	PD1631 / PD1631T

Display

Item	Category	Specifications
LCD	Type	FHD 1920 x 1080, a-SI TFT Active Matrix
	Surface Treatment	Anti-Glare, Hard-Coating (8H)
Input Signal	Video Sync	RGB Analog (75 Ω) VGA: fh:30-61 kHz, fv:56-75 Hz TMDS (100 Ω) HDMI: fh:30-61 kHz, fv:56-75 Hz
Resolution	Supported	1920 x 1080 @ 60Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1400 x 1050 @ 60Hz 1366 x 768 @ 60 Hz 1360 x 768 @ 60Hz 1280 x 720 @ 60Hz 1024 x 768 @ 60Hz 800 x 600 @ 60Hz 720 x 480 @ 60Hz 640 x 480 @ 60Hz 640 x 400 @ 60Hz
Touch (PD1631T only)	Type Supported	Capacitive touch, 10 point
Power Adapter	Input Voltage	AC 100-240V, 50/60Hz (auto switch)
Display Area	Full Scan (H x V)	344.16 x 193.59 mm (13.5” x 7.62”)
Operating Conditions	Temperature	0° C to 50° C (32° F to 122° F)
	Humidity	20% to 80% (non-condensing)
Storage Conditions	Temperature	-20° C to 60° C (-4° F to 140° F)
	Humidity	10% to 90% (non-condensing)
Dimensions	Physical (W x D x H)	379.2 x 248.6 x 39.1 mm (14.93” x 9.79” x 1.54”)
Wall Mount	Dimensions	75 x 75 mm
Weight	Physical	1.72 kg (3.79 lbs)
Power Consumption	On	5.7W (Typical)
	Off	≤0.3W

Pen

Item	Specifications
Model	EMP-001
Type	Electromagnetic resonance
Power Supply	Battery-less
Resolution	5080 LPI (lines per inch)
Pressure Levels	2048
Report Rate	Average 250 PPS (points per second)
Pen Tilt Angle	+/- 45°
OS Supported	Windows 10, 11, or later. (Win 7, Linux Ubuntu, Chrome OS by request)

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Statement

CAN ICES-003(B) / NMB-003(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

• Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

• Short length (500 mm): maximum 3.5 mg per lamp.
• Medium length (> 500 mm and 1,500 mm): maximum 5 mg per lamp.
• Long length (> 1,500 mm): maximum 13 mg per lamp.

• Lead in glass of cathode ray tubes.
• Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
• Lead as an alloying element in aluminum containing up to 0.4% lead by weight.
• Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada
https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program

Europe
https://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan
https://recycle.epa.gov.tw/

Copyright Information

Copyright© ViewSonic® Corporation, 2021. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

PD1631_PD1631T_UG_ENG_Rev. 1A_2021-11-25

---
