M2e

Package Contents

•

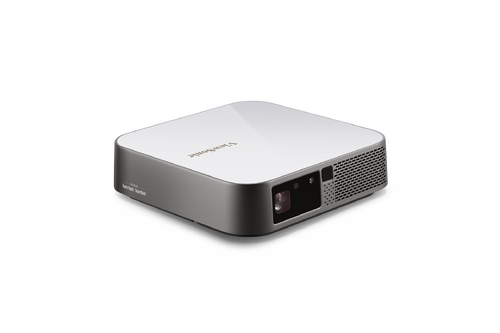

  M2e Projector

•

  Remote Control

•

  Power Cord

•

  USB-C Cable

•

  DC Power Adapter

•

  Batteries

•

  Soft Carrying Bag

•

  Quick Start Guide

NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.

Projector Overview

•

  Front View

•

  Bottom View

Number	Item	Description
1	Lens	Projector Lens
2	IR Sensor	IR Sensor
3	Auto Focus Camera	Automatically adjusts the focus
4	Auto Focus Sensor	Automatically adjusts the focus
5	harmon/kardon Speakers	harmon/kardon speakers
6	Adjustor Foot	Stepless adjustment foot

I/O Ports

Number	Port	Description
1	Power Button	Power On/Off
2	LED Indicator	LED Indicator
3	Audio Out (3.5 mm jack)	3.5 mm jack audio output socket
4	HDMI	HDMI port
5	USB-C	USB-C port
6	IR Sensor	IR Sensor
7	MICRO SD	Micro SD socket (SDXC up to 256 GB - FAT32/NTFS)
8	USB A (5V/2A Out)	USB 2.0 Type A port (USB Reader - FAT32/NTFS)
9	DC IN	Power input socket

Overview

Remote Control

Number	Button	Description
1	Power	Turns the projector On or Off.
2	Source	Displays the input source selection bar.
3	Focus	Automatically focus the image. To manually adjust, press and hold the Focus button on the remote control for three (3) seconds.
4	Bluetooth	Launch Bluetooth search.
5	OK	Confirms the selection.
6	Up/Down/Left/Right	Navigates and selects the desired menu items and makes adjustments.
7	Setting	Displays the Setting menu.
8	Return	Returns to the previous screen.
9	Home	Access the Home screen.
10	Volume	Increase/Decrease the volume level.
11	Forwards/Backwards	Move content forwards/backwards.
12	Mute	Mute/unmute.
13	Play/Pause	Play/Pause content.

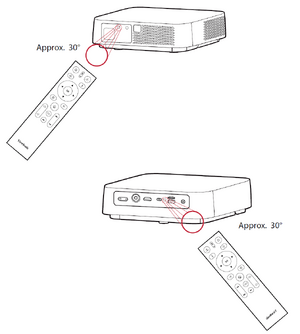

Effective Range

IR Receiver Location

To ensure proper function of the remote control follow the steps below:

1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)

NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

Replacing the Batteries

1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.
2. Remove any existing batteries (if necessary) and install two AAA batteries.
3. Replace the battery cover by aligning it with the base and pushing it back into position.

NOTE:

• Avoid leaving the remote control and batteries in excessive heat or a humid environment.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
• Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.

Choosing a Location - Projector Orientation

Personal preference and room layout will decide the installation location. Consider the following:

• Size and position of your screen.
• Location of a suitable power outlet.
• Location and distance between the projector and other equipment.

•

  Front Table

•

  Front Ceiling

•

  Rear Table

•

  Rear Ceiling

Location	Description
Front Table	The projector is placed near the floor in front of the screen.
Front Ceiling	The projector is suspended upside-down from the ceiling in front of the screen.
Rear Table	The projector is placed near the floor behind the screen.
Rear Ceiling	The projector is suspended upside-down from the ceiling behind the screen.

Projection Dimensions

NOTE: (e) = Screen | (f) = Center of Lens

16:9 Image on a 16:9 Screen

(a) Screen Size		(b) Projection Distance		(c) Image Height		Image Width
in.	cm	in.	m	in.	cm	in.	cm
30	76.2	31.64	0.80	14.71	37.36	26.15	66.4
40	101.6	42.18	1.07	19.61	49.81	34.86	88.6
50	127	52.73	1.34	24.51	62.26	43.58	110.7
60	152.4	63.28	1.61	29.42	74.72	52.29	132.8
70	177.8	73.82	1.88	34.32	87.17	61.01	155.0
80	203.2	84.37	2.14	39.22	99.62	69.73	177.1
90	228.6	94.91	2.41	44.12	112.07	78.44	199.2
100	254	105.46	2.68	49.03	124.53	87.16	221.4

There is a 3% tolerance among these numbers due to optical component variations. It is recommended to physically test the projection size and distance before permanently installing the projector.

Mounting the Projector

NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.

1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
2. Ensure the screws used to attach the mount to the projector meet the following specifications:

• Screw type: M4 x 8
• Maximum Screw Length: 8 mm

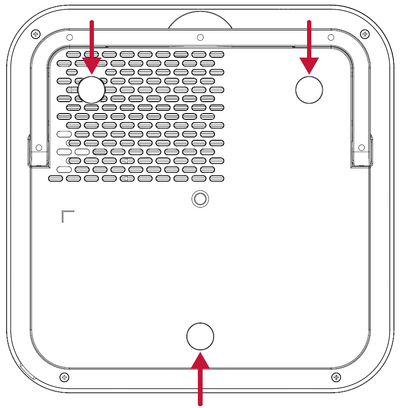

3. To access the ceiling mount points, remove the three (3) foot pads on the bottom of the projector.

CAUTION

• Avoid installing the projector near a heat source.
• Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.

Connecting to Power

•

  DC Power (Power Outlet)

•

  USB-C Power Bank

DC Power (Power Outlet)

1. Connect the power cord to the power adapter.
2. Connect the power adapter to the DC IN jack at the rear of the projector.
3. Connect the power cord plug to a power outlet. When connected, the projector will turn on automatically.

USB-C Power Bank

1. Connect one end of the USB Type-C cable to the USB-C port of the projector.
2. Connect the other end of the USB Type-C cable to the power bank.

NOTE: The power bank should be 45W (15V/3A) at least, and support Power Delivery (PD) protocol output.

Connecting to External Devices

•

  HDMI Connection

•

  USB Connection

HDMI Connection

Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI port (it supports HDCP 1.4/HDMI 1.4) of your projector.

NOTE: iPhone/iPad users will need to use an additional adapter.

USB Connection

USB-C Connection
Connect one end of a USB Type-C cable to the USB-C port of your device. Then connect the other end of the cable to the USB-C port of your projector.

NOTE:

• Ensure your USB Type-C device can support video transmission.
• The M2e can also use a USB-C connected power bank to turn on the system. However, the brightness level will be limited to 50% and 30% when the Light Source Level is set as Full or Eco respectively.

USB Type-A Connection
Connect one end of a USB Type-A cable to the USB-A port of your device (if applicable). Then connect the other end of the cable to the USB A port of your projector.

Additionally, you can connect a keyboard, a mouse, dongles, storage devices, etc. to the projector’s USB-A port.

Connecting to Audio

Bluetooth Speaker

The projector is equipped with Bluetooth that allows the user to connect the projector to their Bluetooth device wirelessly for audio playback.

•

  Step 2 - Select Bluetooth Speaker

•

  Step 3 - Enter Bluetooth mode

To connect and pair your device:

1. Go to: Home > Bluetooth.
2. Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then press OK on the remote control.
3. When the dialogue box appears, select Yes and press OK on the remote control to enter Bluetooth mode.
4. A sound effect will be audible upon entering pairing mode.
5. Upon successful connection, another sound effect will be audible.

NOTE:

• Once paired, if both the projector and your device are powered on they will automatically connect via Bluetooth.
• The projector’s name will be labeled as “M2e”.
• Only the Power and Return buttons can exit Bluetooth mode.

Bluetooth Out

Connect the projector to external headphones or speakers that support Bluetooth.

•

  Step 2 - Select Bluetooth Out

•

  Step 3 - Search for nearby devices

To connect and pair your device:

1. Go to: Home > Bluetooth.
2. Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option.
3. The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.

Connecting to Networks

Wi-Fi Connection

To connect to a Wi-Fi network:

1. Go to: Home > Setting > Network Settings > Wi-Fi
2. Press Left or Right on the remote control to select Enable.
3. Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks.
4. If you connect to a secure Wi-Fi network, you must enter the password when prompted.

•

  Step 2 - Enable Wi-Fi

•

  Step 3 - Select Network

•

  Step 4 - Enter credentials

Custom SSID

1. Go to: Home > Setting > Network Settings > Wi-Fi
2. Press Left or Right on the remote control to select Enable.
3. From the available Wi-Fi networks list select Others and press OK on the remote control.
4. Enter the SSID and select the security level.
5. Enter the password when prompted.

•

  Step 3 - Select Others

•

  Step 4 - Enter SSID

•

  Step 5 - Enter Password

Wireless Screen Mirroring

Screen Mirroring provides a 5 GHz Wi-Fi connection for users to mirror the screen on their personal device.

Note: Ensure your device is connected to the same network as the projector.

For iOS:

1. Access the drop down control menu.
2. Select the “Screen Mirroring” icon.
3. Choose “ViewSonic PJ-XXXX”.

For Android:

1. Download and install the “Google Home” application and open it.
2. Pull-to-refresh the app and wait for 30 seconds.
3. “ViewSonic PJ-XXXX” will now be visible, select it.

Note: Some Android devices support direct “Casting”. If your device does, go to the Casting feature and choose “ViewSonic PJ-XXX” from the list of available devices. You can also scan the FAQ QR code and follow the steps to directly cast your Android device.

Starting the Projector

1. Ensure the projector’s power cord is properly connected to a power outlet.
2. After plugging in the DC Power Adapter, the projector will turn on automatically.

NOTE: The Status LED will be green during startup.

First Time Activation

If the projector is activated for the first time, you will need to select your Projection Orientation, Preferred Language, Network Settings, and Source Input. Follow the on-screen instructions using the OK and Up/Down/Left/Right buttons on the remote control. When the Finish screen appears, this indicates the projector is ready to use.

Auto Focus

The automatic focus adjustment will run for the first time activation.

Projection Orientation

Select the preferred projection orientation and press OK to confirm the selection.

Preferred Language

Select the desired language and press OK to confirm the selection.

Network Settings

Select one of the available options.

Source Input

Quickly access the Source Input menu by pressing the Down button on the remote control when at the Home Screen. Additionally, you can press the Source button on the remote control.

Selecting an Input Source

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

The projector will automatically search for input sources. If multiple sources are connected, press the Source button on the remote control to select the desired input, or press the Down button when at the Home Screen until the source list is displayed.

NOTE: Ensure the connected sources are also turned on.

Adjusting the Projector's Height and Projection Angle

The projector is equipped with one (1) adjuster foot. Adjusting the foot will change the projector’s height and the vertical projection angle. Carefully adjust the foot to fine tune the projected image’s position.

NOTE: If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image can become trapezoidal. However, the “Auto Vertical Keystone” function will correct the issue automatically.

Shutting Down the Projector

1. Press the Power button on the projector or remote control and the following message will appear:

2. Press the Up/Down buttons on the remote control to select Turn Off and press OK on the remote control.
3. The Status LED will turn solid red once turned off.

NOTE: When pressing Power on the remote control, you can choose from three (3) options: Turn Off, Restart, and Turn light source Off.

Home Screen

The Home Screen is displayed every time you start the projector. To navigate the Home Screen, simply use the directional buttons on the remote control. You can return to the main Home Screen at any time by pressing the Home button on the remote control, regardless of what page you are on.

File Management

Easily manage files and folders.

•

  Step 1 - Select File Management

•

  Step 2 - Navigate the files

1. Select: Home > File Management.
2. Select a device on the source list: USB, Local Storage, MicroSD, etc. Use the directional buttons to select the desired file. Then press OK on the remote control to open the selected file.
3. Press the Return button to go to a previous a level.

NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

How to Edit a File

1. While in File Management, press and hold the OK button for three (3) seconds.
2. A check box will appear at the front of each file. Use the directional buttons and press OK to select one or more files.
3. By pressing the Right button, Copy, Paste, Cut, Delete, Select All, and Return boxes will be available for use.
4. Select your desired action and press OK to execute.
5. If you are Copying or Cutting, select your destination folder to complete the process.

How to Use Control Bar Buttons

The Control Bar buttons will appear on screen if a video, music, or photo file are selected to be opened.

Tips for using USB
When using USB for reading and/or storage please keep in mind the following:

1. Some USB storage devices may not be compatible.
2. If you use an USB extension cable, the USB device may not recognize the USB.
3. Only use USB storage devices formatted with Windows FAT32 or NTFS file system.
4. Larger files will need extra time to load.
5. Data on USB storage devices may be damaged or lost. Back up important files.

Supported File Formats

• Supported Office formats:

• Supported Multimedia formats:

• Supported External Connected Device formats:

NOTE:

• Windows 10 built-in format tool only supports FAT32 format up to 32 GB.
• Firmware upgrade only supports FAT32 format.

Apps Center

View, launch, and uninstall Apps.

•

  Step 1 - Select Apps Center

•

  Step 2 - Launch the App

1. To view your Apps, select: Home > Apps Center.
2. Use the directional buttons to select the desired App. Then press OK on the remote control to launch the App.

NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

Aptoide

The projector is pre-loaded with the Aptoide store, which allows users to download and install different Apps.

1. Select: Home > Apps Center > Aptoide.
2. Use the direction buttons to navigate the menu options. When you find your preferred App, press the OK button to install it.

NOTE:

• Users can install third-party Apps by .apk file in File Management. However, some third-party Apps may have compatibility issues.
• Apps not pre-loaded by ViewSonic may not be compatible or work properly.
• Some Apps may require a keyboard or mouse.
• Some Apps may be Region-Specific.

To Uninstall Apps

1. Open the Apps Center by selecting: Home > Apps Center.
2. Use the directional buttons to select the desired App.
3. Press and hold OK on the remote control for three (3) seconds.
4. Select OK to uninstall the App.

NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

Bluetooth

The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback.

Setting

Under Setting you can adjust Network, Basic, and Advanced Settings, Date & Time, Firmware Update, and view Information.

Network Settings

•

  Step 1 - Select Network Settings

•

  Step 2 - Choose an option

1. Select: Home > Setting > Network Settings.
2. View and adjust your Wi-Fi and network settings.

Basic Settings

•

  Step 1 - Select Basic Settings

•

  Step 2 - Choose an option

1. Select: Home > Setting > Basic Settings.
2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
3. To return to a previous menu press the Return button.

Date & Time

Adjust Date, Time, Time Zone, and Time Format.

NOTE: The time is displayed in the top-right corner after connecting to the Internet.

•

  Step 1 - Select Date & Time

•

  Step 2 - Choose an option

1. Select: Home > Setting > Date & Time.
2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.

Firmware Upgrade

Users can update the firmware by internet or USB, and check the version number.

NOTE: Do not unplug the power cord, USB, or disconnect from the Internet during the upgrading process.

•

  Step 1 - Select Firmware Upgrade

•

  Step 2 - Choose an option

1. Before entering the Firmware Upgrade menu, ensure the projector is connected to the Internet.
2. To enter the menu, select: Home > Setting > Firmware Upgrade.

Firmware Update Online

1. Go to: Home > Setting > Firmware Upgrade > Software Update Online.
2. Select Enter by pressing OK on the remote control.
3. The system will check the ViewSonic website (OTA) and display the below dialog message if there is new Firmware.
4. After selecting Yes, a progress bar will appear as the update process begins.
5. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
6. After updating the Firmware, it will take a few minutes to restart the projector.

Firmware Update by USB

1. Download the latest version from the ViewSonic website and copy the file to a USB device.
2. Plug the USB into the projector, then go to: Home > Setting > Firmware Upgrade > Software Update By USB.
3. Select Enter by pressing OK on the remote control.
4. The system will detect the Firmware version and display a dialog message.
5. After selecting Yes, a progress bar will appear as the update process begins.
6. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
7. After updating the Firmware, it will take a few minutes to restart the projector.

Advanced Settings

•

  Step 1 - Select Advanced Settings

•

  Step 2 - Choose an option

1. Select: Home > Setting > Advanced Settings.
2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
3. To return to a previous menu press the Return button.

Information

NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

•

  Step 1 - Select Information

•

  Step 2 - View the information

1. Select: Home > Setting > Information.
2. View system status and information.

Adding Apps

Add your favorite Apps to the Home Screen.

•

  Step 1 - Select Add App

•

  Step 2 - Navigate the Apps

1. From the Home Screen, select Add App and then press OK on the remote control.
2. Use the directional buttons to select the desired App and press OK.
3. Now your favorite App will appear on the Home Screen.

Delete Apps from the Home Screen

1. From the Home Screen, select the App you want to delete and press and hold OK for three (3) seconds.
2. The message, “Do you want to Delete this application from My Favorites?” will appear.
3. Select Yes, and press OK to delete the App.

Input Source Selected - On-Screen Display (OSD) Menu Tree

Image Setting

Sub-menu	Menu Option
Color Mode	Brightest
	TV
	Movie
	Gaming
	User 1
	User 2
Brightness	(-/+, 0~100)
Contrast	(-/+, 0~100)
Color Temp	6500K
	7500K
	9300K
	User
		Red Gain	(-/+, 0~199)
		Green Gain	(-/+, 0~199)
		Blue Gain	(-/+, 0~199)
		Red Offset	(-/+, 0~100)
		Green Offset	(-/+, 0~100)
		Blue Offset	(-/+, 0~100)
Tint	(-/+, 0~100)
Saturation	(-/+, 0~100)
Sharpness	(-/+, 0~60)
Gamma	1.8
	2.0
	2.2
	2.35
	2.5
	sRGB
	Cubic
Color Management	Primary Color	Red
		Green
		Blue
		Cyan
		Magenta
		Yellow
	Hue	(-/+, 0~100)
	Saturation	(-/+, 0~30)
	Gain	(-/+, 0~60)
Reset Current Color Settings	Reset
	Cancel

Advanced

Sub-menu	Menu Option
Aspect Ratio	Auto
	4:3
	16:9
	16:10
Zoom	OK	0.8x~1.0x
Light Source Level	Full
	Eco
HDMI Setting	Range	Auto
		Full Range
		Limited
3D Settings	3D Sync	Auto
		Disable
		Frame Sequential
		Frame Packing
		Top-Bottom
		Side-by-Side
	3D Sync Invert	Disable
		Invert
harman/kardon	Audio Mode	Movie
		Music
		User
	100Hz
	500Hz
	1500Hz
	5000Hz
	10000Hz
	Audio Volume	(0~50)
	Mute	Disable
		Enable
Information	Source
	Resolution
	3D Format

Home Screen - On-Screen Display (OSD) Menu Tree

Setting

Sub-menu	Menu Option
Network Settings	Wi-Fi	Enable/Disable
		SSID List
		Configure IP
		IP Address
		Subnet Mask
		Default Gateway
		DNS Server
Basic Settings	Language	English
		French
		German
		Italian
		Spanish
		Russian
		繁體中文
		簡體中文
		日本語
		韓語
		Swedish
		Dutch
		Turkish
		Czech
		Portuguese
		Thai
		Polish
		Finnish
		Arabic
		Indonesian
		Hindi
		Vietnam
		Greek
	Projector Projection	Front Table
		Front Ceiling
		Rear Table
		Rear Ceiling
	Keystone	Auto Keystone	Disable
			Enable
		V Keystone	(-/+, -40~40)
		H Keystone	(-/+, -40~40)
		4 Corner Adjustment	Disable
			Enable
	Zoom	0.8x~1.0x
	Focus	Manual Focus
		Auto Focus	Disable
			Enable
Date & Time	Automatic Date & Time	Disable
		Enable
	Date
	Time
	Time Zone
	Time Format	12 Hours
		24 Hours
Firmware Update	Software Update Online
	Software Update by USB
	OTA Reminder	Enable
		Disable
	Software Version
Advanced Settings	Power On Source	Disable
		HDMI
		USB-C
	Power On/Off Ring Tone	Disable
		Enable
	Auto Power On	CEC	Disable
			Enable
	Smart Energy	Auto Power Off	Disable
			10 minutes
			20 minutes
			30 minutes
		Sleep Timer	Disable
			30 minutes
			1 hour
			2 hours
			3 hours
			4 hours
			8 hours
			12 hours
		Power Saving	Disable
			Enable
	harmon/kardon	Audio Mode	Movie
			Music
			User
			100Hz
			500Hz
			1500Hz
			5000Hz
			10000Hz
		Audio Volume	(0~50)
		Mute	Disable
			Enable
	Light Source Level	Full
		Eco
	High Altitude Mode	Disable
		Enable
	Reset Settings	Reset
		Cancel
	Reset to Factory Default	Reset
		Cancel
Information	Light Source Hours
	System Version
	Memory Information	XX GB of XX GB Used
	Wi-Fi Mac Address
	Serial Number

Input Source Selected - On-Screen Display (OSD) Menu Options

Image Setting Menu

Menu Option	Description
Color Mode	The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal. Brightest Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, i.e. well-lit rooms. TV Optimized for viewing sports in well-lit environments. Gaming Designed for playing video games. Movie Appropriate for colorful movies, video clips from digital cameras, or DVs through the PC input. Best for low-light environments. User 1/User 2 Recalls the customized user settings. NOTE: Only supports HDMI/USB-C signal input.
Brightness	The higher the value, the brighter the image. Lower values will result in a darker image.
Contrast	Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
Color Temp	Select the color temperature setting. 6500K: Maintains normal white coloring. 7500K: A higher, cooler color temperature than 6500K. 9300K: The highest color temperature; makes the image appear the most bluish-white. User Color: Adjust red, green, and blue values as desired.
Tint	The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
Saturation	Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
Sharpness	A high value results in a sharper picture; a low value softens the picture.
Gamma	Reflects the relationship between input source and picture brightness.
Color Management	Only in permanent installations with controlled lighting levels such as: boardrooms, lecture halls, or home theaters should Color Management be considered. Color Management provides fine color control adjustment to allow for more accurate color reproduction, should you require it. If you have purchased a test disc, which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc., you can project any image from the disc on the screen and enter the Color Management menu to make adjustments.
Reset Current Color Settings	Return current color settings to their default values.

Advanced Settings Menu

Menu Option	Description
Aspect Ratio	The Aspect Ratio is the ratio of the image width to the image height. With the advent of digital signal processing, digital display devices, like this projector, can dynamically stretch and scale the image output to a different aspect than that of the image input signal. NOTE: Only supports HDMI/USB-C signal input. Auto Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio. 4:3 Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration. 16:9 Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV. 16:10 Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect.
Zoom	Activate the zoom function.
Light Source Level	Select the suitable power consumption of the LED.
HDMI Settings	Range Select a suitable color range according to the color range setting of the connected output device. Full: Sets the color range from 0~255. Limited: Sets the color range from 15~235. Auto: Sets the projector to detect the range of the input signal automatically.
3D Settings	Enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images while wearing 3D glasses. 3D Sync Adjust and choose from: Automatic, Off, Frame Sequential, Frame Packing, Top-Bottom, Side-by-Side. 3D Sync Invert Allows for correction if the 3D image depth is inversed.
harmon/kardon	Adjust the audio settings.
Information	Shows Input Source and Resolution.

Home Screen - On-Screen Display (OSD) Menu Options

File Management

Provides a user interface to manage files and folders.

Apps Center

Access and view all the applications you have installed.

Bluetooth

The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback.

Setting

Manage various categories such as: Network settings, Basic and Advanced settings, Date & Time, Firmware update, and system Information.

Basic Settings

Menu Option	Description
Language	Select your desired language.
Projector Position	Select the preferred projection position.
Keystone	Adjust trapezoidal screen image distortion. Auto Keystone Provides a rectangular screen image by automatically adjusting the keystone number when there is a trapezoidal screen image caused by the tilting of the projector. Enable: Automatically adjust the keystone number. Disable: Manually adjust the keystone number. Horizontal Keystone Keystone can be adjusted horizontally manually. Vertical Keystone Keystone can be adjusted vertically manually. 4 Corner Adjustment Adjust each corner individually for maximum projection flexibility.
Zoom	Activate the zoom function.
Focus	Adjust the focus of the screen image. Manual Focus Adjust the focus with the Left and Right buttons on the remote control. Auto Focus Choose from the following: Enable: Automatically adjust the focus instantly without the remote control. Disable: Manually adjust the focus. NOTE: If Auto Focus is Enabled, the projector will automatically focus the screen image when turned on or the position or angle of the projector is adjusted. Auto Focus will be the most accurate when the projected screen size is 50-75’’. For the remaining screen sizes, it is recommended to combine Auto Focus with Manual Focus. In the event Auto Focus fails two times successively, Manual Focus adjustment will pop up automatically. For more information, please see Auto Focus Calibration

Date & Time

Menu Option	Description
Automatic Date & Time	Users can synchronize the date and time automatically after connecting to the Internet. Enable Turn on synchronization. Disable Turn off synchronization.
Time Zone	Select your desired location.
Time Format	Select a different display time format. 12 Hours 12-hour clock. 24 Hours 24-hour clock.

Advanced Settings

Menu Option	Description
Power On Source	Allows the user to enter the desired source directly after turning on the projector.
Power On/Off Ring Tone	Enable or disable the power on/off ring tone.
Auto Power On	CEC This projector supports the CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection. That is, if a device that also supports the CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected deice is turned on, the projector’s power will be turned on automatically. NOTE: Ensure both the projector’s and the connected device’s CEC function are turned on.
Smart Energy	Auto Power Off The projector can turn off automatically after a set period of time once no input source is detected. Sleep Timer Turn off automatically after a set period of time. Power Saving Lower power consumption if no input source is detected after five (5) minutes. NOTE: The power consumption of the LED will be changed to 30% after no signal is detected for five (5) minutes.
harmon/kardon	Audio Mode Movie: Default audio mode. Music: Ideal for music playback. User: Allows the user to customize the audio equalizer. NOTE: In User mode, 100Hz, 500Hz, 1500Hz, 5000Hz, and 10000Hz can be selected. Audio Volume Adjust the volume from 0 to 50. Mute Mute or unmute the volume.
Light Source Level	Select the suitable power consumption of the LED. Full 100% Eco 70% NOTE: If using a USB-C connected power bank to charge the M2e, the light source level will only have Full (50%) and Eco (30%) options.
High Altitude Mode	It is recommended that you use High Altitude Mode when your environment is between 1,500-3,000 m above sea level, and a temperature between 5°C-25°C. NOTE: If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.
Reset Settings	Reset the Settings to default. NOTE: Language, High Altitude Mode, Projector Position, Network Settings, All installed Apps in the Apps Center, Add App, Bluetooth, Zoom, H/V Keystone, 4 Corner Adjustment, and Light Source Hours will remain unchanged.
Reset to Factory Default	Factory reset. NOTE: Light Source Hours will remain unchanged.

Screen Mirroring

Mirror your personal device’s screen through the projector.

Add App

Select your favorite Apps and add them to the Home Screen.

Technical Specifications

Model No.	P/N
VS18294	M2e

Item	Category	Specifications
Projector	Type	0.23” 1080p Full HD, LED
	Display Size	30”~100”
	Throw Distance	0.65-2.68 m (80”±3%@2.14 m)
	Lens	F=1.7, f=6.35 mm
	Optical Zoom	Fixed
	Lamp Type	RGBB LED
	Light Source Life (Normal)	up to 30,000 hours
	Display Color	1.07 Billion Colors
	Keystone	-/+ 40 (Vertical & Horizontal)
Input Signal	HDMI	fh: 30K~97KHz, fv:24~85Hz
Resolution	Native	1920 x 1080
	Support	VGA (640 x 480) to Full HD (1920 x 1080)
Local Storage	Total	16 GB
	Available	10 GB
Input	HDMI	1 (HDMI 1.4, HDCP 1.4)
	SD Card	Micro SD (Supports up to 256 GB, SDXC)
	USB Type-C	1 (5V/2A)
	USB Type-A	1 USB 2.0 Reader
	Wi-Fi Input	1 (5G and 2.4G)
Output	Audio Out (3.5 mm)	1
	Bluetooth Output	1 (BT 4.2/Audio Out)
	Speaker	3W Cube x 2
	USB Type-A (Power)	1 (USB 2.0, 5V/2A, share with reader)
Power Adapter	Input Voltage	DC IN 100-240V, 50/60 Hz (auto switch)
Operating Conditions	Temperature	0°C to 40°C (32°F to 104°F)
	Humidity	0% to 90% (non-condensing)
Dimensions	Physical (W x H x D)	184 x 184 x 54 mm (7.2” x 7.2” x 2.1”)
Weight	Physical	1.0 kg (2.20 lbs)
Power Consumption	On	90W (Typical)
	Off	< 0.5W (Standby)

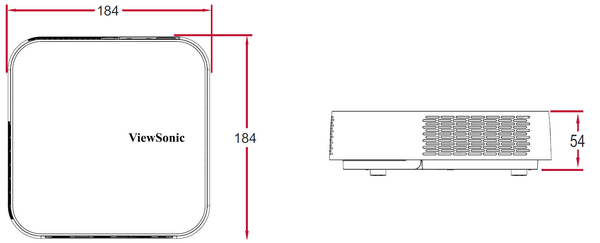

Projector Dimensions

184 mm (W) x 184 mm (H) x 54 mm(D)

Timing Chart

HDMI Video Timing

Timing	Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Dot Clock Frequency (MHz)
480i	720(1440) x 480	15.73	59.94	27
480p	720 x 480	31.47	59.94	27
576i	720(1440) x 576	15.63	50	27
576p	720 x 576	31.25	50	27
720/50p	1280 x 720	37.5	50	74.25
720/60p	1280 x 720	45	60	74.25
1080/50i	1920 x 1080	28.13	50	74.25
1080/60i	1920 x 1080	33.75	60	74.25
1080/24p	1920 x 1080	27	24	74.25
1080/50p	1920 x 1080	56.25	50	148.5
1080/60p	1920 x 1080	67.5	60	148.5

HDMI PC

Resolution	Refresh Rate (Hz)	Horizontal Frequency (KHz)	Dot Clock Frequency (MHz)
640 x 480	59.94	31.469	25.175
	72.809	37.861	31.5
	75	37.5	31.5
	85.008	43.269	36
720 x 400	70.087	31.469	28.3221
800 x 600	60.317	37.879	40
	72.188	48.077	50
	75	46.875	49.5
	85.061	53.674	56.25
	119.854	77.425	83
1024 x 576	60	35.82	46.966
1024 x 600	64.995	41.467	51.419
1024 x 768	60.004	48.363	65
	70.069	56.476	75
	75.029	60.023	78.75
	84.997	68.667	94.5
	119.989	97.441	115.5
1152 x 864	75	67.5	108
1280 x 720	60	45	74.25
1280 x 768	59.87	47.776	79.5
1280 x 800	59.81	49.702	83.5
	74.934	62.795	106.5
	84.88	71.554	122.5
1280 x 960	60	60	108
	85.002	85.938	148.5
1280 x 1024	60.02	63.981	108
	75.025	79.976	135
	85.024	91.146	157.5
1360 x 768	60.015	47.712	85.5
1400 x 1050	59.978	65.317	121.75
1440 x 900	59.887	55.935	106.5
1600 x 1200	60	75	162
1680 x 1050	59.954	65.29	146.25
1920 x 1080 (VESA)	60	67.5	148.5
640 x 480 @ 67Hz	66.667	35	30.24
832 x 624 @ 75Hz	74.546	49.722	57.28
1024 x 768 @ 75Hz	75.02	60.241	80
1152 x 870 @ 75Hz	75.06	68.68	100

USB C

Resolution	Refresh Rate (Hz)	Horizontal Frequency (KHz)	Dot Clock Frequency (MHz)
480i	59.94	15.73	27
480p	59.94	31.47	27
576i	50	15.63	27
576p	50	31.25	27
720/50p	50	37.5	74.25
720/60p	60	45	74.25
1080/50i	50	28.13	74.25
1080/60i	60	33.75	74.25
1080/24p	24	27	74.25
1080/50p	50	56.25	148.5
1080/60p	60	67.5	148.5

IR Control Table

Function	Address		Code	Inverse
	Byte 1	Byte 2	Byte 3	Byte 4
Power On/Off	83	F4	17	E8
Home	83	F4	16	E9
Focus	83	F4	92	6D
Source	83	F4	40	BF
Setting	83	F4	30	CF
Up	83	F4	0B	F4
Down	83	F4	0C	F3
Left	83	F4	0E	F1
Right	83	F4	0F	F0
OK	83	F4	15	EA
Bluetooth	83	F4	A2	5D
Return	83	F4	28	D7
Mute	83	F4	14	EB
Volume +	83	F4	82	7D
Volume -	83	F4	83	7C
Audio Mode	83	F4	9E	61

LED Indicators

Light	Status and Description
	Power
Red	Stand-by mode (5 sec.) (< 0.5W)
Green	Power On

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliant Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

IC Warning Statement
This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en compromettre le fonctionnement.

Country Code Statement
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.

IC Radiation Exposure Statement
This equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The device for the band 5150-5825 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlê. Cet équipement doit être installé et utilize avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. les dispositifs fonctionnant dans la bande 5150-5825 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage.

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis(2-Ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Benzyl butyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

• Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

• Short length (500 mm): maximum 3.5 mg per lamp.
• Medium length (>500 mm and 1,500m): maximum 5 mg per lamp.
• Long length (> 1,500 mm): maximum 13 mg per lamp.

• Lead in glass of cathode ray tubes.
• Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
• Lead as an alloying element in aluminum containing up to 0.4% lead by weight.
• Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada
https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program

Europe
http://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan
https://recycle.epa.gov.tw/

Copyright Information

Copyright© ViewSonic® Corporation, 2020. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

M2e_UG_ENG Rev. 1A 2020-11-30

Customer Service Contact Information

For technical support or product service, see the table below or contact your reseller.

Note: You will need the product’s serial number, which is located on the rear of the monitor by the I/O ports.

Asia Pacific & Africa

Country / Region	Website
Australia	https://viewsonic.com/au/
Bangladesh	https://www.viewsonic.com/bd/
中囯(China)	https://www.viewsonic.com.cn
香港 (繁體中文)	https://www.viewsonic.com/hk/
Hong Kong (English)	https://www.viewsonic.com/hk-en/
India	https://www.viewsonic.com/in/
Indonesia	https://www.viewsonic.com/id/
Israel	https://www.viewsonic.com/il/
日本 (Japan)	https://www.viewsonic.com/jp/
Korea	https://www.viewsonic.com/kr/
Malaysia	https://www.viewsonic.com/my/
Middle East	https://www.viewsonic.com/me/
Myanmar	https://www.viewsonic.com/mm/
Nepal	https://www.viewsonic.com/np/
New Zealand	https://www.viewsonic.com/nz/
Pakistan	https://www.viewsonic.com/pk/
Philippines	https://www.viewsonic.com/ph/
Singapore	https://www.viewsonic.com/sg/
臺灣 (Taiwan)	https://www.viewsonic.com/tw/
ประเทศไทย (Thailand)	https://www.viewsonic.com/th/
Việt Nam	https://www.viewsonic.com/vn/
South Africa & Mauritius	https://www.viewsonic.com/za/

Americas

Country / Region	Website
United States	https://www.viewsonic.com/us/
Canada	https://www.viewsonic.com/us/
Latin America	https://www.viewsonic.com/la/

Europe

Country / Region	Website
Europe	https://www.viewsonic.com/eu/
France	https://www.viewsonic.com/fr/
Deutschland	https://www.viewsonic.com/de/
Қазақстан	https://www.viewsonic.com/kz/
Россия	https://www.viewsonic.com/ru/
España	https://www.viewsonic.com/es/
Türkiye	https://www.viewsonic.com/tr/
Україна	https://www.viewsonic.com/ua/
United Kingdom	https://www.viewsonic.com/uk/

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty:

Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

• Any product on which the serial number has been defaced, modified, or removed.
• Damage, deterioration, or malfunction resulting from:
  • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
  • Operation outside of product specifications.
  • Operation of the product for other than the normal intended use or not under normal conditions.
  • Repair or attempted repair by anyone not authorized by ViewSonic®.
  • Any damage of the product due to shipment.
  • Removal or installation of the product.
  • Causes external to the product, such as electric power fluctuations or failure.
  • Use of supplies or parts not meeting ViewSonic’s specifications.
  • Normal wear and tear.
  • Any other cause which does not relate to a product defect.
• Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Support” page). You will need to provide your product’s serial number.
2. To obtain warranted service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.
4. For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governments do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer. The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found at: ViewSonic EU under “Support/Warranty Information”.

Mexico Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only.

All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty excludes and does not cover:

• Any product on which the serial number has been defaced, modified or removed.
• Damage, deterioration, or malfunction resulting from:
  • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
  • Any damage of the product due to shipment.
  • Causes external to the product, such as electrical power fluctuations or failure.
  • Use of supplies or parts not meeting ViewSonic®’s specifications.
  • Normal wear and tear.
  • Any other cause which does not relate to a product defect.
• Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.
• Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the attached “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

• For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.
• To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
• Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center.
• Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

• Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
• Any other damages, whether incidental, consequential or otherwise.
• Any claim against the customer by any other party.
• Repair or attempted repair by anyone not authorized by ViewSonic®.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo: Distribuciones y Servicios Computacionales SA de CV. Calle Juarez 284 local 2 Col. Bugambilias C.P: 83140 Tel: 01-66-22-14-9005 E-Mail: disc2@hmo.megared.net.mx	Villahermosa: Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: compumantenimientos@prodigy.net.mx
Puebla, Pue. (Matriz): RENTA Y DATOS, S.A. DE C.V. Domicilio: 29 SUR 721 COL. LA PAZ 72160 PUEBLA, PUE. Tel: 01(52).222.891.55.77 CON 10 LINEAS E-Mail: datos@puebla.megared.net.mx	Veracruz, Ver.: CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419 ENTRE PINZÓN Y ALVARADO Fracc. Reforma C.P. 91919 Tel: 01-22-91-00-31-67 E-Mail: gacosta@qplus.com.mx
Chihuahua: Soluciones Globales en Computación C. Magisterio # 3321 Col. Magisterial Chihuahua, Chih. Tel: 4136954 E-Mail: Cefeo@soluglobales.com	Cuernavaca: Compusupport de Cuernavaca SA de CV Francisco Leyva # 178 Col. Miguel Hidalgo C.P. 62040, Cuernavaca Morelos Tel: 01 777 3180579 / 01 777 3124014 E-Mail: aquevedo@compusupportcva.com
Distrito Federal: QPLUS, S.A. de C.V. Av. Coyoacán 931 Col. Del Valle 03100, México, D.F. Tel: 01(52)55-50-00-27-35 E-Mail : gacosta@qplus.com.mx	Guadalajara, Jal.: SERVICRECE, S.A. de C.V. Av. Niños Héroes # 2281 Col. Arcos Sur, Sector Juárez 44170, Guadalajara, Jalisco Tel: 01(52)33-36-15-15-43 E-Mail: mmiranda@servicrece.com
Guerrero Acapulco: GS Computación (Grupo Sesicomp) Progreso #6-A, Colo Centro 39300 Acapulco, Guerrero Tel: 744-48-32627	Monterrey: Global Product Services Mar Caribe # 1987, Esquina con Golfo Pérsico Fracc. Bernardo Reyes, CP 64280 Monterrey N.L. México Tel: 8129-5103 E-Mail: aydeem@gps1.com.mx
MERIDA: ELECTROSER Av Reforma No. 403Gx39 y 41 Mérida, Yucatán, México CP97000 Tel: (52) 999-925-1916 E-Mail: rrrb@sureste.com	Oaxaca, Oax.: CENTRO DE DISTRIBUCION Y SERVICIO, S.A. de C.V. Murguía # 708 P.A., Col. Centro, 68000, Oaxaca Tel: 01(52)95-15-15-22-22 Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com
Tijuana: STD Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembr Tijuana, Mexico	FOR USA SUPPORT: ViewSonic® Corporation 381 Brea Canyon Road, Walnut, CA. 91789 USA Tel: 800-688-6688 http://www.viewsonic.com

Using the Projector Safely

Please read the following Safety Precautions before you start using the projector.

Keep this user guide in a safe place for later reference. Read all warnings and follow all instructions. Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation. Place the projector in a well-ventilated area. Do not place anything on the projector that prevents heat dissipation. Do not place the projector on an uneven or unstable surface. The projector may fall over, causing personal injury or projector malfunction. Do not use if the projector is tilted at an angle of more than 10° degrees left or right, nor at an angle of more than 15° degrees forwards or backwards. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes. Always open the lens shutter or remove the lens cap when the projector lamp is on. Do not block the projection lens with any objects when the projector is under operation as this could cause objects to become heated and deformed or even cause a fire. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement. Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the rated life could cause them to break on rare occasions. Never replace the lamp assembly or any electronic component unless the projector is unplugged. Do not attempt to disassemble the projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts. When moving the projector, be careful not to drop or bump the projector on anything. Do not place any heavy objects on the projector or connection cables. Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing personal injury or projector malfunction. Avoid exposing the projector to direct sunlight or other sources of sustained heat. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the projector to dangerous levels.

Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply and call your local service center to have the projector serviced. When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal operation and not a defect. Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide and third blade are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet. When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED. Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the projector. In some countries, the voltage is NOT stable. This projector is designed to operate safely within a voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector, or uninterruptable power supply (UPS). If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector. Use only attachments/accessories specified by the manufacturer. Disconnect the power cord from the AC outlet if the projector is not being used for a long period of time. Refer all servicing to qualified service personnel. CAUTION: Possibly hazardous optical radiation is emitted from this product. As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015

Before Mounting the Projector to the Ceiling

Please read the following Safety Precautions before you start using the projector:

• If you intend to mount the projector on the ceiling, it is strongly recommended that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.
• If you use an inappropriate projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.
• You can purchase a projector ceiling mount kit from the place you purchased your projector.

Glossary of Terms

Note: Some terms may not be applicable to your device.

Aspect Ratio

Refers to the ratio of the image width to the image height.

Brightest Mode

Maximizes the brightness of the projected image. This mode is ideal for environments where extra-high brightness is required, such as using the projector in well lit rooms.

Brightness

Adjusts background black levels of the screen image.

CEC (Consumer Electronics Control)

Synchronizes power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector’s power will be turned on automatically.

Color

Adjusts the color saturation.

Color Temperature

Allows users to select specific color temperature settings to further customize their viewing experience.

Contrast

Adjusts the difference between the image background (black level) and the foreground (white level).

Focus

Manually improve the clarity of the projected image.

Gamma

Allows the user to manually select the greyscale curve of the projector.

HDMI

Audio/Video interface used to transmit video and audio via a single cable.

HDMI Range

Allows the user to select HDMI greyscale range between 0~255 (full range) , 16~240 (limited range) or Auto by the signal type detected.

HDR (High-Dynamic Range)

Keeps the brightness level and enhances details on the dark level.

High Altitude Mode

Optional mode for users who live in an environment between 1,500 m and 3,000 m above sea level, and the temperature is between 5° C and 25° C. Activating it will improve projector cooling and performance.

Information

Displays the timing mode (video signal input), the projector model number, the serial number, and the ViewSonic® website URL.

Input Select

Toggles between the various input options that are available for the projector.

Keystone

The distortion of an image caused by projecting it onto an angled surface.

Light Source Level

Use Normal or Eco mode to adjust the brightness level and power consumption.

Movie Mode

A Picture Mode appropriate for playing colorful movies, video clips from digital cameras, or DVs through the PC input. Best for a low light environment.

Sharpness

Adjusts the picture quality.

Troubleshooting Common Problems

Why doesn't the projector turn on?

Solution 1 ► Ensure the power cord is properly attached to the projector and to the power outlet.

Solution 2 ► If the cooling process has not completed, please wait until it has finished then try to turn on the projector again.

Solution 3 ► If the above does not work, try another power outlet or another electrical device with the same power outlet.

Solution 4 ► Check that the battery has remaining power, or needs external power.

Why is there no picture?

Solution 1 ► Ensure the video source cable is connected properly, and that the video source is turned on.

Solution 2 ► If the input source is not selected automatically, select the correct source with the Source key on either the projector or the remote control.

What should I do if the image is blurry?

Solution 1 ► Adjusting the Focus Ring will help correctly focus the projection lens.

Solution 2 ► Ensure the projector and screen are aligned properly. If necessary, adjust the height of the projector as well as the projection angle and direction.

Why is the remote control not working?

Solution 1 ► Ensure there are no obstacles between the remote control and projector; and that they are within 8 m (26 ft) of each other.

Solution 2 ► The batteries may be out of power, please check and replace if necessary.

What should I do if the projector freezes or doesn't respond?

Solution ► Using a paper clip, carefully insert it into the Reset button at the rear of the projector to reset the device.

Maintaining the Projector

General Precautions

• Make sure the projector is turned off and the power cable is unplugged from the power outlet.
• Never remove any parts from the projector. Contact ViewSonic® or a reseller when any part of the projector needs replacing.
• Never spray or pour any liquid directly onto the case.
• Handle the projector with care, as a darker-colored projector, if scuffed, may show marks more clearly than a lighter-colored projector.

Cleaning the Lens

• Use a canister of compressed air to remove dust.
• If the lens is still not clean, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the surface.

Important: Never rub the lens with abrasive materials.

Cleaning the Case

• Use a soft, lint-free, dry cloth to remove dirt or dust.
• If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

Important: Never use wax, alcohol, benzene, thinner, or other chemical detergents.

Storing the Projector

If you intend to store the projector for an extended period of time:

• Ensure the temperature and humidity of the storage area are within the recommend range.
• Retract the adjuster foot completely.
• Remove the batteries from the remote control.
• Pack the projector in its original packaging or equivalent.

Disclaimer

• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector.
• ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
