LS901HD LS901-4K Product Overview
Projector Overview
| Number | Description |
|---|---|
| 1 | Remote IR Sensor |
| 2 | Keypad |
| 3 | Lens Shift |
| 4 | Focus Ring |
| 5 | Vent (inlet) |
| 6 | Zoom Ring |
| 7 | Vent (outlet) |
| 8 | Security Bar |
| 9 | Adjuster Foot |
| 10 | Projection Lens |
- Note: Do not block projector intake and exhaust vents.

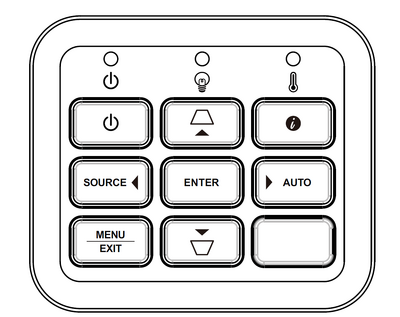

Keypad
| Icon | Button | Description |
|---|---|---|
|
Power | Toggles the projector between standby mode and Power On. |
|
Keystone | Manually corrects distorted images resulting from an angled projection. |
|
Navigation | Selects the desired menu items and makes adjustments when the On-Screen Display (OSD) Menu is activated. |
|
Menu/Exit | Turns on or off the On-Screen Display (OSD) Menu. |
|
Source | Displays the input source selection bar. |
|
Information | Displays the INFORMATION menu. |
|
Enter | Enacts the selected On-Screen Display (OSD) menu item when the OSD Menu is activated. |
|
Auto | Automatically determines the best picture timings for the displayed image. |
Indicator Lights
| Indicator Light | Description |
|---|---|
|
Power indicator light |
|
Light Source indicator light |
|
Temperature indicator light |
