    Package Contents

    Item Quantity Note
    LED Display with Motorized Trolley Cart
    LDS135-151 Front View.png
    1
    Quick Start Guide
    LDS135-151 QSG.png
    1
    Remote Control
    Direct View Remote Control No Number Update.png
    1
    Power Cable
    LDS135-151 Power Cable.svg
    1
    LED Modules
    LDS135-151 LED Module.svg
    100 modules The quantity of spare LED modules will vary by country.
    Vacuum Suction Tool
    LDS135-151 Suction Tool.svg
    The standard plug is USA standard (category A). Please prepare a universal adapter if necessary.
    LAN Cable (5m)
    LDP216-121 LAN Cable.svg
    1
    USB-C Cable (1m)
    LDS135-151 USBC Cable.svg
    1
    Bag with LEDs
    LDS135-151 Bag LEDs.svg
    1 bag (1,000 pieces) Replacement LED beads specific to module batch number.
    Cannot be used on different LED module batch(es).
    Hex Tool
    (Allen Wrench)
    LD163-181 Hex Tool.svg
    LD163-181 Hex Tool.svg
    2 1 x 5 mm
    1 x 8 mm
    NOTE:
    • This product is packed in an air transport box.
    • Due to the size and weight, it is recommended that two or more people handle it.

    Product Overview

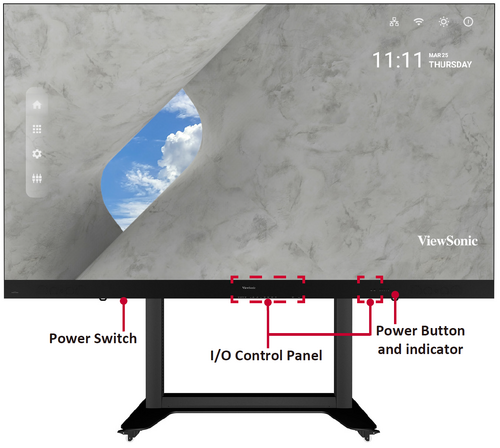

    Front Panel

    LDS135-151 Front Panel Overview.png

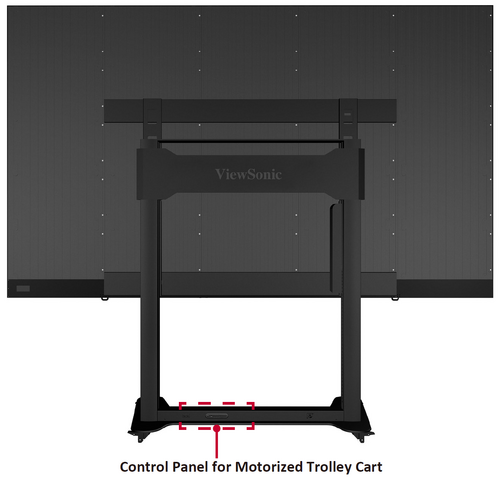

    Rear Panel

    LDS135-151 Rear Panel Overview.png

    I/O Ports

    LDP135-151 IO Ports.png
    Number Port Description
    1 HDMI OUT Extend content out to another display device.
    2 Audio OUT Audio output to an external speaker.
    3 Audio IN Audio input from an external device.
    4 S/PDIF Out Multichannel sound via optical signals.
    5 IR IN Extend the IR Receiver.
    6 USB 2.0 USB Reader (5V/1.5A).
    7 LAN Standard RJ45 (10M/100M/1000M) Internet connection interface.
    8 HDMI IN 2.0 High definition input: PIP/PBP ,connect to PC with HDMI output, set-top box, or other video device.
    9 HDMI IN 1.4 High definition input: PIP/PBP ,connect to PC with HDMI output, set-top box, or other video device.
    10 HDMI IN 2.1 High definition input: connect to PC with HDMI output, set-top box, or other video device.
    11 RS-232 Serial control port.

    Control Panel

    LDP135-151 Control Panel.png
    Number Port Description
    1 USB C USB-C Reader (5V/2A)
    2 USB 2.0 USB Reader (5V/1.5A)
    3 IR Receiver Receiver for the Remote Control.
    4 Brightness Press to cycle through brightness levels.
    5 Volume + Increase the volume.
    6 Volume - Decrease the volume.
    7 Input Select Press to cycle through available input sources.
    8 Stand-by Press to enter Stand-by mode.
    Locking the Control Panel
    When the administrator does not want others to use the control panel, it can be locked by pressing 1168+OK on the remote control.

    Remote Control Overview

    Remote Control
    Number Description
    1 Power On/Off
    2 Back to Home Screen
    3 Input source selection
    4 Change to HDMI 1/2 input source
    5 Switch to a blank, black screen
    6 Adjust the brightness level
    7 Directional buttons
    8 Confirm the selection
    9 Enter the Information page
    10 Enter the Settings menu
    11 Return to previous
    12 Play/Pause content
    13 Move content forwards/backwards
    14 Increase/decrease the volume level
    15 Numeric input buttons
    16 Input key for a dot (.)
    17 Delete key for text input
    18 Mute/Unmute

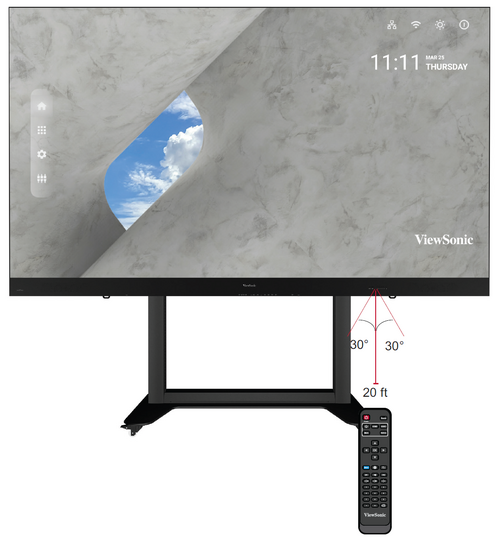

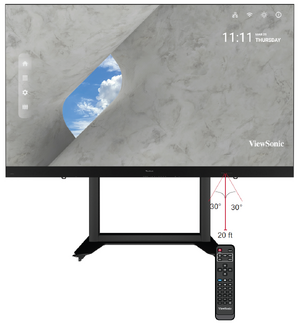

    Remote Control Receiver Range

    The operating range of the remote control is shown here. It has an effective range of 20 feet (6 meters), 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

    LDS135-151 Remote Range.png

    Inserting Remote Control Batteries

    The remote control is powered by two 1.5v "AAA" batteries.

    To insert batteries into the remote control:

    1. Remove the cover on the rear of the remote control.
    2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
    3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.
    Warning: There is a risk of explosion if batteries are installed with incorrect polarity.
    NOTE:
    • It is recommended that you do not mix battery types.
    • Avoid exposure to heat or steam.
    • Do not allow water or other liquids to splash on the remote control. If the remote control becomes wet, wipe it dry immediately.
    • Always dispose of old batteries in an environmentally friendly way. Contact your local government for more information on how to dispose of batteries safely.
    Locking the Remote Control
    When the administrator does not want others to control the remote control, it can be locked by pressing 1169+OK on the remote control.

    Control Panel for Motorized Trolley Cart

    LDS135-151 Trolley Control Panel.png
    1. Instructions on Preset Lifting Height
    • Initial preset lifting height: Three groups of preset data. The 1/2/3 keys (. , .. , ...) correspond to 0 cm / 25 cm / 65 cm height respectively.
    • Erasing of preset height data: Height data can be stored for more than 10 years. When new parameters are set, old parameters will be automatically erased.
    • How to preset height: at any height (unavailable under the reset and error status), the current height parameters can be preset into keys 1/2/3.
    For example: set 25 cm on the 2 key:
    LDS135-151 Trolley Control Panel Use 1.png
    Press the S key to display SET.
    LDS135-151 Trolley Control Panel Use 2.png
    Within 2 seconds, before SET disappears, press the 2 (..) key.
    LDS135-151 Trolley Control Panel Use 3.png
    When S-2 is displayed, the setting is over and will return to the previous display.
    LDS135-151 Trolley Control Panel Use 4.png
    1. How to Use Preset Height
    2. At any height (unavailable under the reset and error status), keys 1/2/3 may be used to quickly reach the preset height. If the current height has reached such preset height, no actions will be performed.


    1. How to Change the Height
      • Use the Up key to lift the display. The lift will automatically stop upon reaching the height limit. Please note, the Up key is a “click to act” key, i.e., upon releasing the key the lift will not immediately stop. Instead, it will slow down for a short distance then stop.
      • Use the Down key to lower the display. The lift will automatically stop upon reaching the height limit. Please note, the Down key is a “click to act” key, i.e., upon releasing the key the lift will not immediately stop. Instead, it will slow down for a short distance then stop.

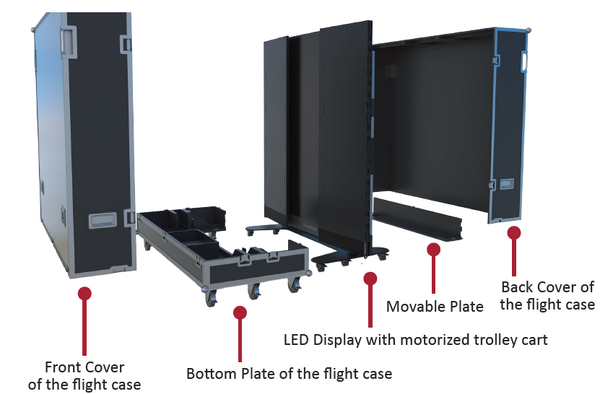

    Handling and Moving the Flight Case

    LDS135-151 Flight Case Overview.png

    NOTE: During moving, handling, placing and transporting of flight cases, always keep the specified position up, no reversing, in order to prevent bumping and damage to the structure of the equipment and the display components.

    1. Before moving any flight case, pull up the brake locks of the six rollers at the bottom, guaranteeing the release of the brake status.
    LD135-152 Locking Wheels.png
    1. Ensure that the group is level, with the height difference less than 1.5 cm, and the ground can comfortably hold more than the weight of the entire equipment.
    2. During moving, at least two adults are needed.

    Unboxing the Flight Case

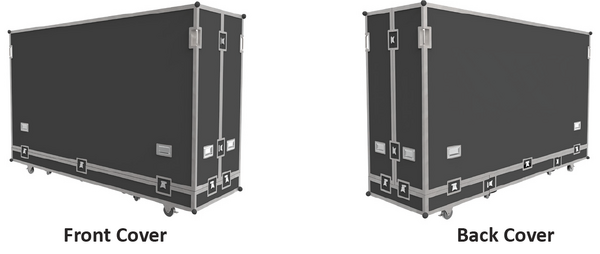

    1. After the flight case is moved to the designated location, open the flight case according to the sequence of Front Cover, Back Cover, Movable Plate and Bottom Plate. To distinguish the Front cover and Back cover, refer to the following diagram.
    2. LDS135-151 Flight Case Unboxing 1.png

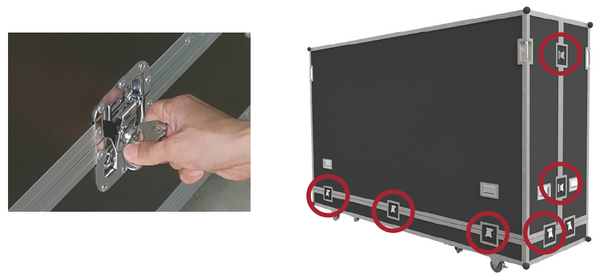

    3. As shown below, pull the handle of the lock-ups, and rotate the handle counterclockwise to unlock the nine (9) lock-ups connecting the Front Cover with the Bottom Plate and the Back Cover, ensuring that each lock-up will not be interlocked.
    4. LDS135-151 Flight Case Unboxing 2.png
    5. Two people will need to grip the handles, as indicated by the red circles below, and pull. While lifting, keep the Front Cover level as it is moved to another location.
    6. LDS135-151 Flight Case Unboxing 3.png

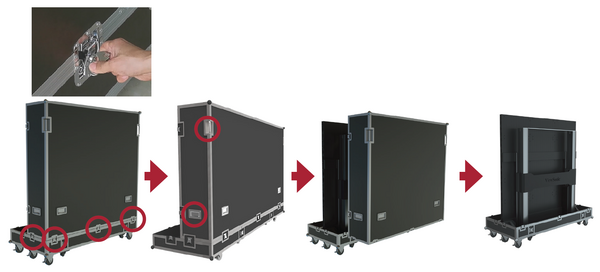

    7. As shown below, pull the handle of the lock-ups, and rotate the handle counterclockwise to unlock the five (5) lock-ups connecting the Back Cover with the Bottom Plate, ensuring that each lock-up will not be interlocked. Two people will need to grip the handles, as indicated by the red circles below, and pull. While lifting, lift off the Back Cover to another location, ensuring to keep the cover level.
    8. LDS135-151 Flight Case Unboxing 4.png
    9. As shown in the red circles below, open the four (4) lock-ups of the Movable plate at the bottom of the flight case. Lift the Movable plate while holding up the bottom of it. Pull out the Movable plate from behind to separate.
    10. LDS135-151 Flight Case Unboxing 5.png
    11. Take the power cord out of the accessory box. Insert the flight plug into the female socket at the right of the base control box of the screen and rotate the plug 90° clockwise (as shown below). Ensure the plug is connected securely (a click should be heard). Insert the other end of the plug into a power socket. Ensure that the power socket meets the specifications and standards of the LED display screen (30A socket for 110V area, and 16A socket for 220V area).
    12. LDS135-151 Flight Case Unboxing 6.png
    13. After the power cord is properly connected, the green light and digits on the control lifting plate of the base of the screen will be ON. Press the 2 key (..) on the control box at the base, or continuously hold the “Up” key, to raise the screen and lift it from the cabinet.
    14. LDS135-151 Flight Case Unboxing 7.png
    15. After the screen is raised to a certain height, pull out the Bottom Plate of the flight case from the front.
    16. LDS135-151 Flight Case Unboxing 8.png
    17. Unlock the four (4) top and bottom buckles, and open both side cabinets of the display.
    18. LDS135-151 Flight Case Unboxing 9.png
    19. The display is now ready to power on.
    20. LDS135-151 Flight Case Unboxing 10.png

    Packing the Flight Case

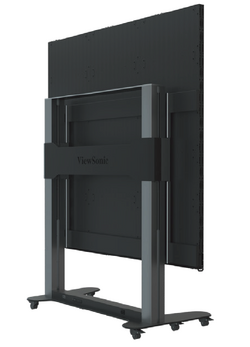

    1. Power off and close both side cabinets of the display, and lock the four (4) buckles.
    2. LDS135-151 Flight Case Packing 1.png

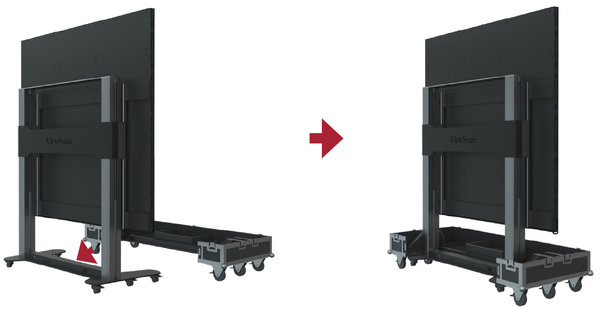

    3. Ensure that the display is OFF, and the Accessories box is placed in the grid corresponding to the Bottom Plate of the flight case. The Bottom Plate of the flight case, which shall be close to the ground, is clipped into the base of the display from the front as shown below.
    4. LDS135-151 Flight Case Packing 2.png

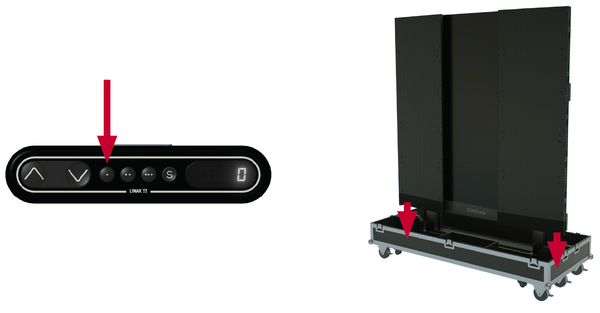

    5. Press the 1 key (.) on the control box at the base, or continuously hold the “Down” key, to lower the screen to the lowest position until it is inside the cart slot, as shown below:
    6. LDS135-151 Flight Case Packing 3-1.png

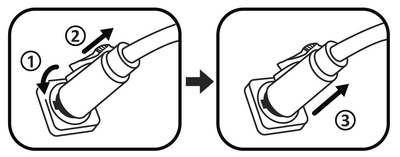

    7. Ensure the display is Powered Off, then unplug the power cord from the power socket. Next, remove the flight plug by rotating it 90° counterclockwise. Finally, place the power cord into the Backup Box on the Bottom plate.
    8. LDS135-151 Flight Case Packing 5.png

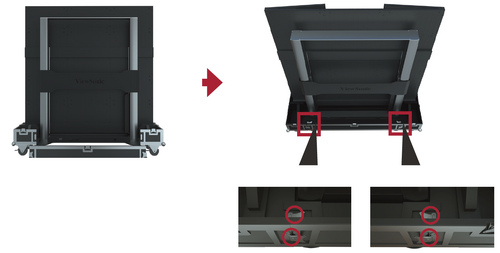

    9. Insert the Movable Plate from behind, as shown below, and tighten the four (4) lock-ups connecting with the Bottom Plate. Ensure that the clips are engaged.
    10. LDS135-151 Flight Case Packing 4.png

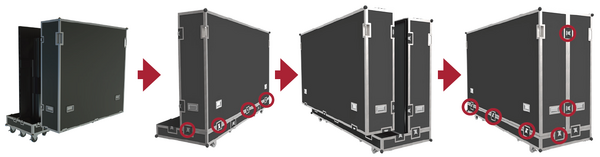

    11. Two people will need to lift the Back Cover of the flight case, aligning the Back Cover with the position of the lock-ups of the Bottom Plate. When aligned, rotate the five (5) lock-ups clockwise to secure the connection with the Bottom Plate. Next, lift the Front Cover of the flight case onto the Bottom Plate, aligning the Front Cover with the position of the lock-ups. When aligned, rotate the nine (9) lock-ups clockwise to secure the connection between the Front Cover, the Bottom Plate, and Back Cover. Ensure that the lock-ups are engaged in place, and there are no obvious gaps.
    12. LDS135-151 Flight Case Packing 6.png

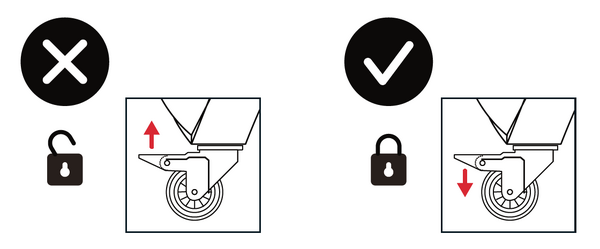

    13. After the flight case is closed, at least two people will be needed to move the case to its storage or transport location. Ensure the brake locks are engaged on all six rollers upon reaching the case’s storage or transport location.
    14. LDS135-151 Flight Case Packing 7.png


    NOTE: When storing the flight case, ensure the ground is level and that all six rollers are locked.

    Connecting to External Devices

    HDMI IN Connection

    Media Player Connection

    Connect an HDMI cable from your external device to an HDMI IN port on the LED display.

    LD163-181 Connect Media Player.png

    PC Connection

    Connect an HDMI cable from your PC to an HDMI IN port on the LED display.

    LD163-181 Connect HDMI PC.png

    Audio Connection

    Connect an audio cable from your external audio device to the Audio Out port on the LED display.

    LD163-181 Connect Audio.png

    Video Output Connection

    To output video via an external display device, connect an HDMI cable to the HDMI IN port of your external display device, and the other end to the HDMI OUT port of your LED display.

    LD163-181 Connect HDMI Out.png

    USB and Networking Connections

    Just like any PC, it is easy to connect various USB devices and other peripherals to your LED display.

    USB (Type A/Type C)

    • USB Type A
    Plug the USB device, cable, or storage drive into the USB Type A port.
    LD163-181 Connect USBA.png
    • USB Type C
    Plug the USB device, cable, or storage drive into the USB Type C port.
    LDP135-151 Connect USBC.png

    Networking and Modem Cables

    Plug the network cable into the LAN port.

    LD163-181 Connect LAN.png

    RS-232 Connection

    When you use a RS-232 serial cable to connect your LED display to an external computer and control system certain functions can be controlled remotely such as: Power On/Off, Volume adjustment, Input select, Brightness, and more.

    LD163-181 Connect RS232.png

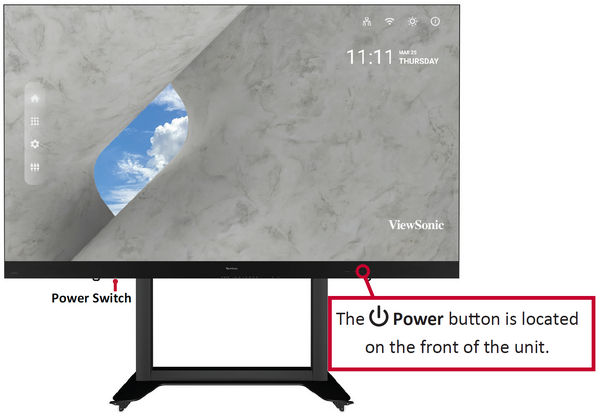

    Power On/Off your LED Display

    LDS135-151 Power On.png
    1. Ensure the power cord is connected and plugged into a power outlet.
    2. Press the Power Switch to the ON position.
    3. Press the Power button to turn on the LED display.
    4. To turn the LED display off, press the Power button again.

    Home Screen

    LD108-121 Home Screen Update.png
    Number Item Description
    1 Main Menu Access the Home Screen, APP Center, Settings, and Input Source.
    2 Time of Day Indicator The sky will change over the day between morning, noon, afternoon, and night.
    3 Quick Access Quick access to LAN, Wi-Fi, Brightness, and Power.
    NOTE: Only supported by keyboard and mouse.
    4 Date & Time Automatic time adjustment, time zone selection, and 24-hour format can all be adjusted. The Date & Time can also be hidden from the Home Screen under:
    Settings > Display > Launcher Settings
    5 ViewSonic Logo The logo can be hidden from the Home Screen under:
    Settings > Display > Launcher Settings

    Navigating the Home Screen

    Remote Control
    The remote control can be used to easily navigate the Home Screen. When using the remote control, ensure it is kept within the IR receiver range as shown below:

    LDS135-151 Remote Range.png

    Keyboard and Mouse
    When connected to the USB Type-A port of the display, a keyboard and mouse can also be used to navigate the Home Screen.

    LD163-181 Connect USBA.png

    The mouse pointer will appear as an orange dot on the display when used:

    Home Screen Mouse Pointer.png
    • The left mouse button will confirm actions.
    • The right mouse button will go back to the previous layer.
    • Keyboard shortcuts and hot keys are also supported, including: audio adjustment, mute, and back to the Home Screen.

    APP Center

    Home Screen App Center.png
    NOTE: Preloaded applications are subject to change without a notice.
    Icon Name Description
    LED Display Browser Icon.png
    Browser Web browser
    LED Display MVB Icon.png
    Display Wirelessly mirror your desktop
    LED Display Airplay Icon.png
    EAirplay AirPlay mirroring
    LED Display Enterprise Icon.png
    EnterpriseAgent Device management
    LED Display File Icon.png
    File Manager File explorer
    LED Display Manager Icon.png
    Manager Remote device management
    LED Display Revel Icon.png
    Revel Digital Signage Manage digital signage
    LED Display Setting Icon.png
    Settings View and adjust the display’s settings
    LED Display Nix Icon.png
    SureMDM Nix Secure, monitor, and manage devices
    LED Display WPS Icon.png
    WPS Office Create documents, spreadsheets, and presentations
    LED Display vCast Icon.png
    vCastReceiver Receive casted content from devices
    LED Display Sweeper Icon.png
    vSweeper Clear up storage space
    NOTE: Preloaded applications are subject to change without notice.

    Input Source

    LDS135-151 Home Screen Input Source.png

    The display supports eight input sources: Home, HDMI 1,HDMI 2, HDMI 3, HDMI 4, HDMI 5, HDMI 6, and USB C.

    Settings

    Adjust and view the display's settings.

    Menu Description
    Network & Internet View and adjust Wi-Fi, Ethernet, and Potable Hotspot.
    Connected Devices View and adjust Connected Devices.
    Apps & Notifications View and adjust App Info., App Permissions, and Default Apps.
    Display View and adjust Brightness Level, Ambient Light Sensor, Font Size, Startup & Shutdown, Input Setting, and Launcher Settings.
    Sound View and adjust Media Volume.
    Storage View and adjust Device Storage.
    System View and adjust Languages & Input, Date & Time, Dehumidification, Reset, and About Device.
    Upgrade View and adjust OTA Upgrade and Local Update.

    Settings Menu Tree

    Network & Internet

    Sub-menu Menu Option
    Wi-Fi Wi-Fi On
    Off
    Wi-Fi List Add Network
    Wi-Fi Preference Open Network Notification On
    Off
    Keep Wi-Fi On During Sleep
    Advanced
    Ethernet Ethernet IP Mode DHCP
    STATIC
    Ethernet Details
    Portable Hotspot Portable Wi-Fi Hotspot On
    Off

    Connected Devices

    Sub-menu Menu Option
    Connected Devices On
    Off
    Device Name ViewSonic DvLED

    Apps

    Sub-menu Menu Option
    App Info. Installed Apps Disable
    Force Stop
    App Permissions Calendar
    Location
    Microphone
    Storage
    Default Apps Browser
    Home

    Display

    Sub-menu Menu Option
    Brightness Level (-/+, 1~8)
    Ambient Light Sensor On
    Off
    Font Size (-/+, 1~4)
    Startup & Shutdown Splash Screen Default
    ViewSonic
    Black
    Blue
    Last Shutdown Channel On
    Off
    Default Startup Channel Home
    HDMI 1
    HDMI 2
    HDMI 3
    HDMI 4
    HDMI 5
    USB C
    HDMI 6
    APP (Display)
    APP (vCastReceiver)
    Standby Mode Hibernate
    Sleep
    Splash Screen ViewSonic
    Black
    Blue
    Input Setting Input Alias HDMI 1 Display
    Hide
    HDMI 2 Display
    Hide
    HDMI 3 Display
    Hide
    HDMI 4 Display
    Hide
    HDMI 5 Display
    Hide
    USB C Display
    Hide
    HDMI 6 Display
    Hide
    Signal Source Detect Enable
    Disable
    Launcher Settings ViewSonic Logo On
    Off
    Date & Time On
    Off
    Theme
    Other Display Settings Custom Resolution Width
    Height
    Custom DPI (-/+, 100~200)
    Custom Wallpaper
    Boot Logo Settings

    Sound

    Sub-menu Menu Option
    Media Volume (-/+, 0~100)

    Storage

    Sub-menu Menu Option
    Device Storage Internal Shared Storage Storage Manager On
    Off
    Photos & Videos
    Music & Audio
    Games
    Movie & TV

    System

    Sub-menu Menu Option
    Language & Input Languages English
    French
    Spanish
    German
    Russian
    Dutch
    繁体中文
    简体中文
    Turkish
    Arabic
    Virtual Keyboard Remote Control Input Method
    Manage Keyboards
    Timer Setting Shutdown Time Repeat Off
    Once
    Everyday
    Time
    Power On Time Repeat Off
    Once
    Everyday
    Time
    Sleep Timer Off/1/10/20/30/40/50/60/90/120 minute(s)
    Power Saving On
    Off
    Standby Mode Hibernate
    Sleep
    Date & Time Automatic Date & Time On
    Off
    Select Time Zone
    Use 24-hour Format
    Dehumidification Settings On
    Off
    Automatic Reminders On
    Off
    Begin Dehumidification Now On
    Off
    Scheduled On
    Off
    Reset Network Settings Reset
    Reset App Preferences
    Factory Data Reset
    About Device Status
    Legal Information
    Model
    Kernel Version
    Build Number
    Total Time

    Upgrade

    Sub-menu Menu Option
    OTA Upgrade OTA Cloud Server
    Local Update sda1
    SDcard

    Network & Internet

    LDP135-151 Settings Network Internet.png
    Sub-menu Description
    Wi-Fi
    • Select Wi-Fi to enter the Wi-Fi selection interface. Then select the desired Wi-Fi network and enter the password.
    • You can select Add Network in the Wi-Fi selection screen to manually add a Wi-Fi network.
    • Select Wi-Fi Preferences to view Wi-Fi usage preferences, Wi-Fi connection tips, etc.
    Ethernet Select Ethernet to enable/disable Ethernet, review DNS, and IP mode.
    Portable Hotspot Enable/disable Portable Wi-Fi Hotspot under Portable Hotspot.

    Connected Devices

    LDP135-151 Settings Connected Devices.png

    Enable/disable device connection, review connected devices, and search and connect to other devices.

    Apps & Notifications

    LDP135-151 Settings Apps Notifications.png
    Sub-menu Description
    App Info.
    • Select App Info to view installed applications and their detailed information.
    • You can also disable the app, review notifications and permissions, and adjust further settings.
    App Permissions Select App Permissions to manage various application permissions.
    Default Apps Select your default applications.

    Display

    LDP135-151 Settings Display.png
    Sub-menu Description
    Brightness Level Adjust the brightness level by eight (8) levels.
    Ambient Light Sensor Detects ambient light and adjusts brightness levels automatically.
    Font Size Preview and adjust the font size on the display.
    Dual-Screen Splicing Enable Dual-Screen Splicing if installing two (2) DirectView LED Displays together.
    Startup & Shutdown

    Startup Channel

    Last Shutdown Channel: Start in the channel that was last used before the previous shutdown.
    Default Startup Channel: Select a specific startup channel (Home, HDMI 1/2/3/4/5/6, USB C, APP(Display), APP(vCastReceiver)).

    Standby Mode

    Hibernate: Power off the screen only.
    Sleep: Power down the display to minimal power consumption (0.5W).

    Splash Screen
    Change the boot screen to black, blue, or the ViewSonic logo.

    Input Setting

    Input Alias Switch
    Display or hide the input source.
    Signal Source Detect
    Enable or disable HDMI input detection. U Disk Detect
    Enable or disable U Disk input detection.

    Launcher Settings

    ViewSonic Logo
    Display or hide the ViewSonic logo on the Home Screen.
    Date & Time
    Display or hide the date and time on the Home Screen.
    Theme
    Choose from seven (7) included themes for the Home Screen.

    Other Display Settings Adjust the Resolution, DPI, wallpaper and other display settings.

    Sound

    LDP135-151 Settings Sound.png
    Sub-menu Description
    Media Volume Adjust the volume level of the display.

    Storage

    LDP135-151 Settings Storage.png
    Sub-menu Description
    Internal Shared Storage Internal storage allocation.

    System

    LDP135-151 Settings System.png
    Sub-menu Description
    Languages & Input

    Languages
    Language selection.
    Virtual Keyboard
    Select your input method.

    Timer Setting

    Shutdown Time Repeat
    Select the time and frequency for shutting down the display.
    Power ON Time Repeat
    Select the time and frequency for powering ON the display.
    Sleep Timer
    Set the amount of time before entering sleep mode.
    Power Saving
    Select when to enable power saving mode.
    Standby Mode
    Choose between Hibernate and Sleep modes.

    Date & Time

    Automatic Date & Time
    Enable or disable automatic time adjustment.
    Select Time Zone
    Choose your appropriate time zone.
    Use 24-hour Format
    Enable or disable 24-hour time format.

    Dehumidification Start and adjust dehumidification settings.
    Reset

    Network Settings Reset
    Reset current network settings.
    Reset App Preferences
    Reset current app preferences
    Factory Data Reset
    Restore the display to default factory settings.

    About Device View information about the display.

    Upgrade

    LDP135-151 Settings Upgrade.png
    Sub-menu Description
    OTA Upgrade

    Auto Update
    Automatically apply updates as they become available or schedule the default update date and choose “Hibernate” as the Standby Mode, and the system will automatically update the schedule after shutdown.
    Manual Update

    Check Update: The system will check for the latest FW automatically. If a new FW version is found, confirm the new FW is needed and then manually run the update.
    Local Update: Plug in a USB drive with the FW update in .zip format and run the .zip file to update the FW.

    On-Screen Display (OSD) Menu Operation

    Use the On-Screen Display (OSD) Menu to adjust various settings.

    NOTE: The OSD Menu is only available when there is an input source (e.g., HDMI).
    LDP135-151 OSD Menu.png

    To open and operate the OSD Menu:

    1. Press the MENU button on the remote control.
    2. Press ▼/▲/◄/► on the remote control to select menu items or adjust values.
    3. Press OK to confirm your selection.
    4. Press the RETURN button to go back to the previous menu level.
    5. Press the MENU button to exit the OSD Menu.

    On-Screen Display (OSD) Menu Tree

    Color Mode

    Sub-menu
    User
    TV
    Movie
    Presentation

    Display Mode

    Sub-menu Menu Option
    Aspect Ratio Auto
    4:3
    16:9
    Native
    Brightness (-/+, 0~100)
    Contrast (-/+, 0~100)
    Tint (-/+, -50~50)
    Saturation (-/+, 0~100)
    Sharpness (-/+, 0~20)
    Gamma Dark
    Middle
    Bright
    Color Temp User
    Standard
    Cool
    Warm
    Reset

    Advanced Mode

    Sub-menu Menu Option
    HDR Auto
    SDR
    EOTF Dark
    Middle
    Bright
    HDMI Setting Auto
    Full
    Limited

    Speaker

    Sub-menu Menu Option
    Audio Mode Movie
    Music
    EQ_120Hz (-/+, 0~100)
    EQ_500Hz (-/+, 0~100)
    EQ_1.5KHz (-/+, 0~100)
    EQ_10KHz (-/+, 0~100)
    Reset
    Audio Volume (-/+, -50~50)
    Mute On
    Off

    PIP/PBP Mode

    Sub-menu Menu Option
    Off
    PIP Sub Picture on Top Left
    Sub Picture on Top Right
    Sub Picture on Bottom Left
    Sub Picture on Bottom Right
    PBP Windows x 2
    Windows x 3
    Windows x 4

    Information

    Sub-menu
    Source
    Resolution
    HDR

    On-Screen Display (OSD) Menu Options

    Color Mode

    LDP135-151 Color Mode Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Color Mode menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Color Mode
    LDP135-151 Color Mode.png

    User
    Custom user setting.

    TV
    Set the color temperature to 9300K.

    Movie
    Set the color temperature to 6500K.

    Presentation
    Set the color temperature to 7500K.

    Display Mode

    LDP135-151 Display Mode Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Display Mode menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Aspect Ratio The Aspect Ratio is the ratio of the image width to the image height.
    LDP135-151 Aspect Ratio 1.png

    LDP135-151 Aspect Ratio 2.png

    Auto
    Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio.

    4:3
    Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration.

    16:9
    Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV.

    Native
    Default aspect ratio.

    Brightness The higher the value, the brighter the image. Lower values will result in a darker image.
    Contrast Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
    Tint The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
    Saturation Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
    Sharpness A high value results in a sharper picture; a low value softens the picture.
    Gamma Manually adjust the brightness level of the monitor’s grayscale levels.
    LDP135-151 Gamma 1.png

    LDP135-151 Gamma 2.png
    Color Temp Manually adjust the red, green, and blue values.
    LDP135-151 Color Temp 1.png

    LDP135-151 Color Temp 2.png
    Reset Return the Display Mode settings to their default values.
    LDP135-151 Reset 1.png

    LDP135-151 Color Reset 2.png

    Advanced Mode

    LDP135-151 Advanced Mode Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Advanced Mode menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    HDR
    LDP135-151 Advanced HDR 1.png

    LDP135-151 Advanced HDR 2.png

    SDR
    Enable Standard Dynamic Range.

    Auto
    Automatically adjust to the input source.

    EOTF Automatically adjusts the brightness levels of your image according to the input source. You can also manually select a brightness level to display better picture quality.
    LDP135-151 Advanced EOTF.png
    HDMI Setting
    LDP135-151 Advanced HDMI Setting.png

    Auto
    Sets the display to detect the range of the input signal automatically.

    Full
    Sets the color range from 0~255.

    Limited
    Sets the color range from 15~255.

    Speaker

    LDP135-151 Speaker Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Speaker menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Audio Mode
    LDP135-151 Speaker Audio Mode.png

    Movie
    Enhance the sense of space.

    Music
    Vibrant treble and stronger bass.

    Reset Return the Speaker settings to their default values.
    LDP135-151 Speaker Reset.png
    Audio Volume Adjust the volume level.
    Mute Toggle ON to turn off the speaker.
    LDP135-151 Speaker Mute.png

    PIP/PBP Mode

    LDP135-151 PIP PBP Mode Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the PIP/PBP Mode menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-men.
    Menu Option Description
    PIP/PBP Setup
    LDP135-151 PIP PBP Setup 1.png

    Off
    Disable the PIP/PBP feature.

    PIP
    Split the screen into two parts, a main window and an inset window. User can specify the input source for each screen.

    LDP135-151 PIP PBP Setup 2.png

    LDP135-151 PIP PBP Setup 3.png

    LDP135-151 PIP PBP Setup 4.png

    PBP
    Display up to four (4) windows on screen at the same time.

    LDP135-151 PIP PBP Setup 5.png

    LDP135-151 PIP PBP Setup 6.png

    Information

    LDP135-151 Information Menu.png
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Information menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    Menu Option Description
    Information View Input Source, Resolution, and HDR information.
    LDP135-151 Information.png

    vCast

    Working with ViewBoard® Cast software (vCast, vCast Pro, and vCastSender), the vCast application will allow the ViewBoard to receive laptop screens (Windows/Mac/Chrome) and mobile (iOS/Android) users’ screens, photos, videos, annotations, and camera(s) that are using the vCastSender application.

    ViewBoard Cast (vCast)
    NOTE:
    • ViewBoard® Cast software, laptops, and mobile devices can connect to both the same subnet and cross subnet by entering the on-screen PIN code.
    • Connected devices will show up under Device List on the same subnet connection.
    • If the device does not show up under Device List, users will need to key-in the on-screen PIN code.

    Network Information

    • Ports:
    TCP 56789, 25123, 8121 & 8000 (Controlling message port & client device audio transfer)
    TCP 8600 (BYOM)
    TCP 53000 (Request share screen)
    TCP 52020 (Reverse control)
    TCP 52025 (Reverse control for ViewBoard Cast Button)
    TCP 52030 (Status sync)
    UDP 48689, 25123 (Device searching and broadcast & client device audio transfer)
    UDP 5353 (Multicast search device protocol)
    • Port and DNS Activation:
    Port: 443
    DNS: https://vcastactivate.viewsonic.com
    • OTA Service:
    Server Port: TCP443
    Server FQDN Name: https://vcastupdate.viewsonic.com

    Casting from Windows, MacBook, and Chrome Devices

    IFP52 vCast Sender 1-1.png
    1. Ensure the client device (e.g., laptop) is connected to the same network as the ViewBoard.
    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the client device, visit the address that is shown on the ViewBoard to download and install the vCastSender application.
    4. After installing, launch the vCastSender application.
    5. To connect to the ViewBoard, input the PIN code and click OK.
    6. NOTE: The PIN code can be found as highlighted below:
      VCast Computer 2.png
    7. Additionally, you can connect to the ViewBoard or display by clicking Device List then the Device Name listed.
    8. VCast Computer 3.png
      NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png

    Casting from Android Devices

    VCast Mobile Update 1.png
    1. Ensure the client device (e.g., Android phone or tablet) is connected to the same network as the ViewBoard.
    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the Android client device, scan the QR code shown on the ViewBoard to directly download the vCastSender application, or download the application from the Google Play Store.
    4. VCast Sender 3.png
    5. After installing, launch the vCastSender application.
    6. To connect to the display, input the PIN code and select OK.
    7. NOTE: The PIN code can be found as highlighted below:
      VCast Computer 2.png
    8. You can also connect to the ViewBoard by clicking Device List then the Device Name listed.
    9. VCast Sender Device List Scan.png
      NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png
    10. Additionally, you can connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.
    11. VCast Computer 5.png

    Casting from Apple iOS Devices

    Apple AirPlay® is compatible with vCast for screen mirroring and content streaming under the same subnet environment only. An “AirPlay Password” will be generated on-screen for connection when using AirPlay to cast to a ViewBoard.

    VCast Apple Main.png
    1. Ensure the client device (e.g., iPhone or iPad) is connected to the same network as the ViewBoard.
    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the iOS client device, directly open AirPlay and select the Device Name of the ViewBoard to connect.
    4. NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png
    5. Input the generated on-screen AirPlay Password on the client device to connect.
    6. VCast Sender 4.png
      NOTE: In a cross subnet environment, please download and connect with the vCastSender iOS application from the Apple App Store.
    7. You can also connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.
    8. VCast Computer 5.png

    Browser

    Web browser for surfing the internet.


    vSweeper

    Clear unnecessary data and unwanted files.

    VSweeper 1.png

    Advanced Settings can also be customized to the user's needs.

    VSweeper 2.png

    WPS Office

    Create, edit, and view Documents, Memos, Presentations, and Spreadsheets.


    Warning: Display title "LDS135-151 Pre-installed Applications" overrides earlier display title "LDS135-151".

    Technical Specifications

    Model No. P/N
    VS18881 LDS135-151
    Item Category Specifications
    Model   LDS135-151
    LED Screen Type Direct View LED Display
    Size 135”
    Active Size 118.11” (H) x 66.44” (V)
    3,000 mm (H) x 1,687.5 mm(V)
    Pitch Size 1.5625 mm
    Resolution FHD, 1920 x 1080
    Refresh Frequency 4440Hz
    Contrast Ratio 6000:1 (Typical)
    Brightness 100-600 cd/m2 (8 levels of adjustments)
    LED Lifespan 100,000 hours
    Input Signal   6 x HDMI (1920 x 1080 @ 60Hz, HDCP 2.2)
    1 x LAN (RJ45)
    3 x USB Type A (2.0)
    1 x USB Type C (5V/2A)
    Output Signal   2 x HDMI (1080p @ 60Hz)
    1 x Audio Out (3.5 mm)
    3 x USB Type A (Power) [5V/1.5A]
    Speaker Output   20W x 2 Harman Kardon Speakers
    RS-232   RS-232 Serial Control
    Power Voltage 100V-120V/30A ~ 50/60Hz
    220-240V/15A ~ 50Hz
    (vary by country)
    Operating Conditions Temperature 32° F to 104° F (0° C to 40° C)
    Humidity 20%~80% non-condensing
    Altitude ≤ 6,562 ft (2,000 m)
    Storage Conditions Temperature -4° F to 140° F (-20° C to 60° C)
    Humidity 10%~90% non-condensing
    Altitude ≤ 6,562 ft (2,000 m)
    Physical Dimensions
    (W x H x D)
    w/o Folding 118 ¹/₂” x 102 ⁹/₃₂” x 30 ⁵/₁₆”
    (3010 x 2598 x 770 mm) max.
    w/ Folding 70 ⁵⁵/₆₄” x 76 ¹¹/₁₆” x 30 ⁵/₁₆”
    (1800 x 1948 x 770 mm) min.
    Weight Physical 496 lbs. (225 kg)
    Power Consumption On 1200W (Normal)
    2300W (Max)
    Sleep < 0.5W
    Off < 0W

    LED Display Stuck Pixel Definition

    LD135-151 Stuck Pixel.png
    Item Acceptance Criteria
    Stuck Pixel
    (whole display)
    ≤ 60 stuck pixels
    Stuck Pixel
    (as marked in green)
    ≤ 15 stuck pixels
    Stuck Pixel
    (Single Module)
    ≤ 6 stuck pixels

    Timing Chart

    HDMI (PC)

    Resolution Refresh Rate (Hz)
    640 x 480 60, 72, 75
    720 x 400 70, 85
    800 x 600 56, 60, 72, 75
    832 x 624 75
    1024 x 768 60, 70, 75
    1152 x 864 60, 70, 75
    1152 x 870 75
    1280 x 720 60
    1280 x 960 60
    1280 x 1024 60, 75
    1360 x 768 85
    1440 x 900 60
    1600 x 1200 60, 70, 75
    1680 x 1050 60
    1920 x 1080 60
    1920 x 1200 60
    3840 x 2160 30, 60

    HDMI (Video)

    Video Resolution Refresh Rate (Hz)
    480i 720 x 480 60
    1440 x 480 60
    576i 720 x 576 50
    1440 x 576 50
    480p 720 x 480 60
    576p 720 x 576 50
    1440 x 576 50
    720p 1280 x 720 60
    1080i 1920 x 1080 50, 60
    1080p 1920 x 1080 24, 25, 30, 50, 60
    2160p 3840 x 2160 30, 60

    NOTE:
    • The computer text quality is optimal in HD 1080 mode (1920 x 1080, 60Hz).
    • Your computer display screen might appear different depending on the manufacturer and your operating system.
    • Consult your computer’s instructional manual on how to connect to an external display.
    • If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 67.5KHz(horizontal). In some cases, abnormal signals (such as stripes) might appear on the screen when the computer power is turned off (or if the computer is disconnected). If this is the case, press the [INPUT SOURCE] button to enter the video mode and supply an active signal.
    • The display timings conform to VESA and CTA standards.
    • For 4:3 content, the screen will display them in the center of the screen and maintain a 4:3 aspect ratio.
    • The optimal vertical frequency for each mode is 60Hz.

    Supported Media Formats

    Multimedia Codec Formats

    Type File Type Codec Ability
    Photo PNG Max Resolution: 8000 × 8000
    Min Resolution : 4 x 4
    JPEG/JPG Max Resolution: 8000 × 8000
    Min Resolution: 4 x 4
    Video .3gp H.263 Max Resolution: 1920 x 1080 30
    Audio: AMR_NB
    MPEG-4 Max Resolution: 1920 x 1080 30
    Audio: AMR_NB
    .avi MPEG-2/4 Max Resolution: 1920 x 1080 30
    Audio: MPEG_Audio_Layer3
    MJPEG Max Resolution: 1920 x 1080 30
    Audio: MPEG_Audio_Layer3
    .flv H.264 Max Resolution: 1920 x 1080 30
    Audio: AAC 2.0
    .mkv H.264 Max Resolution: 1920 x 1080 30
    Audio: AAC 2.0
    H.265 Max Resolution: 1920 x 1080 30
    Audio: AAC 2.0
    .mp4 H.264 Max Resolution: 3840 x 2160 30
    Audio: MPEG_Audio_Layer3
    H.265 Max Resolution: 3840 x 2160 30
    Audio: MPEG_Audio_Layer3
    MPEG-4 Max Resolution: 1920 x 1080 30
    Audio: MPEG_Audio_Layer3
    .vob MPEG-2 Max Resolution: 1920 x 1080 30
    Audio: PCM
    .mpg/.mpeg MPEG-2 Max Resolution: 1920 x 1080 30
    Audio: MPEG_Audio_Layer3
    Audio .aac GAAC Sample Rate: 8K~96KHz
    Bit Rate: 24K~576Kbps
    .ape Monkey's Audio Sample Rate: max 48KHz
    Bit Rate: max 1411Kbps
    .flac FLAC Sample Rate: max 192KHz
    Bit Rate: max 1411Kbps
    .m4a ALAC Sample Rate: 8K~96KHz
    Bit Rate: 24K~576Kbps
    .mp3 MPEG1/2 layer 3 Sample Rate: 8K~48KHz
    Bit Rate: 32K~320Kbps
    .ogg Vorbis Sample Rate: 8K~48KHz
    Bit Rate: max 256Kbps
    .wav LPCM Sample Rate: 8K~192KHz
    Bit Rate: max 320Kbps

    Compliance Information

    This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

    FCC Compliance Statement

    This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

    These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

    • Reorient or relocate the receiving antenna.
    • Increase the separation between the equipment and receiver.
    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
    • Consult the dealer or an experienced radio/TV technician for help.

    The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.

    The device was tested and complies to measurement standards and procedures specified in FCC CFR Tile 47 Part 15 Subpart C.

    FCC Radiation Exposure Statement

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

    This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

    The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

    Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

    IC Warning Statement

    This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

    Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : ( 1 ) l’appareil ne doit pas produire de brouillage, et ( 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en compromettre le fonctionnement.

    Country Code Statement

    For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

    Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.

    IC Radiation Exposure Statement

    This equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The device for the band 5150-5825 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.

    Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlê. Cet équipement doit être installé et utilize avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. les dispositifs fonctionnant dans la bande 5150-5825 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

    CE Conformity for European Countries

    The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

    The following information is only for EU-member states:

    The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.
    WEEE Logo.gif

    Declaration of RoHS2 Compliance

    This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

    Substance Proposed Maximum Concentration Actual Concentration
    Lead (Pb) 0.1% < 0.1%
    Mercury (Hg) 0.1% < 0.1%
    Cadmium (Cd) 0.01% < 0.01%
    Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
    Polybrominated biphenyls (PBB) 0.1% < 0.1%
    Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
    Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
    Butyl benzyl phthalate (BBP) 0.1% < 0.1%
    Dibutyl phthalate (DBP) 0.1% < 0.1%
    Diisobutyl phthalate (DIBP) 0.1% < 0.1%

    Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

    • Copper alloy containing up to 4% lead by weight.
    • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
    • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
    • Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher.

    European Union Regulatory Conformance

    The equipment complies with the RF Exposure Requirement 2014/53/EU, Council Recommendation of 16 April 2014 on the limitation of exposure of the general public to electromagnetic fields (0-300 GHz). This equipment meets the following conformance standards: EN301489-1, EN301489-17, EN62368-1, EN300328.

    We, hereby, declare that this Wi-Fi radio is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

    Indian Restriction of Hazardous Substances

    Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

    Product Disposal at End of Product Life

    ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

    USA & Canada
    https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program

    Europe
    https://www.viewsoniceurope.com/eu/support/call-desk/

    Taiwan
    https://recycle.epa.gov.tw/

    Copyright Information

    Copyright© ViewSonic® Corporation, 2022. All rights reserved.

    Macintosh and Power Macintosh are registered trademarks of Apple Inc.

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

    ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

    VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

    CTA is a registered trademark of the Consumer Technology Association Standards.

    Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

    In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

    No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

    LDS135-151_UG_ENG_1a_20220812

    Customer Service Contact Information

    For technical support or product service, see the table below or contact your reseller.

    You will need the product's serial number

    Asia Pacific & Africa

    Country / Region Website
    Australia https://viewsonic.com/au/
    Bangladesh https://www.viewsonic.com/bd/
    中囯(China) https://www.viewsonic.com.cn
    香港 (繁體中文) https://www.viewsonic.com/hk/
    Hong Kong (English) https://www.viewsonic.com/hk-en/
    India https://www.viewsonic.com/in/
    Indonesia https://www.viewsonic.com/id/
    Israel https://www.viewsonic.com/il/
    日本 (Japan) https://www.viewsonic.com/jp/
    Korea https://www.viewsonic.com/kr/
    Malaysia https://www.viewsonic.com/my/
    Middle East https://www.viewsonic.com/me/
    Myanmar https://www.viewsonic.com/mm/
    Nepal https://www.viewsonic.com/np/
    New Zealand https://www.viewsonic.com/nz/
    Pakistan https://www.viewsonic.com/pk/
    Philippines https://www.viewsonic.com/ph/
    Singapore https://www.viewsonic.com/sg/
    臺灣 (Taiwan) https://www.viewsonic.com/tw/
    ประเทศไทย (Thailand) https://www.viewsonic.com/th/
    Việt Nam https://www.viewsonic.com/vn/
    South Africa & Mauritius https://www.viewsonic.com/za/

    Americas

    Country / Region Website
    United States https://www.viewsonic.com/us/
    Canada https://www.viewsonic.com/us/
    Latin America https://www.viewsonic.com/la/

    Europe

    Country / Region Website
    Europe https://www.viewsonic.com/eu/
    France https://www.viewsonic.com/fr/
    Deutschland https://www.viewsonic.com/de/
    Қазақстан https://www.viewsonic.com/kz/
    Россия https://www.viewsonic.com/ru/
    España https://www.viewsonic.com/es/
    Türkiye https://www.viewsonic.com/tr/
    Україна https://www.viewsonic.com/ua/
    United Kingdom https://www.viewsonic.com/uk/


    Limited Warranty

    ViewSonic® Commercial Display

    What the warranty covers:

    ViewSonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, and as your sole remedy, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components. The repair or replacement unit or parts or components will be covered by the balance of the time remaining on the customer’s original limited warranty and the warranty period will not be extended. ViewSonic® provides no warranty for any third-party software whether included with the product or installed by the customer, installation of any unauthorized hardware parts or components (e.g. Projector Lamps). (Please refer to: “What the warranty excludes and does not cover” section).

    Who the warranty protects:

    This warranty is valid only for the first consumer purchaser.

    What the warranty excludes and does not cover:

    • Any product on which the serial number has been defaced, modified, or removed.
    • Damage, deterioration, or malfunction resulting from:
      • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
      • Repair or attempted repair by anyone not authorized by ViewSonic®.
      • Damage to or loss of any programs, data, or removable storage media.
      • Normal wear and tear.
      • Removal or installation of the product.
    • Software or data loss occurring during repair or replacement.
    • Any damage of the product due to shipment.
    • Causes external to the product, such as electric power fluctuations or failure.
    • Use of supplies or parts not meeting ViewSonic’s specifications.
    • Failure of owner to perform periodic product maintenance as stated in the User Guide.
    • Any other cause which does not relate to a product defect.
    • Damage caused by static (non-moving) images displayed for lengthy periods of time (also referred to as image burn-in).
    • Software - Any third-party software included with the product or installed by the customer.
    • Hardware/Accessories/Parts/Components – Installation of any unauthorized hardware, accessories, consumable parts or components (e.g. Projector Lamps).
    • Damage to, or abuse of, the coating on the surface of the display through inappropriate cleaning as described in the product User Guide.
    • Removal, installation, and set-up service charges, including wall-mounting of the product.

    How to get service:

    • For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number.
    • To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
    • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.
    • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

    Limitation of implied warranties:

    There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

    Exclusion of damages:

    ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

    • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
    • Any other damages, whether incidental, consequential or otherwise.
    • Any claim against the customer by any other party.
    • Repair or attempted repair by anyone not authorized by ViewSonic®.

    Effect of state law:

    This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

    Sales outside the U.S.A. and Canada:

    For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer.

    The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

    For users in Europe and Russia, full details of warranty provided can be found at: http://www.viewsonic.com/eu/ under “Support/Warranty Information”.

    Mexico Limited Warranty

    ViewSonic® Commercial Display

    What the warranty covers:

    ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

    Who the warranty protects:

    This warranty is valid only for the first consumer purchaser.

    What the warranty excludes and does not cover:

    • Any product on which the serial number has been defaced, modified or removed.
    • Damage, deterioration, or malfunction resulting from:
      • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
      • Causes external to the product, such as electrical power fluctuations or failure.
      • Use of supplies or parts not meeting ViewSonic®’s specifications.
      • Normal wear and tear.
      • Any other cause which does not relate to a product defect.
    • Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.
    • Removal, installation, insurance, and set-up service charges.

    How to get service:

    • For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.
    • To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
    • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center.
    • Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

    Limitation of implied warranties:

    There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

    Exclusion of damages:

    ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

    • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
    • Any other damages, whether incidental, consequential or otherwise.
    • Any claim against the customer by any other party.
    • Repair or attempted repair by anyone not authorized by ViewSonic®.
    Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

    Name, address, of manufacturer and importers:
    México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
    Col. San Fernando Huixquilucan, Estado de México
    Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

    NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

    Hermosillo:
    Distribuciones y Servicios Computacionales SA de CV.
    Calle Juarez 284 local 2
    Col. Bugambilias C.P: 83140
    Tel: 01-66-22-14-9005
    E-Mail: disc2@hmo.megared.net.mx

    Villahermosa:
    Compumantenimietnos Garantizados, S.A. de C.V.
    AV. GREGORIO MENDEZ #1504
    COL, FLORIDA C.P. 86040
    Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09
    E-Mail: compumantenimientos@prodigy.net.mx

    Puebla, Pue. (Matriz):
    RENTA Y DATOS, S.A. DE C.V. Domicilio:
    29 SUR 721 COL. LA PAZ
    72160 PUEBLA, PUE.
    Tel: 01(52).222.891.55.77 CON 10 LINEAS
    E-Mail: datos@puebla.megared.net.mx

    Veracruz, Ver.:
    CONEXION Y DESARROLLO, S.A DE C.V. Av.
    Americas # 419
    ENTRE PINZÓN Y ALVARADO
    Fracc. Reforma C.P. 91919
    Tel: 01-22-91-00-31-67
    E-Mail: gacosta@qplus.com.mx

    Chihuahua:
    Soluciones Globales en Computación
    C. Magisterio # 3321 Col. Magisterial
    Chihuahua, Chih.
    Tel: 4136954
    E-Mail: Cefeo@soluglobales.com

    Cuernavaca:
    Compusupport de Cuernavaca SA de CV
    Francisco Leyva # 178 Col. Miguel Hidalgo
    C.P. 62040, Cuernavaca Morelos
    Tel: 01 777 3180579 / 01 777 3124014
    E-Mail: aquevedo@compusupportcva.com

    Distrito Federal:
    QPLUS, S.A. de C.V.
    Av. Coyoacán 931
    Col. Del Valle 03100, México, D.F.
    Tel: 01(52)55-50-00-27-35
    E-Mail : gacosta@qplus.com.mx

    Guadalajara, Jal.:
    SERVICRECE, S.A. de C.V.
    Av. Niños Héroes # 2281
    Col. Arcos Sur, Sector Juárez
    44170, Guadalajara, Jalisco
    Tel: 01(52)33-36-15-15-43
    E-Mail: mmiranda@servicrece.com

    Guerrero Acapulco:
    GS Computación (Grupo Sesicomp)
    Progreso #6-A, Colo Centro
    39300 Acapulco, Guerrero
    Tel: 744-48-32627

    Monterrey:
    Global Product Services
    Mar Caribe # 1987, Esquina con Golfo Pérsico
    Fracc. Bernardo Reyes, CP 64280
    Monterrey N.L. México
    Tel: 8129-5103
    E-Mail: aydeem@gps1.com.mx

    MERIDA:
    ELECTROSER
    Av Reforma No. 403Gx39 y 41
    Mérida, Yucatán, México CP97000
    Tel: (52) 999-925-1916
    E-Mail: rrrb@sureste.com

    Oaxaca, Oax.:
    CENTRO DE DISTRIBUCION Y
    SERVICIO, S.A. de C.V.
    Murguía # 708 P.A., Col. Centro, 68000, Oaxaca
    Tel: 01(52)95-15-15-22-22
    Fax: 01(52)95-15-13-67-00
    E-Mail. gpotai2001@hotmail.com

    Tijuana:
    STD
    Av Ferrocarril Sonora #3780 L-C
    Col 20 de Noviembr
    Tijuana, Mexico

    FOR USA SUPPORT:
    ViewSonic® Corporation
    381 Brea Canyon Road, Walnut, CA. 91789 USA
    Tel: 800-688-6688
    http://www.viewsonic.com

    Using the Direct View LED Display Safely

    Please read the following Safety Precautions before you start using the device.

    • Keep this user guide in a safe place for later reference.
    • Read all warnings and follow all instructions.
    • Ensure there is no direct airflow from air conditioning blowing on the display.
    • Do not use the device near water. To reduce the risk of fire or electric shock, do not expose the device to moisture.
    • Avoid exposing the device to direct sunlight or other sources of sustained heat.
    • Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the device to dangerous levels.
    • When moving the device, be careful not to drop or bump the device on anything.
    • Do not place the device on an uneven or unstable surface. The device may fall over resulting in an injury or a malfunction.
    • Do not place any heavy objects on the device or connection cables.
    • If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device.
    • Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.
    • When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.
    • Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the equipment. Ensure that the power outlet is located near the equipment so that it is easily accessible.
    • Only use attachments/accessories specified by the manufacturer.
    • When a cart is used, use with caution when moving the cart/equipment combination to avoid injury from tipping over.
    • Disconnect the power plug from the AC outlet if the device is not being used for a long period of time.
    • Place the device in a well-ventilated area.
    • Do not cover the surface of the display with any material.
    • Do not block the air circulation around the display.
    • Keep flammable materials away from the display.
    • Refer all servicing to qualified service personnel. Service will be required when the unit has been damaged in any way, such as:
    • if the power supply cord or plug is damaged;
    • if liquid is spilled onto or objects fall in the unit;
    • if the unit is exposed to moisture;
    • if the unit does not operate normally or has been dropped.
    • Do not assemble the display by yourself.
    • This panel is an advanced product that contains millions of pixels. You may occasionally see pixel spots when viewing the screen. Since these deactivated pixels are not a defect, the performance and reliability of the product is not affected.

    Troubleshooting Common Problems

    General

    Why isn't the remote control working?

    Solution 1 Check whether something is obstructing the display’s remote control receiver.

    Solution 2 Check whether the battery polarities in the remote control are installed correctly.

    Solution 3 Check whether the batteries need to be replaced.

    What should I do if the device just turns off unexpectedly?

    Solution 1 Check whether Sleep mode is enabled.

    Solution 2 Check if there is a power outage in your area.

    Solution 3 Turn on the display, provide an active signal, and see if the problem is with the signal or external control system.

    What should I do if the power indicator is off and there is no response?

    Solution 1 Ensure the power cable is connected and not loose.

    Solution 2 Check that the power outlet is functioning properly and meets the required electrical requirement.

    Why does the display not recognize the USB storage device?

    Solution 1 Ensure the drive is either formatted for FAT32 or NTFS.

    Solution 2 If the USB storage device needs external power, connect its power adapter to an electrical outlet.

    Video Not Working Properly

    Why is there no picure or sound?

    Solution 1 Check the Power status.

    Solution 2 Check the signal cable.

    Solution 3 Use the remote control to ensure the input source setting is the same as the connected device.

    What should I do if the picture is unclear or cuts in and out?

    Solution 1 Check the signal cable.

    Solution 2 Check if other electronics or different signal types are interrupting the signal.

    Solution 3 An optional active video cable or optional video extender is required for a long distance source.

    What should I do if the picture quality is poor?

    Solution 1 Adjust chroma and/or brightness settings in the menu.

    Solution 2 Check the signal cable.

    Solution 3 Use the display’s native resolution for the source.

    Audio Not Working Properly

    Why is there no sound?

    Solution 1 Press the Mute/Unmute button.

    Solution 2 Adjust the volume.

    Solution 3 Check the audio cable connection (if used).

    Solution 4 If using a computer digital video with embedded audio, ensure the computer speakers are set to external speakers.

    What should I do if sound is only coming from one speaker?

    Solution 1 Adjust the sound balance in the menu.

    Solution 2 Check the left and right sound control panel settings of the computer or media player source.

    Solution 3 Check the audio cable connection (if used).

    Solution 4 Ensure the content has two audio channels and not mono.

    Module Brightness Calibration

    Seam Line Brightness Adjustment

    Maintaining the LED Display

    General Precautions

    • The LED lights used in the modules are susceptible to ESD (Electrostatic discharge). To prevent damage to the LED lights, do not touch them with bare hands or with conductive materials when handling.
    • It is recommended to regularly inspect all installed components.
    • Do not bring objects close to the ventilation holes of the display. Burns or personal injuries may occur if any body parts are brought too close.
    • Be sure to power off and disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock.
    • Power off and disconnect the power plug from the wall outlet as a safety precaution before performing any type of cleaning or maintenance.

    Initial Operation

    • If a new screen has been stowed for less than three (3) months, it can be used at normal brightness during its first use.
    • If a new screen has been stowed for more than three (3) months, the brightness should be set at 30% for its first use and allowed to operate for two (2) hours continuously. After two (2) hours of use, power off for 30 minutes. The new screen is now ready for normal brightness usage.

    Front Panel Cleaning Instructions

    • Use cool, compressed air to remove dust when the power is off. If the dust cannot be removed, the LED module should be replaced.
    • Do not scratch and do not put pressure on the panel surface with fingers or any abrasive object.
    • Do not use volatile substances such as sprays, solvents, or thinners.

    Cabinet Cleaning Instructions

    • Do not allow water or detergent to come into contact with the surface of the display. If water or moisture gets inside the unit, a system malfunction or electrical shock may occur.
    • Do not scratch and do not put pressure on the cabinet with any abrasive objects of any kind.
    • Do not use volatile substances such as sprays, solvents, or thinners on the cabinet.
    • Do not place anything made from rubber or PVC near the cabinet for any extended periods of time.

    Regular Use

    • It is recommended to turn on the display at least once a month for more than eight (8) hours. During a wet and rainy season, it is recommended to turn on the display at least once a week.
    • Avoid using full white, full red, full blue, or full green content for an extended period to avoid excessive power usage thus affecting the LED lifespan.
