LD-MK-002

    From ViewSonic User Guide Database

    Maintenance Tool

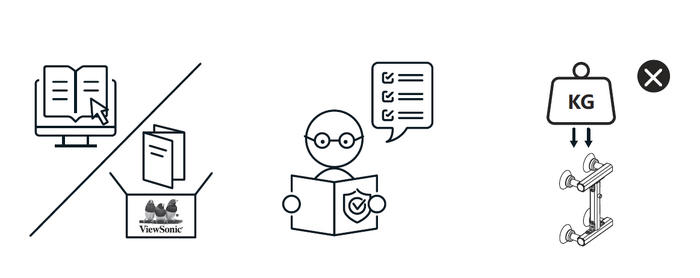

    Before Use

    LD-MK-002 Before Use.png

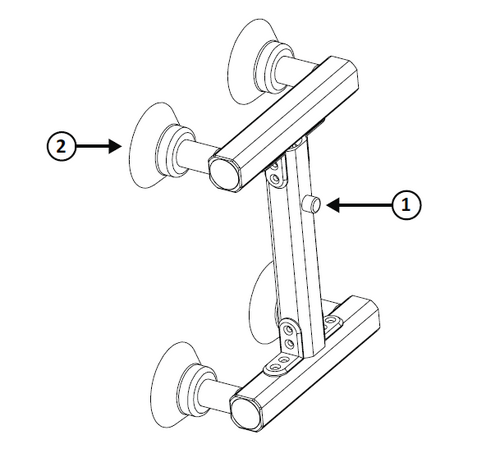

    Overview

    LD-MK-002 Overview.png
    Number Item Description
    1 Release Button Press the button to release the suction pressure.
    2 Silicone Suction Cup Apply pressure on the LED module to activate suction.

    LED Module Disassembly

    LD-MK-002 LED Module Disassembly.png

    Specifications

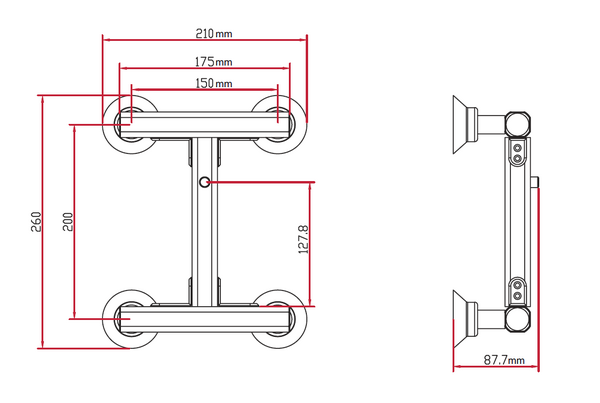

    LD-MK-002 Dimensions.png
    Item Description
    Model Name LD-MK-002
    Product Dimension 210 x 260 x 87.7 mm
    (8.27" x 10.23" x 3.46")
    Weight 0.9 kg
    (1.98 lbs)
    Working Temperature 3° to 55° C
    (37.4° to 131° F)
