LD-MK-001

    From ViewSonic User Guide Database

    Vacuum Suction Tool

    Before Use

    LD-MK-001 Before Use.png

    Overview

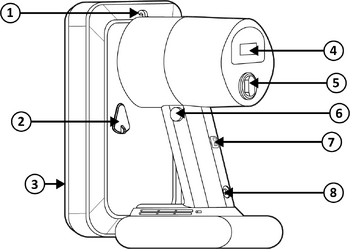

    LD-MK-001 Overview.png
    Number Item Description
    1 Lanyard Ring Lanyard attachment point.
    2 Regulating Valve Adjust the suction force level. Cover the valve for the strongest suction force.
    3 LED Module Contact Silicone Soft contact surface for LED module removal.
    4 Power Display Battery indicator.
    5 Power Switch Turn the device On/Off.
    6 Start Button Engage/Disengage the suction force.
    7 Battery Removal Button Press to remove the battery.
    8 Charging Port Port for battery charging.

    Battery Usage

    Charging the Battery

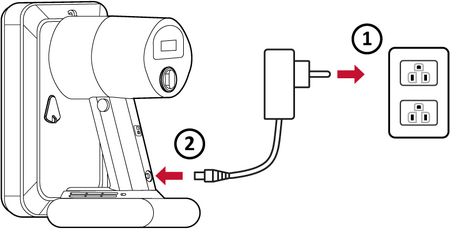

    LD-MK-001 Battery Charging.png


    Changing the Battery

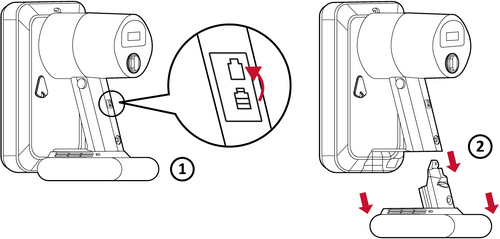

    LD-MK-001 Battery Changing.png

    LED Module Disassembly

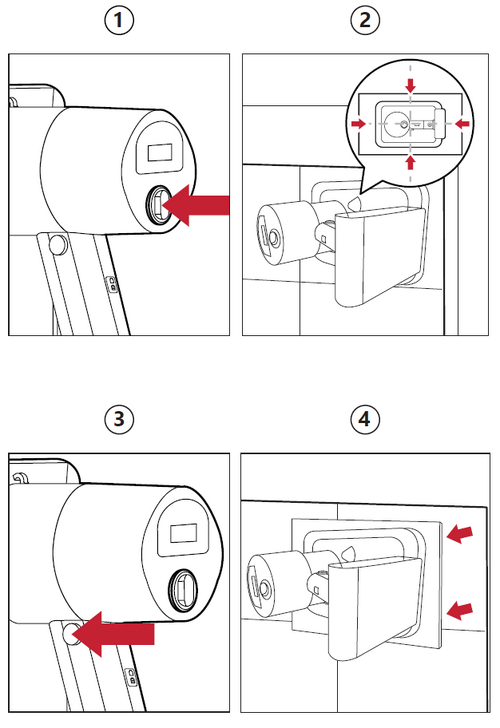

    LD-MK-001 LED Module Disassembly.png

    Specifications

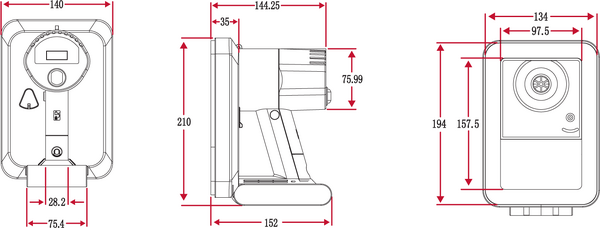

    LD-MK-001 Dimensions.png
    Item Description
    Model LD-MK-001
    Suction Face Dimension 134 x 194 mm
    (5.27" x 7.64")
    Available Module Size 192 x 192 to 500 x 500 mm
    (7.56" x 7.56" to 19.69" x 19.69")
    Product Dimension 152 x 140 x 210 mm
    (5.98" x 5.51" x 8.27")
    Weight 1.17 kg
    (2.58 lbs)
    Working Duration 17 minutes
    Working Temperature 3 to 55° C (37.4 to 131° F)
