    On-Screen Display (OSD) Menu - General Settings

    Access Input, Display, Audio and other general settings through the OSD Menu.

    Input Menu
    Input Menu
    Display Menu
    Display Menu
    Audio Menu
    Audio Menu

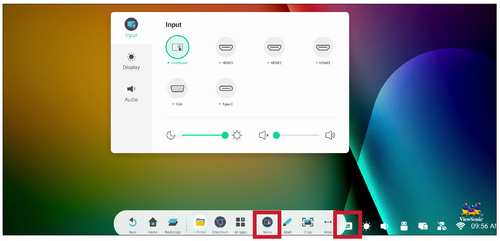

    Open the OSD Menu by touching the Menu icon (Icon Menu.png) in the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar.

    Launching the OSD Menu

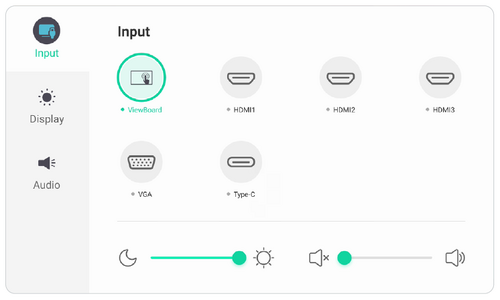

    Input Settings

    IFP33 OSD Menu Input Menu.png

    To select an Input Source:

    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu.
    2. Press ▼/▲/◄/► on the remote control to select the input source you want.
    3. Press ENTER on the remote control, or touch the input source.
    4. Press BACK on the remote control, or touch a blank area outside of the menu to exit.


    To adjust the brightness:

    Adjust the Brightness
    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu.
    2. Touch and drag the brightness slider directly to adjust the backlight value.
    3. Press BACK on the remote control, or touch a blank area outside of the menu to exit.


    To adjust the volume:

    Adjust the Volume
    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu.
    2. Touch and drag the volume slider directly to adjust the value, or press VOL +/VOL - on the remote control to adjust. Additionally, pressing Mute (Icon Mute.png) on the remote control will mute/unmute the volume.
    3. Press BACK on the remote control, or touch a blank area outside of the menu to exit.

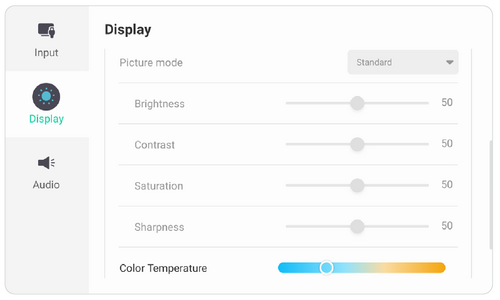

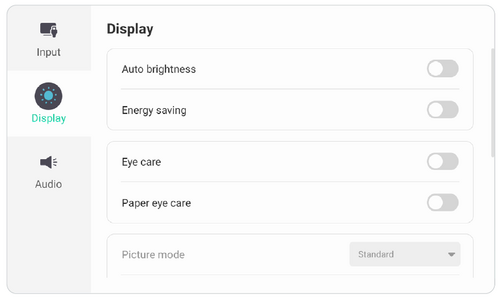

    Display Settings

    Display Menu
    Display Menu
    Display Menu

    To adjust the display settings:

    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu. Then select the Display tab.
    2. Press ▼/▲/◄/► on the remote control to select the menu option you want.
    3. Press ENTER on the remote control to confirm or press ◄/► to adjust the menu option. Additionally, touch/adjust the menu option directly.
    4. Press BACK on the remote control, or touch a blank area outside of the menu to exit.

    Display Settings - Menu Options

    Item Description
    Auto Brightness Automatic brightness adjustment. Adjusts maximum brightness according to ambient light levels.
    Energy Saving Enable to reduce power consumption.
    Eye Care Adjusts the filter that blocks high-energy blue light for a more comfortable viewing experience.
    Paper Eye Care When “Low Blue Light” is enabled, adjust the Transparency to lower the brightness and warm the color temperature.
    Picture Mode Select a predefined picture setting.
    Mode Description
    Standard Default picture mode.
    Bright Maximizes the brightness of the display. This mode is suitable for environments where extra-high brightness is required (e.g., well-lit rooms).
    Soft A high brightness level with lower contrast level.
    Custome Customize the picture settings.
    Brightness Adjusts background black levels of the screen image. The higher the value, the brighter the image. Lower values will result in a darker image.
    Contrast Adjusts the difference between the image background (black level) and the foreground (white level). Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
    Saturation The amount of color in a picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high though, that color will be overpowering and unrealistic.
    Sharpness A high value results in a sharper picture; a low value softens the picture.
    Color Temperature Adjust the color temperature value.
    Advanced Settings

    Color Space
    Choose the color space to use for color output.

    Mode Description
    Standard Default color space standard.
    sRGB Precise color gamut and gamma of the sRGB standard.
    AdobeRGB Precise color gamut and gamma of the Adobe RGB standard.
    Display-P3 Precise color gamut and gamma of the Display-P3 standard.
    DCI-P3 Precise color gamut and gamma of the DCI-P3 standard.
    BT2020 Precise color gamut and gamma of the BT2020 standard.

    HDMI Range
    Select a suitable color range according to the color range setting of the connected output device.

    Mode Description
    Auto Detect the range of the input signal automatically.
    Full Sets the color range from 0~255
    Limited Sets the color range from 16~235

    Pixel Shift
    Reduce the possibility of screen burn-in. This setting allows the user to program the time between movements of the picture in minutes.

    AI PQ
    Automatically set the optimal resolution of the display.

    Dynamic Backlight (DCR)
    Automatically detects the image signal and intelligently controls the backlight brightness and color to improve on the ability to make the black blacker in a dark scene, and make the white whiter in a bright environment.

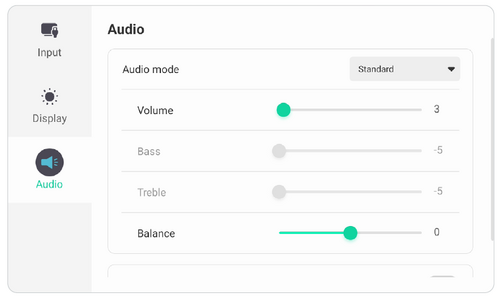

    Audio Settings

    IFP33 OSD Menu Audio Menu.png

    To adjust the audio settings:

    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu. Then select the Audio tab.
    2. Press ▼/▲/◄/► on the remote control to select the menu option you want.
    3. Press ENTER on the remote control to confirm or press ◄/► to adjust the menu option. Additionally, touch/adjust the menu option directly.
    4. Press BACK on the remote control, or touch a blank area outside of the menu to exit.

    Audio Settings - Menu Options

    Item Description
    Audio Mode Select a predefined audio setting.
    Mode Description
    Standard Default audio mode.
    Meeting Ideal for meetings. Higher bass, lower treble levels.
    Class Ideal for the classroom. Low bass and treble levels.
    Custom Customize the audio settings.
    Volume Increase or decrease the display’s volume level.
    Bass Increase or decrease the bass level (lower-pitched sounds).
    Treble Increase or decrease the treble level (higher-pitched sounds).
    Balance Adjust the left/right speaker balance.
    Mute Toggle mute ON or OFF.

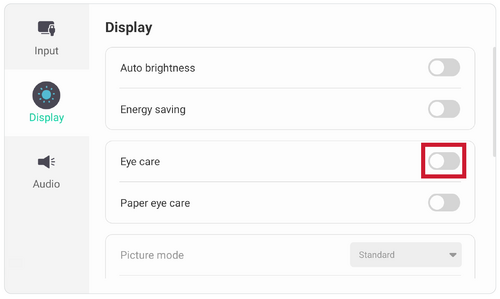

    Low Blue Light Filter and Eye Health

    The Blue Light Filter blocks high-energy blue light for a more comfortable viewing experience.

    IFP33 Blue Light Filter.png

    Calculating Breaks
    When viewing screens for extended periods, it is recommended to take periodic breaks from viewing. Short breaks of at least 10 minutes are recommended after one (1) hour of continuous viewing.

    Taking shorter, more frequent breaks are generally more beneficial than longer, less frequent breaks.

    Focus Fatigue (20-20-20 Rule)
    To reduce the risk of eye fatigue by constantly looking at the screen, look away from the screen at least every 20 minutes and gaze at a distant object (at least 20 feet away) for at least 20 seconds.

    Looking at Distant Objects
    While taking breaks, users can further reduce eye strain and dryness by focusing on objects that are further away from them for 10-15 seconds, then gaze at something up close for 10-15 seconds. Repeat this up to 10 times. This exercise reduces the risk of your eyes’ focusing ability to “lock up” after prolonged computer work.

    Eye and Neck Exercises
    Eye Exercises
    Eye exercises can help minimize eye strain. Slowly roll your eyes to the left, right, up, and down. Repeat as many times as needed.

    Eye Exercises

    Neck Exercises
    Neck exercises can also help minimize eye strain. Relax your arms and let them hang at your sides, bend forward slightly to stretch the neck, turn your head to the right and to the left. Repeat as many times as needed.
