IFP8633

    From ViewSonic User Guide Database

    Print

    Package Contents

    NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.
    1. Power Cord (3 m)
    2. Remote Control
    3. AAA Battery
    4. USB Touch Cable (3 m)
    5. Touch Pen x 2 (VP-PEN-009)
    6. Quick Start Guide
    7. Compliance Statement
    8. RS-232 Adapter
    9. Clamp x 5
    10. Camera Plate
    11. Screw x 8
    12. HDMI Cable (3 m)
    IFP33 Package Contents.png

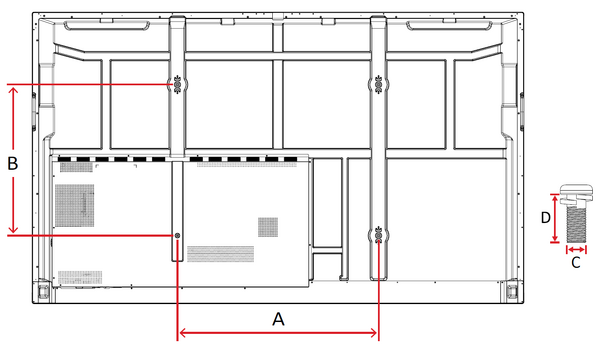

    Wall Mount Kit Specifications (VESA)

    Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.

    Wall Mount Kit Specifications
    Model VESA Spec.
    (A x B)
    Standard Screw
    (C x D)
    Quantity
    IFP8633 - 86” 800 x 600 mm M8 x 25 mm 4
    Important:
    • Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.
    • Only mount the display in landscape orientation. Never mount in a portrait orientation.
    Screen Orientation Safety Notice

    Product Overview

    Front Panel

    IFP8633 Front Panel

    Rear Panel

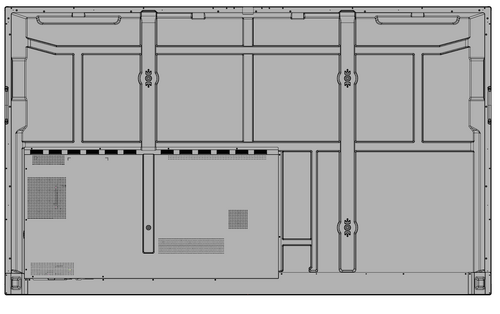

    IFP8633 Rear Panel

    Control Panel and Front I/O

    IFP33 Front Control Panel
    Number Description
    1
    • Press to turn ON the device
    • Press to turn OFF/ON the display backlight only
    • Press and hold to turn OFF the device
    2 Remote control receiver
    3 Ambient Light Sensor
    4
    • USB Type C input
    • Connect to a PC with USB Type C output
    5
    • High definition input
    • Connect to a PC with HDMI output, set-top box, or other video device
    6 Touch signal output to external PC
    NOTE: Pairs with HDMI 1.
    7
    • USB Type A input
    • Connect USB devices such as hard disks, keyboard, mouse, etc.

    I/O Panel

    IFP33 I/O Panel
    Number Port Description
    1 RS-232
    • Serial interface
    • For mutual transfer of data between devices
    2 LAN
    • Standard RJ45 (10M/100M/1G) internet
    • For ViewBoard and Slot-in PC use
    3 USB Type A
    • USB Type A input
    • Connect USB devices such as hard disks, keyboard, mouse, etc.
    4 TOUCH 2 Touch signal output to external PC
    NOTE: Pairs with HDMI 2/HDMI 3/VGA
    5 HDMI 2/3
    • High definition input
    • Connect to a PC with HDMI output, set-top box, or other video device
    6 HDMI OUT Extend content out to another display device
    7 SPDIF SPDIF output
    8 AUDIO OUT Audio out to an external speaker
    9 AUDIO IN External PC audio input
    10 VGA External PC image input
    11 Power Switch Turn ON/OFF AC power supply
    12 AC IN AC power input


    Remote Control Overview

    Remote Control
    Number Description
    1 Power ON/OFF
    2 Mute/Unmute
    3 Sleep Mode
    4 For Non-Android sources; display current input source information
    5 Blank screen
    6 Freeze screen
    7 Numeric input buttons
    8 Slot-in computer, space bar Alt+Tab
    9 Slot-in computer, close program window
    10 Input source selection
    11 Back to slot-in system main interface
    12 For Android, access Settings; for other sources, access Touch Menu settings
    13 Screen capture
    14 PC[1] [Tab] button
    15 Switch to slot-in PC desktop
    16 PC[1] [Backspace] button
    17 PC[1] [Windows] button
    18 PC[1] [Menu] button
    19 Writing software setup
    20 Return button
    21 Scroll up, down, left, and right
    22 Confirm selection/state
    23 Shortcut button to exit dialogue boxes
    24 CH+: PC previous page

    CH-: PC next page

    25 Increase/Decrease volume
    26 PC[1] [Space] button
    27 Built-in computer F1~F12 function button
    1. 1.0 1.1 1.2 1.3 1.4 All computer-related function keys are not available without a slot-in computer.

    Remote Control Effective Range

    The working range of the remote control is shown here. It has an effective range of 8 meters, 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

    Effective Range of the Remote Control

    Replacing the Batteries of the Remote Control

    1. Remove the cover on the rear of the remote control.
    2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
    3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.
    Replacing the Batteries of the Remote Control
    WARNING: There is a risk of combustion if the batteries are replaced with the incorrect type.
    NOTE:
    • It is recommended that you do not mix battery types.
    • Always dispose of old batteries in an environmentally friendly way. Contact your local government for more information on how to dispose of batteries safely.

    Using Gestures

    Touch gestures allow the user to use pre-determined commands without using a keyboard or mouse. Using gestures on the ViewBoard, the user can select/deselect objects, change the location of an object, access settings, erase digital ink, and much more.

    NOTE: Gesture availability will vary based on the application.


    Select and Deselect an Object (Clicking)
    Press and release the ViewBoard to select/deselect options or objects. This is like a single, standard left mouse click.
    Single Click
    Display Menu Options (Right-Clicking)
    Press and hold the ViewBoard with your finger. This is like a single, standard right mouse click.
    Right Click
    Double-Clicking
    Quickly press and release twice in the same location on the ViewBoard. This is like a double, standard left mouse click.
    Double Click
    Moving an Object
    Press and hold the object on the ViewBoard and slowly drag it with your finger to your desired location.
    Drag
    Erasing Digital Ink
    Use your flattened hand, palm, or fist on the ViewBoard and move your hand across the area which you wish to erase.
    Erase
    Swipe Up for General Settings
    Swipe up from the bottom of the ViewBoard to launch the General Settings.
    Swipe Up

    Connecting External Devices and Touch Connection

    Connecting External Devices

    USB Type C Connection

    To connect via USB Type C:

    Connect a USB Type C cable from your external device to the Type C port on the ViewBoard.

    HDMI Connection

    To connect via HDMI:

    1. Connect an HDMI cable from your external device to the HDMI 1/2/3 port on the ViewBoard.
    2. Connect a USB cable to the external device from the appropriate TOUCH port of the ViewBoard.
    NOTE: The TOUCH 1 port is for the HDMI 1 port. The TOUCH 2 port is for the HDMI 2, HDMI 3, and VGA ports.

    VGA Connection

    To connect via VGA:

    1. Connect a VGA cable from your external device to the VGA port on the ViewBoard.
    2. Connect a USB cable to the external device from the TOUCH 2 port of the ViewBoard.
    NOTE: The TOUCH 1 port is for the HDMI 1 port. The TOUCH 2 port is for the HDMI 2, HDMI 3, and VGA ports.

    RS-232 Connection

    RS-232 Connection

    When you use a RS-232 serial port cable to connect your display to an external computer certain functions can be controlled remotely by the PC, including Power ON/OFF, Volume adjustment, Input select, Brightness, and more.

    USB and Networking Connections

    Just like any PC, it is easy to connect various USB devices and other peripherals to your ViewBoard.

    USB Peripherals

    USB Connection

    Plug the USB device cable into the USB port.

    Networking and Modem cables

    Network Connection

    Plug the network cable into a LAN port.

    Media Player Connection

    Media Player Connection

    To connect a media player:

    1. Connect the HDMI cable to the HDMI IN port on your ViewBoard and peripheral device.
    2. Plug in the power cord of your ViewBoard, and turn on the power supply switch.
    3. Press the Power button on the right-hand side of the ViewBoard to turn the screen on.
    4. Press the INPUT button on the remote control and switch to the “HDMI” input source.

    Audio Connection

    The ViewBoard supports Audio In, Audio Out, and SPDIF.

    Audio In

    To play audio from your external device through the ViewBoard’s speakers, connect one end of an audio cable to your external device, and the other end to the ViewBoard’s AUDIO IN port.

    Audio In Connection

    Audio Out

    To play audio from the ViewBoard through an external speaker, connect one end of an audio cable to the external speaker, and the other end to the ViewBoard’s AUDIO OUT port.

    Audio Out Connection

    SPDIF Connection

    SPDIF Connection

    To connect to an external sound system:

    1. Connect an optical cable from the SPDIF port to your sound system’s optical connector.
    2. Plug in the power cord of your ViewBoard, and turn on the rear-panel power supply switch.
    3. Press the Power button on the right-hand side of the ViewBoard to turn the screen on.

    Video Output Connection

    Video Output Connection

    To output video via a display device:

    1. Connect an HDMI cable to the HDMI IN port of your display device, and the other end to the HDMI OUT port of your ViewBoard.
    2. Plug in the power cord of your ViewBoard, and turn on the power supply switch.
    3. Press the Power button on the right-hand side of the ViewBoard to turn the screen on.

    Powering ON/OFF your ViewBoard

    1. Ensure the power cord is connected, plugged into a power outlet, and the power switch is in the “ON” position.
    2. IFP33 Power Switch.png
    3. Press the Power button to turn on the ViewBoard.
    4. To turn the ViewBoard OFF, press and hold the Power button.

    Initial Launch Setup

    When you first turn on your ViewBoard, an initial setup wizard will launch.

    1. Select your Language.
    2. Setup and verify your LAN connection.
    3. Select your Time Zone to set the Date and Time.
    4. Select your preferred System Mode.
    5. Accept or Decline the Privacy and Copyright Protection Terms.

    Toolbar

    The Toolbar is where your applications and tools can be found. Trigger icons are on the edge of the launcher for quick access.

    IFP33 Home Toolbar.png

    To launch an application or tool:

    1. Tap a Toolbar trigger icon.
    2. Tap on your desired application or tool icon.
    IFP33 Home Toolbar Closeup.png

    Toolbar Icons

    Icon Description
    Back
    Back
    Return to the previous operation screen.
    Home
    Home
    Return to the Home Screen of the Embedded Player.
    Backstage
    Backstage
    Display all embedded applications that are currently open.
    All Apps
    All Apps
    View all installed applications.
    IFP33 All Apps Icon.png
    Browser
    Web browser for surfing the Internet.
    Chromium
    Web browser for surfing the Internet.
    Cloud Drive
    Store and retrieve files from your cloud storage service.
    myViewBoard Display
    Wirelessly mirror screens to a larger display.
    Finder
    Manage files and folders.
    Live
    Stream whiteboarding sessions.
    Miracast
    Miracast wirelessly streams content from Windows and Android devices to a ViewBoard.
    myViewBoard Manager
    Remotely manage multiple installations of ViewSonic devices.
    myViewBoard Whiteboard
    A digital whiteboarding application.
    Palette
    Select a color and adjust the saturation levels.
    PIP
    Picture-in-Picture. Split the screen into two parts, a main window and an inset window. Users can specify the input source for each screen.
    Record
    Record, view, and save on-screen content.
    Settings
    Access the System Settings.
    Split-Screen
    Split the screen to display two different applications on the display.
    vCastReceiver
    Working with ViewBoard Cast software, receive vCastSender laptop screens (Windows/Mac/Chrome) and mobile (iOS/Android) users’ screens, photos, videos, annotations, and camera(s).
    Menu
    Menu
    Access the General Settings.
    Mark
    Mark
    Annotate the overlay of any input source with a pen or brush.
    Mark
    Crop
    Crop
    Take a screenshot of the current screen and resize.
    Crop
    More
    More
    View more applications within the toolbar.
    IFP33 More Apps Icon.png
    Timer
    A countdown timer with an optional alarm setting. Touch and swipe to adjust the numeric values, then click Start. At any time, the countdown timer can be paused, resumed, or reset.
    Timer
    Spotlight
    Highlight the focus content zone. Tap the setting icon to adjust the spotlight size and alpha blending effect.
    Record
    Record, view, and save on-screen content.
    Freeze
    Convert the currently displayed content into a still image; then you can zoom in, zoom out, go back to full screen, and exit.
    Freeze
    Split-Screen
    Split the screen to display two different applications on the display.
    Split-Screen
    Screen Lock
    Lock the display’s screen for added security.
    Calculator
    Use for mathematical calculations.

    Control Bar

    Frequently used settings and tools can be accessed quickly through the Control Bar.

    Control bar
    Item Description
    1 Input Source Select the input source.
    Input Source
    2 Brightness Adjust the brightness level of the display.
    Brightness
    3 Sound Adjust the volume level of the display.
    Sound
    4 USB If a USB storage device is connected, the USB icon will be visible. Clicking the icon will open the USB storage device’s folder.
    USB
    5 Hotspot Shortcut to Wireless Hotspot settings. Enable or disable the hotspot function.
    Hotspot
    6 Ethernet Shortcut to Wireless & Network LAN settings. Enable or disable LAN connection.
    Ethernet
    7 Wireless Shortcut to Wireless & Network Wi-Fi settings. Enable or disable Wi-Fi and connect to a wireless network.
    Wireless
    8 Date & Time Shortcut to Date & Time settings. Set the date and time of the display.
    Date & Time

    On-Screen Display (OSD) Menu - General Settings

    Access Input, Display, Audio and other general settings through the OSD Menu.

    Input Menu
    Input Menu
    Display Menu
    Display Menu
    Audio Menu
    Audio Menu

    Open the OSD Menu by touching the Menu icon (Icon Menu.png) in the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar.

    Launching the OSD Menu

    Input Settings

    IFP33 OSD Menu Input Menu.png

    To select an Input Source:

    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu.
    2. Press ▼/▲/◄/► on the remote control to select the input source you want.
    3. Press ENTER on the remote control, or touch the input source.
    4. Press BACK on the remote control, or touch a blank area outside of the menu to exit.


    To adjust the brightness:

    Adjust the Brightness
    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu.
    2. Touch and drag the brightness slider directly to adjust the backlight value.
    3. Press BACK on the remote control, or touch a blank area outside of the menu to exit.


    To adjust the volume:

    Adjust the Volume
    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu.
    2. Touch and drag the volume slider directly to adjust the value, or press VOL +/VOL - on the remote control to adjust. Additionally, pressing Mute (Icon Mute.png) on the remote control will mute/unmute the volume.
    3. Press BACK on the remote control, or touch a blank area outside of the menu to exit.

    Display Settings

    Display Menu
    Display Menu
    Display Menu

    To adjust the display settings:

    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu. Then select the Display tab.
    2. Press ▼/▲/◄/► on the remote control to select the menu option you want.
    3. Press ENTER on the remote control to confirm or press ◄/► to adjust the menu option. Additionally, touch/adjust the menu option directly.
    4. Press BACK on the remote control, or touch a blank area outside of the menu to exit.

    Display Settings - Menu Options

    Item Description
    Auto Brightness Automatic brightness adjustment. Adjusts maximum brightness according to ambient light levels.
    Energy Saving Enable to reduce power consumption.
    Eye Care Adjusts the filter that blocks high-energy blue light for a more comfortable viewing experience.
    Paper Eye Care When “Low Blue Light” is enabled, adjust the Transparency to lower the brightness and warm the color temperature.
    Picture Mode Select a predefined picture setting.
    Mode Description
    Standard Default picture mode.
    Bright Maximizes the brightness of the display. This mode is suitable for environments where extra-high brightness is required (e.g., well-lit rooms).
    Soft A high brightness level with lower contrast level.
    Custome Customize the picture settings.
    Brightness Adjusts background black levels of the screen image. The higher the value, the brighter the image. Lower values will result in a darker image.
    Contrast Adjusts the difference between the image background (black level) and the foreground (white level). Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
    Saturation The amount of color in a picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high though, that color will be overpowering and unrealistic.
    Sharpness A high value results in a sharper picture; a low value softens the picture.
    Color Temperature Adjust the color temperature value.
    Advanced Settings

    Color Space
    Choose the color space to use for color output.

    Mode Description
    Standard Default color space standard.
    sRGB Precise color gamut and gamma of the sRGB standard.
    AdobeRGB Precise color gamut and gamma of the Adobe RGB standard.
    Display-P3 Precise color gamut and gamma of the Display-P3 standard.
    DCI-P3 Precise color gamut and gamma of the DCI-P3 standard.
    BT2020 Precise color gamut and gamma of the BT2020 standard.

    HDMI Range
    Select a suitable color range according to the color range setting of the connected output device.

    Mode Description
    Auto Detect the range of the input signal automatically.
    Full Sets the color range from 0~255
    Limited Sets the color range from 16~235

    Pixel Shift
    Reduce the possibility of screen burn-in. This setting allows the user to program the time between movements of the picture in minutes.

    AI PQ
    Automatically set the optimal resolution of the display.

    Dynamic Backlight (DCR)
    Automatically detects the image signal and intelligently controls the backlight brightness and color to improve on the ability to make the black blacker in a dark scene, and make the white whiter in a bright environment.

    Audio Settings

    IFP33 OSD Menu Audio Menu.png

    To adjust the audio settings:

    1. Press INPUT on the remote control or touch the Menu icon (Icon Menu.png) from the Toolbar or the Input Source icon (Icon Input Source.png) of the Control Bar to display the Input Settings menu. Then select the Audio tab.
    2. Press ▼/▲/◄/► on the remote control to select the menu option you want.
    3. Press ENTER on the remote control to confirm or press ◄/► to adjust the menu option. Additionally, touch/adjust the menu option directly.
    4. Press BACK on the remote control, or touch a blank area outside of the menu to exit.

    Audio Settings - Menu Options

    Item Description
    Audio Mode Select a predefined audio setting.
    Mode Description
    Standard Default audio mode.
    Meeting Ideal for meetings. Higher bass, lower treble levels.
    Class Ideal for the classroom. Low bass and treble levels.
    Custom Customize the audio settings.
    Volume Increase or decrease the display’s volume level.
    Bass Increase or decrease the bass level (lower-pitched sounds).
    Treble Increase or decrease the treble level (higher-pitched sounds).
    Balance Adjust the left/right speaker balance.
    Mute Toggle mute ON or OFF.

    Low Blue Light Filter and Eye Health

    The Blue Light Filter blocks high-energy blue light for a more comfortable viewing experience.

    IFP33 Blue Light Filter.png

    Calculating Breaks
    When viewing screens for extended periods, it is recommended to take periodic breaks from viewing. Short breaks of at least 10 minutes are recommended after one (1) hour of continuous viewing.

    Taking shorter, more frequent breaks are generally more beneficial than longer, less frequent breaks.

    Focus Fatigue (20-20-20 Rule)
    To reduce the risk of eye fatigue by constantly looking at the screen, look away from the screen at least every 20 minutes and gaze at a distant object (at least 20 feet away) for at least 20 seconds.

    Looking at Distant Objects
    While taking breaks, users can further reduce eye strain and dryness by focusing on objects that are further away from them for 10-15 seconds, then gaze at something up close for 10-15 seconds. Repeat this up to 10 times. This exercise reduces the risk of your eyes’ focusing ability to “lock up” after prolonged computer work.

    Eye and Neck Exercises
    Eye Exercises
    Eye exercises can help minimize eye strain. Slowly roll your eyes to the left, right, up, and down. Repeat as many times as needed.

    Eye Exercises

    Neck Exercises
    Neck exercises can also help minimize eye strain. Relax your arms and let them hang at your sides, bend forward slightly to stretch the neck, turn your head to the right and to the left. Repeat as many times as needed.


    ViewBoard Input Source Settings

    The ViewBoard input source is the default source that is active when turning on your ViewBoard. Press MENU on the remote control or tap the setting icon next to the input source in the On-Screen Display (OSD) Menu’s Input Settings to enter the Settings menu.

    Network & Internet

    Check current network connection status, set up and manage Wi-Fi, Ethernet, Bluetooth, and VPN, and establish a Wireless hotspot.

    IFP33 Network and Internet.png
    NOTE:
    • Wi-Fi, Wireless hotspot and Bluetooth settings will appear when VB-WIFI-004(optional) has been installed.
    • Ethernet will disable automatically when Wi-Fi is enabled. Wi-Fi will disable automatically when Ethernet is enabled. Wi-Fi will disable when Wireless hotspot is enabled.
    • The device cannot connect to the Internet when Wireless hotspot is enabled.

    Wi-Fi

    Setup and manage wireless access points.

    • Tap the toggle button to turn Wi-Fi On or Off.
    • Once On, you can: Add a Network, view Saved Networks, Refresh the network list, or view Advanced settings.
    • In Advanced settings, you can toggle Network notifications On or Off and view Network card info.

    Ethernet

    Set the local network and proxy.

    IFP33 Ethernet.png
    • Tap the drop down menu to connect/disconnect the Ethernet.
    • You can adjust Local network and Proxy settings as well.

    Wireless Hotspot

    Set and share your internet connection with other devices.

    • Tap the toggle button to turn Wireless hotspot On or Off.
    IFP33 Wireless Hotspot.png
    • Tap Set up to set the Network name, Security, and Password.

    Bluetooth

    Manage connections, set the device name and discoverability.

    IFP33 Bluetooth.png
    • Tap the toggle button to turn Bluetooth On or Off. Once On, users can select a listed device to pair and connect to, rename their device, remove a device, or receive files.
    • Tap Received files to show all received files.

    VPN

    Setup and manage Virtual Private Networks.

    IFP33 VPN.png

    To create a VPN profile:

    1. Go to: Settings > Network & Internet > VPN and tap Add VPN.
    2. Key in the Name.
    3. Select the VPN Type.
    4. Choose to enable/disable PPP encryption (MPPE) and/or show Advanced options.

    Miracast

    Enable/disable Miracast. Miracast allows for wireless sharing of multimedia and screens of connected devices.

    IFP33 Miracast.png

    File Sharing

    SAMBA

    The SAMBA Service provides file sharing via LAN. When the SAMBA Service is enabled, the user can explore the ViewBoard file system with a PC or mobile equipment.

    1. Go to: Settings > File Sharing > SAMBA.
    2. Tap the toggle button to enable the SAMBA Service, then set a password if needed.
    3. Ensure the ViewBoard and client equipment are connected to the same network.
    4. Log in to the ViewBoard with the client equipment. Input the ViewBoard’s IP address.
    5. Key in the user name and password, then select OK (if necessary).
    6. After a successful log in, the ViewBoard files will be available.

    Display

    Adjust the Wallpaper, Theme, Display ID, Protection, and HDMI Out settings.

    IFP33 Display.png

    Wallpaper

    Users can change their wallpaper with default images (both still and live), or use their own by tapping My Photo and selecting the image file.

    Protection

    Toggle HDCP & Copyright On/Off, and set a Password for Screen Lock.

    IFP33 Protection Update.png
    • To set up a password for screen lock, tap Set Password and enter the desired password.

    HDMI Out

    Adjust the HDMI Out Resolution setting, enable video output, and mute/unmute the display speaker when connected via HDMI Out.

    NOTE: The disable ViewBoard speakers option box is unchecked by default.
    IFP33 HDMI Out.png

    Preferences

    View and adjust Touch, Language, Keyboard & Input, Date & Time, Boot Mode & Advanced, Start up & Shut down, and Toolbar settings.

    IFP33 Preferences.png

    Touch

    Adjust Touch Settings and toggle Touch Sounds and Windows Ink On/Off.

    IFP33 Touch.png

    Language

    Adjust and choose the preferred language from the available languages.

    IFP33 Language.png

    Keyboard & Input Method

    Enable/disable the visual keyboard and/or change the default input method.

    IFP33 Keyboard Input.png
    • Tap on Settings to adjust the advanced keyboard settings.

    Date & Time

    Set the system time and format.

    IFP33 Date and Time.png
    Item Description
    Automatic Date & Time When enabled, the ViewBoard will automatically synchronize the date and time via the Internet.
    Time Zone Select the appropriate time zone.
    Time Format Choose from 12-hour or 24-hour time format. Simply toggle 24-hour format On/Off.
    Date Format Select from the available date formats.

    Boot Mode

    Adjust the preferred boot up mode and set/reset a password.

    IFP33 Boot Mode.png
    Item Description
    Normal Mode The embedded screen sharing Apps will run normally.
    Secured Mode The embedded screen sharing Apps will be removed.
    Disable Embedded OS The system will automatically reboot, and then the Embedded/ViewBoard OS will not appear.
    ViewBoard Settings Access Password Toggle to lock/unlock the ViewBoard Settings.
    Password for Protection Modify the Boot mode and ViewBoard Settings entry password.
    Local File Protection Policy Choose how long to keep local storage files in the Folder application.
    Color Correction Color correct the ViewBoard display screen.
    Non-ViewBoard OS Mode Side Toolbar Setting Enable the side toolbar for non-ViewBoard OS.
    Reset ViewBoard Reset the ViewBoard to its factory default settings.

    Startup & Shutdown

    Set the Startup Input, Standby Mode, EnergyStar Mode, Black Screen After Startup, Power off Reminder timer and Schedule settings.

    IFP33 Startup and Shutdown.png
    Item Description
    Startup Input Adjust the Startup Input preference.
    Display Setting when No Signal Decide what happens to the display when there is no signal for HDMI, PC, or VGA sources.
    Standby Mode Decide what happens when you press the Power button while the ViewBoard is ON.
    Energy Star Enable to automatically initiate Sleep Mode when the screen is idle for one hour.
    Body Detection If no body is detected, the display will enter sleep mode based on the minutes set.
    Black Screen After Startup When enabled, the ViewBoard will turn off the backlight automatically after booting up.
    Time Switch Power Off Reminder When enabled, the ViewBoard will turn off without any reminder after the scheduled off time.
    Schedule Schedule a Boot and Shut off time.

    Toolbar Setting

    Adjust the Side toolbar setting.

    IFP33 Toolbar Settings.png

    Input Source

    Adjust the input source names and settings, as well as the side tool bar settings.

    IFP33 Input Source.png

    Label Input Source

    Set labels for each input source that will be easily recognized when displayed.

    IFP33 Label Source.png

    Source

    Toggle Wake up by active source, Signal auto search, and HDMI CEC and select Input port auto switch.

    IFP33 Source.png
    Item Description
    Wake up by Active Source The screen will turn on automatically after plugging in an HDMI cable when the screen is off.
    Signal Auto Search When enabled, if the current source does not have a signal, the ViewBoard will automatically search for an input source.
    Input Port Auto Switch The original signal will automatically switch to a new cable after it’s plugged in.
    Energy Saving Set a time period to power off if no signal is detected.
    HDMI CEC Enable/disable HDMI CEC functions.

    Apps

    The user can view application information and force stop, uninstall, move to USB storage, clear data, clear cache, and clear defaults.

    IFP33 App.png
    NOTE:
    • Pre-loaded apps cannot be uninstalled.
    • Not all apps support the move to USB storage feature.
    • Not all apps support Clear Defaults.

    Apps

    View any running or installed applications. Tap on them for more detailed information and options.

    • By tapping on a running application, you can see more information, stop, or report the application.
    • Selecting All, Download, or USB Storage will list all installed applications.
    • Tapping on any application will display further information and options.

    System

    View and adjust Storage, Clone to USB, Display ID, Security, System Update, and About device settings.

    IFP33 System.png

    Storage

    Users can check the storage status of their ViewBoard.

    Clone to USB

    Copy settings to an external USB drive.

    IFP33 Clone to USB.png

    Display ID

    Assign a number to remote control the display by RS-232/LAN.

    • To assign or change the Display ID, tap Change and input a number.
    NOTE: The Display ID is for RS-232 users, and the range is 01~99.

    Security

    Review Certificate, Trusted Credential storage, and Unknown sources install settings.

    • Tap on Install certificate from storage to add additional certificates.
    • Selecting Clear Credentials will remove all manually installed credentials.
    NOTE: Pre-loaded credentials cannot be cleared.
    • Under Trusted Credentials view and edit all trusted and installed CA certificates.
    • Tapping on a credential will provide more detailed information.
    • Allow the installation of applications from unknown sources by selecting the box under Unknown source security.
    NOTE: Apps from unknown sources may not be compatible or work properly.

    System Update

    The ViewBoard automatically searches for software updates whenever connected to the Internet (OTA). With just one click, users can update their version of ViewBoard software.

    IFP62 System Update.png
    Item Description
    Auto Update When the display is off, the system will automatically check for a new version. If a new version is found, the system will automatically update. After the update is complete, the system will turn off.
    Schedule Set the update time.
    Manual Update Update the software manually.

    About Device

    Display Embedded Player information, Legal information, and Asset Tagging.

    • By selecting Edit, the asset information can be adjusted.
    • Tap on Legal information to check open source licenses.


    Pre-installed Applications

    myViewBoard Display

    Wirelessly mirror screens to a larger display.

    MVB Display.png

    To share a screen to a ViewBoard with myViewBoard Display:

    1. Open myViewBoard Display on the ViewBoard you want to share your screen to.
    2. On the device you want to share the screen from, go to: https://myviewboard.com/display.
    3. Enter the Display Code and One Time Password for the ViewBoard you wish to share to.
    NOTE: Note that the password refreshes every 30 seconds.

    myViewBoard Live

    Stream whiteboarding sessions.

    MVB Live.png

    A Stream URL and a Stream Key are needed to begin live streaming. The Stream URL is automatically shown after selecting the streaming service in myViewBoard Live.

    NOTE: The Stream Key will come from the streaming service chosen.

    On myViewBoard Live:

    1. Launch myViewBoard Live.
    2. Input the required information.
    3. Select the Record the stream checkbox to record a copy of the stream to the ViewBoard (if applicable).
    4. Tap the arrow icon to start the stream.

    On the dashboard of the chosen streaming service:

    1. Verify that it is able to successfully receive the stream.
    2. To stop the stream, locate and click the ‘End Stream’ button on the chosen service’s dashboard.
    NOTE: To learn more about myViewBoard Live, visit: https://wiki.myviewboard.com/MyViewBoard_Live.

    myViewBoard Manager

    Remotely manage multiple installations of ViewSonic devices.

    MVB Manager.png

    Once devices are set up and have myViewBoard Manager installed, they can be added to the entity and managed remotely from the Manager web application.

    NOTE: Only available to Entity Admins from myviewboard.com after signing in.

    Add a Device
    On the device to manage:

    1. Download and install myViewBoard Manager.
    2. Open myViewBoard Manager and note the 6-digit PIN displayed.

    In the myViewBoard Manager web application on myviewboard.com:

    1. Click Add Device.
    2. Input the 6-digit PIN obtained earlier.
    3. Name the device (if applicable).
    4. Click Add.
    NOTE: To learn more about myViewBoard Manager, visit: https://wiki.myviewboard.com/MyViewBoard_Manager.

    myViewBoard Record

    Capture everything that is displayed on screen in a video format.

    MVB Record.png

    To launch the screen recording application:

    1. Select the myViewBoard Record icon in the application drawer.
    2. Select the preferred recording configurations.
    3. Tap the check mark and a three (3) second countdown will begin. Screen recording will begin immediately after the countdown.
    4. After stopping the recording, you will be able to preview the video, save it, or discard it.

    myViewBoard Whiteboard

    A digital whiteboarding application.

    NOTE: To learn more about myViewBoard Whiteboard, visit: https://wiki.myviewboard.com/Whiteboard_for_Android.
    MVB Whiteboard.png

    Floating Toolbar

    Item Description
    Whiteboard Icon Floating Toolbar Move Toolbar.svg
    Move Move the Floating Toolbar.
    Whiteboard Icon Floating Toolbar Present Mode.svg
    Present Mode Switch between presentation and preparation modes.
    Whiteboard Icon Floating Toolbar Paste from Clipboard.svg
    Paste from Clipboard Insert the current clipboard content onto the canvas.
    Whiteboard Icon Floating Toolbar Previous Page.svg
    Previous Page Go to the previous page (if the canvas has multiple pages).
    Whiteboard Icon Floating Toolbar Next Page.svg
    Next Page Go to the next page (if the canvas has multiple pages).
    Whiteboard Icon Floating Toolbar New Page.svg
    New Page Add a new canvas.
    Whiteboard Icon Floating Toolbar Pages in Whiteboard.svg
    Pages in Whiteboard Create, select, rearrange, copy and delete pages.

    Main Toolbar

    Item Description
    Whiteboard Icon Screen Capture.svg
    Screen Capture Screenshot, video, and audio recording.
    Whiteboard Icon Move Toolbar.svg
    Move Select and hold to move the toolbar to the left side, right side, or bottom of the screen.
    Whiteboard Icon File.svg
    File Open, save, export, and print whiteboard files.
    Whiteboard Icon Magic Box.svg
    Magic Box Import resources (image, video, audio, etc.) to the whiteboard.
    Whiteboard Icon Embedded Browser.svg
    Embedded Browser Open the built-in browser to access internet resources, which can be dragged onto the canvas.
    Whiteboard Icon Infinite Canvas.svg
    Infinite Canvas Drag to move the canvas. Use two hands to zoom in/zoom out. Select again for an overview.
    Whiteboard Icon Selection.svg
    Selection Select objects, text, and other elements on the canvas.
    Whiteboard Icon Pen.svg
    Pen Writing tools and customization options.
    Whiteboard Icon Eraser.svg
    Eraser Erase objects or clear the page.
    Whiteboard Icon Shapes and Lines.svg
    Shapes and Lines Draw shapes, arrows, and add tables.
    Whiteboard Icon Text and Handwriting.svg
    Text and Handwriting Add a text box.
    Whiteboard Icon Undo.svg
    Undo Undo the previous action.
    Whiteboard Icon Redo.svg
    Redo Redo the previous action.

    Background Management

    Item Description
    Whiteboard Icon Background Management Sign in.svg
    Sign In Sign in to a myViewBoard account.
    Whiteboard Icon Background Management Background Management.svg
    Background Management Change the canvas background.
    Whiteboard Icon Background Management FollowMe Setting.svg
    FollowMe Setting Display custom images uploaded to a cloud storage account.
    Whiteboard Icon Background Management Color Palette.svg
    Color Palette Choose from solid or gradient colors as the background.
    Whiteboard Icon Background Management Pre-Installed.svg
    Pre-installed Choose backgrounds that come pre-installed with Whiteboard.
    Whiteboard Icon Background Management MVB Originals.svg
    myViewBoard Originals Display original content created by myViewBoard.
    Whiteboard Icon Background Management Local Harddrive.svg
    Local Hard Drive Use images from the local hard drive.

    vCast

    Working with ViewBoard® Cast software (vCast, vCast Pro, and vCastSender), the vCast application will allow the ViewBoard to receive laptop screens (Windows/Mac/Chrome) and mobile (iOS/Android) users’ screens, photos, videos, annotations, and camera(s) that are using the vCastSender application.

    ViewBoard Cast (vCast)
    NOTE:
    • ViewBoard® Cast software, laptops, and mobile devices can connect to both the same subnet and cross subnet by entering the on-screen PIN code.
    • Connected devices will show up under Device List on the same subnet connection.
    • If the device does not show up under Device List, users will need to key-in the on-screen PIN code.

    Network Information

    • Ports:
    TCP 56789, 25123, 8121 & 8000 (Controlling message port & client device audio transfer)
    TCP 8600 (BYOM)
    TCP 53000 (Request share screen)
    TCP 52020 (Reverse control)
    TCP 52025 (Reverse control for ViewBoard Cast Button)
    TCP 52030 (Status sync)
    TCP 52040 (Moderator mode)
    UDP 48689, 25123 (Device searching and broadcast & client device audio transfer)
    UDP 5353 (Multicast search device protocol)
    • Port and DNS Activation:
    Port: 443
    DNS: https://vcastactivate.viewsonic.com
    • OTA Service:
    Server Port: TCP443
    Server FQDN Name: https://vcastupdate.viewsonic.com

    Display Group Settings

    To adjust the Display Group Settings, select the Display Group icon (VCastPro DG Icon.svg) located in the lower-right corner of the screen.

    vCast Display Group
    1. Toggle the "Turn On/Off Display Group" ON to enable the Display Group feature.
    2. vCast Display Group
      NOTE: Other preinstalled ViewBoard Cast devices in the same network will be listed.
    3. Select the devices you want to join the display group and select OK to save the settings.
    4. vCast Display Group
      NOTE:
      • If the devices you want to group are not listed, you can enter their respective IP address or connecting PIN code.
      • The Display Group maximum device limit is six devices.
    5. If you frequently connect to the same device, you can select the Star icon (VCastPro Star Icon.svg) next to the device to add it to your frequently connected devices list, "My List of Devices in Group", for easier Display Group setup and management.
    6. vCast Display Group

    Synchronized Group Screen All the Time

    When the “Synchronized group screen all the time” function is toggled ON, it will display a synchronized group screen continuously. If it is toggled OFF, it will work on vCast mirroring only.

    vCast Display Group
    NOTE: Select the devices to group first, then toggle the "Synchronized group screen all the time” function ON to avoid interruption.

    Share a Screen to the Display Group (One to Many Casting)

    After confirming the above settings, you can share your screen to the main display, then the grouped client devices will be synced up to your screen.

    vCast Display Group

    Moderator Mode

    Moderator Mode allows the moderator to take control of the devices connected to the ViewBoard. To enter Moderator Mode, select the Moderator Mode icon (VCast Pro MM Icon.svg) located in the lower-right corner of the screen.

    vCast Moderator Mode

    When enabled, the moderator can view a list of all connected screens in the left floating window and can preview each participant’s screen and then select any of participant’s screen and cast to the ViewBoard’s main screen for presentation. The moderator can also control each participant’s screen, annotate on the ViewBoard, and remove unwanted participants by selecting the close icon (X).

    vCast Moderator Mode

    Broadcast

    When enabled, the ViewBoard’s screen will be broadcasted to all of the participant’s connected screens simultaneously. The participants can only view the presentation contents until the moderator disables the Broadcast function.

    vCast Broadcast

    Multiple Screen Sharing

    By default, vCast is set to allow multiple screen sharing, but can also be set to single screen sharing. To do this, the moderator can select the Multiple Screen Sharing icon to switch to single screen sharing.

    Preview Screen

    By default, vCast is set to let the moderator preview the participant’s screen contents prior to sharing to the ViewBoard. Selecting the Preview Screen icon, the Moderator can switch to see the participant’s name only.

    Touch

    By default, participants can use touch for collaboration after connecting. The moderator can enable/disable the touch function of a participant by selecting the Touch icon in their window.

    NOTE:

    • Moderator Mode is supported on all vCastSender and AirPlay devices, but mobile devices are limited to a "preview" function. Additionally, mobile Android devices cannot cast sound out.
    • When you cast your Windows/Mac/Chrome screen to a ViewBoard, the selected full screen unit will not be broadcasted back to your device to avoid repetitive screen casting.
    • The active presenter can touch each of the participant's screens to remotely control casting devices.
    • The number of multi-screen presenters on-screen depends on your Windows CPU processor performance and router specifications.

    Casting from Windows, MacBook, and Chrome Devices

    IFP52 vCast Sender 1-1.png
    1. Ensure the client device (e.g., laptop) is connected to the same network as the ViewBoard.
    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the client device, visit the address that is shown on the ViewBoard to download and install the vCastSender application.
    4. After installing, launch the vCastSender application.
    5. To connect to the ViewBoard, input the PIN code and click OK.
    6. NOTE: The PIN code can be found as highlighted below:
      VCast Computer 2.png
    7. Additionally, you can connect to the ViewBoard or display by clicking Device List then the Device Name listed.
    8. VCast Computer 3.png
      NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png

    Casting from Android Devices

    VCast Mobile Update 1.png
    1. Ensure the client device (e.g., Android phone or tablet) is connected to the same network as the ViewBoard.
    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the Android client device, scan the QR code shown on the ViewBoard to directly download the vCastSender application, or download the application from the Google Play Store.
    4. VCast Sender 3.png
    5. After installing, launch the vCastSender application.
    6. To connect to the display, input the PIN code and select OK.
    7. NOTE: The PIN code can be found as highlighted below:
      VCast Computer 2.png
    8. You can also connect to the ViewBoard by clicking Device List then the Device Name listed.
    9. VCast Sender Device List Scan.png
      NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png
    10. Additionally, you can connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.
    11. VCast Computer 5.png

    Casting from Apple iOS Devices

    Apple AirPlay® is compatible with vCast for screen mirroring and content streaming under the same subnet environment only. An “AirPlay Password” will be generated on-screen for connection when using AirPlay to cast to a ViewBoard.

    VCast Apple Main.png
    1. Ensure the client device (e.g., iPhone or iPad) is connected to the same network as the ViewBoard.
    2. NOTE: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the iOS client device, directly open AirPlay and select the Device Name of the ViewBoard to connect.
    4. NOTE: The Device Name can be found as highlighted below:
      VCast Computer 4.png
    5. Input the generated on-screen AirPlay Password on the client device to connect.
    6. VCast Sender 4.png
      NOTE: In a cross subnet environment, please download and connect with the vCastSender iOS application from the Apple App Store.
    7. You can also connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.
    8. VCast Computer 5.png

    Connecting to a Display from a Mobile Device

    Once connected, select Receive. The ViewBoard or selected display screen will appear on the mobile device with an on-screen toolbar. Users can interact with the ViewBoard or display with annotations, file sharing, etc.

    VCast Mobile 1.png
    Item Description
    VCast Icon Toggle.svg
    Toggle Hide or display the toolbar.
    VCast Icon Home.svg
    Home Return to the Home interface.
    VCast Icon Return.svg
    Return Return to the previous operation.
    VCast Icon Folder.svg
    Folder View or open the mobile device's files.
    VCast Icon Share.svg
    Share Cast the mobile device's screen to the connected ViewBoard or display.
    VCast Icon Touch.svg
    Touch Remotely control the connected ViewBoard or display.
    VCast Icon Annotate.svg
    Annotate Make annotations, and adjust the pen color.
    VCast Icon Clear.svg
    Clear Clear everything on screen.
    VCast Icon Camera.svg
    Camera Send camera images to the connected ViewBoard or display.

    Other Default Applications

    Chromium

    Web browser for surfing the internet.

    Chromium 2.png

    Folders

    Number Item
    1 Storage Device Display
    2 Icons
    3 File Type Menu
    4 File Information

    OfficeSuite

    Create, edit, and view Documents, Spreadsheets, Presentations, and PDFs.

    PIP (Picture-in-Picture)

    Split the screen into two parts, a main window and an inset window.

    NOTE: PIP only works between an Android application (browser, media player, vCast) and an external source.
    • To open PIP, select: All Apps > PIP.
    • PIP
    • To change the position of the inset window, select, hold and drag the window to the preferred location.
    • PIP
    • To adjust the size of the inset window, select Size.
    • PIP
    • To change PIP input source select HDMI 1, HDMI 2, HDMI 3, Type C, or VGA.
    • PIP
    • For touch control of the connected external device, select Touch.
    • PIP
    • To control the connected external device’s volume, select Sound.
    • PIP
    • Select Enter to switch to the PIP input source.
    • PIP

    Screen Lock

    Set a screen lock password and enable screen lock.

    NOTE: If the user forgets the password, use the remote control and press INPUT-0-2-1-4 to restore the password to default.

    To set a screen lock password:

    1. Go to: Settings > Display > Password for screen lock, or select the Screen Lock icon in the apps list.
    2. Select Set Password, and input a new four (4) digit password. Then select OK.
    3. Now when selecting the Screen Lock icon, the screen will be locked.
    Screen Lock 2.png

    vSweeper

    Clear unnecessary data and unwanted files.

    VSweeper 1.png

    Advanced Settings can also be customized to the user's needs.

    VSweeper 2.png



    Warning: Display title "IFP8633 Pre-installed Applications" overrides earlier display title "IFP8633 ViewBoard OS".

    RS-232

    This document describes the hardware interface spec and software protocols of RS-232 interface communication between ViewSonic LFD and PC or other control units with RS-232 protocol.

    The protocol contains three command sections:

    • Set-Function
    • Get-Function
    • Remote control pass-through mode
    NOTE: Below, “PC” represents all the control units that can send or receive the RS-232 protocol command.

    Description

    RS-232 Hardware Specification

    ViewSonic LFD communication port on the rear side:

    1. Connector type: DSUB 9-Pin Male (or 3.5 mm barrel connector)
    2. Use of crossover (null modem) cable for connection
    3. Pin Assignment:
    Pin # Signal Remark
    Male DSUB 9-Pin 1 NC
    Male DSUB.png
    2 RXD Input to Display
    3 TXD Output to Display
    4 NC
    5 GND
    Female DSUB 9-Pin 6 NC
    Female DSUB.png
    7 NC
    8 NC
    9 NC Provide +5V/2A power for external specific dongle *3.0
    frame GND
    Item Signal Remark
    3.5 mm barrel connector
    (alternative for limited space)
    Tip TXD Output from Display
    IFP52 Barrel Connector.jpg
    Ring RXD Input to Display
    Sleeve GND

    LAN Hardware Specification

    ViewSonic LFD communication port on the rear side:

    1. Connector type: 8P8C RJ45
    2. Pin assignment:
    Pin # Signal Remark
    LAN Spec.png
    1 TX+ Output from Display
    2 TX- Output from Display
    3 RX+ Input to Display
    4 BI_D3+ For 1G case
    5 BI_D3- For 1G case
    6 RX- Input to Display
    7 BI_D4+ For 1G case
    8 BI_D4- For 1G case
    frame GND

    RS-232 Communication Setting

    • Baud Rate Select: 9600bps (fixed)
    • Data bits: 8 bits (fixed)
    • Parity: None (fixed)
    • Stop Bits: 1(fixed)

    LAN Communication Setting

    • Type: Ethernet
    • Protocol: TCP/IP
    • Port: 5000 (fixed)
    • Cross subnet: No
    • Logon Credentials: No

    Command Message Reference

    PC sends to LFD command packet followed by “CR”. Every time PC sends control command to Display, the Display shall respond as follows:

    1. If the message is received correctly it will send “+” (02Bh) followed by “CR” (00Dh)
    2. If the message is received incorrectly it will send “-” (02Dh) followed by “CR” (00Dh)

    Protocol

    Set-Function Listing

    The PC can control the Display for specific actions. The Set-Function command allows you to control the Display behavior at a remote site through the RS-232 port. The Set-Function packet format consists of 9 bytes.

    Set-Function Description:

    Length Total Byte of Message excluding “CR”
    LFD ID Identification for each of Display (01~98; default is 01)
    ID “99” means to apply the set command for all connected displays. Under such circumstances, only ID#1 display has to reply.
    The LFD ID can be set via the OSD menu for each Display.
    Command Type Identify command type,
    "s" (0x73h): Set Command
    "+" (0x2Bh): Valid Command Reply
    "-" (0x2Dh): Invalid Command Reply
    Command Function command code: One byte ASCII code.
    Value [1~3] Three bytes ASCII that defines the value.
    CR 0x0D

    Set-Function Format Send: (Command Type="s")

    Name Length ID Command Type Command Value1 Value2 Value3 CR
    Byte Count 1 Byte 2 Byte 1 Byte 1 Byte 1 Byte 1 Byte 1 Byte 1 Byte
    Bytes Order 1 2~3 4 5 6 7 8 9

    Reply: (Command Type="+" or "-")

    Name Length ID Command Type CR
    Byte Count 1 Byte 2 Byte 1 Byte 1 Byte
    Bytes Order 1 2~3 4 5
    NOTE: When PC applies command to all displays (ID=99), only the #1 set needs to reply by the name of ID=1.


    Example 1: Set Brightness as 76 for Display (#02) and this; command is valid.

    Send (Hex Format)

    Name Length ID Command Type Command Value1 Value2 Value3 CR
    Hex 0x38 0x30
    0x32
    0x73 0x24 0x30 0x37 0x36 0x0D

    Reply (Hex Format)

    Name Length ID Command Type CR
    Hex 0x34 0x30
    0x32
    0x2B 0x0D

    Example 2: Set Brightness as 75 for Display (#02) and this; command is NOT valid.

    Send (Hex Format)

    Name Length ID Command Type Command Value1 Value2 Value3 CR
    Hex 0x38 0x30
    0x32
    0x73 0x24 0x30 0x37 0x35 0x0D

    Reply (Hex Format)

    Name Length ID Command Type CR
    Hex 0x34 0x30
    0x32
    0x2D 0x0D

    Set-Function Table

    A. Basic Function

    Set Function Length ID Command Command Value Range Comments
    Type (ASCII) Code
    (ASCII)
    Code
    (Hex)
    (Three ASCII bytes)
    Power On/Off
    (Standby)
    8 s ! 21 000: STBY
    001: ON
    1. The Power-on via LAN control may works only under specific mode. To see display UG for details. *3.1.1
    2. “WOL by MAC address” may available as alternative.*3.2.1
    Input Select 8 s " 22 004: HDMI 1
    014: HDMI 2
    024: HDMI
    006: VGA
    007: Slot-in PC (OPS)
    009: DP
    019: Type-C
    00A: Embedded/Main (Android)
    1. No need for USB
    2. For the case of two more same sources, the 2nd digital is used to indicate the extension.
    3. The HEX of 00A is 30 30 41.
    Brightness 8 s $ 24 000 ~ 100
    900: Bright down (-1)
    901: Bright up (+1)
    *3.1.1
    Backlight*3.2.0 8 A B 42 000~100 1. For Android platform whose main mode is controlled by backlight and the other sources are controlled by brightness.
    2. Derived from Color calibration.
    *3.2.0
    Power Lock 8 s 4 34 000: Unlock
    001: Lock
    *See note in details
    Volume 8 s 5 35 000 ~ 100
    900: Volume down(-1)
    901:Volume up(+1)
    Mute 8 s 6 36 000: OFF
    001: ON (mute)
    Button Lock 8; s 8 38 000: Unlock
    0001: Lock
    *See note in details
    Menu Lock 8 s > 3E 000: Unlock
    001: Lock
    *See note in details
    Number *3.1.1 8 s @ 40 000~009
    Key Pad *3.1.1 8 s A 41 000: UP
    001: DOWN
    002: LEFT
    003: RIGHT
    004: ENTER
    005: INPUT
    006: MENU/(EXIT)
    007: EXIT
    Remote Control 8 s B 42 000: Disable
    001: Enable
    002: Pass through
    Disable: RCU will be no function
    Enabled: RCU controls normally
    Pass through: Display will bypass the RC code to connected device via the RS-232 port, but not react itself.
    Restore Default 8 s ~ 7E 000 Recover to factory setting

    B. Optional Function

    Set Function Length ID Command Command Value Range Comments
    Type (ASCII) Code
    (ASCII)
    Code
    (Hex)
    (Three ASCII bytes)
    Contrast 8 s # 23 000~100
    Sharpness 8 s % 25 000~100
    Color 8 s & 26 000~100
    Tint 8 s ' 27 000~100
    Backlight On_Off 8 s ( 29 000: Off
    001: On
    Color Mode 8 s ) 29 000: Normal
    001: Warm
    002: Cold
    003: Personal
    Freeze On_Off 8 s . 2A 000: Off
    001: On
    Bass 8 s . 2E 000~100
    Treble 8 s / 2F 000~100
    Balance 8 s 0 30 000~100 050 is central
    Picture Size 8 s 1 31 000: FULL (16:9)
    001: NORMAL (4:3)
    002: REAL (1:1)
    *3.1.0
    OSD language 8 s 2 32 000: English
    001: French
    002: Spanish
    Could be extended for more supported languages by model
    Date: Year 8 s V 56 Y17~Y99 Last 2 digits
    (20)17~(20)99
    Date: Month 8 s V 56 M01~M12 2 digits
    Date: Day 8 s V 56 D01~D31 2 digits
    Time: Hour 8 s W 57 H00~H23 24-hr format. 2 digits.
    Time: Min 8 s W 57 M00~M59 2 digits
    Time: Sec 8 s W 57 S00~S59 2 digits
    Customized Hot Keys 8 s X 58 001~999
    001: Open MVBA app

    Specifications

    Item Category Specifications
    Model P/N. IFP8633

    IFP8633-G

    No. VS19494

    Display Modes

    VGA Mode

    Resolution Refresh Rate (@)
    640 x 480 60Hz, 72Hz, 75Hz
    720 x 400 70Hz
    800 x 600 56Hz, 60Hz, 72Hz, 75Hz
    832 x 624 75Hz
    1024 x 768 60Hz, 70Hz, 75Hz
    1152 x 864 60Hz, 75Hz
    1152 x 870 75Hz
    1280 x 768 60Hz, 75Hz
    1280 x 960 60Hz
    1280 x 1024 60Hz, 75Hz
    1360 x 768 60Hz
    1366 x 768 60Hz
    1400 x 1050 60Hz, 75Hz
    1440 x 900 60Hz, 75Hz
    1600 x 1200 60Hz
    1680 x 1050 60Hz
    1920 x 1080 60Hz
    1920 x 1200 60Hz

    HDMI Mode

    Resolution Refresh Rate (@)
    640 x 480 60Hz, 72Hz
    720 x 400 70Hz
    800 x 600 60Hz, 72Hz
    1024 x 768 60Hz, 70Hz, 75Hz
    1280 x 800 60Hz
    1280 x 1024 60Hz
    1360 x 768 60Hz
    1440 x 900 60Hz
    1680 x 1050 60Hz
    1920 x 1080 60Hz
    3840 x 2160 30Hz, 60Hz
    480i 60Hz
    480p 59Hz, 60Hz
    576i 50Hz
    720p 50Hz, 60Hz
    576p 50Hz
    1080i 50Hz, 60Hz
    1080p 50Hz, 60Hz

    Compliance Information

    This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

    FCC Compliant Statement

    This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

    These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

    • Reorient or relocate the receiving antenna.
    • Increase the separation between the equipment and receiver.
    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
    • Consult the dealer or an experienced radio/TV technician for help.

    Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

    Industry Canada Statement

    CAN ICES-003(B) / NMB-003(B)

    CE Conformity for European Countries

    The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

    The following information is only for EU-member states:

    The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.
    WEEE Logo.gif

    Declaration of RoHS2 Compliance

    This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

    Substance Proposed Maximum Concentration Actual Concentration
    Lead (Pb) 0.1% < 0.1%
    Mercury (Hg) 0.1% < 0.1%
    Cadmium (Cd) 0.01% < 0.01%
    Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
    Polybrominated biphenyls (PBB) 0.1% < 0.1%
    Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
    Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
    Butyl benzyl phthalate (BBP) 0.1% < 0.1%
    Dibutyl phthalate (DBP) 0.1% < 0.1%
    Diisobutyl phthalate (DIBP) 0.1% < 0.1%

    Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

    • Copper alloy containing up to 4% lead by weight.
    • Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
    • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
    • Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher.

    ENERGY STAR® Statement

    ENERGY STAR® is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency. Products that earn the ENERGY STAR® prevent greenhouse gas emissions by meeting strict energy efficiency criteria or requirements set by the U.S. Environmental Protection Agency.

    As an ENERGY STAR® Partner, ViewSonic is determined to meet the ENERGY STAR® Guidelines and mark all certified models with the ENERGY STAR® logo.

    The following logo appears on all ENERGY STAR®-certified models:

    Energy Star.jpg

    NOTE: The power management features significantly reduce energy consumption when the product is not in use. Power management allows the device to automatically enter a low power “sleep” mode after a defined period of inactivity. And the power management features also enter Sleep Mode or Off Mode within 5 minutes of being disconnected from a host computer. Please note any change in energy settings will increase energy consumption.

    Indian Restriction of Hazardous Substances

    Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

    Product Disposal at End of Product Life

    ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

    USA & Canada
    https://www.viewsonic.com/us/go-green-with-viewsonic

    Europe
    https://www.viewsonic.com/eu/environmental-social-governance/recycle

    Taiwan
    https://recycle.moenv.gov.tw

    For EU users, please contact us for any safety/accident issue experienced with this product:

    Icon Address.svg
    ViewSonic Europe Limited
    Haaksbergweg 75
    1101 BR Amsterdam
    Netherlands
    Icon Phone.svg
    +31 (0) 650608655
    Icon Email.svg
    EPREL@viewsoniceurope.com
    Icon URL.svg
    https://www.viewsonic.com/eu/

    Copyright Information

    Copyright© ViewSonic® Corporation, 2023. All rights reserved.

    Macintosh and Power Macintosh are registered trademarks of Apple Inc.

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

    ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation.

    VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

    ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

    As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

    Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

    In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

    No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

    IFP33_UG_ENG_1b_20230928

    Customer Service Contact Information

    For technical support or product service, see the table below or contact your reseller.

    Note: You will need the product’s serial number, which is located on the rear of the monitor by the I/O ports.

    Asia Pacific & Africa

    Country / Region Website
    Australia https://viewsonic.com/au/
    Bangladesh https://www.viewsonic.com/bd/
    中囯(China) https://www.viewsonic.com.cn
    香港 (繁體中文) https://www.viewsonic.com/hk/
    Hong Kong (English) https://www.viewsonic.com/hk-en/
    India https://www.viewsonic.com/in/
    Indonesia https://www.viewsonic.com/id/
    Israel https://www.viewsonic.com/il/
    日本 (Japan) https://www.viewsonic.com/jp/
    Korea https://www.viewsonic.com/kr/
    Malaysia https://www.viewsonic.com/my/
    Middle East https://www.viewsonic.com/me/
    Myanmar https://www.viewsonic.com/mm/
    Nepal https://www.viewsonic.com/np/
    New Zealand https://www.viewsonic.com/nz/
    Pakistan https://www.viewsonic.com/pk/
    Philippines https://www.viewsonic.com/ph/
    Singapore https://www.viewsonic.com/sg/
    臺灣 (Taiwan) https://www.viewsonic.com/tw/
    ประเทศไทย (Thailand) https://www.viewsonic.com/th/
    Việt Nam https://www.viewsonic.com/vn/
    South Africa & Mauritius https://www.viewsonic.com/za/

    Americas

    Country / Region Website
    United States https://www.viewsonic.com/us/
    Canada https://www.viewsonic.com/us/
    Latin America https://www.viewsonic.com/la/

    Europe

    Country / Region Website
    Europe https://www.viewsonic.com/eu/
    France https://www.viewsonic.com/fr/
    Deutschland https://www.viewsonic.com/de/
    Қазақстан https://www.viewsonic.com/kz/
    Россия https://www.viewsonic.com/ru/
    España https://www.viewsonic.com/es/
    Türkiye https://www.viewsonic.com/tr/
    Україна https://www.viewsonic.com/ua/
    United Kingdom https://www.viewsonic.com/uk/


    Limited Warranty

    ViewSonic® Smart White Board

    What the warranty covers:

    ViewSonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, and as your sole remedy, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components. The repair or replacement unit or parts or components will be covered by the balance of the time remaining on the customer’s original limited warranty and the warranty period will not be extended. ViewSonic® provides no warranty for any third-party software whether included with the product or installed by the customer, installation of any unauthorized hardware parts or components (e.g. Projector Lamps). (Please refer to: “What the warranty excludes and does not cover” section).

    Who the warranty protects:

    This warranty is valid only for the first consumer purchaser.

    What the warranty excludes and does not cover:

    • Any product on which the serial number has been defaced, modified, or removed.
    • Damage, deterioration, or malfunction resulting from:
      • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
      • Repair or attempted repair by anyone not authorized by ViewSonic®.
      • Damage to or loss of any programs, data, or removable storage media.
      • Normal wear and tear.
      • Removal or installation of the product.
    • Software or data loss occurring during repair or replacement.
    • Any damage of the product due to shipment.
    • Causes external to the product, such as electric power fluctuations or failure.
    • Use of supplies or parts not meeting ViewSonic’s specifications.
    • Failure of owner to perform periodic product maintenance as stated in the User Guide.
    • Any other cause which does not relate to a product defect.
    • Damage caused by static (non-moving) images displayed for lengthy periods of time (also referred to as image burn-in).
    • Software - Any third-party software included with the product or installed by the customer.
    • Hardware/Accessories/Parts/Components – Installation of any unauthorized hardware, accessories, consumable parts or components (e.g. Projector Lamps).
    • Damage to, or abuse of, the coating on the surface of the display through inappropriate cleaning as described in the product User Guide.
    • Removal, installation, and set-up service charges, including wall-mounting of the product.

    How to get service:

    • For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number.
    • To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
    • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.
    • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

    Limitation of implied warranties:

    There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

    Exclusion of damages:

    ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

    • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
    • Any other damages, whether incidental, consequential or otherwise.
    • Any claim against the customer by any other party.
    • Repair or attempted repair by anyone not authorized by ViewSonic®.

    Effect of state law:

    This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

    Sales outside the U.S.A. and Canada:

    For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer.

    The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

    For users in Europe and Russia, full details of warranty provided can be found at: http://www.viewsonic.com/eu/ under “Support/Warranty Information”.

    Mexico Limited Warranty

    ViewSonic® Smart White Board

    What the warranty covers:

    ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

    Who the warranty protects:

    This warranty is valid only for the first consumer purchaser.

    What the warranty excludes and does not cover:

    • Any product on which the serial number has been defaced, modified or removed.
    • Damage, deterioration, or malfunction resulting from:
      • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
      • Causes external to the product, such as electrical power fluctuations or failure.
      • Use of supplies or parts not meeting ViewSonic®’s specifications.
      • Normal wear and tear.
      • Any other cause which does not relate to a product defect.
    • Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.
    • Removal, installation, insurance, and set-up service charges.

    How to get service:

    • For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.
    • To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
    • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center.
    • Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

    Limitation of implied warranties:

    There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

    Exclusion of damages:

    ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

    • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
    • Any other damages, whether incidental, consequential or otherwise.
    • Any claim against the customer by any other party.
    • Repair or attempted repair by anyone not authorized by ViewSonic®.
    Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

    Name, address, of manufacturer and importers:
    México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
    Col. San Fernando Huixquilucan, Estado de México
    Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

    NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

    Hermosillo:
    Distribuciones y Servicios Computacionales SA de CV.
    Calle Juarez 284 local 2
    Col. Bugambilias C.P: 83140
    Tel: 01-66-22-14-9005
    E-Mail: disc2@hmo.megared.net.mx

    Villahermosa:
    Compumantenimietnos Garantizados, S.A. de C.V.
    AV. GREGORIO MENDEZ #1504
    COL, FLORIDA C.P. 86040
    Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09
    E-Mail: compumantenimientos@prodigy.net.mx

    Puebla, Pue. (Matriz):
    RENTA Y DATOS, S.A. DE C.V. Domicilio:
    29 SUR 721 COL. LA PAZ
    72160 PUEBLA, PUE.
    Tel: 01(52).222.891.55.77 CON 10 LINEAS
    E-Mail: datos@puebla.megared.net.mx

    Veracruz, Ver.:
    CONEXION Y DESARROLLO, S.A DE C.V. Av.
    Americas # 419
    ENTRE PINZÓN Y ALVARADO
    Fracc. Reforma C.P. 91919
    Tel: 01-22-91-00-31-67
    E-Mail: gacosta@qplus.com.mx

    Chihuahua:
    Soluciones Globales en Computación
    C. Magisterio # 3321 Col. Magisterial
    Chihuahua, Chih.
    Tel: 4136954
    E-Mail: Cefeo@soluglobales.com

    Cuernavaca:
    Compusupport de Cuernavaca SA de CV
    Francisco Leyva # 178 Col. Miguel Hidalgo
    C.P. 62040, Cuernavaca Morelos
    Tel: 01 777 3180579 / 01 777 3124014
    E-Mail: aquevedo@compusupportcva.com

    Distrito Federal:
    QPLUS, S.A. de C.V.
    Av. Coyoacán 931
    Col. Del Valle 03100, México, D.F.
    Tel: 01(52)55-50-00-27-35
    E-Mail : gacosta@qplus.com.mx

    Guadalajara, Jal.:
    SERVICRECE, S.A. de C.V.
    Av. Niños Héroes # 2281
    Col. Arcos Sur, Sector Juárez
    44170, Guadalajara, Jalisco
    Tel: 01(52)33-36-15-15-43
    E-Mail: mmiranda@servicrece.com

    Guerrero Acapulco:
    GS Computación (Grupo Sesicomp)
    Progreso #6-A, Colo Centro
    39300 Acapulco, Guerrero
    Tel: 744-48-32627

    Monterrey:
    Global Product Services
    Mar Caribe # 1987, Esquina con Golfo Pérsico
    Fracc. Bernardo Reyes, CP 64280
    Monterrey N.L. México
    Tel: 8129-5103
    E-Mail: aydeem@gps1.com.mx

    MERIDA:
    ELECTROSER
    Av Reforma No. 403Gx39 y 41
    Mérida, Yucatán, México CP97000
    Tel: (52) 999-925-1916
    E-Mail: rrrb@sureste.com

    Oaxaca, Oax.:
    CENTRO DE DISTRIBUCION Y
    SERVICIO, S.A. de C.V.
    Murguía # 708 P.A., Col. Centro, 68000, Oaxaca
    Tel: 01(52)95-15-15-22-22
    Fax: 01(52)95-15-13-67-00
    E-Mail. gpotai2001@hotmail.com

    Tijuana:
    STD
    Av Ferrocarril Sonora #3780 L-C
    Col 20 de Noviembr
    Tijuana, Mexico

    FOR USA SUPPORT:
    ViewSonic® Corporation
    381 Brea Canyon Road, Walnut, CA. 91789 USA
    Tel: 800-688-6688
    http://www.viewsonic.com

    Using the ViewBoard Safely

    Please read the following Safety Precautions before you start using the device.

    • Keep this user guide in a safe place for later reference.
    • Read all warnings and follow all instructions.
    • Do not use the device near water. To reduce the risk of fire or electric shock, do not expose the device to moisture.
    • Never remove the rear cover. This display contains high-voltage parts. You may be seriously injured if you touch them.
    • Avoid exposing the device to direct sunlight or other sources of sustained heat.
    • Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the device to dangerous levels.
    • Use a soft, dry cloth to clean the external housing.
    • When moving the device, be careful not to drop or bump the device on anything.
    • Do not place the device on an uneven or unstable surface. The device may fall over resulting in an injury or a malfunction.
    • Do not place any heavy objects on the device or connection cables.
    • If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device.
    • The device is a monitor with an LED backlight intended for general office use.
    • Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.
    • When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.
    • Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the equipment. Ensure that the power outlet is located near the equipment so that it is easily accessible.
    • Only use attachments/accessories specified by the manufacturer.
    • When a cart is used, use with caution when moving the cart/equipment combination to avoid injury from tipping over.
    • Disconnect the power plug from the AC outlet if the device is not being used for a long period of time.
    • Place the device in a well-ventilated area. Do not place anything on the device that prevents heat dissipation.
    ViewBoard Ventilation.png
    • Refer all servicing to qualified service personnel. Service will be required when the unit has been damaged in any way, such as:
      • if the power supply cord or plug is damaged
      • if liquid is spilled onto or objects fall in the unit
      • if the unit is exposed to moisture
      • if the unit does not operate normally or has been dropped

    IMPORTANT

    To ensure the optimal performance and longevity of your display, it is essential to follow the recommended handling, mounting, and storage procedures. Placing the display in a horizontal position can lead to a range of potential issues, including:

    • Excessive stress on the display's structural components, resulting in the formation of cracks or distortions along the edges.
    • Uneven weight distribution, which can cause the screen to warp, sustain internal damage, or crack over time.
    • Thermal-related damage, as the internal components may not be able to dissipate heat as intended, leading to potential failure or permanent damage.

    Furthermore, altering the display's form can also compromise the integrity of its internal components, including the sensitive LCD cells, which can result in a permanent degradation of the display's quality.

    To prevent such issues and maintain the display's optimal condition, it is recommended to always mount, handle, transport, and store it in a vertical position. Failure to do so may void the warranty and compromise the display's performance and lifespan.

    Note: Any damage resulting from the misuse or improper handling of the display is not covered under warranty.

    CAUTION

    Immediately unplug your device from the wall outlet and refer servicing to a qualified service personnel under the following conditions:

    • When the power supply cord or plug is damaged.
    • If liquid has been spilled onto or objects have fallen into the unit.
    • If the unit has been exposed to moisture.
    • If the unit does not operate normally or has been dropped.

    Never place the device in an unstable location. The device may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

    • Using cabinets or stands recommended by the manufacturer of the device.
    • Only using furniture that can safely support the device.
    • Ensuring the device is not overhanging the edge of the supporting furniture.
    • Not placing the device on tall furniture (e.g., cupboards or bookcases) without anchoring both the furniture and the device to a suitable support.
    • Not placing the device on cloth or other materials that may be located between the device and supporting furniture.
    • Educating children about the dangers of climbing on furniture to reach the device or its controls.

    If the existing device is going to be retained and relocated, the same considerations as above should be applied.

    Troubleshooting Common Problems

    General

    Why doesn't the remote control work?

    Solution 1 Check whether something is obstructing the display’s remote control receiver.

    Solution 2 Check whether the batteries in the remote control are installed correctly.

    Solution 3 Check whether the batteries need to be replaced.

    Why is the ViewBoard turning off unexpectedly?

    Solution 1 Check whether Sleep mode is enabled.

    Solution 2 Check if there is a power outage in your area.

    Solution 3 Turn on the display and see if the problem is with the signal and control system.

    PC Mode

    There is no signal from my PC.

    Solution 1 Check the display settings.

    Solution 2 Check the display resolution.

    Solution 3 Adjust the Hs &Vs (synchronization) settings using the OSD menu.

    Why is there line streaking in the background?

    Solution 1 Choose auto adjust.

    Solution 2 Adjust clock and phase.

    The ViewBoard is displaying an inaccurate color.

    Solution 1 Check the VGA connection.

    Solution 2 Adjust the chroma, brightness, and contrast settings.

    An "Unsupported Format" error is being shown.

    Solution 1 Choose auto adjust.

    Solution 2 Adjust clock and phase settings.

    Touch Function

    The touch function isn't responding.

    Solution 1 Check that drivers are installed correctly.

    Solution 2 Reinstall driver(s).

    Solution 3 Check setup and align it.

    Solution 4 Check whether the touch pen is working properly.

    Video Not Working Properly

    Why is there no picture and/or no sound?

    Solution 1 Check the Power status.

    Solution 2 Check the signal cable.

    Solution 3 Check that the internal PC is installed correctly.

    The picture is unclear and/or cutting in and out.

    Solution 1 Check the signal cable.

    Solution 2 Check if other electronics are interrupting the signal.

    Why is the picture quality poor?

    Solution 1 Adjust chroma, brightness, and contrast settings in the menu.

    Solution 2 Check the signal cable.

    Audio Not Working Properly

    Why is there no sound?

    Solution 1 Press the Mute/Unmute button.

    Solution 2 Adjust the volume.

    Solution 3 Check the audio cable.

    Sound is only coming out from one speaker.

    Solution 1 Adjust the sound balance in the menu.

    Solution 2 Check the sound control panel settings of the computer.

    Solution 3 Check the audio cable.
    NOTE: SPDIF and Audio Out only work in the Embedded Player, HDMI, and DisplayPort (DP) channels.

    Maintaining the ViewBoard

    General Precautions

    • Make sure the device is turned off and the power cable is unplugged from the power outlet.
    • Never spray or pour any liquid directly onto the screen or case.
    • Handle the device with care, as a darker-colored device, if scuffed, may show marks more clearly than a lighter-colored device.
    • Do not use the system continuously for long periods of time.

    Cleaning the Screen

    • Use a clean, soft, lint-free cloth and gently wipe down your screen to remove dust and other particles.
    • If the screen is still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth; then wipe the screen.

    Cleaning the Case

    • Use a clean, soft, lint-free cloth and gently wipe down the case to remove dust and other particles.
    • If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

    Disclaimer

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the device.
    • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
    Important: If condensation appears between the glass and the panel, keep the display turned on until the moisture disappears.

    Warning: Display title "IFP8633" overrides earlier display title "IFP8633 Pre-installed Applications".
