Introduction

What is ColorPro™ Integrate?

ColorPro™ Integrate is a software for select VP monitors. It offers several convenient software integration functions for creators.

Some key features are:

  • Adobe Photoshop software integration
  • Adobe Premiere software integration
  • Capture One software integration

Monitor Support

  • VP2776
  • VP2786-4K

System Requirements

Operating System:

  • Windows 10 32/64, 11
  • macOS X 10.10 or higher/Mojave (10.14); macOS Catalina (10.15); macOS Monterey (12.4); macOS Ventura (13.1)

Initial Setup

Where to Get ColorPro™ Integrate

ColorPro™ Integrate can be downloaded from the ViewSonic website at: https://www.viewsonic.com/colorpro/support/software/

After the download completes, launch the setup files and follow the on-screen directions to install the software.

Connecting the ColorPro™ Wheel

The ColorPro™ Wheel should be connected directly to a monitor.

Note: The ColorPro™ Wheel is required to use ColorPro™ Integrate.

Monitor

Connect the USB Type A and Micro USB cable of the ColorPro™ Wheel to the USB Type A and Micro USB port of the monitor.

Note: Monitor connection is supported by the VP2776 and VP2786-4K monitors.
Rear of the monitor with the ColorPro Wheel's USB Type A and Micro USB cables plugged into the matching ports.

Using ColorPro™ Integrate

This section will describe the general use and operation of the application.

Start Page

The Start Page will open when the application is initially launched. On the left-hand side, several

The ColorPro Integrate Start Page with Discover, Feature, Photoshop, Premiere, and Capture One in the sidebar and news tiles on the right.

Discover

Find the latest news and highlights from ColorPro™.

The Discover page with ColorPro news and article tiles.

Feature

Follow the on-screen directions to ensure the ColorPro™ Wheel is connected and used correctly.

The Feature page, Discover the new world with Wheel, showing the ColorPro Wheel and a Before starting section.

Before Starting

The ColorPro™ Wheel cannot only be used for color calibration, but can also integrate with several types of creative software. Software integration can help improve your workflow efficiency.

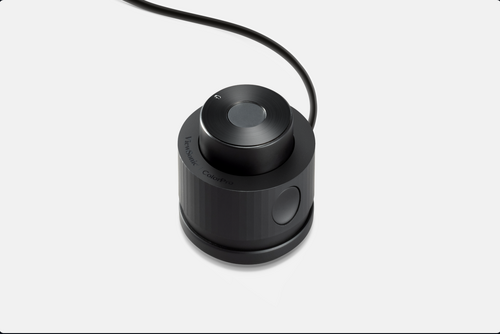

The ColorPro Wheel.

Please visit ColorPro.com to check the latest software supported list. Also, before starting, please make sure the USB Type A and Micro USB cables are connected to the monitor.

Control Overview

The function of each button will vary depending on the integrated software.

The ColorPro Wheel with callouts for the Top button (1), Dial (2), Side button (3), and Lens cap (4).

Position Your Hand for the Best Experience

It is recommend to use the ColorPro™ Wheel as follows:

  • Use your left hand to operate the Wheel.
  • Press the Top Button with your index finger.
  • Turn the Dial with your thumb and index finger.
  • Press the Side Button with your thumb.
A left hand on the ColorPro Wheel, with the index finger on the top button and the thumb on the side.

Last Step Before You Start

Protect the Lens with the Lens Cover and improve the stability of the ColorPro™ Wheel.

The ColorPro Wheel with the lens cap fitted on the bottom.

ColorPro™ Integrate Control Menu

After launching the ColorPro™ Integrate program the Control Menu will be available with ColorPro Integrate, Software, Contact Support, Update, and Quit options.

The ColorPro Integrate Control Menu on macOS (left) and Windows (right), with the ColorPro Integrate toggle, Software, Contact Support, Update, and Quit.
Control Menu options.
Menu Option Description
ColorPro Integrate Enable/disable ColorPro™ Integrate.
Software See which software is currently using ColorPro™ Integrate.
Contact Support Contact ViewSonic’s Online Support Center.
Update Check for software updates.
Quit Exit ColorPro™ Integrate.

Software Integration

Adobe Photoshop

Photoshop Integration can utilize the ColorPro™ Wheel as a quick access tool to control tools in the software.

  1. Use the Side Button to cycle between the Eraser, Stamp, Healing ,and Brush tool.
    A hand pressing the side button of the ColorPro Wheel beside the Photoshop toolbar.
  2. Use the Top Button to choose sub-functions in the designated toolbox, such as Clone in the Stamp tool.

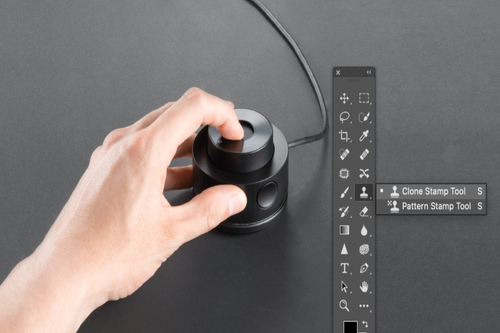

    A hand pressing the top button, with the Clone Stamp sub-tools shown in Photoshop.
  3. When adjusting parameters, move the mouse anchor to the target and click it, then use the Dial to increase or decrease the parameter.
    A hand turning the dial beside the Photoshop brush settings panel.
  4. Activate Photoshop integration in the status bar.
    The ColorPro Integrate menu open from the Windows taskbar.

Adobe Premiere

Premiere integration can utilize the ColorPro™ Wheel as a quick access tool to control the Razor tool, Zoom in/out, and the Ripple trim tool.

  1. Use the Dial to move through the timeline.
    A hand turning the dial beside the Premiere timeline.
  2. Use the Side Button to cycle between the Ripple trim, Razor, Rolling edit, and Zoom tools.

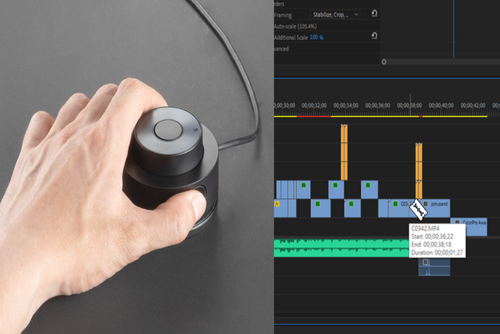

    A hand pressing the side button beside the Premiere timeline.
  3. Use the Top Button to choose sub-functions in the designated toolbox.
    A hand pressing the top button beside a Premiere menu.
  4. Activate Premiere integration in the status bar.
    The ColorPro Integrate menu open from the Windows taskbar.

Capture One

Capture One Integration can utilize the ColorPro™ Wheel to control and navigate the interface.

  1. Use the Dial to increase/decrease the value after moving and clicking the mouse anchor on the item you would like to adjust.
    A hand turning the dial beside the Capture One Lens Correction panel.
  2. Tools are divided into tool tabs for different categories of tools (e.g., Lens tab, Camera tab, etc.). Use the Side Button to navigate between each tool tab.

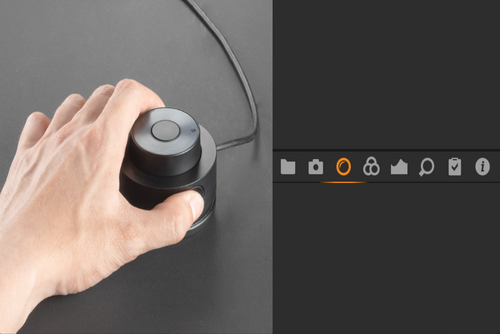

    A hand pressing the side button beside the Capture One tool tabs.
  3. Each tool tab contains a different sub-tool. Use the Top Button to cycle between each sub-tool.
    A hand pressing the top button beside the Capture One sub-tools.
  4. Activate Capture One integration in the status bar.
    The ColorPro Integrate menu open from the Windows taskbar.

Version
ColorPro_Integrate_UG_ENG_1a_20230519
