CDE6512 Introduction

    From ViewSonic User Guide Database

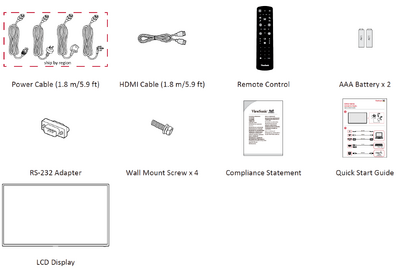

    Package Contents

    1. HDMI Cable (1.8 m/5.9 ft)
    2. Power Cable (1.8 m/5.9 ft)
    3. Remote Control
    4. AAA Battery x 2
    5. Compliance Statement
    6. Quick Start Guide
    7. RS-232 Adapter
    8. Wall Mount Screw x 4
    9. LCD Display
    CDE12 Package Contents.png

    Wall Mount Kit Specifications (VESA)

    Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.

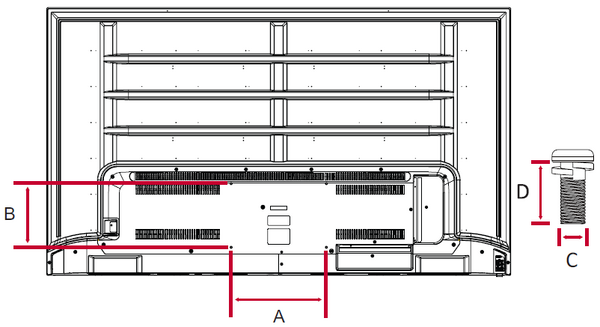

    Wall Mount Kit Specifications
    Model VESA Spec. (A x B) Standard Screw (C x D) Quantity
    CDE6512 300 x 200 mm M6 x 10 mm 4
    Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.

    Product Overview

    Front Panel

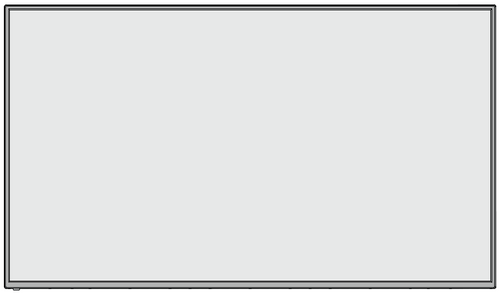

    CDE6512 Front Panel

    Rear Panel

    CDE6512 Rear Panel

    Control Panel

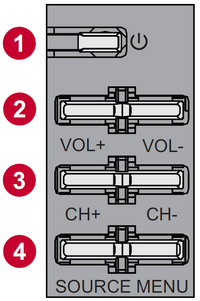

    CDE6512 Control Panel
    Number Button Description
    1 Power
    • Press to turn ON/OFF the display.
    2 Volume
    • In the OSD menu, press the VOL+/VOL- key to adjust the value of the selected item.
    • Adjust the volume level.
    3 Channel
    • Press the SOURCE key to enter the input source menu, and press CH+/CH- to select the signal source.
    • Press the CH+/CH- key to select an item in the OSD menu.
    4 Source/Menu
    • Press the MENU key to enter the main menu.
    • Press the SOURCE key to confirm the operation under the OSD menu operations.
    • Confirm the operation in the input source menu.

    I/O Panels

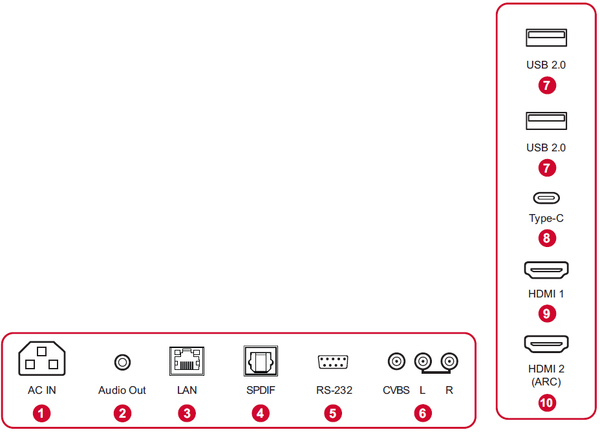

    CDE6512 I/O Panel
    Number Port Description
    1 AC IN AC power input.
    2 Audio Out Audio output to an external speaker.
    3 LAN Standard RJ45 (10M/100M) Internet connection interface.
    4 SPDIF Multichannel sound via optical signals.
    5 RS-232 Serial interface; used for mutual transfer of data between devices.
    6 Audio/Video Audio and video input; connect with a media device.
    7 USB 2.0 Connect USB devices such as hard disks, keyboard, mouse, etc. (Output rating: 5Vdc/500mA).
    8 USB Type-C USB Type-C input; connect to a PC with USB Type-C output. (Output rating: 5Vdc/3.0A).
    9 HDMI 1 High definition input; connect to a PC with HDMI output, set-top box, or other video device.
    10 HDMI 2 (ARC) High definition input; connect to a PC with HDMI output, set-top box, or other video device.
