CDE4330 Introduction

Package Contents


Power Cable (3m/9.84 ft)	HDMI Cable (3m/9.84 ft)	Remote Control	AAA Battery x 2

RS-232 Adapter	Wall Mount Screw x 4	Compliance Statement	Quick Start Guide

LCD Display	USB-C Cable (1.8m/5.9 ft)

Note: The cables included in your package may vary depending on your country. Please contact your local reseller for more information.

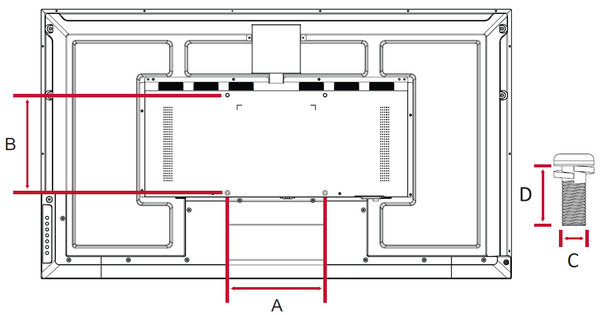

Wall Mount Kit Specifications (VESA)

Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.

Model	VESA Spec. (A x B)	Standard Screw (C x D)	Quantity
CDE4330	200 x 200 mm	M6 x 12 mm	4

Important:

Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.
Only mount the display in landscape orientation. Never mount in a portrait orientation.

Product Overview

Front Panel

Rear Panel

Control Panel

Number	Button	Description
1	Left / Volume Increase	Increase the volume level. In the OSD Menu, press to adjust the value of the selected item.
2	Right / Volume Decrease	Decrease the volume level. In the OSD Menu, press to adjust the value of the selected item.
3	Up	In the OSD Menu, press to select an item.
4	Down	In the OSD Menu, press to select an item.
5	Input	Press the INPUT key to enter the input source menu, and press the Arrow keys to select the signal source. Confirm an operation under the MENU key operations.
6	Menu	Press the MENU key to enter the main menu. Confirm the operation in the input source menu.
7	Power	Press to turn On/Off the display.

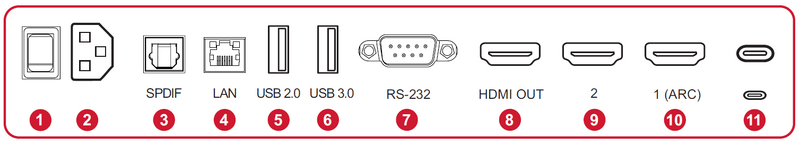

I/O Panel

Number	Port	Description
1	Power Switch	Turn the device On/Off.
2	AC IN	AC power input.
3	SPDIF	Multichannel sound via optical signals.
4	LAN	Standard RJ45 (10M/100M/1G) Internet connection interface.
5	USB 2.0	Connect USB devices such as hard disks, keyboard, mouse, etc. (Output rating: 5Vdc/500mA)
6	USB 3.0	Connect USB devices such as hard disks, keyboard, mouse, etc. (Output rating: 5Vdc/900mA)
7	RS-232	Serial interface; used for mutual transfer of data between devices.
8	HDMI OUT	Extend content out to another display device.
9	HDMI 2	High definition input; connect to a PC with HDMI output, set-top box, or other video device.
10	HDMI 1 (ARC)	High definition input; connect to a PC with HDMI output, set-top box, or other video device.
11	USB Type C	USB Type C input; connect to a PC with USB Type C output. (Output rating: 20Vdc/3.25A).
