Package Contents
- HDMI Cable (1.8 m/5.9 ft)
- Power Cable (1.8 m/5.9 ft)
- Remote Control
- AAA Battery x 2
- Compliance Statement
- Quick Start Guide
- RS-232 Adapter
- Wall Mount Screw x 4
- LCD Display
|
|
Note: The cables included in your package may vary depending on your country. Please contact your local reseller for more information.

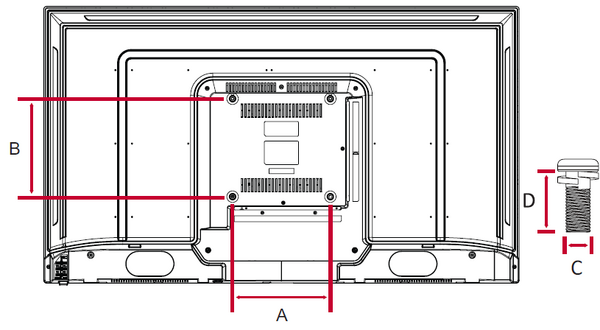

Wall Mount Kit Specifications (VESA)
Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.
| Model
|
VESA Spec. (A x B)
|
Standard Screw (C x D)
|
Quantity
|
| CDE4312
|
200 x 200 mm
|
M6 x 10 mm
|
4
|
Important:
- Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.
- Only mount the display in landscape orientation. Never mount in a portrait orientation.
Product Overview

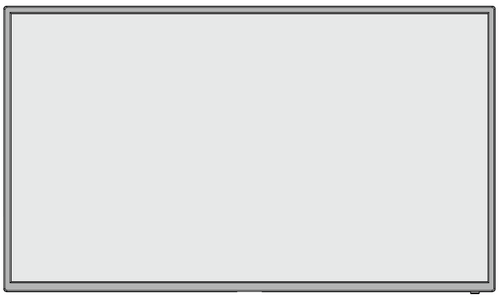

Front Panel
Rear Panel
Control Panel
| Number
|
Button
|
Description
|
| 1
|
Power
|
- Press to turn ON/OFF the display.
|
| 2
|
Volume
|
- In the OSD menu, press the VOL+/VOL- key to adjust the value of the selected item.
- Adjust the volume level.
|
| 3
|
Channel
|
- Press the SOURCE key to enter the input source menu, and press CH+/CH- to select the signal source.
- Press the CH+/CH- key to select an item in the OSD menu.
|
| 4
|
Source/Menu
|
- Press the MENU key to enter the main menu.
- Press the SOURCE key to confirm the operation under the OSD menu operations.
- Confirm the operation in the input source menu.
|
I/O Panels
| Number
|
Port
|
Description
|
| 1
|
AC IN
|
AC power input.
|
| 2
|
Audio Out
|
Audio output to an external speaker.
|
| 3
|
LAN
|
Standard RJ45 (10M/100M) Internet connection interface.
|
| 4
|
SPDIF
|
Multichannel sound via optical signals.
|
| 5
|
RS-232
|
Serial interface; used for mutual transfer of data between devices.
|
| 6
|
Audio/Video
|
Audio and video input; connect with a media device.
|
| 7
|
USB 2.0
|
Connect USB devices such as hard disks, keyboard, mouse, etc. (Output rating: 5Vdc/500mA).
|
| 8
|
USB Type-C
|
USB Type-C input; connect to a PC with USB Type-C output. (Output rating: 5Vdc/3.0A).
|
| 9
|
HDMI 1
|
High definition input; connect to a PC with HDMI output, set-top box, or other video device.
|
| 10
|
HDMI 2 (ARC)
|
High definition input; connect to a PC with HDMI output, set-top box, or other video device.
|
