LDP216-251 Pre-installed Applications

Package Contents

Item		Quantity	Note
Cabinet Sections		8 sections total
System Control Box (Left and Right sides)		2 sides
Quick Start Guide		1
LED Modules		128 modules	The quantity of spare LED modules will vary by country.
Remote Control		1
Screws		48 x M6x50mm Expansion (1) 48 x TA6x30mm (2) 32 x M6x10mm (3) 18 x KM3x6mm (4)
Hex Tool		2	1 x 5 mm 1 x 8 mm
System Control Box Covers (Left, Middle, and Right sides)		3
Wall Mounting Brackets		4
Vacuum Suction Tool		1
Anti-Static Glove		2 pairs
LAN Cable (5m)		1
IR Extender (3m)		1
Power Cord		2	Power consumption is large, so two power cords and two dedicated power outlets are required.
Bag with LEDs		1 bag (1,000 pieces)	Replacement LED beads specific to module batch number. Cannot be used on different LED module batch(es).

NOTE:

• This product is packed in an air transport box.
• Due to the size and weight, it is recommended that two or more people handle it.

Product Overview

Front Panel

Rear Panel

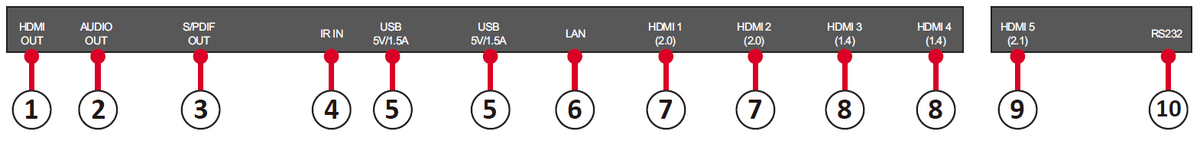

I/O Ports

Number	Port	Description
1	HDMI OUT	Extend content out to another display device.
2	Audio OUT	Audio output to an external speaker.
3	S/PDIF Out	Multichannel sound via optical signals.
4	IR IN	Extend the IR Receiver.
5	USB 2.0	USB Reader (5V/1.5A).
6	LAN	Standard RJ45 (10M/100M/1000M) Internet connection interface.
7	HDMI IN 2.0	High definition input: PIP/PBP ,connect to PC with HDMI output, set-top box, or other video device.
8	HDMI IN 1.4	High definition input: PIP/PBP ,connect to PC with HDMI output, set-top box, or other video device.
9	HDMI IN 2.1	High definition input: connect to PC with HDMI output, set-top box, or other video device.
10	RS-232	Serial control port.

Control Panel

Number	Port	Description
1	USB C	USB-C Reader (5V/2A)
2	USB 2.0	USB Reader (5V/1.5A)
3	IR Receiver	Receiver for the Remote Control.
4	Brightness	Press to cycle through brightness levels.
5	Volume +	Increase the volume.
6	Volume -	Decrease the volume.
7	Input Select	Press to cycle through available input sources.
8	Stand-by	Press to enter Stand-by mode.

Locking the Control Panel

When the administrator does not want others to use the control panel, it can be locked by pressing 1168+OK on the remote control.

Remote Control Overview

Remote Control

Number	Description
1	Power On/Off
2	Back to Home Screen
3	Input source selection
4	Change to HDMI 1/2 input source
5	Switch to a blank, black screen
6	Adjust the brightness level
7	Directional buttons
8	Confirm the selection
9	Enter the Information page
10	Enter the Settings menu
11	Return to previous
12	Play/Pause content
13	Move content forwards/backwards
14	Increase/decrease the volume level
15	Numeric input buttons
16	Input key for a dot (.)
17	Delete key for text input
18	Mute/Unmute

Remote Control Receiver Range

The operating range of the remote control is shown here. It has an effective range of 20 feet (6 meters), 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

Inserting Remote Control Batteries

The remote control is powered by two 1.5v "AAA" batteries.

To insert batteries into the remote control:

1. Remove the cover on the rear of the remote control.
2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.

Warning: There is a risk of explosion if batteries are installed with incorrect polarity.

NOTE:

• It is recommended that you do not mix battery types.
• Avoid exposure to heat or steam.
• Do not allow water or other liquids to splash on the remote control. If the remote control becomes wet, wipe it dry immediately.
• Always dispose of old batteries in an environmentally friendly way. Contact your local government for more information on how to dispose of batteries safely.

Locking the Remote Control

When the administrator does not want others to control the remote control, it can be locked by pressing 1169+OK on the remote control.

Before Installation

1. Maintain an adequate air gap between the back of the display and any wall for proper ventilation.
2. Ensure there is no direct airflow from air conditioning or heating vents blowing on the display.
3. Avoid installing the display in places with high humidity.
4. Due to high power usage, always use power cords specifically designed for this product.

Wall Mounting

Installing the Upper and Lower Mounting Brackets

1. Ensure the wall area and size is an appropriate installation site.

NOTE: The height of the Upper Wall Mount Brackets must not be less than 129 ⁵⁹/₆₄" (3300 mm) from the ground.

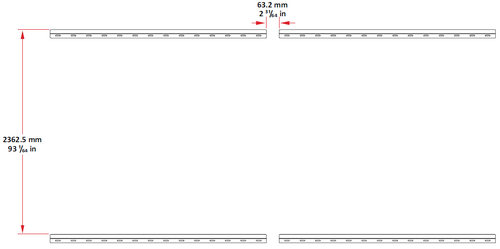

2. Using the Wall Mount Bracket (pictured above) as a guide, mark each of the holes and pre-drill each.
3. Install the first Upper Wall Mount Bracket with the provided screws (M6x50mm Expansion for masonry; TA6x30mm for load bearing wood).
4. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the first upper bracket.





5. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall Mount Brackets. The distance between the Upper and Lower Wall Mount Brackets is 93 ¹/₆₄" (2362.5 mm).






Ensure the wall can safely support 749.57 lbs. (340 kg).




Ensure the deviation of wall surface must be < ¹³/₆₄" (< 5 mm).

NOTE: You can also install the Upper Wall Mount Brackets, hang the screen, and then install the Lower Wall Mount Brackets for a more precise fit.

6. After installing both Upper and Lower Wall Mount Brackets, the installation wall should look like:

Installing the Cabinets

1. Ensure the Mounting Brackets on the rear of the eight (8) Cabinets are positioned at the top and bottom mounting positions as shown below:





2. Carefully lift each Cabinet up onto the Upper Wall Mount Brackets starting from the left.





3. Ensure the Mounting Brackets sit securely on the Wall Mount Brackets as shown below.





4. Push each Locking Bolt and lock each Hook with the hex tool to securely connect each cabinet together. It may be necessary to align the hole with the hex tool in order to engage the Locking Bolt.






NOTE: There are eight (8) Locking Bolts and 16 Hooks' between each cabinet.

5. Place the remaining Cabinets up onto the Upper Wall Mount Brackets. Install from left to right, ensuring the Mounting Brackets sit securely on the Wall Mount Brackets.
6. Repeat Step 4, securing the Cabinets together with each Locking Bolt and Hook.




NOTE: There are eight (8) Locking Bolts and 16 Hooks' between each cabinet.

Connecting the System Control Box

1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the right.

NOTE: Use caution as the System Control Box panel is separated into two pieces with wires attached.

2. Align the holes of the Cabinet with the System Control Box to attach.





3. You can also reroute the power cable at two positions for cable management. Loosen the two (2) PWM 4x6mm screws, pull the power cable out, thread the power cable through the hole and then fasten the screws tightly.





4. Further secure the System Control Box to the Cabinets with the 32 provided screws (M6x10mm).





5. Connect the Network and Power cables of the Cabinets to the System Control Box.

NOTE: There are four (4) Network and eight (8) Power cables to connect.

Installing the LED Modules

1. Install each LED Module onto the Cabinets, being sure to match the corresponding numbers on the Module to the Cabinet.

Please wear Anti-Static Gloves before installing the LED modules.




2. Ensure each Module is flush and that there is little to no gap between each. It may be necessary to gently tap the module to make it flush.

Installing System Control Box Covers

There are three (3) System Control Box Covers: Left, Middle, and Right.

1. Begin by installing the Right Cover onto the System Control Box.

NOTE: Ensure the Power Button cable is connected to the System Control Box Power cable before securing the Cover.

2. After connecting the Power Button cable, ensure the Right Cover is properly aligned with the System Control Box; then secure it with the 18 provided screws (KM3x6mm).

3. Repeat the above steps for the Middle and Left Cover.

4. Your display is now ready to power on.

NOTE: We also offer a variety of installation options for different scenarios: Portrait Mode, Detachable Control Box, and Dual-Screen Splicing (32:9).

Detachable System Control Box

The System Control Box can be installed under the Cabinets (standard installation) for front access, or behind the Cabinets.

Standard Installation	Hidden System Control Box Installation

NOTE:

• Standard Installation video.
• Follow the below guide to install the display with the Hidden System Control Box layout.

Wall Mounting

Installing the Upper and Lower Wall Mount Brackets

1. Ensure the wall area and size is an appropriate installation site.

NOTE: The height of the Upper Wall Mount Brackets must not be less than 129 ⁵⁹/₆₄" (3300 mm) from the ground.

2. Using the Wall Mount Bracket (pictured above) as a guide, mark at least 12 holes and pre-drill them.
3. Install the first Upper Wall Mount Bracket with the provided screws (M6x50mm Expansion for masonry; TA6x30mm for load bearing wood).
4. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the first upper bracket.

5. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall Mount Brackets. The distance between the Upper and Lower Wall Mount Brackets is 93 ¹/₆₄" (2362.5 mm).

NOTE: You can also install the Upper Wall Mount Brackets, hang the screen, and then install the Lower Wall Mount Brackets for a more precise fit.



Ensure the wall can safely support 749.57 lbs. (340 kg).

Ensure the deviation of the wall surface is < ¹³/₆₄" (< 5 mm).

6. After installing both Upper and Lower Wall Mount Brackets, the installation wall should look like:

Installing the Cabinets

1. Ensure the Mounting Brackets on the rear of the eight (8) Cabinets are positioned at the top and bottom mounting positions as shown below:

2. Carefully lift each Cabinet up onto the Upper Wall Mount Brackets, starting from the left.

3. Ensure the Mounting Brackets sit securely on the Wall Mount Brackets as shown below.

4. Push each Locking Bolt and lock each Hook with the hex tool to securely connect each cabinet together. It may be necessary to align the hole with an Allen wrench in order to engage the Locking Bolt.

NOTE: There are eight (8) Locking Bolts and 16 Hooks between each Cabinet.


5. Place the remaining Cabinets up onto the Upper Wall Mount Brackets. Install from left to right, ensuring the Mounting Brackets sit securely on the Wall Mount Brackets.
6. Repeat Step 4, securing the Cabinets together with each Locking Bolt and Hook.

NOTE: There are eight (8) Locking Bolts and 16 Hooks between each Cabinet.

Connecting the System Control Box (Hidden Installation)

1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the right.

NOTE: Use caution as the System Control Box panel is separated into two pieces with wires attached.

2. Install the left part of System Control Box using the M6x16mm screws behind the Cabinet.



3. Install the right part of the System Control Box using the M6x16mm screws behind the Cabinet.



4. Connect the Network and Power cables of the Cabinets to the System Control Box.

NOTE: There are four (4) Network and eight (8) Power cables to connect.

• Route the Power cable through the opening provided in the Cabinet and connect it to the power plug.



• Route the Network cable through the opening provided in the Cabinet into an “S-shape" and connect it to the network port.



5. Install the bezels from the bottom of the screen and use the M6x10mm screws to secure it to the Cabinet.

Installing the LED Modules

Please wear Anti-Static Gloves before handling the LED modules.

1. Install each LED Module onto the Cabinets, being sure to match the corresponding numbers on the Module to the Cabinet.

2. Ensure each Module is flush and that there is little to no gap between each. It may be necessary to gently tap the module to make it flush.

Dual-Screen Splicing

Two (2) DirectView LED Displays can be installed together to create one (1) large display.

Standard Installation

Hidden System Control Box Installation

NOTE: The System Control Boxes can be installed under the Cabinets (standard installation) for front access, or behind the Cabinets.

Wall Mounting

Installing the Upper and Lower Wall Mount Brackets

1. Ensure the wall area and size is an appropriate installation site.

NOTE: The height of the Upper Wall Mount Brackets must not be less than 129 ⁵⁹/₆₄" (3300 mm) from the ground.

2. Using the Wall Mount Bracket (pictured above) as a guide, mark at least 12 holes and pre-drill them.
3. Install the first Upper Wall Mount Bracket with the provided screws (M6x50mm Expansion for masonry; TA6x30mm for load bearing wood).
4. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the first upper bracket.

5. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall Mount Brackets. The distance between the Upper and Lower Wall Mount Brackets is 93 ¹/₆₄" (2362.5 mm).

NOTE: You can also install the Upper Wall Mount Brackets, hang the screen, and then install the Lower Wall Mount Brackets for a more precise fit.



Ensure the wall can safely support 749.57 lbs. (340 kg).

Ensure the deviation of the wall surface is < ¹³/₆₄" (< 5 mm).

6. Repeat Steps 1~5 for the second display. Keep a ⁴¹/₆₄" (16.35 mm) space between the first and second display's Wall Mount Brackets.
7. After installing both Upper and Lower Wall Mount Brackets of both displays, the installation wall should look like:

Installing the Cabinets

1. Ensure the Mounting Brackets on the rear of the eight (8) Cabinets are positioned at the top and bottom mounting positions as shown below:





2. Carefully lift each Cabinet up onto the Upper Wall Mount Brackets starting from the left.





3. Ensure the Mounting Brackets sit securely on the Wall Mount Brackets as shown below.





4. Push each Locking Bolt and lock each Hook with the hex tool to securely connect each cabinet together. It may be necessary to align the hole with the hex tool in order to engage the Locking Bolt.






NOTE: There are eight (8) Locking Bolts and 16 Hooks' between each cabinet.

5. Place the remaining Cabinets up onto the Upper Wall Mount Brackets. Install from left to right, ensuring the Mounting Brackets sit securely on the Wall Mount Brackets.
6. Repeat Step 4, securing the Cabinets together with each Locking Bolt and Hook.




NOTE: There are eight (8) Locking Bolts and 16 Hooks' between each cabinet.

7. Repeat Steps 1~6 for the second display.
8. After installing the Cabinets of both displays, the installation wall should look like:

Connecting the System Control Box (Standard Installation)

1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the right.

NOTE: Use caution as the System Control Box panel will be separated into two pieces, however the wires are connected.

2. Align the holes of the Cabinet with the System Control Box to attach.





3. You can also reroute the power cable at two positions for cable management. Loosen the two (2) PWM 4x6mm screws, pull the power cable out, thread the power cable through the hole and then fasten the screws tightly.





4. Further secure the System Control Box to the Cabinets with the 32 provided screws (M6x10mm).





5. Connect the Network and Power cables of the Cabinets to the System Control Box.

NOTE: There are four (4) Network and eight (8) Power cables to connect.




6. Repeat Steps 1~5 for the second display.
7. After installing the System Control Box of both displays, the installation wall should look like:

8. Connect one end of an HDMI cable to the HDMI OUT port of Display 2. Then, connect the other end of the cable to the HDMI IN port of Display 1.


NOTE: Route the HDMI cable as shown below:


9. Install the System Control Box Covers with the KM3x6mm screws from left to right (i.e., Display 1 left cover, Display 1 middle cover, Display 1 right cover, Display 2 left cover, etc.).

NOTE: See Installing System Control Box Covers for more information.

Connecting the System Control Box (Hidden Installation)

1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the right.

NOTE: Use caution as the System Control Box panel is separated into two pieces with wires attached.

2. Install the left part of System Control Box using the M6x16mm screws behind the Cabinet.



3. Install the right part of the System Control Box using the M6x16mm screws behind the Cabinet.



4. Connect the Network and Power cables of the Cabinets to the System Control Box.

NOTE: There are four (4) Network and eight (8) Power cables to connect.

• Route the Power cable through the opening provided in the Cabinet and connect it to the power plug.



• Route the Network cable through the opening provided in the Cabinet into an “S-shape" and connect it to the network port.



5. Repeat Steps 1~4 for the second display.
6. Install the bezels from the bottom of the screen and use the M6x10mm screws to secure it to the Cabinet.

Installing the LED Modules

1. Install each LED Module onto the Cabinets, being sure to match the corresponding numbers on the Module to the Cabinet.

Please wear Anti-Static Gloves before installing the LED modules.




2. Ensure each Module is flush and that there is little to no gap between each. It may be necessary to gently tap the module to make it flush.

3. After installing the LED Modules of both displays, the installation wall should look like:

Standard Installation

Hidden System Control Box Installation

Portrait Mode

The DirectView LED Display can be installed in either Landscape or Portrait orientation.

Landscape Installation

Portrait Installation

NOTE: The System Control Boxes can be installed under the Cabinets (standard installation) for front access, or behind the Cabinets.

Wall Mounting

Installing the Wall Mount Brackets

1. Ensure the wall area and size is an appropriate installation site.
2. Using the first Wall Mount Bracket, install the top Wall Mount Bracket with the provided screws (M6x50mm Expansion for masonry; TA6x30mm for load bearing wood).
3. Repeat Step 2, ensuring the second Wall Mount Bracket is level with the first Wall Mount Bracket. Keep a 47 ¹/₄" (1200 mm) space between the two brackets (as pictured above).
4. Install the remaining two Wall Mount Brackets in the same manner as the other two Wall Mount Brackets. The distance between the Wall Mount Brackets is 47 ¹/₄" (1200 mm) and 47 ¹/₄" (1200 mm) respectively.

Ensure the wall can safely support 749.57 lbs. (340 kg).

Ensure the deviation of the wall surface is < ¹³/₆₄" (< 5 mm).

Installing the Cabinets

1. A total of 16 Mounting Brackets will need to be mounted to Cabinets A, D, F, and H.

2. Using M10x20mm screws, attach four (4) Mounting Brackets to the bottom of Cabinet A.

3. Attach four (4) Mounting Brackets each to the top of Cabinets D, F, and H.

4. Carefully lift each Cabinet up onto the Wall Mount Brackets, starting from the bottom with Cabinet H.

NOTE: The Cabinet installation mentioned here applies to when the System Control Box is installed on the left side of the display.



NOTE: Cabinet letter installation will differ based on the preferred System Control Box installation (left or right side).



5. Ensure the Mounting Brackets sit securely on the Wall Mount Brackets as shown below.

6. Push each Locking Bolt and lock each Hook with the hex tool to securely connect each cabinet together. It may be necessary to align the hole with an Allen wrench in order to engage the Locking Bolt.

NOTE: There are eight (8) Locking Bolts and 16 Hooks between each cabinet.


7. Further secure the Cabinets together with M6x16mm screws.

8. Place the remaining Cabinets (F, E, D, C, B, and A) up onto the Wall Mount Brackets. Install from bottom to top, ensuring the Mounting Brackets sit securely on the Wall Mount Brackets.
9. Repeat Step 4, securing the Cabinets together with each Locking Bolt and Hook.

NOTE: There are eight (8) Locking Bolts and 16 Hooks between each cabinet.


10. Further secure the Cabinets together with M6x16mm screws.

11. After installing all the Cabinets, the installation wall should look like:

Connecting the System Control Box (Standard Installation)

1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the right.

NOTE: Use caution as the System Control Box panel is separated into two pieces with wires attached.

2. Starting from the bottom, align the holes of the Cabinet with the System Control Box to attach.

3. You can also reroute the power cable at two positions for cable management. Loosen the two (2) PWM 4x6mm screws, pull the power cable out, thread the power cable through the hole and then fasten the screws tightly.


Professional installation only.

4. Further secure the System Control Box to the Cabinets with the 20 provided M6x10mm screws.

5. Connect the Network and Power cables of the Cabinets to the System Control Box.

NOTE: There are four (4) Network and eight (8) Power cables to connect.


6. After installing the System Control Box, the installation wall should look like:

7. Install the System Control Box Covers with the KM3x6mm screws.

Connecting the System Control Box (Hidden Installation)

1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the right.

NOTE: Use caution as the System Control Box panel is separated into two pieces with wires attached.

2. Install the left and right part of System Control Box using the M6x16mm screws behind the Cabinet.


NOTE: The System Control Box can be installed on the left or right side behind the display.

3. Connect the Network and Power cables of the Cabinets to the System Control Box.

NOTE: There are four (4) Network and eight (8) Power cables to connect.

• Route the Power cable through the opening provided in the Cabinet and connect it to the power plug.



• Route the Network cable through the opening provided in the Cabinet into an “S-shape" and connect it to the network port.



4. Install the bezels from the bottom of the screen and use the M6x10mm screws to secure it to the Cabinet.

Installing the LED Modules

Please wear Anti-Static Gloves before handling the LED modules.

1. Install each LED Module onto the Cabinets from bottom left to right, being sure to match the corresponding numbers on the Module to the Cabinet.

NOTE: LED Module installation will vary depending on the location of the System Control Box.


2. Ensure each Module is flush and that there is little to no gap between each. It may be necessary to gently tap the Module to make it flush.
3. After installing the LED Modules, the installation wall should look like:


NOTE: The lowest Wall Mount Bracket can be removed for a cleaner installation.

Connecting to External Devices

HDMI IN Connection

Media Player Connection

Connect an HDMI cable from your external device to an HDMI IN port on the LED display.

PC Connection

Connect an HDMI cable from your PC to an HDMI IN port on the LED display.

Audio Connection

Connect an audio cable from your external audio device to the Audio Out port on the LED display.

HDbaseT Connection

Connect a CAT5e/6 cable from your external device to the HDbaseT device before installing the System Control Box Cover.

Video Output Connection

To output video via an external display device, connect an HDMI cable to the HDMI IN port of your external display device, and the other end to the HDMI OUT port of your LED display.

USB and Networking Connections

Just like any PC, it is easy to connect various USB devices and other peripherals to your LED display.

USB (Type A/Type C)

• USB Type A

Plug the USB device, cable, or storage drive into the USB Type A port.

• USB Type C

Plug the USB device, cable, or storage drive into the USB Type C port.

Networking and Modem Cables

Plug the network cable into the LAN port.

RS-232 Connection

When you use a RS-232 serial cable to connect your LED display to an external computer and control system certain functions can be controlled remotely such as: Power On/Off, Volume adjustment, Input select, Brightness, and more.

Power On/Off your LED Display

1. Ensure the power cord is connected and plugged into a power outlet.
2. Press the Power Switch to the ON position.
3. Press the Power button to turn on the LED display.
4. To turn the LED display off, press the Power button again.

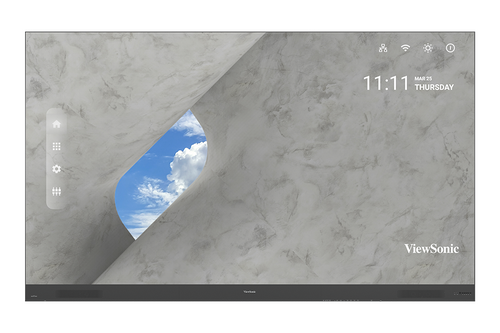

Home Screen

Number	Item	Description
1	Main Menu	Access the Home Screen, APP Center, Settings, and Input Source.
2	Time of Day Indicator	The sky will change over the day between morning, noon, afternoon, and night.
3	Quick Access	Quick access to LAN, Wi-Fi, Brightness, and Power. NOTE: Only supported by keyboard and mouse.
4	Date & Time	Automatic time adjustment, time zone selection, and 24-hour format can all be adjusted. The Date & Time can also be hidden from the Home Screen under: Settings > Display > Launcher Settings
5	ViewSonic Logo	The logo can be hidden from the Home Screen under: Settings > Display > Launcher Settings

Navigating the Home Screen

Remote Control
The remote control can be used to easily navigate the Home Screen. When using the remote control, ensure it is kept within the IR receiver range as shown below:

Keyboard and Mouse
When connected to the USB Type-A port of the display, a keyboard and mouse can also be used to navigate the Home Screen.

The mouse pointer will appear as an orange dot on the display when used:

• The left mouse button will confirm actions.
• The right mouse button will go back to the previous layer.
• Keyboard shortcuts and hot keys are also supported, including: audio adjustment, mute, and back to the Home Screen.

APP Center

NOTE: Preloaded applications are subject to change without a notice.

Icon	Name	Description
	Browser	Web browser
	Display	Wirelessly mirror your desktop
	EAirplay	AirPlay mirroring
	EnterpriseAgent	Device management
	File Manager	File explorer
	Manager	Remote device management
	Revel Digital Signage	Manage digital signage
	Settings	View and adjust the display’s settings
	SureMDM Nix	Secure, monitor, and manage devices
	WPS Office	Create documents, spreadsheets, and presentations
	vCastReceiver	Receive casted content from devices
	vSweeper	Clear up storage space

NOTE: Preloaded applications are subject to change without notice.

Input Source

The display supports eight input sources: Home, HDMI 1,HDMI 2, HDMI 3, HDMI 4, HDMI 5, HDBaseT, and USB C.

Settings

Adjust and view the display's settings.

•
•

Menu	Description
Network & Internet	View and adjust Wi-Fi, Ethernet, and Potable Hotspot.
Connected Devices	View and adjust Connected Devices.
Apps & Notifications	View and adjust App Info., App Permissions, and Default Apps.
Display	View and adjust Brightness Level, Ambient Light Sensor, Font Size, Startup & Shutdown, Input Setting, and Launcher Settings.
Sound	View and adjust Media Volume.
Storage	View and adjust Device Storage.
System	View and adjust Languages & Input, Date & Time, Dehumidification, Reset, and About Device.
Upgrade	View and adjust OTA Upgrade and Local Update.

Settings Menu Tree

Network & Internet

Sub-menu	Menu Option
Wi-Fi	Wi-Fi	On
		Off
	Wi-Fi List	Add Network
	Wi-Fi Preference	Open Network Notification	On
			Off
		Keep Wi-Fi On During Sleep
		Advanced
Ethernet	Ethernet IP Mode	DHCP
		STATIC
	Ethernet Details
Portable Hotspot	Portable Wi-Fi Hotspot	On
		Off

Connected Devices

Sub-menu	Menu Option
Connected Devices	On
	Off
Device Name	ViewSonic DvLED

Apps

Sub-menu	Menu Option
App Info.	Installed Apps	Disable
		Force Stop
App Permissions	Calendar
	Location
	Microphone
	Storage
Default Apps	Browser
	Home

Display

Sub-menu	Menu Option
Brightness Level	(-/+, 1~8)
Ambient Light Sensor	On
	Off
Font Size	(-/+, 1~4)
Dual-Screen Splicing	Enable	On
		Off
Startup & Shutdown	Splash Screen	Default
		ViewSonic
		Black
		Blue
	Last Shutdown Channel	On
		Off
	Default Startup Channel	Home
		HDMI 1
		HDMI 2
		HDMI 3
		HDMI 4
		HDMI 5
		USB C
		HDBaseT
		APP (Display)
		APP (vCastReceiver)
	Standby Mode	Hibernate
		Sleep
	Splash Screen	ViewSonic
		Black
		Blue
Input Setting	Input Alias	HDMI 1	Display
			Hide
		HDMI 2	Display
			Hide
		HDMI 3	Display
			Hide
		HDMI 4	Display
			Hide
		HDMI 5	Display
			Hide
		USB C	Display
			Hide
		HDBaseT	Display
			Hide
	Signal Source Detect	Enable
		Disable
Launcher Settings	ViewSonic Logo	On
		Off
	Date & Time	On
		Off
	Theme
Other Display Settings	Custom Resolution	Width
		Height
	Custom DPI	(-/+, 100~200)
	Custom Wallpaper
Boot Logo Settings

Sound

Sub-menu	Menu Option
Media Volume	(-/+, 0~100)

Storage

Sub-menu	Menu Option
Device Storage	Internal Shared Storage	Storage Manager	On
			Off
		Photos & Videos
		Music & Audio
		Games
		Movie & TV

System

Sub-menu	Menu Option
Language & Input	Languages	English
		French
		Spanish
		German
		Russian
		Dutch
		繁体中文
		简体中文
		Turkish
		Arabic
	Virtual Keyboard	Remote Control Input Method
		Manage Keyboards
Timer Setting	Shutdown Time	Repeat	Off
			Once
			Everyday
		Time
	Power On Time	Repeat	Off
			Once
			Everyday
		Time
	Sleep Timer	Off/1/10/20/30/40/50/60/90/120 minute(s)
	Power Saving	On
		Off
	Standby Mode	Hibernate
		Sleep
Date & Time	Automatic Date & Time	On
		Off
	Select Time Zone
	Use 24-hour Format
Dehumidification	Settings	On
		Off
	Automatic Reminders	On
		Off
	Begin Dehumidification Now	On
		Off
	Scheduled	On
		Off
Reset	Network Settings Reset
	Reset App Preferences
	Factory Data Reset
About Device	Status
	Legal Information
	Model
	Kernel Version
	Build Number
	Total Time

Upgrade

Sub-menu	Menu Option
OTA Upgrade	OTA Cloud Server
Local Update	sda1
	SDcard

Network & Internet

Sub-menu	Description
Wi-Fi	Select Wi-Fi to enter the Wi-Fi selection interface. Then select the desired Wi-Fi network and enter the password. You can select Add Network in the Wi-Fi selection screen to manually add a Wi-Fi network. Select Wi-Fi Preferences to view Wi-Fi usage preferences, Wi-Fi connection tips, etc.
Ethernet	Select Ethernet to enable/disable Ethernet, review DNS, and IP mode.
Portable Hotspot	Enable/disable Portable Wi-Fi Hotspot under Portable Hotspot.

Connected Devices

Enable/disable device connection, review connected devices, and search and connect to other devices.

Apps & Notifications

Sub-menu	Description
App Info.	Select App Info to view installed applications and their detailed information. You can also disable the app, review notifications and permissions, and adjust further settings.
App Permissions	Select App Permissions to manage various application permissions.
Default Apps	Select your default applications.

Display

Sub-menu	Description
Brightness Level	Adjust the brightness level by eight (8) levels.
Ambient Light Sensor	Detects ambient light and adjusts brightness levels automatically.
Font Size	Preview and adjust the font size on the display.
Dual-Screen Splicing	Enable Dual-Screen Splicing if installing two (2) DirectView LED Displays together.
Startup & Shutdown	Startup Channel Last Shutdown Channel: Start in the channel that was last used before the previous shutdown. Default Startup Channel: Select a specific startup channel (Home, HDMI 1/2/3/4/5, HDBaseT, USB C, APP(Display), APP(vCastReceiver)). Standby Mode Hibernate: Power off the screen only. Sleep: Power down the display to minimal power consumption (0.5W). Splash Screen Change the boot screen to black, blue, or the ViewSonic logo.
Input Setting	Input Alias Switch Display or hide the input source. Signal Source Detect Enable or disable HDMI input detection. U Disk Detect Enable or disable U Disk input detection.
Launcher Settings	ViewSonic Logo Display or hide the ViewSonic logo on the Home Screen. Date & Time Display or hide the date and time on the Home Screen. Theme Choose from seven (7) included themes for the Home Screen.
Other Display Settings	Adjust the Resolution, DPI, wallpaper and other display settings.

Sound

Sub-menu	Description
Media Volume	Adjust the volume level of the display.

Storage

Sub-menu	Description
Internal Shared Storage	Internal storage allocation.

System

Sub-menu	Description
Languages & Input	Languages Language selection. Virtual Keyboard Select your input method.
Timer Setting	Shutdown Time Repeat Select the time and frequency for shutting down the display. Power ON Time Repeat Select the time and frequency for powering ON the display. Sleep Timer Set the amount of time before entering sleep mode. Power Saving Select when to enable power saving mode. Standby Mode Choose between Hibernate and Sleep modes.
Date & Time	Automatic Date & Time Enable or disable automatic time adjustment. Select Time Zone Choose your appropriate time zone. Use 24-hour Format Enable or disable 24-hour time format.
Dehumidification	Start and adjust dehumidification settings.
Reset	Network Settings Reset Reset current network settings. Reset App Preferences Reset current app preferences Factory Data Reset Restore the display to default factory settings.
About Device	View information about the display.

Upgrade

Sub-menu

Description

OTA Upgrade

Auto Update Automatically apply updates as they become available or schedule the default update date and choose “Hibernate” as the Standby Mode, and the system will automatically update the schedule after shutdown. Manual Update Check Update: The system will check for the latest FW automatically. If a new FW version is found, confirm the new FW is needed and then manually run the update. Local Update: Plug in a USB drive with the FW update in .zip format and run the .zip file to update the FW.

On-Screen Display (OSD) Menu Operation

Use the On-Screen Display (OSD) Menu to adjust various settings.

NOTE: The OSD Menu is only available when there is an input source (e.g., HDMI).

To open and operate the OSD Menu:

1. Press the MENU button on the remote control.
2. Press ▼/▲/◄/► on the remote control to select menu items or adjust values.
3. Press OK to confirm your selection.
4. Press the RETURN button to go back to the previous menu level.
5. Press the MENU button to exit the OSD Menu.

On-Screen Display (OSD) Menu Tree

Sub-menu
User
TV
Movie
Presentation

Sub-menu	Menu Option
Aspect Ratio	Auto
	4:3
	16:9
	Native
Brightness	(-/+, 0~100)
Contrast	(-/+, 0~100)
Tint	(-/+, -50~50)
Saturation	(-/+, 0~100)
Sharpness	(-/+, 0~20)
Gamma	Dark
	Middle
	Bright
Color Temp	User
	Standard
	Cool
	Warm
Reset

Sub-menu	Menu Option
HDR	Auto
	SDR
EOTF	Dark
	Middle
	Bright
HDMI Setting	Auto
	Full
	Limited

Sub-menu	Menu Option
Audio Mode	User
	Standard
	Vivid
	Sports
	Movie
	Music
	News
	Auto
EQ_120Hz	(-/+, 0~100)
EQ_500Hz	(-/+, 0~100)
EQ_1.5KHz	(-/+, 0~100)
EQ_10KHz	(-/+, 0~100)
Reset
Audio Volume	(-/+, -50~50)
Mute	On
	Off

Sub-menu	Menu Option
Off
PIP	Sub Picture on Top Left
	Sub Picture on Top Right
	Sub Picture on Bottom Left
	Sub Picture on Bottom Right
PBP	Windows x 2
	Windows x 3
	Windows x 4

Sub-menu
Source
Resolution
HDR

On-Screen Display (OSD) Menu Options

Color Mode

1. Press MENU on the remote control to display the OSD Menu.
2. Then press OK or use ▼/▲/◄/► on the remote control to select the Color Mode menu.
3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu layer.

Menu Option	Description
Color Mode	Standard For normal indoor ambient light intensity. User Custom user setting. TV Set the color temperature to 9300K. Movie Set the color temperature to 6500K. Presentation Set the color temperature to 7500K.

Display Mode

1. Press MENU on the remote control to display the OSD Menu.
2. Then press OK or use ▼/▲/◄/► on the remote control to select the Display Mode menu.
3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu layer.

Menu Option	Description
Aspect Ratio	The Aspect Ratio is the ratio of the image width to the image height. Auto Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio. 4:3 Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration. 16:9 Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV. Native Default aspect ratio.
Brightness	The higher the value, the brighter the image. Lower values will result in a darker image.
Contrast	Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
Tint	The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
Saturation	Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
Sharpness	A high value results in a sharper picture; a low value softens the picture.
Gamma	Manually adjust the brightness level of the monitor’s grayscale levels.
Color Temp	Manually adjust the red, green, and blue values.
Reset	Return the Display Mode settings to their default values.

Advanced Mode

1. Press MENU on the remote control to display the OSD Menu.
2. Then press OK or use ▼/▲/◄/► on the remote control to select the Advanced Mode menu.
3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu layer.

Menu Option	Description
HDR	SDR Enable Standard Dynamic Range. Auto Automatically adjust to the input source.
EOTF	Automatically adjusts the brightness levels of your image according to the input source. You can also manually select a brightness level to display better picture quality.
HDMI Setting	Auto Sets the display to detect the range of the input signal automatically. Full Sets the color range from 0~255. Limited Sets the color range from 15~255.

Speaker

1. Press MENU on the remote control to display the OSD Menu.
2. Then press OK or use ▼/▲/◄/► on the remote control to select the Speaker menu.
3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.

NOTE: Some sub-menu options may have another sub-menu layer.

Menu Option	Description
Audio Mode	Music Vibrant treble and stronger bass. Movie Enhance the sense of space. User Customize the audio equalizer.
Reset	Return the Speaker settings to their default values.
Audio Volume	Adjust the volume level.
Mute	Toggle ON to turn off the speaker.

PIP/PBP Mode

1. Press MENU on the remote control to display the OSD Menu.
2. Then press OK or use ▼/▲/◄/► on the remote control to select the PIP/PBP Mode menu.
3. Press ▼/▲ to select the menu option. Then press OK to display its sub-men.

Menu Option	Description
PIP/PBP Setup	Off Disable the PIP/PBP feature. PIP Split the screen into two parts, a main window and an inset window. User can specify the input source for each screen. PBP Display up to four (4) windows on screen at the same time.

Information

1. Press MENU on the remote control to display the OSD Menu.
2. Then press OK or use ▼/▲/◄/► on the remote control to select the Information menu.
3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.

Menu Option	Description
Information	View Input Source, Resolution, and HDR information.

vCast

Working with ViewBoard® Cast software (vCast, vCast Pro, and vCastSender), the vCast application will allow the ViewBoard to receive laptop screens (Windows/Mac/Chrome) and mobile (iOS/Android) users’ screens, photos, videos, annotations, and camera(s) that are using the vCastSender application.

NOTE:

• ViewBoard® Cast software, laptops, and mobile devices can connect to both the same subnet and cross subnet by entering the on-screen PIN code.
• Connected devices will show up under Device List on the same subnet connection.
• If the device does not show up under Device List, users will need to key-in the on-screen PIN code.

Network Information

• Ports:

TCP 56789, 25123, 8121 & 8000 (Controlling message port & client device audio transfer)

TCP 8600 (BYOM)

TCP 53000 (Request share screen)

TCP 52020 (Reverse control)

TCP 52025 (Reverse control for ViewBoard Cast Button)

TCP 52030 (Status sync)

UDP 48689, 25123 (Device searching and broadcast & client device audio transfer)

UDP 5353 (Multicast search device protocol)

• Port and DNS Activation:

Port: 443

DNS: https://vcastactivate.viewsonic.com

• OTA Service:

Server Port: TCP443

Server FQDN Name: https://vcastupdate.viewsonic.com

Casting from Windows, MacBook, and Chrome Devices

1. Ensure the client device (e.g., laptop) is connected to the same network as the ViewBoard.

NOTE: The network name can be found under Room Network.



2. On the client device, visit the address that is shown on the ViewBoard to download and install the vCastSender application.
3. After installing, launch the vCastSender application.
4. To connect to the ViewBoard, input the PIN code and click OK.

NOTE: The PIN code can be found as highlighted below:



5. Additionally, you can connect to the ViewBoard or display by clicking Device List then the Device Name listed.


NOTE: The Device Name can be found as highlighted below:

Casting from Android Devices

1. Ensure the client device (e.g., Android phone or tablet) is connected to the same network as the ViewBoard.

NOTE: The network name can be found under Room Network.



2. On the Android client device, scan the QR code shown on the ViewBoard to directly download the vCastSender application, or download the application from the Google Play Store.



3. After installing, launch the vCastSender application.
4. To connect to the display, input the PIN code and select OK.

NOTE: The PIN code can be found as highlighted below:



5. You can also connect to the ViewBoard by clicking Device List then the Device Name listed.


NOTE: The Device Name can be found as highlighted below:



6. Additionally, you can connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.

Casting from Apple iOS Devices

Apple AirPlay® is compatible with vCast for screen mirroring and content streaming under the same subnet environment only. An “AirPlay Password” will be generated on-screen for connection when using AirPlay to cast to a ViewBoard.

1. Ensure the client device (e.g., iPhone or iPad) is connected to the same network as the ViewBoard.

NOTE: The network name can be found under Room Network.



2. On the iOS client device, directly open AirPlay and select the Device Name of the ViewBoard to connect.

NOTE: The Device Name can be found as highlighted below:



3. Input the generated on-screen AirPlay Password on the client device to connect.



NOTE: In a cross subnet environment, please download and connect with the vCastSender iOS application from the Apple App Store.

4. You can also connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.

Browser

Web browser for surfing the internet.

vSweeper

Remove unnecessary data and unwanted files.

Advanced Settings can also be customized to the user's needs.

WPS Office

Create, edit, and view Documents, Memos, Presentations, and Spreadsheets.

RS-232

This document describes the hardware interface and software protocols of RS-232 serial communication between the ViewSonic LED Display and computers or control systems.

RS-232 Hardware Specification

ViewSonic RSD-232 serial port on the lower left side:

1. Connector type: DB 9-Pin Female
2. Use of straight-through parallel cable for connection
3. Pin Assignment:

	Pin #	Signal	Remark
Female DB 9-Pin	1	NC
	2	TXD	Output from Display
	3	RXD	Input to Display
	4	NC
	5	GND	GND
	6	NC
	7	NC
	8	NC
	9	NC
	frame	GND

RS-232 Communication Setting

Baud Rate Select:	115200bps (fixed)
Data Bits:	8 bits (fixed)
Parity:	None (fixed)
Stop Bits:	1 (fixed)

Command Table

Function	Command Code (Hex)	HEX	Data Range
Power On	21	38 30 31 73 21 30 30 31 0D
Power Off (Standby)	21	38 30 31 73 21 30 30 30 0D
Get-Power Status	6C	38 30 31 67 6C 30 30 30 0D
Input Select: HDMI 1	22	38 30 31 73 22 30 30 34 0D
Input Select: HDMI 2	22	38 30 31 73 22 30 31 34 0D
Get-Input Select	6A	38 30 31 67 6A 30 30 30 0D
Input Select: Home	22	38 30 31 73 22 30 30 41 0D
Brightness: Down (-1)	24	38 30 31 73 24 39 30 30 0D
Brightness: Up (+1)	24	38 30 31 73 24 39 30 31 0D
Volume: Down (-1)	35	38 30 31 73 35 39 30 30 0D
Volume: Up (+1)	35	38 30 31 73 35 39 30 31 0D
Get-Volume	66	38 30 31 67 66 30 30 30 0D
Mute: OFF	36	38 30 31 73 36 30 30 30 0D
Mute: ON (mute)	36	38 30 31 73 36 30 30 31 0D
Get-Mute	67	38 30 31 67 67 30 30 30 0D
Number (0~9)	40	38 30 31 73 40 30 30 3x 0D	x = 0~9
Key Pad: UP	41	38 30 31 73 41 30 30 30 0D
Key Pad: DOWN	41	38 30 31 73 41 30 30 31 0D
Key Pad: LEFT	41	38 30 31 73 41 30 30 32 0D
Key Pad: RIGHT	41	38 30 31 73 41 30 30 33 0D
Key Pad: ENTER	41	38 30 31 73 41 30 30 34 0D
Key Pad: INPUT	41	38 30 31 73 41 30 30 35 0D
Key Pad: MENU	41	38 30 31 73 41 30 30 36 0D
Key Pad: EXIT	41	38 30 31 73 41 30 30 37 0D
Get-Operational Hours	31	38 30 31 67 31 30 30 30 0D

Technical Specifications

Model No.	P/N
VS18886	LDP216-251

Item	Category	Specifications
Model		LDP216-251
LED Screen	Type	Direct View LED Display
	Size	216”
	Active Size	188 ³¹/₃₂” (H) x 106 ¹⁹/₆₄” (V) 4800 mm (H) x 2700 mm(V)
	Pitch Size	2.5 mm
	Resolution	FHD, 1920 x 1080
	Refresh Frequency	4440Hz
	Contrast Ratio	6000:1 (Typical)
	Brightness	100-600 cd/m2 (8 levels of adjustments)
	LED Lifespan	100,000 hours
Input Signal		6 x HDMI (1920 x 1080 @ 60Hz, HDCP 2.2) 1 x LAN (RJ45) 3 x USB Type A (2.0) 1 x USB Type C
Output Signal		2 x HDMI (1080p @ 60Hz) 1 x Audio Out (3.5 mm) 3 x USB Type A (Power)[5V/1.5A]
Speaker Output		20W x 2 Harman-Kardon
RS-232		RS-232 Serial Control
Power	Voltage	100V-120V/30A ~ 50/60Hz 220-240V/15A ~ 50Hz (vary by country)
Operating Conditions	Temperature	32° F to 104° F (0° C to 40° C)
	Humidity	20%~80% non-condensing
	Altitude	≤ 6,562 ft (2,000 m)
Storage Conditions	Temperature	-4° F to 140° F (-20° C to 60° C)
	Humidity	10%~90% non-condensing
	Altitude	≤ 6,562 ft (2,000 m)
Physical Dimensions (W x H x D)	w/o Wall Mount	189 ³/₈” x 111 ¹/₃₂” x 1 ³/₈” (4810 x 2820.3 x 35 mm)
	w/ Wall Mount	189 ³/₈” x 111 ¹/₃₂” x 3 ¹/₃₂” (4810 x 2820.3 x 77 mm)
Weight	Physical	859.8 lbs. (390 kg)
Power Consumption	On	2500W (Normal) 4000W (Max)
	Sleep	< 0.5W

Timing Chart

HDMI (PC)

Resolution	Refresh Rate (Hz)
640 x 480	60, 72, 75
720 x 400	70, 85
800 x 600	56, 60, 72, 75
832 x 624	75
1024 x 768	60, 70, 75
1152 x 864	60, 70, 75
1152 x 870	75
1280 x 720	60
1280 x 960	60
1280 x 1024	60, 75
1360 x 768	85
1440 x 900	60
1600 x 1200	60, 70, 75
1680 x 1050	60
1920 x 1080	60
1920 x 1200	60

HDMI (Video)

Video	Resolution	Refresh Rate (Hz)
480i	720 x 480	60
	1440 x 480	60
576i	720 x 576	50
	1440 x 576	50
480p	720 x 480	60
576p	720 x 576	50
	1440 x 576	50
720p	1280 x 720	60
1080i	1920 x 1080	50, 60
1080p	1920 x 1080	24, 25, 30, 50, 60

NOTE:

• The computer text quality is optimal in HD 1080 mode (1920 x 1080, 60Hz).
• Your computer display screen might appear different depending on the manufacturer and your operating system.
• Consult your computer’s instructional manual on how to connect to an external display.
• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 67.5KHz(horizontal). In some cases, abnormal signals (such as stripes) might appear on the screen when the computer power is turned off (or if the computer is disconnected). If this is the case, press the [INPUT SOURCE] button to enter the video mode and supply an active signal.
• The display timings conform to VESA and CTA standards.
• For 4:3 content, the screen will display them in the center of the screen and maintain a 4:3 aspect ratio.
• The optimal vertical frequency for each mode is 60Hz.

Supported Media Formats

Multimedia Codec Formats

Type	File Type	Codec	Ability
Photo	PNG		Max Resolution: 8000 × 8000 Min Resolution : 4 x 4
	JPEG/JPG		Max Resolution: 8000 × 8000 Min Resolution: 4 x 4
Video	.3gp	H.263	Max Resolution: 1920 x 1080 30 Audio: AMR_NB
		MPEG-4	Max Resolution: 1920 x 1080 30 Audio: AMR_NB
	.avi	MPEG-2/4	Max Resolution: 1920 x 1080 30 Audio: MPEG_Audio_Layer3
		MJPEG	Max Resolution: 1920 x 1080 30 Audio: MPEG_Audio_Layer3
	.flv	H.264	Max Resolution: 1920 x 1080 30 Audio: AAC 2.0
	.mkv	H.264	Max Resolution: 1920 x 1080 30 Audio: AAC 2.0
		H.265	Max Resolution: 1920 x 1080 30 Audio: AAC 2.0
	.mp4	H.264	Max Resolution: 3840 x 2160 30 Audio: MPEG_Audio_Layer3
		H.265	Max Resolution: 3840 x 2160 30 Audio: MPEG_Audio_Layer3
		MPEG-4	Max Resolution: 1920 x 1080 30 Audio: MPEG_Audio_Layer3
	.vob	MPEG-2	Max Resolution: 1920 x 1080 30 Audio: PCM
	.mpg/.mpeg	MPEG-2	Max Resolution: 1920 x 1080 30 Audio: MPEG_Audio_Layer3
Audio	.aac	GAAC	Sample Rate: 8K~96KHz Bit Rate: 24K~576Kbps
	.ape	Monkey's Audio	Sample Rate: max 48KHz Bit Rate: max 1411Kbps
	.flac	FLAC	Sample Rate: max 192KHz Bit Rate: max 1411Kbps
	.m4a	ALAC	Sample Rate: 8K~96KHz Bit Rate: 24K~576Kbps
	.mp3	MPEG1/2 layer 3	Sample Rate: 8K~48KHz Bit Rate: 32K~320Kbps
	.ogg	Vorbis	Sample Rate: 8K~48KHz Bit Rate: max 256Kbps
	.wav	LPCM	Sample Rate: 8K~192KHz Bit Rate: max 320Kbps

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.

The device was tested and complies to measurement standards and procedures specified in FCC CFR Tile 47 Part 15 Subpart C.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

IC Warning Statement

This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : ( 1 ) l’appareil ne doit pas produire de brouillage, et ( 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en compromettre le fonctionnement.

Country Code Statement

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.

IC Radiation Exposure Statement

This equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The device for the band 5150-5825 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlê. Cet équipement doit être installé et utilize avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. les dispositifs fonctionnant dans la bande 5150-5825 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6⁺)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below. Examples of exempted components are:

• Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
• Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher.

European Union Regulatory Conformance

The equipment complies with the RF Exposure Requirement 2014/53/EU, Council Recommendation of 16 April 2014 on the limitation of exposure of the general public to electromagnetic fields (0-300 GHz). This equipment meets the following conformance standards: EN301489-1, EN301489-17, EN62368-1, EN300328.

We, hereby, declare that this Wi-Fi radio is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada
https://www.viewsonic.com/us/go-green-with-viewsonic

Europe
https://www.viewsonic.com/eu/environmental-social-governance/recycle

Taiwan
https://recycle.moenv.gov.tw

For EU users, please contact us for any safety/accident issue experienced with this product:

	ViewSonic Europe Limited Haaksbergweg 75 1101 BR Amsterdam Netherlands
	+31 (0) 650608655
	EPREL@viewsoniceurope.com
	https://www.viewsonic.com/eu/

Copyright Information

Copyright© ViewSonic® Corporation, 2022. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

CTA is a registered trademark of the Consumer Technology Association Standards.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

LDP216-251_UG_ENG_1a_20230206

Maintenance Tool

Before Use

Overview

Number	Item	Description
1	Release Button	Press the button to release the suction pressure.
2	Silicone Suction Cup	Apply pressure on the LED module to activate suction.

LED Module Disassembly

Specifications

Item	Description
Model Name	LD-MK-002
Product Dimension	210 x 260 x 87.7 mm (8.27" x 10.23" x 3.46")
Weight	0.9 kg (1.98 lbs)
Working Temperature	3° to 55° C (37.4° to 131° F)

Customer Service Contact Information

For technical support or product service, see the table below or contact your reseller.

Note: You will need the product’s serial number, which is located on the rear of the monitor by the I/O ports.

Asia Pacific & Africa

Country / Region	Website
Australia	https://viewsonic.com/au/
Bangladesh	https://www.viewsonic.com/bd/
中囯(China)	https://www.viewsonic.com.cn
香港 (繁體中文)	https://www.viewsonic.com/hk/
Hong Kong (English)	https://www.viewsonic.com/hk-en/
India	https://www.viewsonic.com/in/
Indonesia	https://www.viewsonic.com/id/
Israel	https://www.viewsonic.com/il/
日本 (Japan)	https://www.viewsonic.com/jp/
Korea	https://www.viewsonic.com/kr/
Malaysia	https://www.viewsonic.com/my/
Middle East	https://www.viewsonic.com/me/
Myanmar	https://www.viewsonic.com/mm/
Nepal	https://www.viewsonic.com/np/
New Zealand	https://www.viewsonic.com/nz/
Pakistan	https://www.viewsonic.com/pk/
Philippines	https://www.viewsonic.com/ph/
Singapore	https://www.viewsonic.com/sg/
臺灣 (Taiwan)	https://www.viewsonic.com/tw/
ประเทศไทย (Thailand)	https://www.viewsonic.com/th/
Việt Nam	https://www.viewsonic.com/vn/
South Africa & Mauritius	https://www.viewsonic.com/za/

Americas

Country / Region	Website
United States	https://www.viewsonic.com/us/
Canada	https://www.viewsonic.com/us/
Latin America	https://www.viewsonic.com/la/

Europe

Country / Region	Website
Europe	https://www.viewsonic.com/eu/
France	https://www.viewsonic.com/fr/
Deutschland	https://www.viewsonic.com/de/
Қазақстан	https://www.viewsonic.com/kz/
Россия	https://www.viewsonic.com/ru/
España	https://www.viewsonic.com/es/
Türkiye	https://www.viewsonic.com/tr/
Україна	https://www.viewsonic.com/ua/
United Kingdom	https://www.viewsonic.com/uk/

Limited Warranty

ViewSonic® Commercial Display

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, and as your sole remedy, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components. The repair or replacement unit or parts or components will be covered by the balance of the time remaining on the customer’s original limited warranty and the warranty period will not be extended. ViewSonic® provides no warranty for any third-party software whether included with the product or installed by the customer, installation of any unauthorized hardware parts or components (e.g. Projector Lamps). (Please refer to: “What the warranty excludes and does not cover” section).

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty excludes and does not cover:

• Any product on which the serial number has been defaced, modified, or removed.
• Damage, deterioration, or malfunction resulting from:
  • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
  • Repair or attempted repair by anyone not authorized by ViewSonic®.
  • Damage to or loss of any programs, data, or removable storage media.
  • Normal wear and tear.
  • Removal or installation of the product.
• Software or data loss occurring during repair or replacement.
• Any damage of the product due to shipment.
• Causes external to the product, such as electric power fluctuations or failure.
• Use of supplies or parts not meeting ViewSonic’s specifications.
• Failure of owner to perform periodic product maintenance as stated in the User Guide.
• Any other cause which does not relate to a product defect.
• Damage caused by static (non-moving) images displayed for lengthy periods of time (also referred to as image burn-in).
• Software - Any third-party software included with the product or installed by the customer.
• Hardware/Accessories/Parts/Components – Installation of any unauthorized hardware, accessories, consumable parts or components (e.g. Projector Lamps).
• Damage to, or abuse of, the coating on the surface of the display through inappropriate cleaning as described in the product User Guide.
• Removal, installation, and set-up service charges, including wall-mounting of the product.

How to get service:

• For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number.
• To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
• Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.
• For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

• Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
• Any other damages, whether incidental, consequential or otherwise.
• Any claim against the customer by any other party.
• Repair or attempted repair by anyone not authorized by ViewSonic®.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer.

The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found at: http://www.viewsonic.com/eu/ under “Support/Warranty Information”.

Mexico Limited Warranty

ViewSonic® Commercial Display

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty excludes and does not cover:

• Any product on which the serial number has been defaced, modified or removed.
• Damage, deterioration, or malfunction resulting from:
  • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
  • Causes external to the product, such as electrical power fluctuations or failure.
  • Use of supplies or parts not meeting ViewSonic®’s specifications.
  • Normal wear and tear.
  • Any other cause which does not relate to a product defect.
• Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.
• Removal, installation, insurance, and set-up service charges.

How to get service:

• For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.
• To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
• Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center.
• Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

• Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
• Any other damages, whether incidental, consequential or otherwise.
• Any claim against the customer by any other party.
• Repair or attempted repair by anyone not authorized by ViewSonic®.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo: Distribuciones y Servicios Computacionales SA de CV. Calle Juarez 284 local 2 Col. Bugambilias C.P: 83140 Tel: 01-66-22-14-9005 E-Mail: disc2@hmo.megared.net.mx	Villahermosa: Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: compumantenimientos@prodigy.net.mx
Puebla, Pue. (Matriz): RENTA Y DATOS, S.A. DE C.V. Domicilio: 29 SUR 721 COL. LA PAZ 72160 PUEBLA, PUE. Tel: 01(52).222.891.55.77 CON 10 LINEAS E-Mail: datos@puebla.megared.net.mx	Veracruz, Ver.: CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419 ENTRE PINZÓN Y ALVARADO Fracc. Reforma C.P. 91919 Tel: 01-22-91-00-31-67 E-Mail: gacosta@qplus.com.mx
Chihuahua: Soluciones Globales en Computación C. Magisterio # 3321 Col. Magisterial Chihuahua, Chih. Tel: 4136954 E-Mail: Cefeo@soluglobales.com	Cuernavaca: Compusupport de Cuernavaca SA de CV Francisco Leyva # 178 Col. Miguel Hidalgo C.P. 62040, Cuernavaca Morelos Tel: 01 777 3180579 / 01 777 3124014 E-Mail: aquevedo@compusupportcva.com
Distrito Federal: QPLUS, S.A. de C.V. Av. Coyoacán 931 Col. Del Valle 03100, México, D.F. Tel: 01(52)55-50-00-27-35 E-Mail : gacosta@qplus.com.mx	Guadalajara, Jal.: SERVICRECE, S.A. de C.V. Av. Niños Héroes # 2281 Col. Arcos Sur, Sector Juárez 44170, Guadalajara, Jalisco Tel: 01(52)33-36-15-15-43 E-Mail: mmiranda@servicrece.com
Guerrero Acapulco: GS Computación (Grupo Sesicomp) Progreso #6-A, Colo Centro 39300 Acapulco, Guerrero Tel: 744-48-32627	Monterrey: Global Product Services Mar Caribe # 1987, Esquina con Golfo Pérsico Fracc. Bernardo Reyes, CP 64280 Monterrey N.L. México Tel: 8129-5103 E-Mail: aydeem@gps1.com.mx
MERIDA: ELECTROSER Av Reforma No. 403Gx39 y 41 Mérida, Yucatán, México CP97000 Tel: (52) 999-925-1916 E-Mail: rrrb@sureste.com	Oaxaca, Oax.: CENTRO DE DISTRIBUCION Y SERVICIO, S.A. de C.V. Murguía # 708 P.A., Col. Centro, 68000, Oaxaca Tel: 01(52)95-15-15-22-22 Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com
Tijuana: STD Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembr Tijuana, Mexico	FOR USA SUPPORT: ViewSonic® Corporation 381 Brea Canyon Road, Walnut, CA. 91789 USA Tel: 800-688-6688 http://www.viewsonic.com

Using the Direct View LED Display Safely

Please read the following Safety Precautions before you start using the device.

Keep this user guide in a safe place for later reference. Read all warnings and follow all instructions. Ensure there is no direct airflow from air conditioning blowing on the display. Do not use the device near water. To reduce the risk of fire or electric shock, do not expose the device to moisture. Avoid exposing the device to direct sunlight or other sources of sustained heat. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the device to dangerous levels. When moving the device, be careful not to drop or bump the device on anything. Do not place the device on an uneven or unstable surface. The device may fall over resulting in an injury or a malfunction. Do not place any heavy objects on the device or connection cables. If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device. Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet. When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.

Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the equipment. Ensure that the power outlet is located near the equipment so that it is easily accessible. Only use attachments/accessories specified by the manufacturer. When a cart is used, use with caution when moving the cart/equipment combination to avoid injury from tipping over. Disconnect the power plug from the AC outlet if the device is not being used for a long period of time. Place the device in a well-ventilated area. Do not cover the surface of the display with any material. Do not block the air circulation around the display. Keep flammable materials away from the display. Refer all servicing to qualified service personnel. Service will be required when the unit has been damaged in any way, such as: if the power supply cord or plug is damaged; if liquid is spilled onto or objects fall in the unit; if the unit is exposed to moisture; if the unit does not operate normally or has been dropped. Do not assemble the display by yourself. This panel is an advanced product that contains millions of pixels. You may occasionally see pixel spots when viewing the screen. Since these deactivated pixels are not a defect, the performance and reliability of the product is not affected.

Troubleshooting Common Problems

General

Why isn't the remote control working?

Solution 1 ► Check whether something is obstructing the display’s remote control receiver.

Solution 2 ► Check whether the battery polarities in the remote control are installed correctly.

Solution 3 ► Check whether the batteries need to be replaced.

What should I do if the device just turns off unexpectedly?

Solution 1 ► Check whether Sleep mode is enabled.

Solution 2 ► Check if there is a power outage in your area.

Solution 3 ► Turn on the display, provide an active signal, and see if the problem is with the signal or external control system.

What should I do if the power indicator is off and there is no response?

Solution 1 ► Ensure the power cable is connected and not loose.

Solution 2 ► Check that the power outlet is functioning properly and meets the required electrical requirement.

Why does the display not recognize the USB storage device?

Solution 1 ► Ensure the drive is either formatted for FAT32 or NTFS.

Solution 2 ► If the USB storage device needs external power, connect its power adapter to an electrical outlet.

Video Not Working Properly

Why is there no picure or sound?

Solution 1 ► Check the Power status.

Solution 2 ► Check the signal cable.

Solution 3 ► Use the remote control to ensure the input source setting is the same as the connected device.

What should I do if the picture is unclear or cuts in and out?

Solution 1 ► Check the signal cable.

Solution 2 ► Check if other electronics or different signal types are interrupting the signal.

Solution 3 ► An optional active video cable or optional video extender is required for a long distance source.

What should I do if the picture quality is poor?

Solution 1 ► Adjust chroma and/or brightness settings in the menu.

Solution 2 ► Check the signal cable.

Solution 3 ► Use the display’s native resolution for the source.

Audio Not Working Properly

Why is there no sound?

Solution 1 ► Press the Mute/Unmute button.

Solution 2 ► Adjust the volume.

Solution 3 ► Check the audio cable connection (if used).

Solution 4 ► If using a computer digital video with embedded audio, ensure the computer speakers are set to external speakers.

What should I do if sound is only coming from one speaker?

Solution 1 ► Adjust the sound balance in the menu.

Solution 2 ► Check the left and right sound control panel settings of the computer or media player source.

Solution 3 ► Check the audio cable connection (if used).

Solution 4 ► Ensure the content has two audio channels and not mono.

Maintaining the LED Display

General Precautions

• The LED lights used in the modules are susceptible to ESD (Electrostatic discharge). To prevent damage to the LED lights, do not touch them with bare hands or with conductive materials when handling.
• It is recommended to regularly inspect all installed components.
• Do not bring objects close to the ventilation holes of the display. Burns or personal injuries may occur if any body parts are brought too close.
• Be sure to power off and disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock.
• Power off and disconnect the power plug from the wall outlet as a safety precaution before performing any type of cleaning or maintenance.

Initial Operation

• If a new screen has been stowed for less than three (3) months, it can be used at normal brightness during its first use.
• If a new screen has been stowed for more than three (3) months, the brightness should be set at 30% for its first use and allowed to operate for two (2) hours continuously. After two (2) hours of use, power off for 30 minutes. The new screen is now ready for normal brightness usage.

Front Panel Cleaning Instructions

• Use cool, compressed air to remove dust when the power is off. If the dust cannot be removed, the LED module should be replaced.
• Do not scratch and do not put pressure on the panel surface with fingers or any abrasive object.
• Do not use volatile substances such as sprays, solvents, or thinners.

Cabinet Cleaning Instructions

• Do not allow water or detergent to come into contact with the surface of the display. If water or moisture gets inside the unit, a system malfunction or electrical shock may occur.
• Do not scratch and do not put pressure on the cabinet with any abrasive objects of any kind.
• Do not use volatile substances such as sprays, solvents, or thinners on the cabinet.
• Do not place anything made from rubber or PVC near the cabinet for any extended periods of time.

Regular Use

• It is recommended to turn on the display at least once a month for more than eight (8) hours. During a wet and rainy season, it is recommended to turn on the display at least once a week.
• Avoid using full white, full red, full blue, or full green content for an extended period to avoid excessive power usage thus affecting the LED lifespan.
